10.2.3 Application Curves
Figure 10-2 and Figure 10-3 show the propagation delay from the TXD pin to the LIN pin for the dominant to recessive and recessive to dominant edges. Device was configured in commander mode with external pull-up resistor (1 k?) and 680 pF bus capacitance.

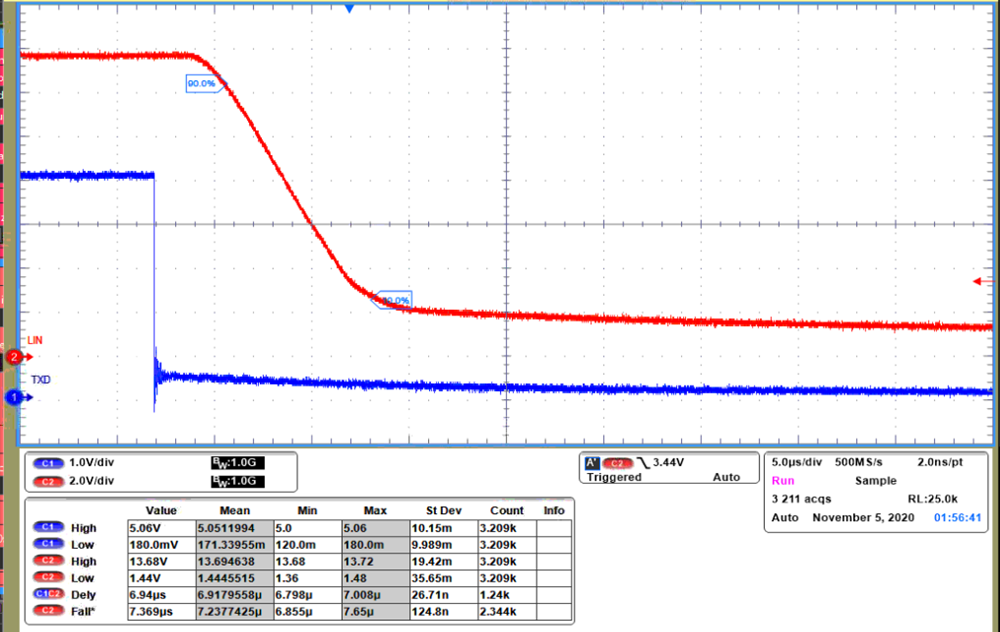

Figure 10-2 Dominant To Recessive Propagation Delay

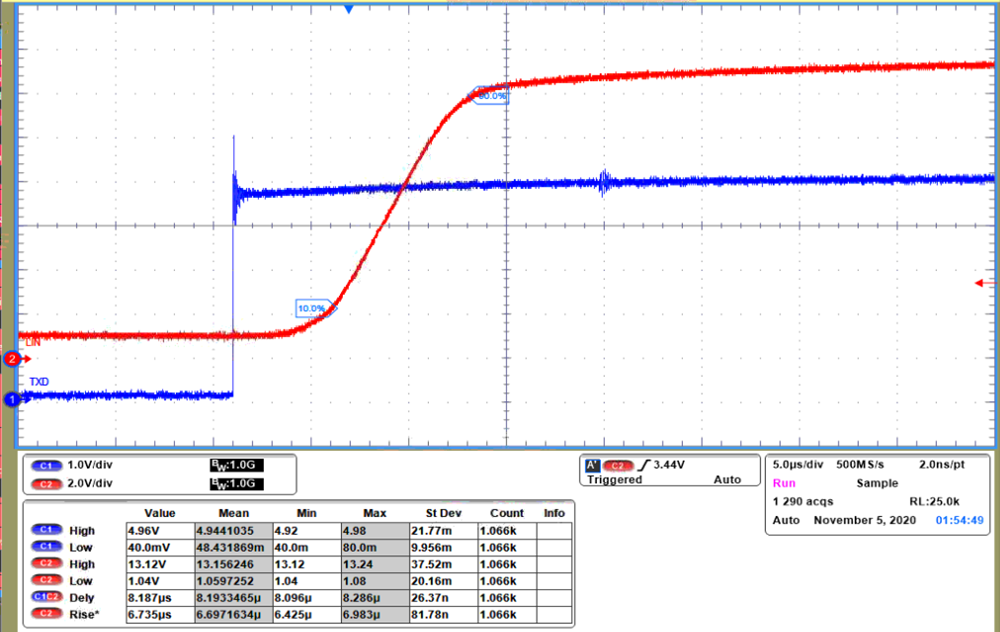

Figure 10-3 Recessive to Dominant Propagation Delay
