7.9 Typical Curves

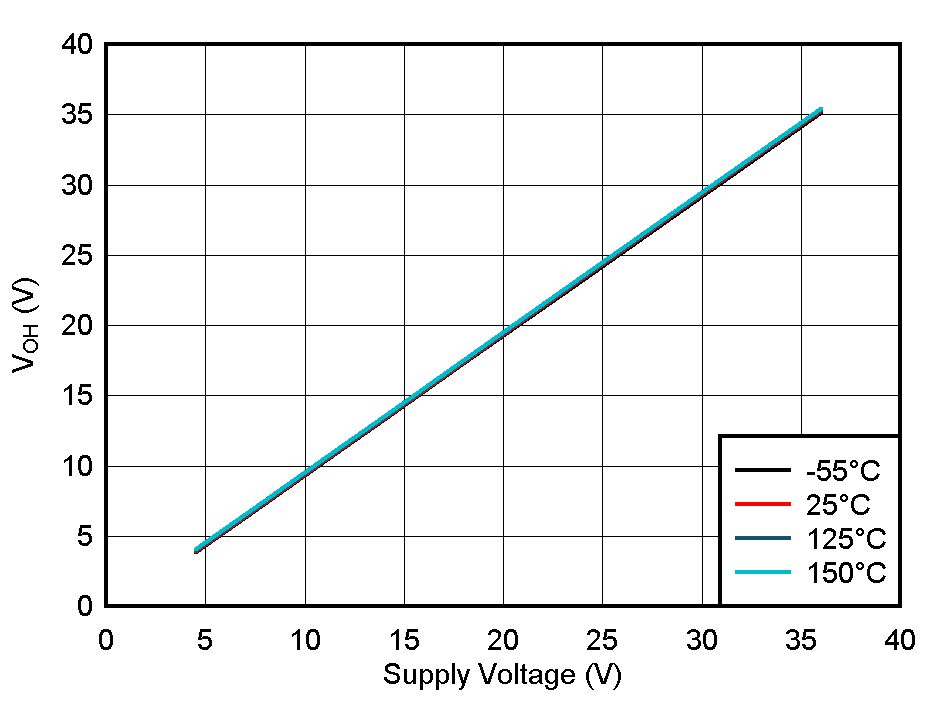

Figure 7-1 VOH vs
VSUP and Temperature

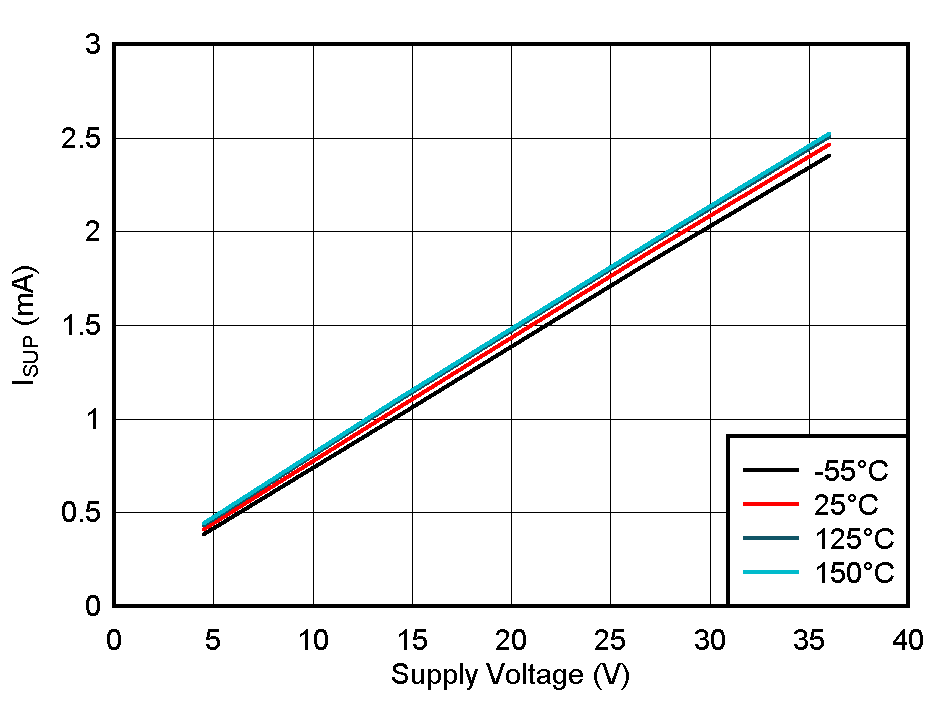

Figure 7-3 Normal mode
ISUP dominant vs VSUP and Temperature

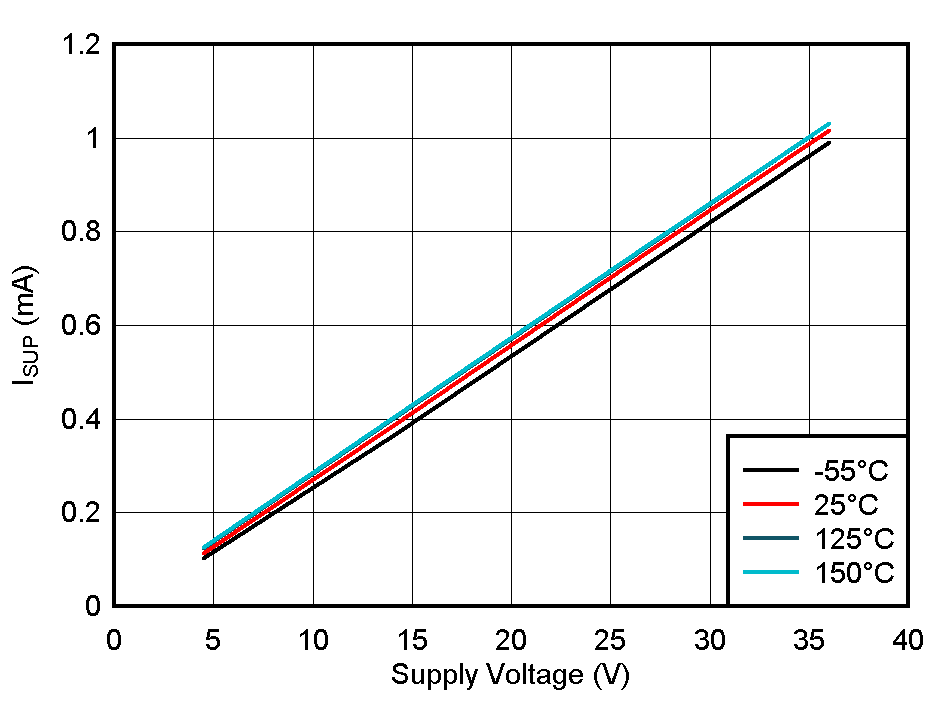

Figure 7-5 Standby mode
ISUP dominant vs VSUP and Temperature

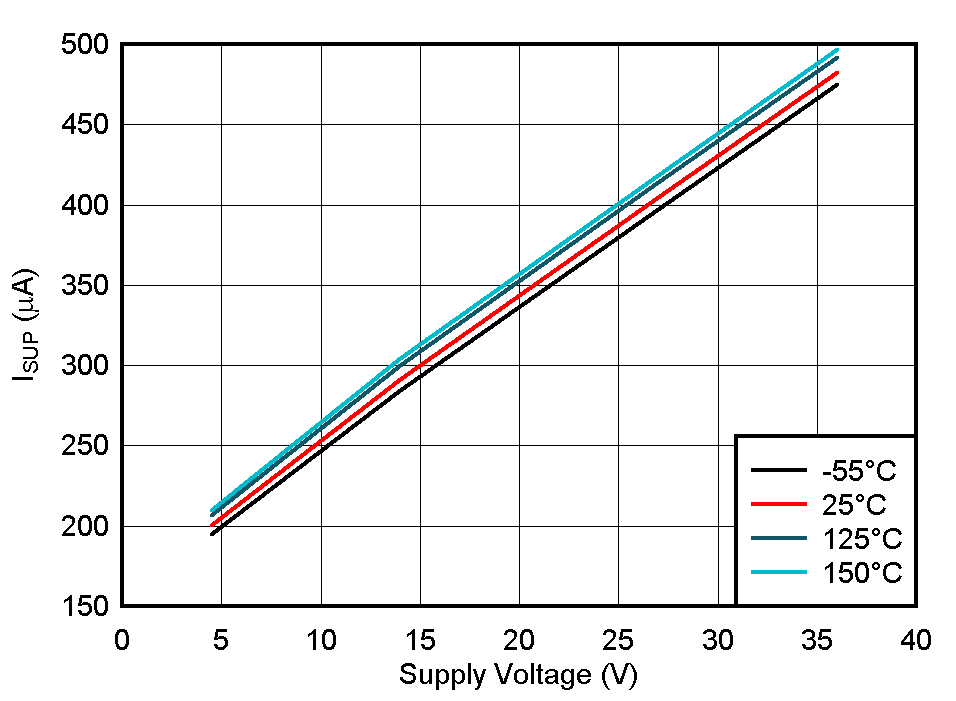

Figure 7-7 Sleep mode ISUP
vs VSUP and Temperature

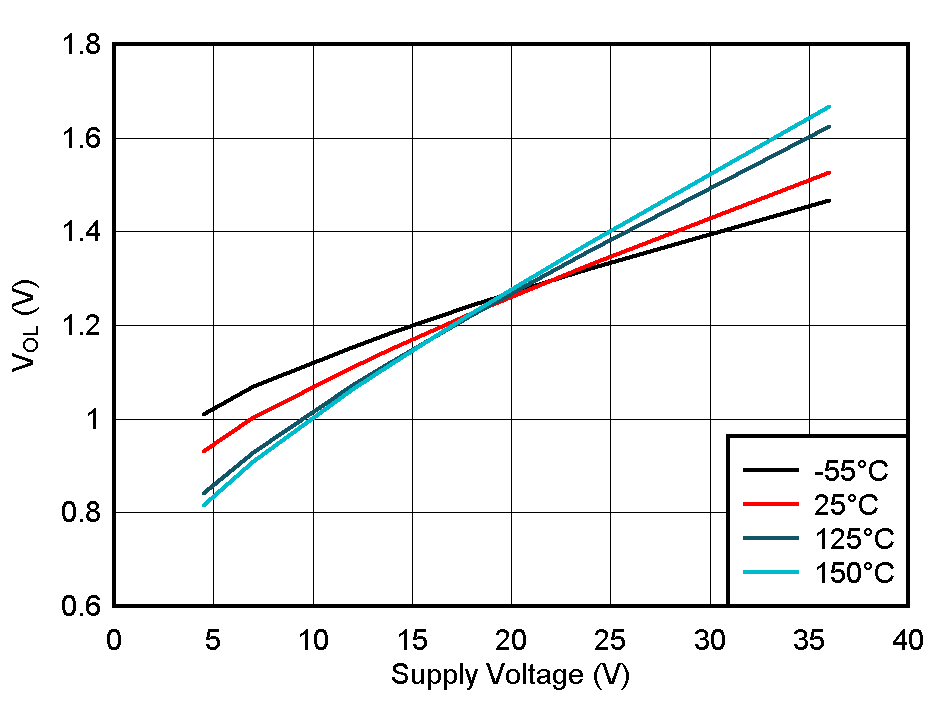

Figure 7-2 VOL vs
VSUP and Temperature

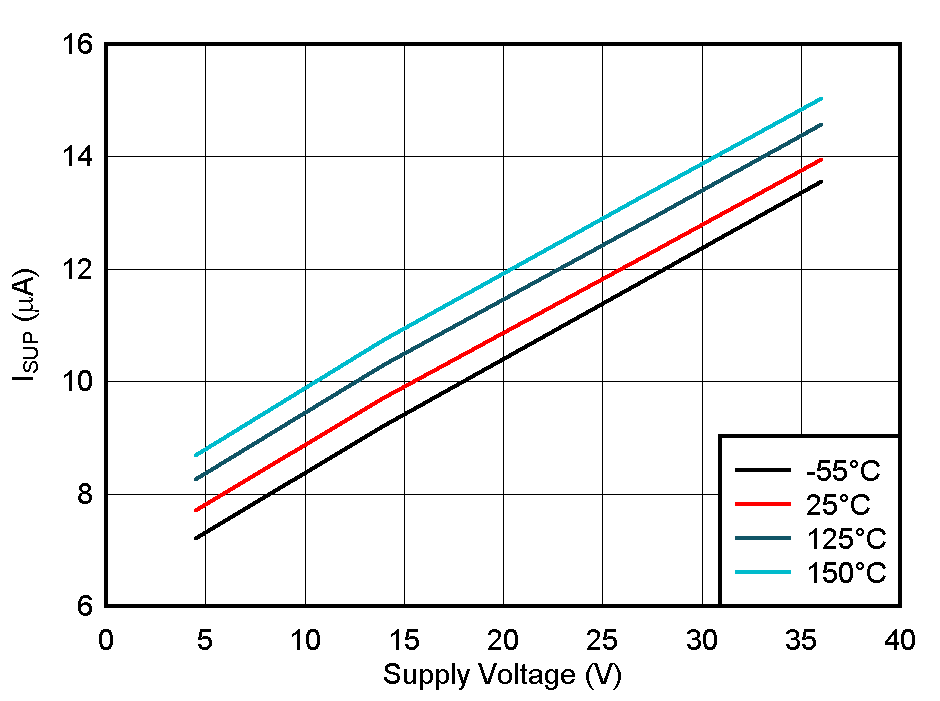

Figure 7-4 Normal mode
ISUP recessive vs VSUP and TemperatureFigure 7-6 Standby mode
ISUP recessive vs VSUP and Temperature
