10.2 Typical Application

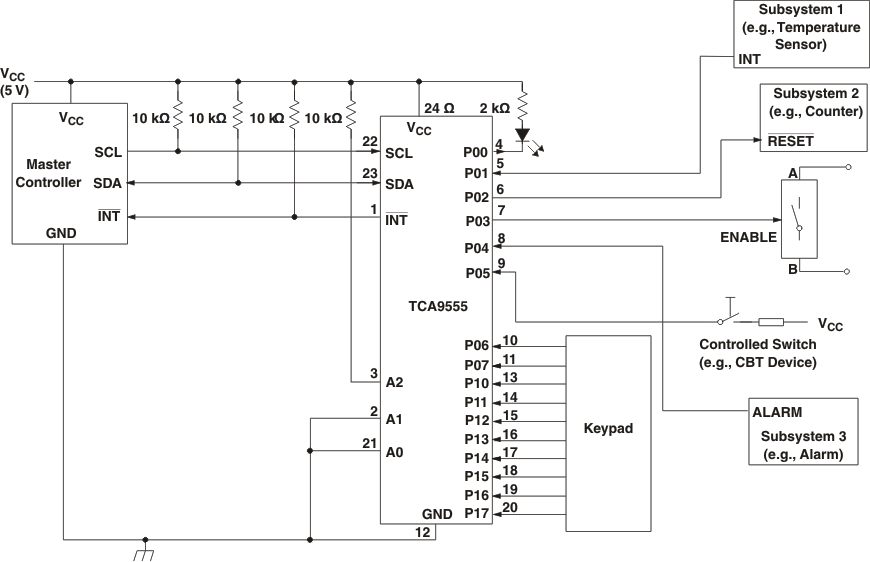

Figure 34 shows an application in which the TCA9555 can be used to control multiple subsystems, and even read inputs from buttons.
A. Device address is configured as 0100100 for this example.
B. P00, P02, and P03 are configured as outputs.
C. P01, P04–P07, and P10–P17 are configured as inputs.
D. Pin numbers shown are for the PW package.
Figure 34. Typical Application
