9.2.3 Application Curves

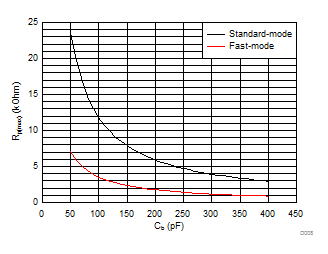

| Standard-mode (fSCL= 100 kHz, tr = 1 µs) |
Fast-mode (fSCL = 400 kHz, tr = 300 ns) |

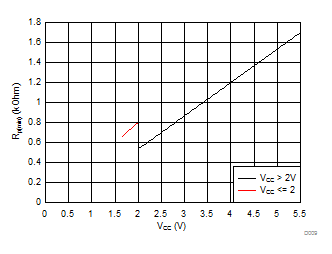

| VOL = 0.2 × VCC, IOL = 2 mA when VCC ≤ 2 V | ||
| VOL = 0.4 V, IOL = 3 mA when VCC > 2 V |
