6.10 Typical Characteristics
TA = 25°C (unless otherwise noted)

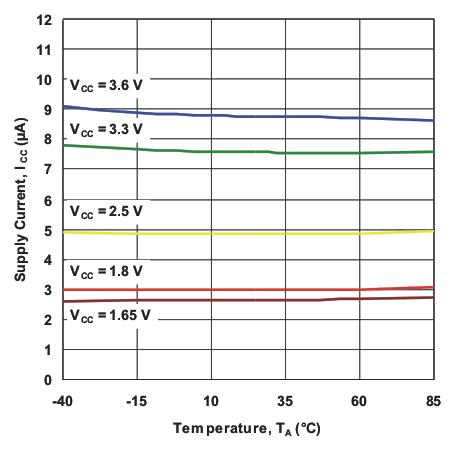

Figure 1. Supply Current vs Temperature

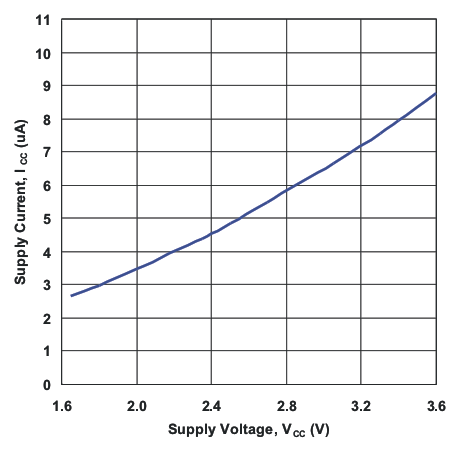

Figure 3. Supply Current vs Supply Voltage

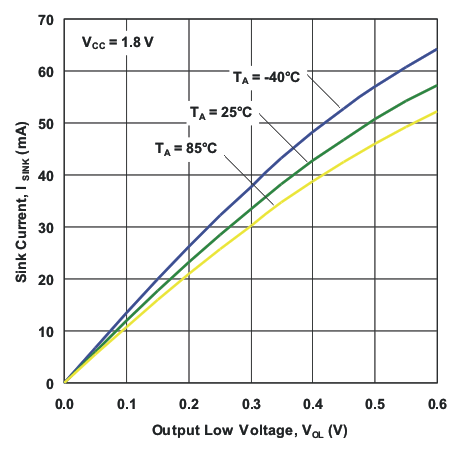

Figure 5. I/O Sink Current vs Output Low Voltage
(VCC = 1.8 V)

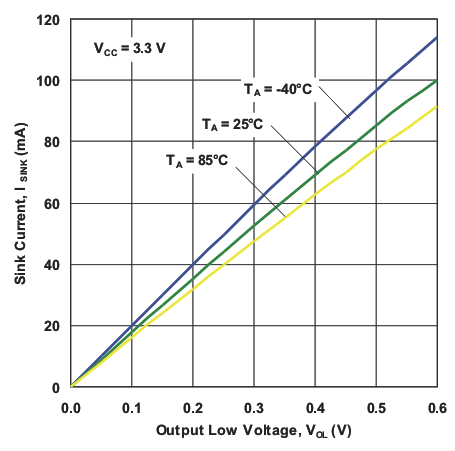

Figure 7. I/O Sink Current vs Output Low Voltage
(VCC = 3.3 V)

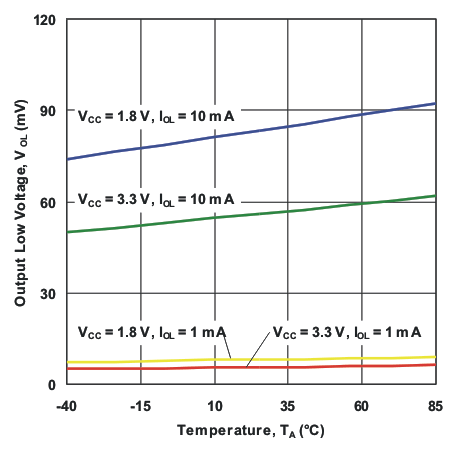

Figure 9. I/O Low Voltage vs Temperature

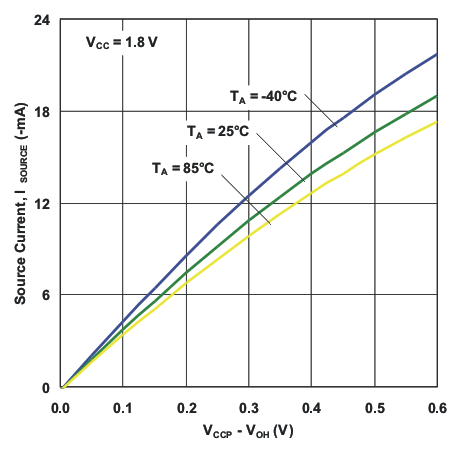

Figure 11. I/O Source Current vs Output High Voltage
(VCC = 1.8 V)

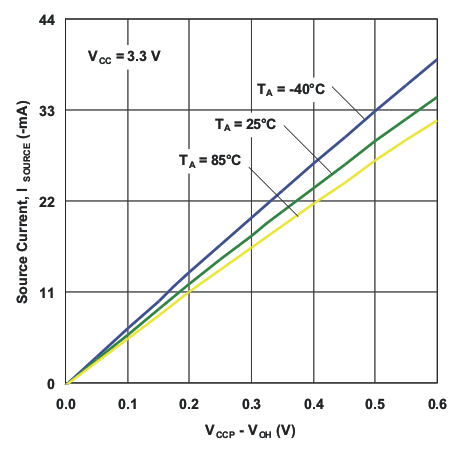

Figure 13. I/O Source Current vs Output High Voltage
(VCC = 3.3 V)

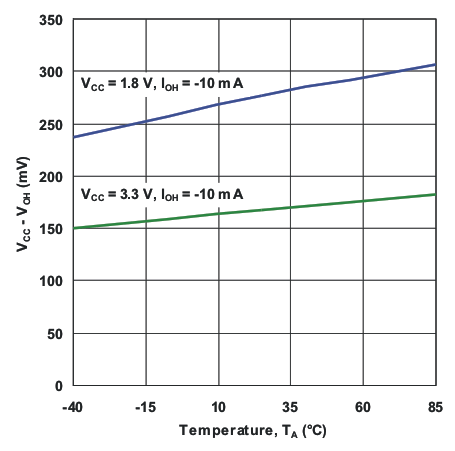

Figure 15. I/O High Voltage vs Temperature

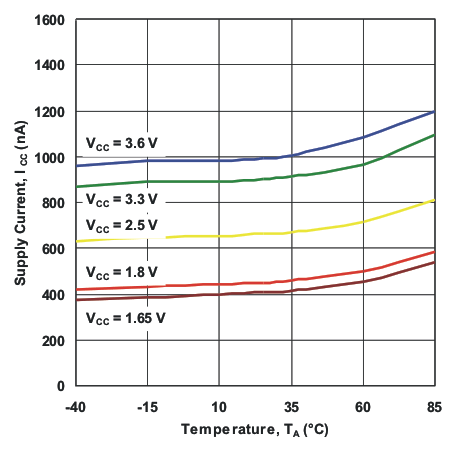

Figure 2. Standby Supply Current vs Temperature

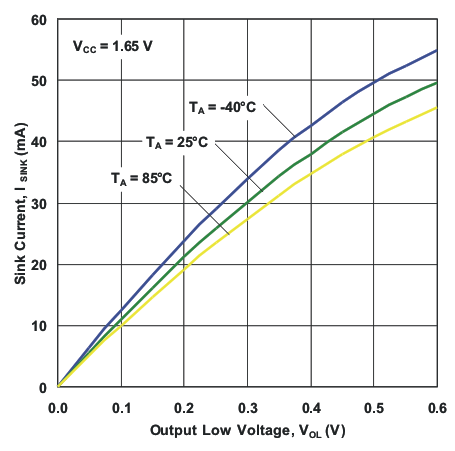

Figure 4. I/O Sink Current vs Output Low Voltage
(VCC = 1.65 V)

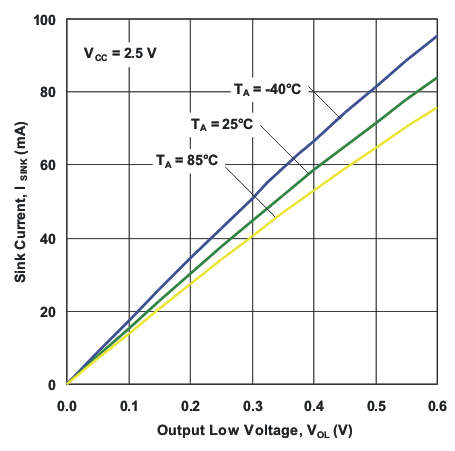

Figure 6. I/O Sink Current vs Output Low Voltage
(VCC = 2.5 V)

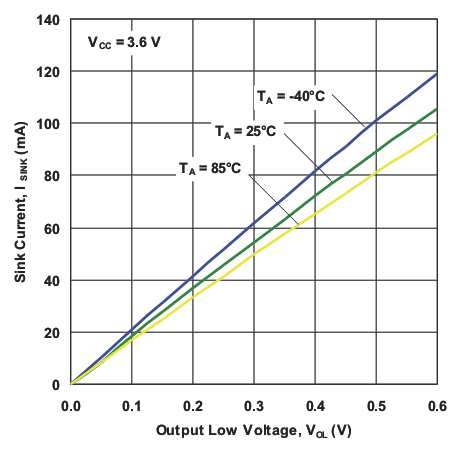

Figure 8. I/O Sink Current vs Output Low Voltage
(VCC = 3.6 V)

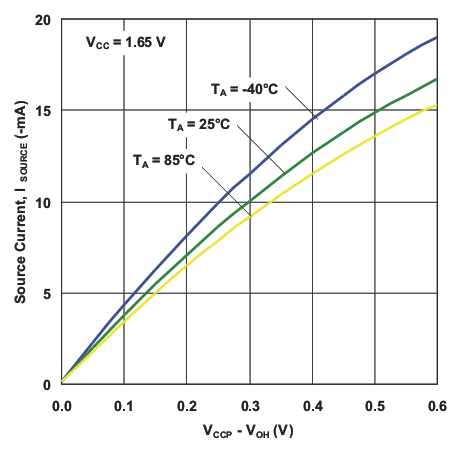

Figure 10. I/O Source Current vs Output High Voltage
(VCC = 1.65 V)

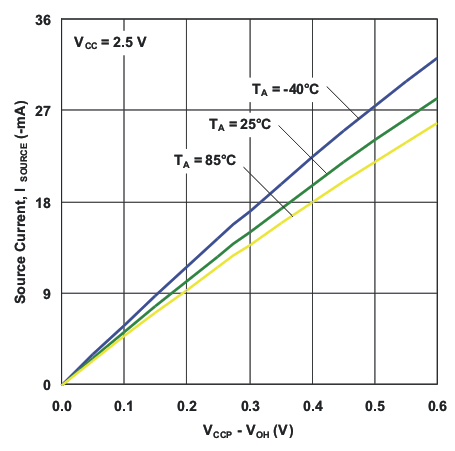

Figure 12. I/O Source Current vs Output High Voltage
(VCC = 2.5 V)

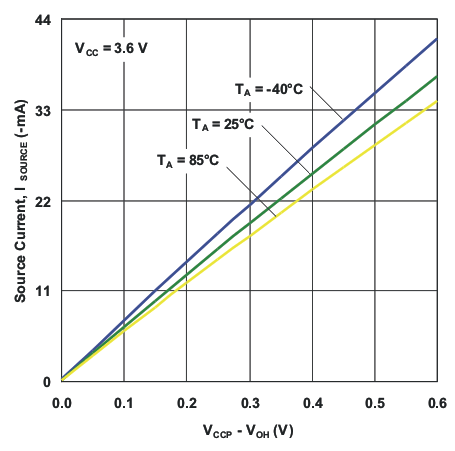

Figure 14. I/O Source Current vs Output High Voltage
(VCC = 3.6 V)
