9.3.5.1 Spread-Spectrum
Spread-spectrum modulation is a PWM modulation technique that reduces the peaks seen in EMI measurements by varying the output PWM frequency. The minimum and maximum spread-spectrum frequencies are adjustable using the spread-spectrum registers discuss below.
To enable spread-spectrum follow the procedure below:
- The TAS6424R-Q1 must be correctly powered and in Hi-Z mode.
- While in Hi-Z mode, configure and enable spread-spectrum using I2C.
- The spread-spectrum settings are retained while PVDD and VBAT are applied, but must be enabled again if PVDD or VBAT are removed or invalid.

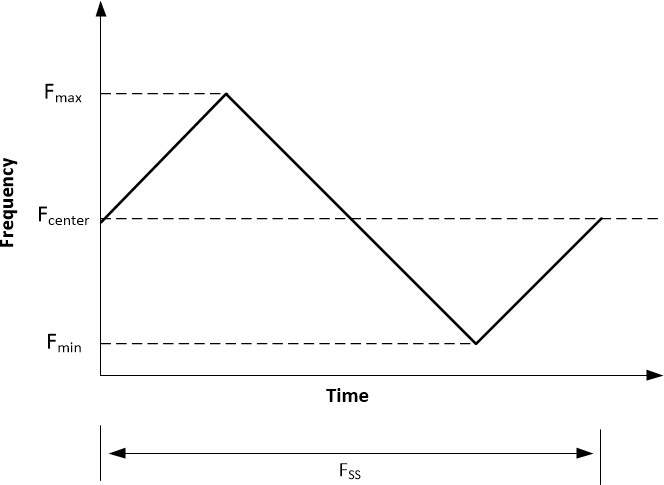

Figure 9-6 Spread-Spectrum Algorithm
Diagram The spread-spectrum registers are calculated using the relationships below. Note that it's recommended to start with SS_PRE_DIV = 0x1F for most use cases.
- SS_PRE_DIV = (256 * FS / Fcenter) - 2) / 2
- SS_AMP = 64 * (Fcenter - Fmin) / Fcenter
- SS_STEP = 16 * 4 * SS_AMP * FSS / Fcenter
where
- FS - audio sampling frequency
- Fmax - maximum spread-spectrum frequency
- Fmin - minimum spread-spectrum frequency
- Fcenter - spread-spectrum center frequency
- FSS - spread-spectrum triangle waveform frequency
- FPWM_min - minimum PWM output frequency with spread-spectrum enabled
- FPWM_max - maximum PWM output frequency with spread-spectrum enabled
The following sample code enables spread-spectrum for 48 kHz audio sample rate, 32-bit audio depth, TDM-8 and 2.1 MHz.
w D6 28 EA
w D6 77 82 // Enable SS, SS_AMPL = 2
w D6 78 1F // SS_PRE_DIV = 31, Fcenter = 192 kHz
w D6 79 3F // SS_STEP = 63The follow equations calculate the output PWM frequency variation with the settings listed previously.
- Fmin = 256 * FS / ((SS_PRE_DIV * 2 + 2) + SS_AMPL = 256 * 48 kHz / ((31 * 2 + 2) + 2) = 186.18 kHz
- Fmax = 256 * FS / ((SS_PRE_DIV * 2 + 2) + SS_AMPL = 256 * 48 kHz / ((31 * 2 + 2) - 2) = 198.19 kHz
- FPWM_min = Fmin * 11 = 186.18 kHz * 11 = 2.048 MHz
- FPWM_max = Fmax * 11 = 198.19 kHz * 11 = 2.189 MHz
