3 說明
TAS6424MS-Q1 器件是一款采用 2.1MHz PWM 開關頻率的四通道數字輸入 D 類音頻放大器，以非常小的 PCB 尺寸實現成本優化的解決方案，可針對啟停事件在低至 4.5V 的電壓下全面運行，并可在高達 40kHz 的音頻帶寬下提供出色的音質。
輸出開關頻率既可以設置為高于調幅 (AM) 頻帶，以消除 AM 頻帶干擾并降低輸出濾波需求及成本；也可以設置為低于 AM 頻帶，以優化器件效率。
該器件內置負載診斷功能，用于檢測和診斷誤接的輸出，以及檢測交流耦合型高頻揚聲器，從而幫助縮短制造過程中的測試時間。
TAS6424MS-Q1 D 類音頻放大器專為汽車音響主機和外部放大器模塊而設計。有關引腳兼容的單通道、雙通道及四通道器件，請參閱器件選項表。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TAS6424MS-Q1 | HSSOP (56) | 18.41mm × 7.49mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

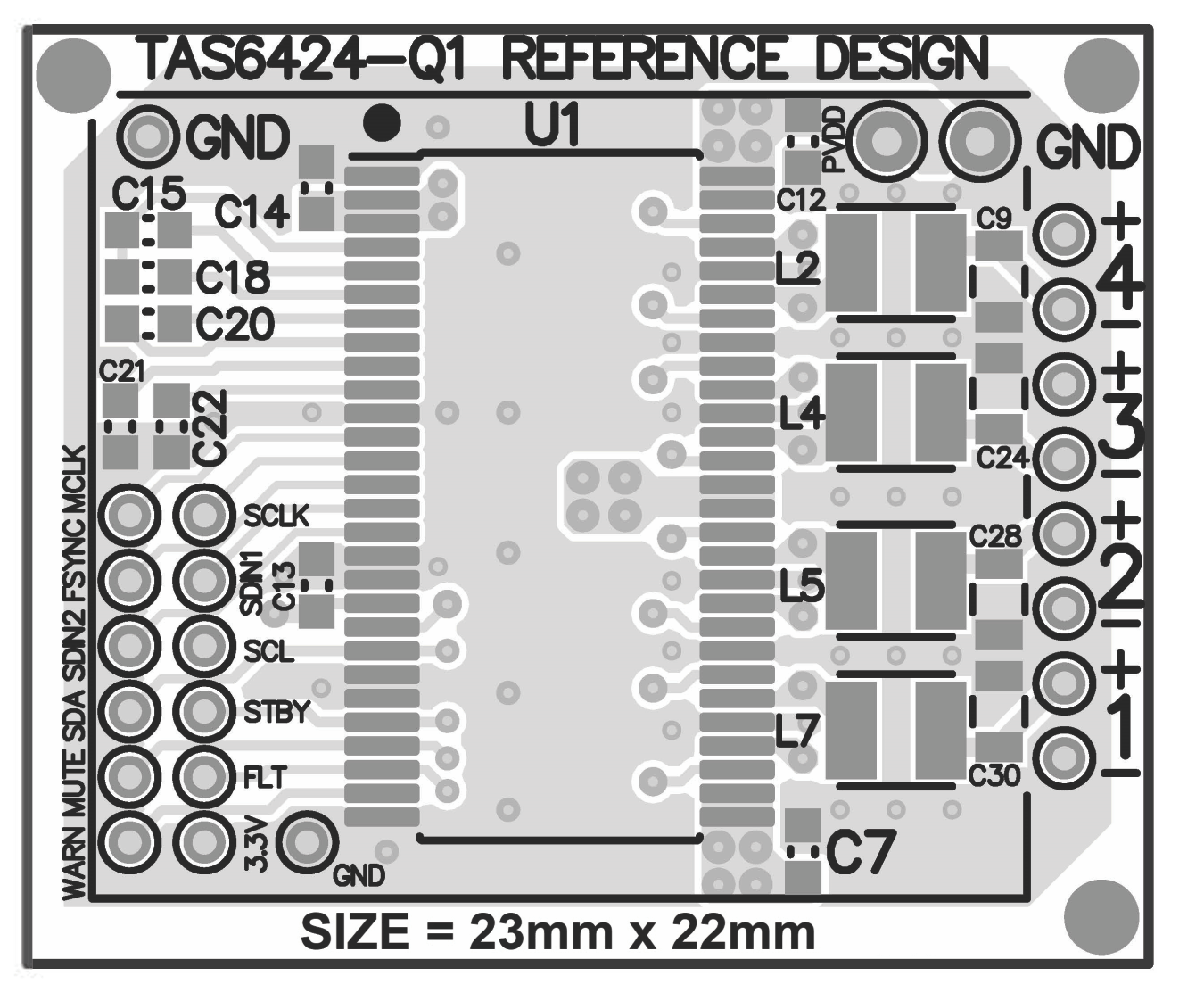

PCB 區域
