3 說明
TAS5806M 是一款高效立體聲閉環 D 類放大器，可提供具有低功率耗散和豐富聲音的低成本數字輸入解決方案。該器件的集成音頻處理器和 96kHz 架構支持高級音頻處理流程（包括 SRC、每通道 15 個 BQ、音量控制、音頻混合、3 頻帶 4 階 DRC、全頻帶 AGL、THD 管理器和電平計）。
TAS5806M 采用 TI 專有混合調制方案，消耗的靜態電流很低（13.5V PVDD 下為 16.5mA），從而能夠延長便攜式音頻 應用中的電池壽命。憑借先進的 EMI 抑制技術，對低于 10W 的 應用 ，設計人員可利用廉價的鐵氧體磁珠濾波器來減小其布板空間并降低系統成本。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| TAS5806M | TSSOP (38) DCP | 9.70mm x 4.40mm |
- 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

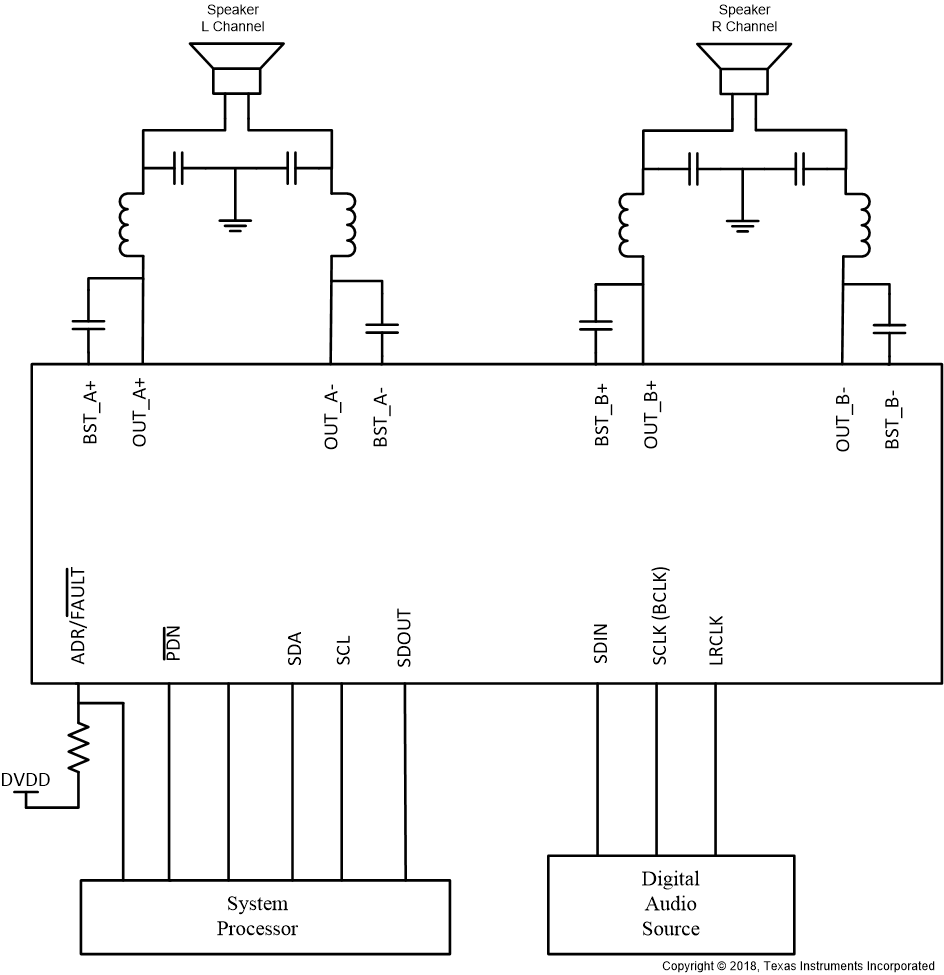

簡化方框圖
