6.14 Typical Characteristics (Stereo BTL Mode): fSPK_AMP = 768 kHz
At TA = 25°C, fSPK_AMP = 768 kHz, input signal is 1 kHz Sine, unless otherwise noted. Filter used for 8 Ω = 22 µH + 0.68 µF, Filter used for 6 Ω = 15 µH + 0.68 µF, Filter used for 4 Ω = 10 µH + 0.68 µF unless otherwise noted.
Thermal Limits are referenced to TAS5760xxEVM Rev D

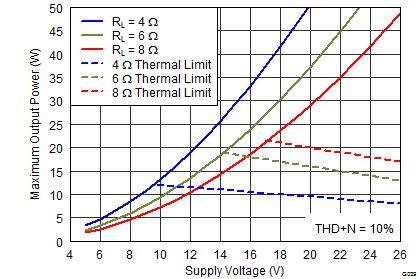

Figure 15. Output Power vs PVDD
PVDD = 24 V, POSPK = 1 W

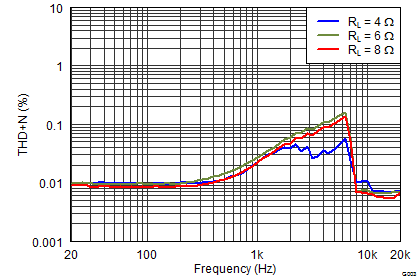

Figure 17. THD+N vs Frequency
PVDD = 12 V, Both Channels Driven

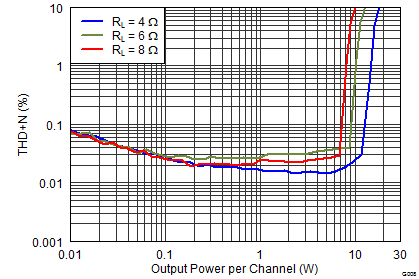

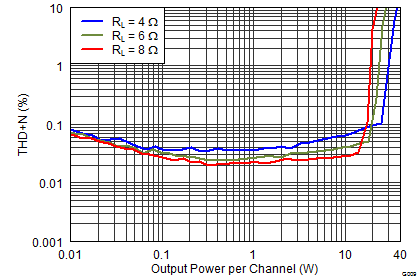

Figure 19. THD+N vs Output Power
PVDD = 24 V, Both Channels Driven

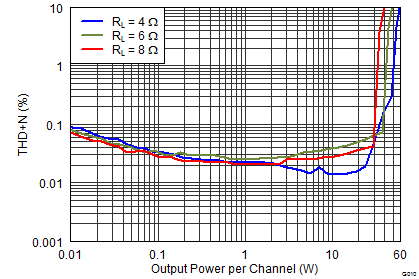

Figure 21. THD+N vs Output Power

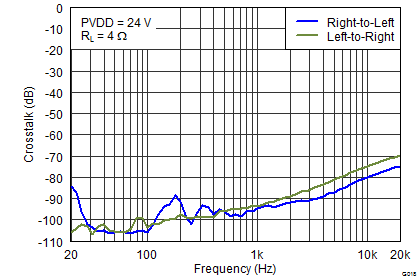

Figure 23. Crosstalk vs Frequency
Figure 25. Idle Current Draw vs PVDD (Filterless)
Figure 27. Shutdown Current Draw vs PVDD (Filterless)
PVDD = 12 V, POSPK = 1 W

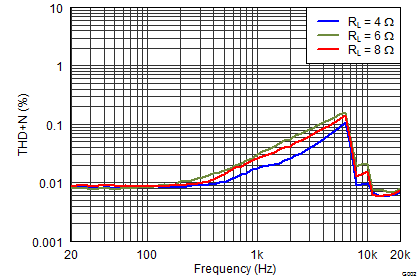

Figure 16. THD+N vs Frequency

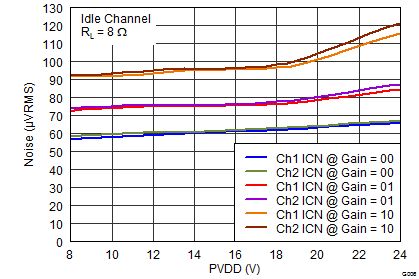

Figure 18. Idle Channel Noise vs PVDD
PVDD = 18 V, Both Channels Driven
Figure 20. THD+N vs Output Power

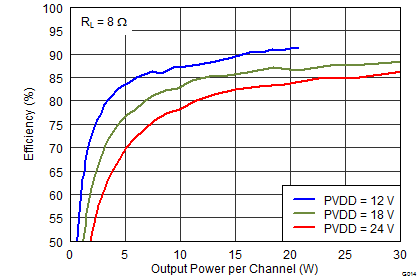

Figure 22. Efficiency vs Output Power
Figure 24. PVDD PSRR vs Frequency
With LC Filter as Shown on EVM
Figure 26. Idle Current Draw vs PVDD
