6 Parameter Measurement Information
A. ? Voltage for the SN55173 only.
B. CL includes probe and jig capacitance.
C. The input pulse is supplied by a generator having the following characteristics: PRR = 1 MHz, duty cycle = 50%, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

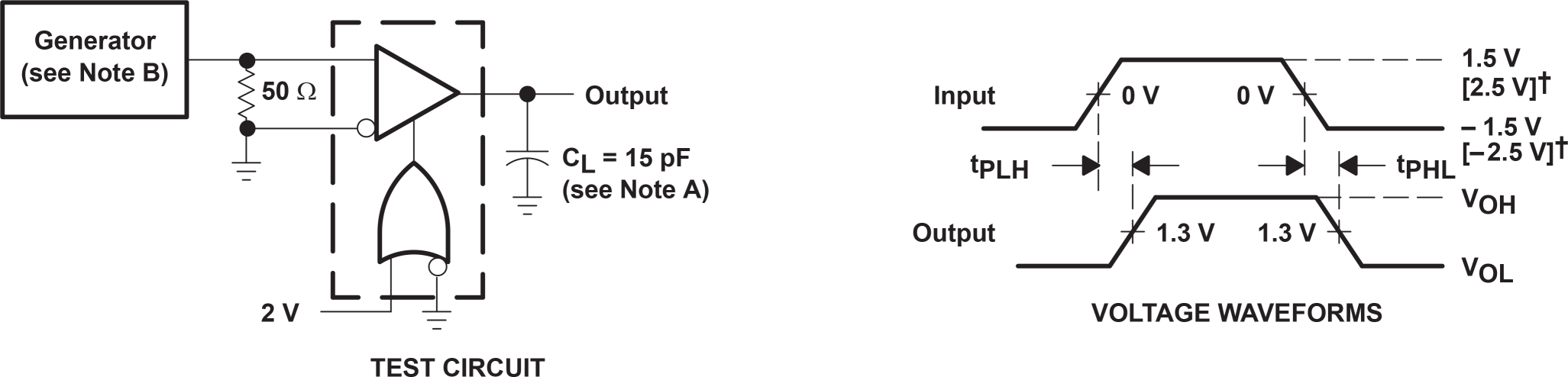

Figure 6-1 tPLH, TPHL Test Circuit and Voltage Waveforms
A. CL includes probe and jig capacitance.
B. The input pulse is supplied by a generator having the following characteristics: PRR = 1 MHz, duty cycle = 50%, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
C. All diodes are 1N916, or equivalent.
D. To test the active-low enable G, ground G and apply an inverted input waveform to G.

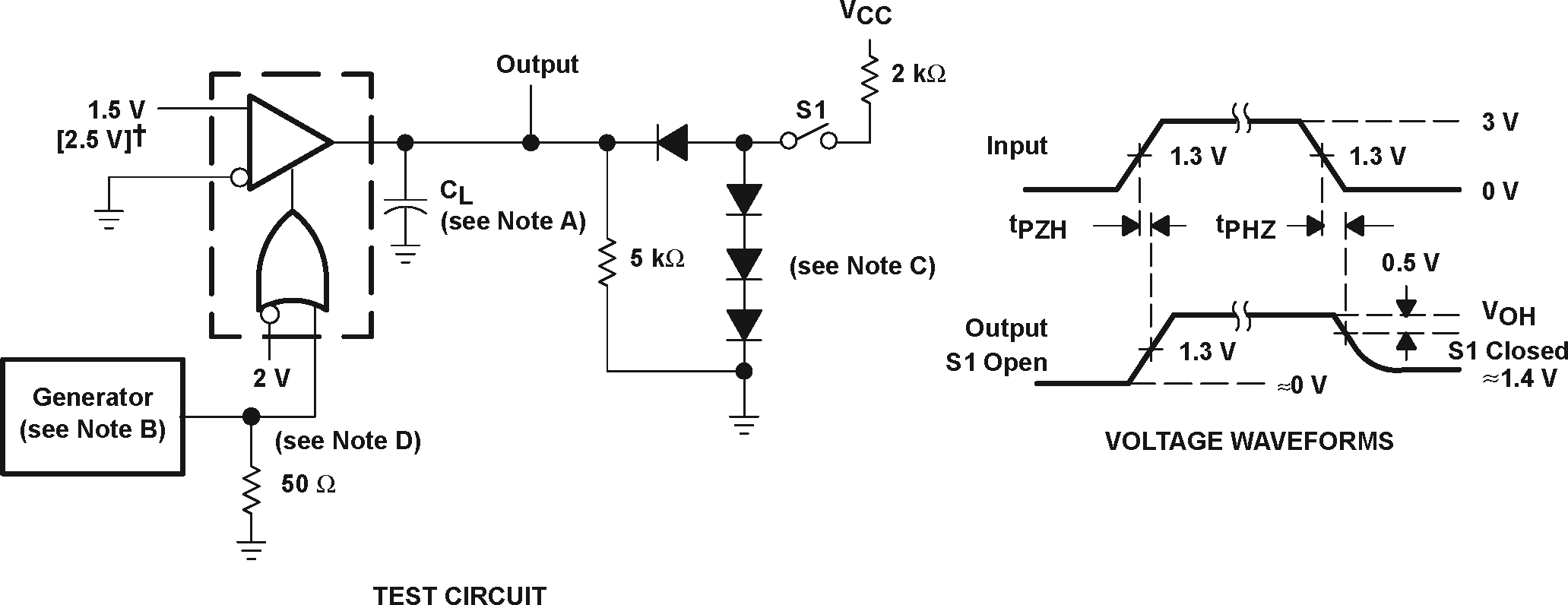

Figure 6-2 tPHZ, TPZH Test Circuit and Voltage Waveforms
A. CL includes probe and jig capacitance.
B. The input pulse is supplied by a generator having the following characteristics: PRR = 1 MHz, duty cycle = 50%, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
C. All diodes are 1N916, or equivalent.
D. To test the active-low enable G, ground G and apply an inverted input waveform to G.

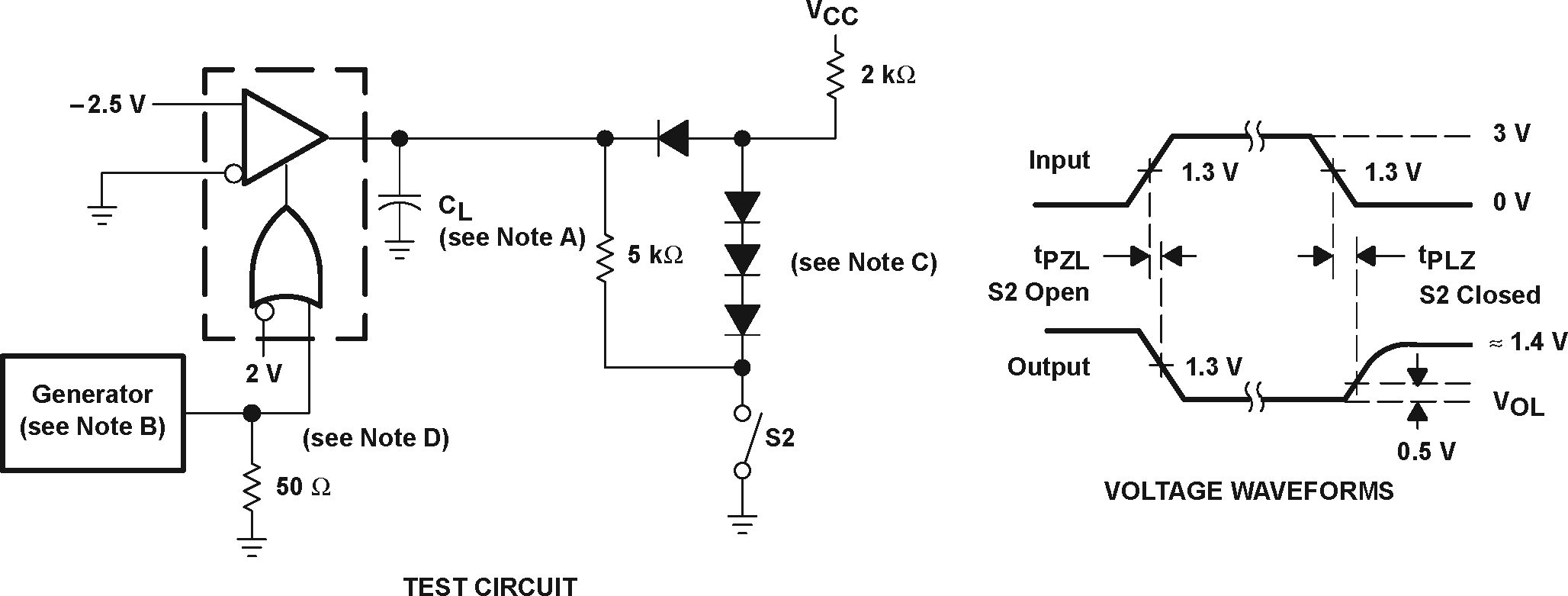

Figure 6-3 tPZL, TPLZ Test Circuit and Voltage Waveforms
