ZHCSTI8F October 1980 – October 2023 SN55173 , SN75173
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- NS|16
- N|16
- D|16
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
7.1 Device Functional Modes
Table 7-1 Function Table (Each
Receiver)
| DIFFERENTIAL A–B | ENABLES(1) | OUTPUT Y | |
|---|---|---|---|
| G | G | ||
| VID ≥ 0.2 V | H | X | H |
| X | L | H | |
| –0.2 V < VID < 0.2 V | H | XL | ? |
| X | ? | ||
| VID ≤ –0.2 V | H | X | L |
| X | L | L | |
| X | L | H | Z |
| Open circuit | X | L | H |
| H | X | H | |
(1) H = high level, L = low level, ? = indeterminate, X =
irrelevant, Z = high impedance (off)

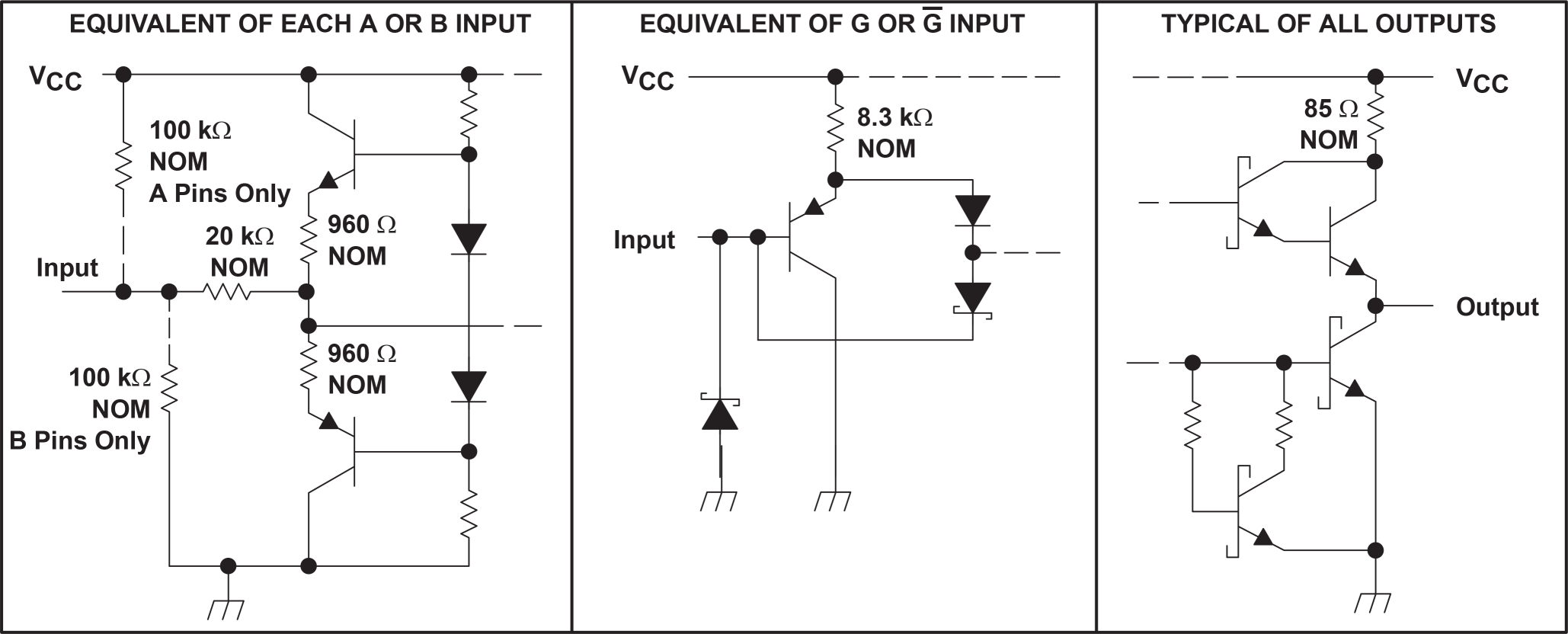

Figure 7-1 Schematics of Inputs and
Outputs
