5 Pin Configuration and Functions
Figure 5-1 DCT 8-Pin SM8 and DCU 8-Pin
VSSOP Package Top View

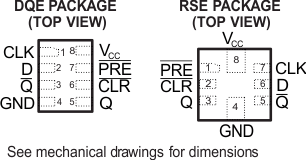

Figure 5-2 DQE 8-Pin X2SON and RSE UQFN
8-Pin Package Top ViewPin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| CLK | 1 | I | Clock input |
| CLR | 6 | I | Clear input ? Pull low to set Q output low |
| D | 2 | I | Input |
| GND | 4 | — | Ground |
| PRE | 7 | I | Preset input ? Pull low to set Q output high |
| Q | 5 | O | Output |
| Q | 3 | O | Inverted output |
| VCC | 8 | — | Supply |
