ZHCSYD4R June 2001 – June 2025 SN74LVC1G66
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DBV|5
- DSF|6
- DCK|5
- DRL|5
- YZP|5
- DRY|6
散熱焊盤機械數據 (封裝 | 引腳)
- DRY|6
訂購信息
6 Parameter Measurement Information

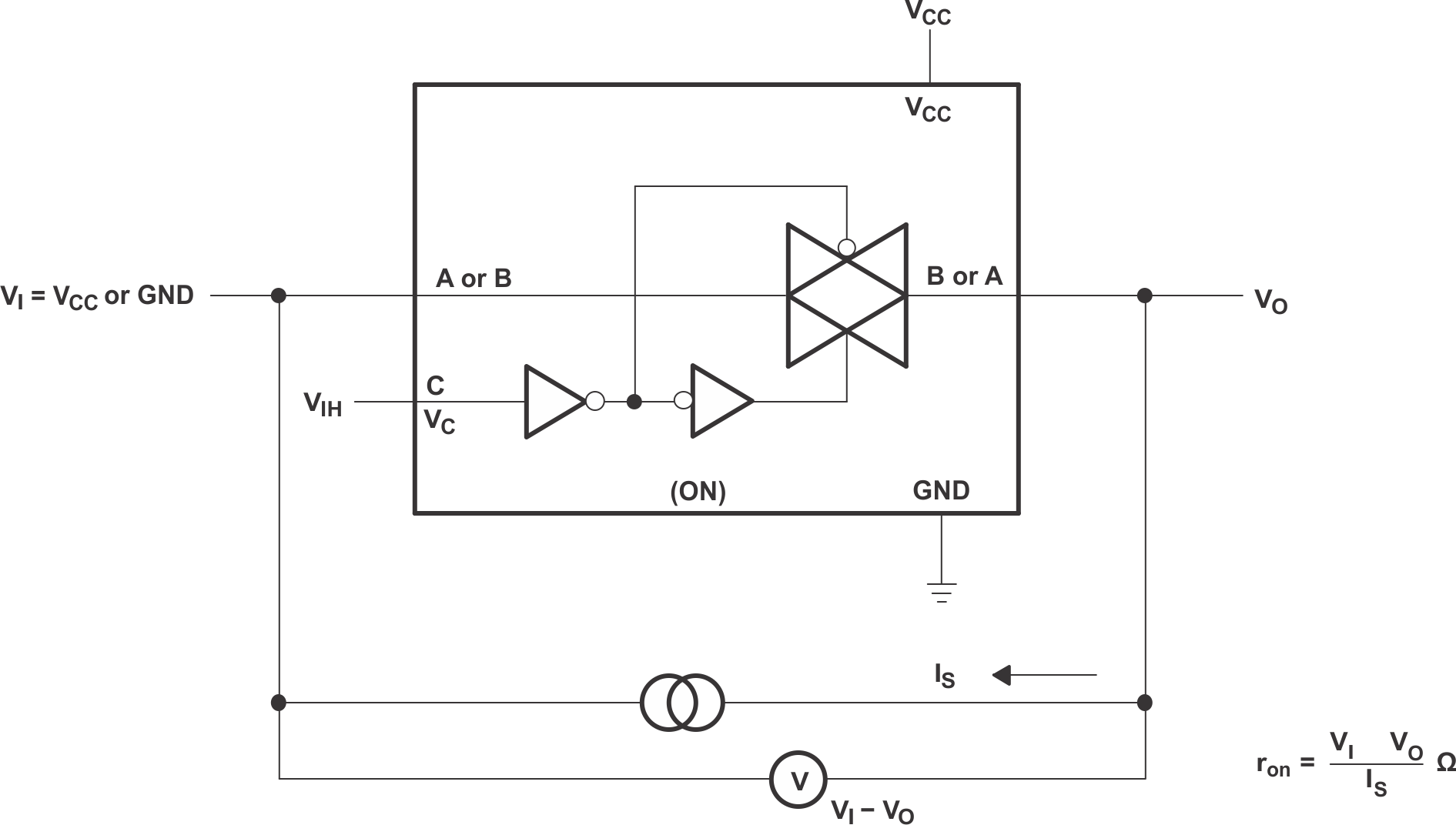

Figure 6-1 ON-State
Resistance Test Circuit

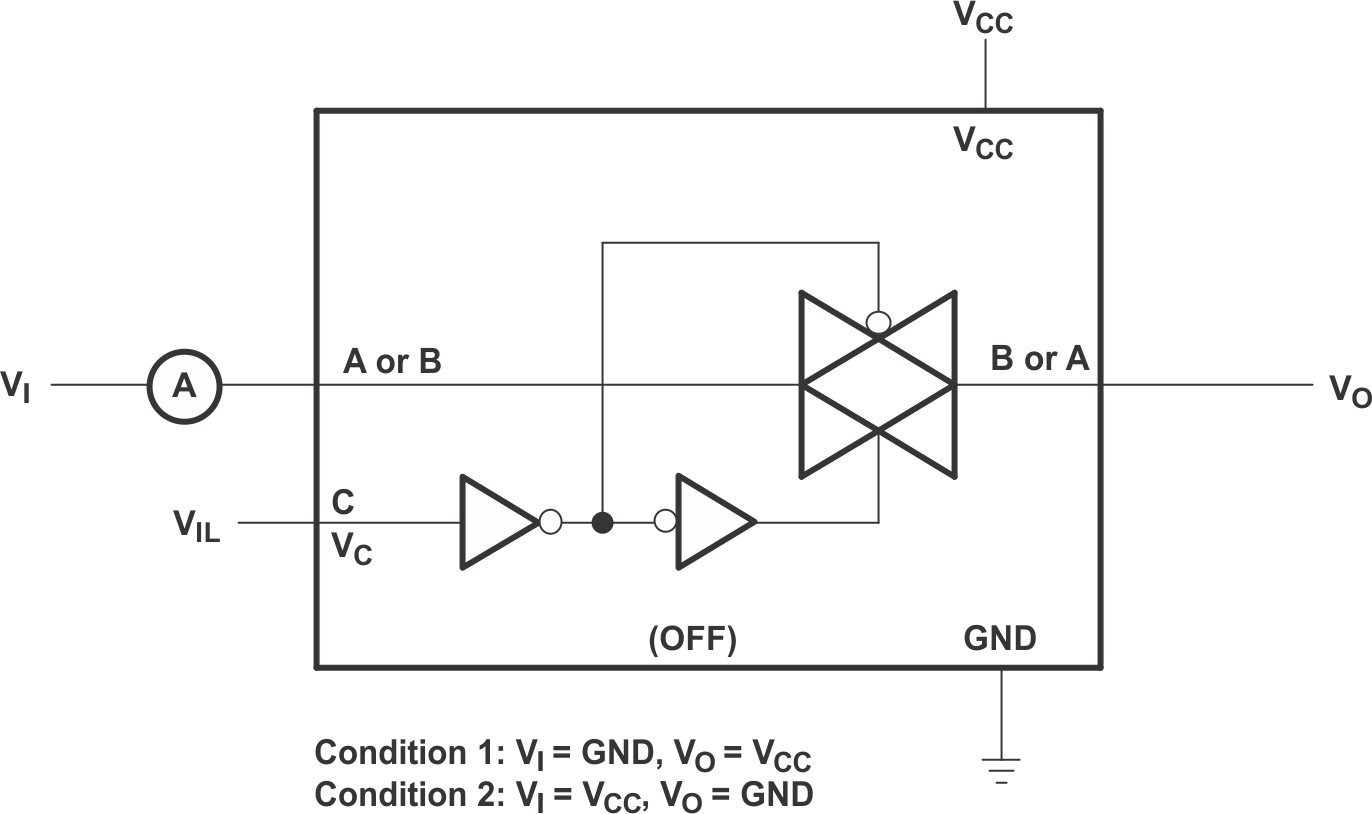

Figure 6-2 OFF-State
Switch Leakage-Current Test Circuit

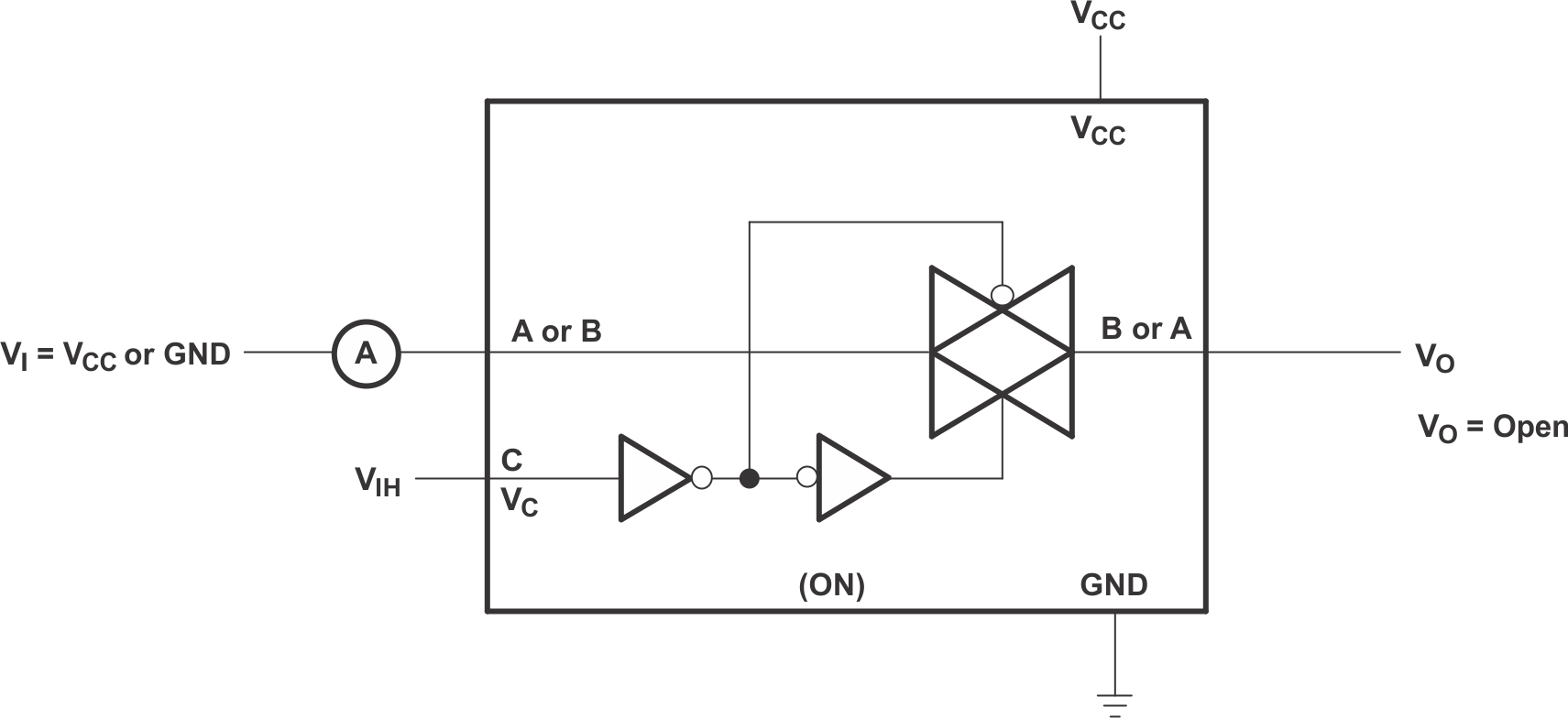

Figure 6-3 ON-State
Switch Leakage-Current Test Circuit

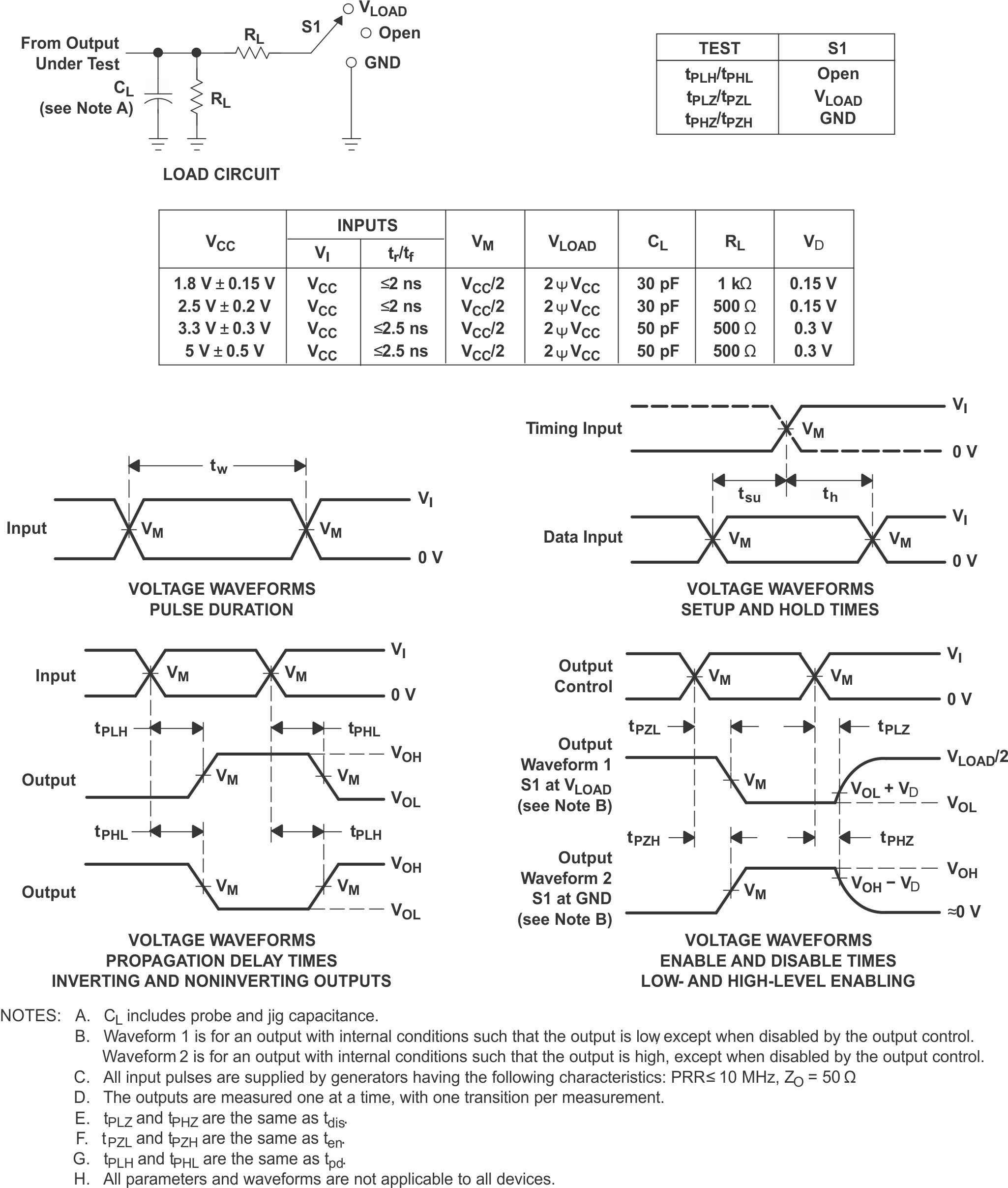

Figure 6-4 Load
Circuit and Voltage Waveforms

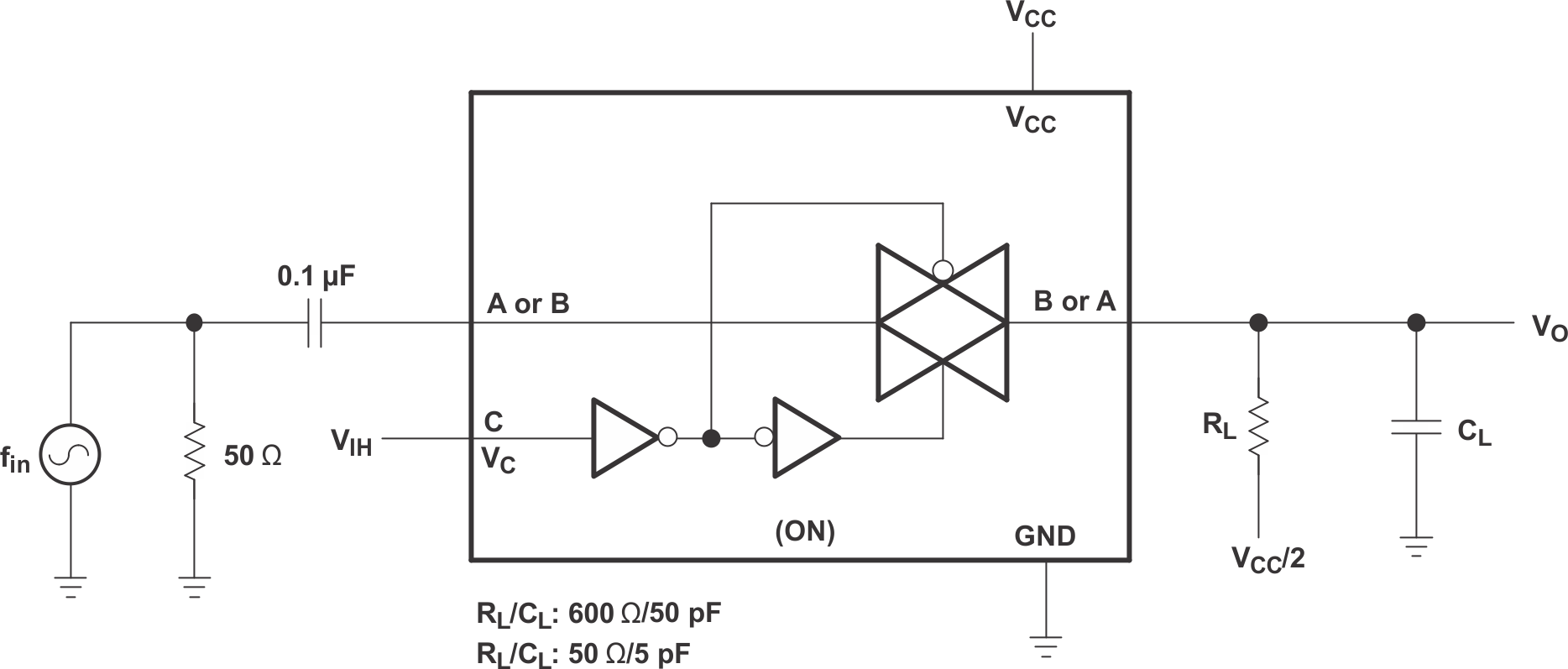

Figure 6-5 Frequency
Response (Switch ON)

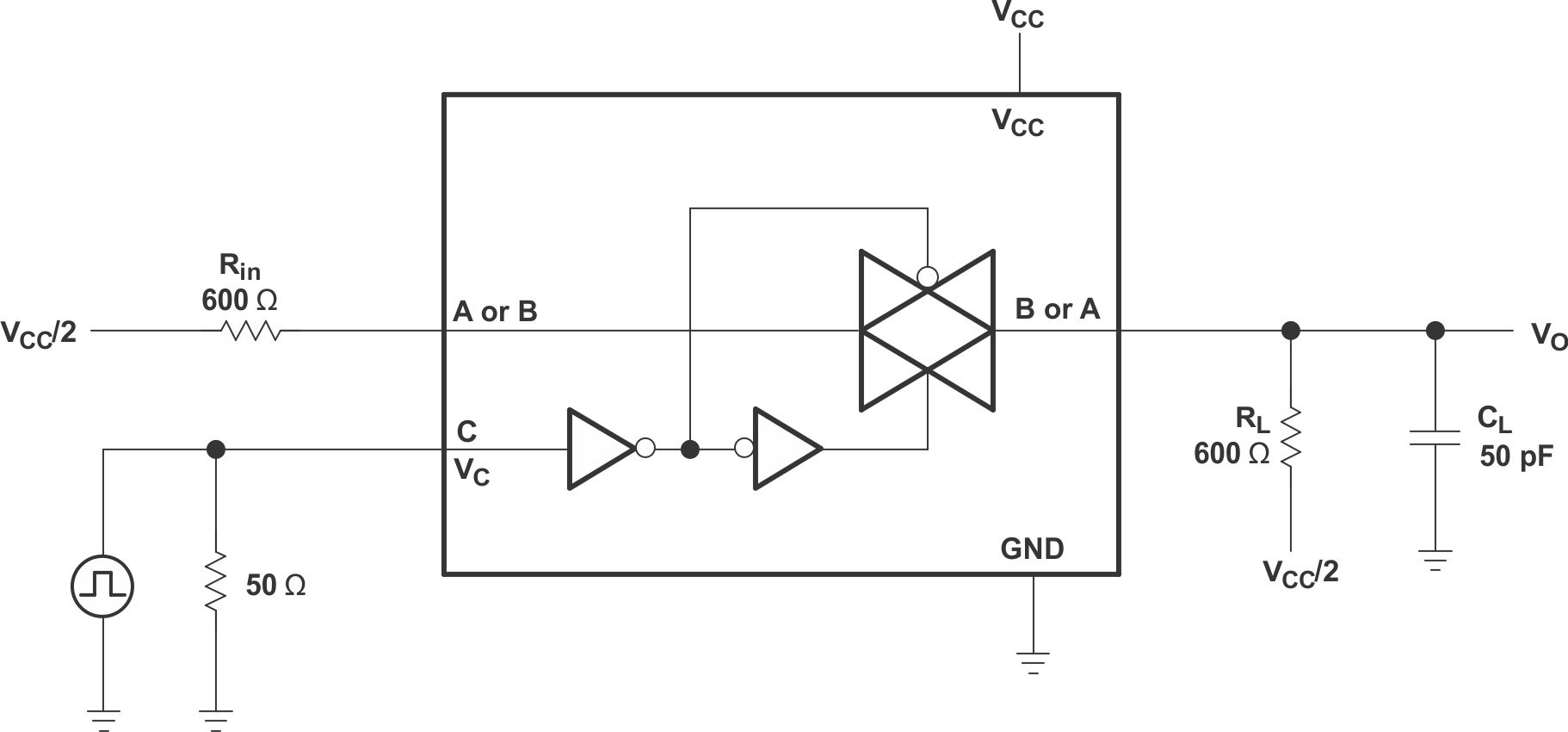

Figure 6-6 Crosstalk
(Control Input – Switch Output)

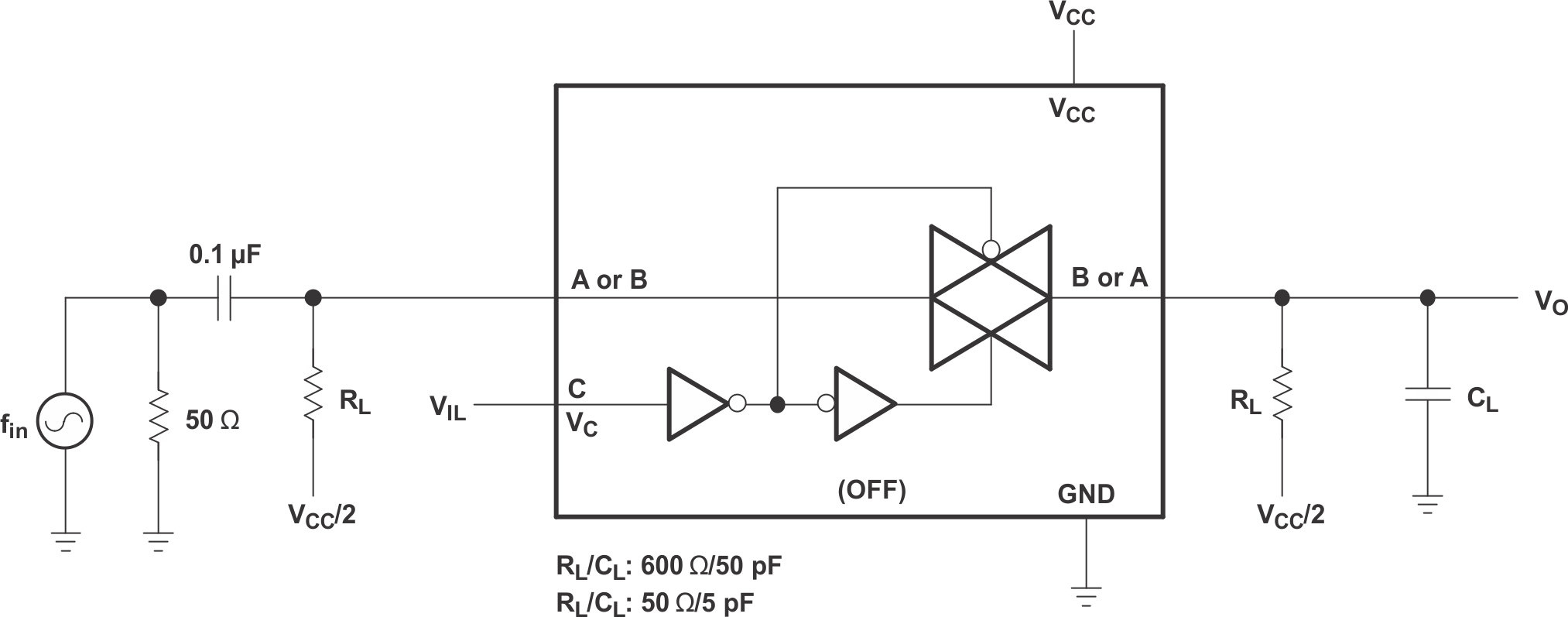

Figure 6-7 Feedthrough (Switch OFF)

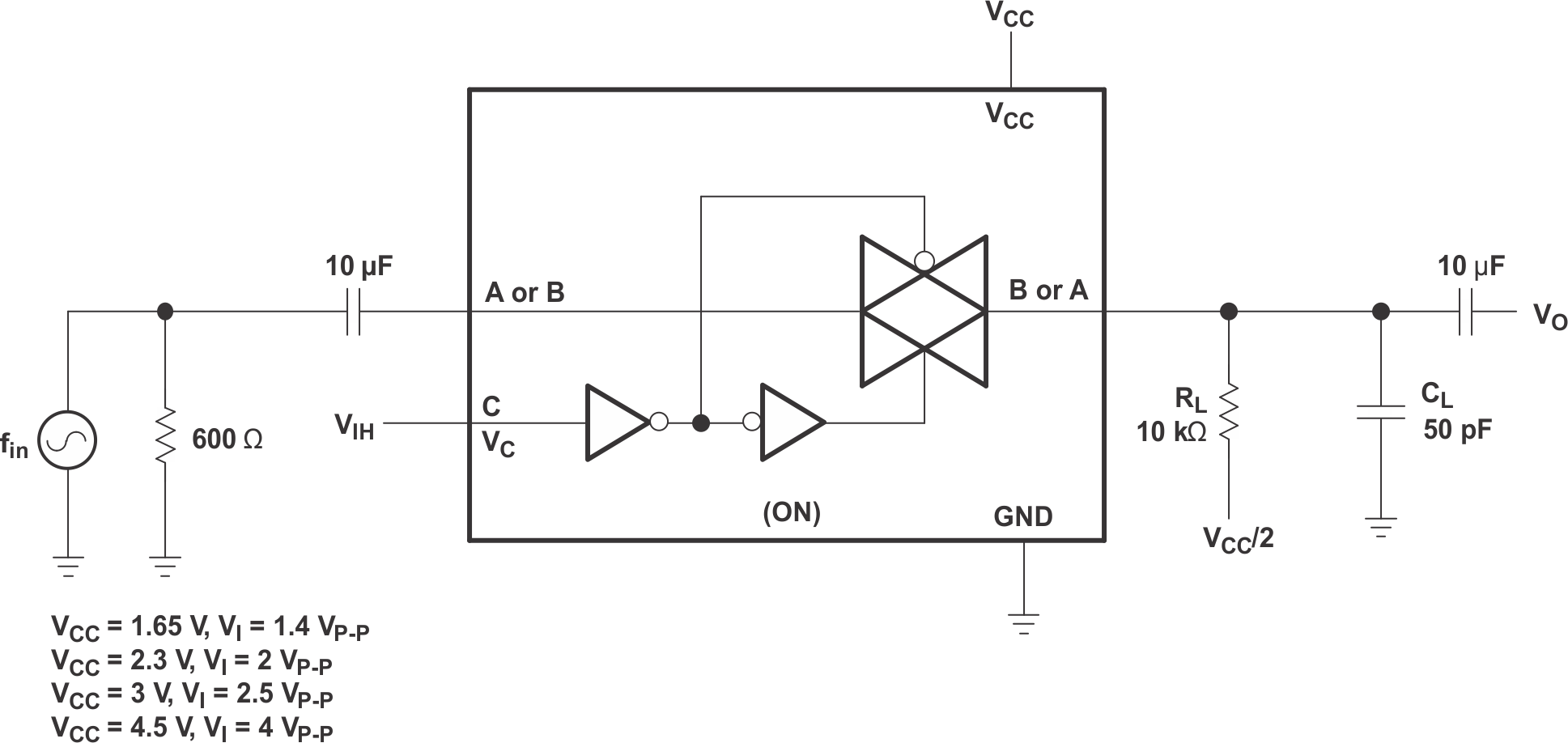

Figure 6-8 Sine-Wave
Distortion
