6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| Supply voltage, VCC | –0.5 | 6.5 | V | ||
| Input voltage, VI(2) | –0.5 | 6.5 | V | ||
| Voltage range (applied to any output), VO | High-impedance or power-off state(2) | –0.5 | 6.5 | V | |
| High or low state(2)(3) | –0.5 | VCC + 0.5 | |||
| Input clamp current, IIK (VI < 0) | –50 | mA | |||
| Output clamp current, IOK (VO < 0) | –50 | mA | |||
| Continuous output current, IO | ±50 | mA | |||
| Continuous current through VCC or GND | ±100 | mA | |||
| Junction temperature, TJ | 150 | °C | |||
| Storage temperature, Tstg | –65 | 150 | °C | ||
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The value of VCC is provided in the Recommended Operating Conditions table.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1000 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage | Operating | 1.65 | 5.5 | V |
| Data retention only | 1.5 | ||||
| VI | Input voltage | 0 | 5.5 | V | |
| VO | Output voltage | 0 | VCC | V | |
| IOH | High-level output current | VCC = 1.65 V | –4 | mA | |
| VCC = 2.3 V | –8 | ||||
| VCC = 3 V | –16 | ||||
| –24 | |||||
| VCC = 4.5 V | –32 | ||||
| IOL | Low-level output current | VCC = 1.65 V | 4 | mA | |
| VCC = 2.3 V | 8 | ||||
| VCC = 3 V | 16 | ||||
| 24 | |||||
| VCC = 4.5 V | 32 | ||||
| TA | Operating free-air temperature | BGA package | –40 | 85 | °C |
| All other packages | –40 | 125 | |||
(1) All unused inputs of the device must be held at VCC or GND to ensure proper device operation, see Implications of Slow or Floating CMOS Inputs (SCBA004).
6.4 Thermal Information
| THERMAL METRIC(1) | SN74LVC1G57 | UNIT | ||||||
|---|---|---|---|---|---|---|---|---|
| DBV (SOT) | DCK (SOT) | DRL (SOT) | YZP (DSGBA) | DSF (SON) | DRY (SON) | |||
| 6 PINS | 6 PINS | 6 PINS | 6 PINS | 6 PINS | 6 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 223 | 271.7 | 252.5 | 124 | 360.1 | 332.5 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 174.4 | 129.8 | 111.6 | 1.4 | 158.8 | 198.5 | °C/W |
| RθJB | Junction-to-board thermal resistance | 71 | 73.1 | 118.5 | 29.7 | 213.5 | 189 | °C/W |
| ψJT | Junction-to-top characterization parameter | 57.1 | 8.3 | 11.8 | 0.5 | 20.4 | 44.3 | °C/W |
| ψJB | Junction-to-board characterization parameter | 70.3 | 72.4 | 118.8 | 30.1 | 213.2 | 189.7 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
6.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP(1) | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| VT+ | Positive-going input threshold voltage | VCC = 1.65 V | 0.79 | 1.16 | V | ||
| VCC = 2.3 V | 1.11 | 1.56 | |||||
| VCC = 3 V | 1.5 | 1.87 | |||||
| VCC = 4.5 V | 2.16 | 2.74 | |||||
| VCC = 5.5 V | 2.61 | 3.33 | |||||
| VT– | Negative-going input threshold voltage | VCC = 1.65 V | 0.35 | 0.62 | V | ||
| VCC = 2.3 V | 0.58 | 0.87 | |||||
| VCC = 3 V | 0.84 | 1.19 | |||||
| VCC = 4.5 V | 1.41 | 1.9 | |||||
| VCC = 5.5 V | 1.87 | 2.29 | |||||
| ΔVT | Hysteresis (VT+ – VT–) | VCC = 1.65 V | 0.3 | 0.62 | V | ||
| VCC = 2.3 V | 0.4 | 0.8 | |||||
| VCC = 3 V | 0.53 | 0.87 | |||||
| VCC = 4.5 V | 0.71 | 1.04 | |||||
| VCC = 5.5 V | 0.71 | 1.11 | |||||
| VOH | VCC = 1.65 V to 5.5 V, IOH = –100 µA | VCC – 0.1 | V | ||||
| VCC = 1.65 V, IOH = –4 mA | 1.2 | ||||||
| VCC = 2.3 V, IOH = –8 mA | 1.9 | ||||||
| VCC = 3 V, IOH = –16 mA | 2.4 | ||||||
| VCC = 3 V, IOH = –24 mA | 2.3 | ||||||
| VCC = 4.5 V, IOH = –32 mA | 3.8 | ||||||
| VOL | VCC = 1.65 V to 5.5 V, IOL = 100 µA | 0.1 | V | ||||
| VCC = 1.65 V, IOL = 4 mA | 0.45 | ||||||
| VCC = 2.3 V, IOL = 8 mA | 0.3 | ||||||
| VCC = 3 V, IOL = 16 mA | TA = –40°C to 85°C | 0.4 | |||||
| TA = –40°C to 125°C | 0.45 | ||||||
| VCC = 3 V, IOL = 24 mA | 0.55 | ||||||
| VCC = 4.5 V, IOL = 32 mA | TA = –40°C to 85°C | 0.55 | |||||
| TA = –40°C to 125°C | 0.58 | ||||||
| II | VCC = 0 V to 5.5 V, VI = 5.5 V or GND | ±1 | µA | ||||
| Ioff | VCC = 0 V, VI or VO = 5.5 V | ±10 | µA | ||||
| ICC | VCC = 1.65 V to 5.5 V, VI = 5.5 V or GND, IO = 0 | 10 | µA | ||||
| ΔICC | VCC = 3 V to 5.5 V, one input at VCC – 0.6 V, other inputs at VCC or GND |
500 | µA | ||||
| Ci | VCC = 3.3 V, VI = VCC or GND | 3.5 | pF | ||||
| Cpd | Power dissipation capacitance | f = 10 MHz, TA = 25°C | VCC = 1.8 V | 20 | pF | ||
| VCC = 2.5 V | 20 | ||||||
| VCC = 3.3 V | 21 | ||||||
| VCC = 5 V | 22 | ||||||
(1) All typical values are at VCC = 3.3 V, TA = 25°C
6.6 Switching Characteristics
over recommended operating free-air temperature range (unless otherwise noted; see Figure 3)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |||
|---|---|---|---|---|---|---|---|---|
| tpd | Any input to Y (output) | TA = –40°C to 85°C | VCC = 1.8 V ± 0.15 V | 3.2 | 14.4 | ns | ||
| VCC = 2.5 V ± 0.2 V | 2 | 8.3 | ||||||
| VCC = 3.3 V ± 0.3 V | 1.5 | 6.3 | ||||||
| VCC = 5 V ± 0.5 V | 1.1 | 5.1 | ||||||
| TA = –40°C to 125°C | VCC = 1.8 V ± 0.15 V | 3.2 | 16.4 | |||||
| VCC = 2.5 V ± 0.2 V | 2 | 9.3 | ||||||
| VCC = 3.3 V ± 0.3 V | 1.5 | 7.3 | ||||||
| VCC = 5 V ± 0.5 V | 1.1 | 6.1 | ||||||
6.7 Typical Characteristics

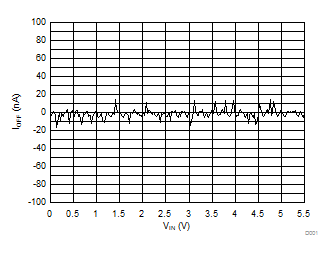

Figure 1. Partial-Power-Down Mode IOFF Across VIN

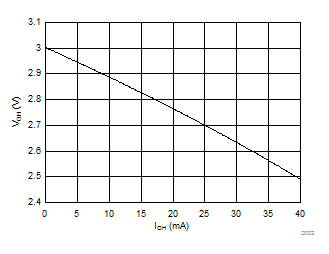

Figure 2. Output Voltage (VOH) vs Current (IOH)
