6 Parameter Measurement Information

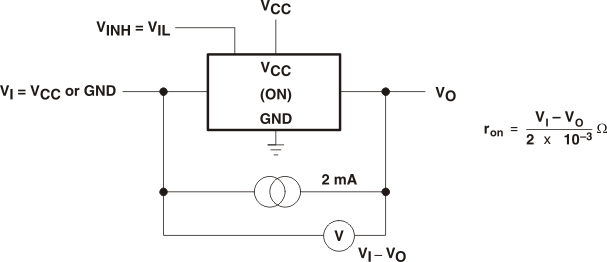

Figure 6-1 On-State Resistance Test Circuit

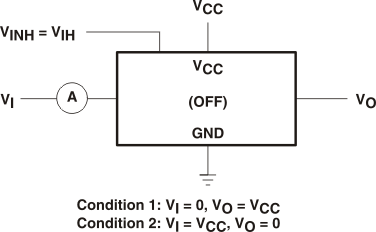

Figure 6-2 Off-State Switch Leakage-Current Test Circuit

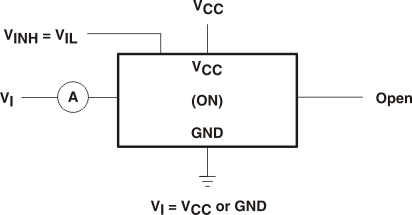

Figure 6-3 On-State Switch Leakage-Current Test Circuit

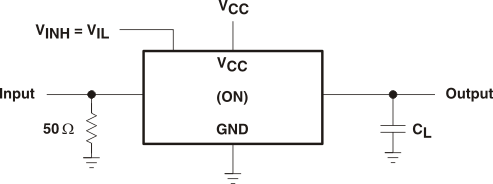

Figure 6-4 Propagation Delay Time, Signal Input to Signal Output

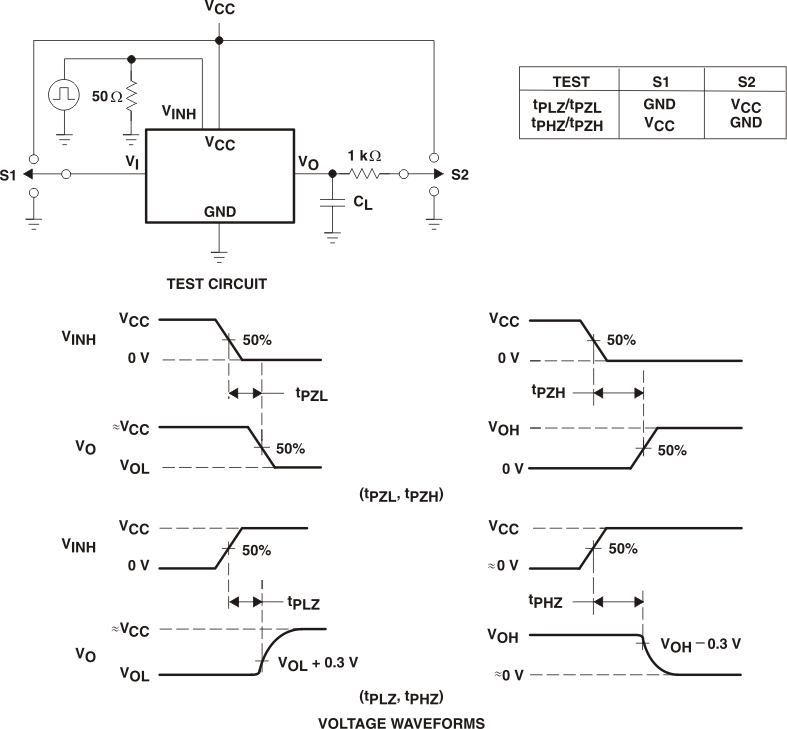

Figure 6-5 Switching Time (tPZL, tPLZ, tPZH,
tPHZ), Control to Signal Output

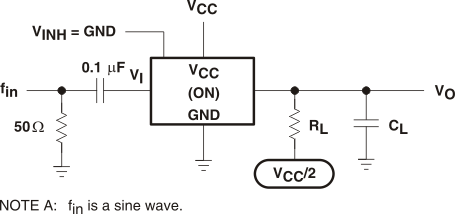

Figure 6-6 Frequency Response (Switch On)

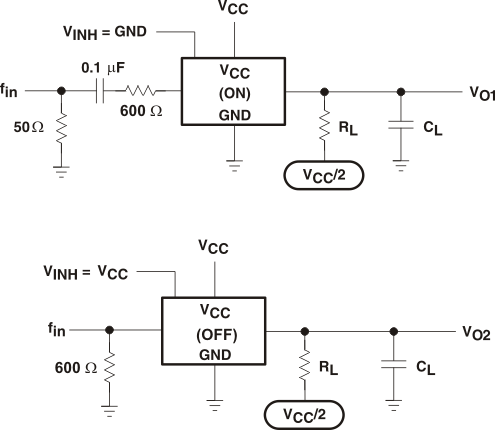

Figure 6-7 Crosstalk Between Any Two Switches

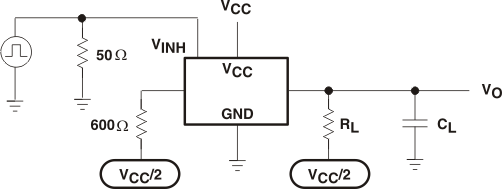

Figure 6-8 Crosstalk Between Control Input and Switch Output

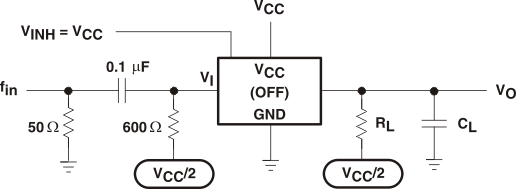

Figure 6-9 Feedthrough Attenuation (Switch Off)

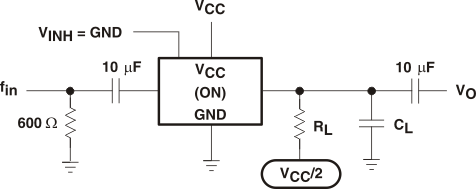

Figure 6-10 Sine-Wave Distortion
