ZHCSEZ0A December 2013 – April 2016 SN74AUP1T34-Q1
PRODUCTION DATA.

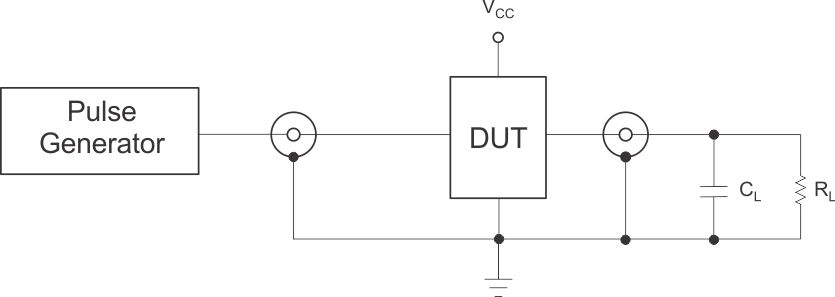

7 Parameter Measurement Information
| TEST |
| tPLH, tPHL |
| CL = 5 pF, 10 pF, 15 pF, 30 pF or equivalent (includes probe and jig capacitance) RL = 1 MΩ or equivalent ZOUT of pulse generator = 50 Ω |
