11 Layout
11.1 Layout Guidelines
To ensure reliability of the device, TI recommends following common printed-circuit board layout guidelines.
- Bypass capacitors must be used on power supplies.
- Short trace lengths must be used to avoid excessive loading.
- Placing pads on the signal paths for loading capacitors or pullup resistors helps adjust rise and fall times of signals depending on the system requirements.
11.2 Layout Example

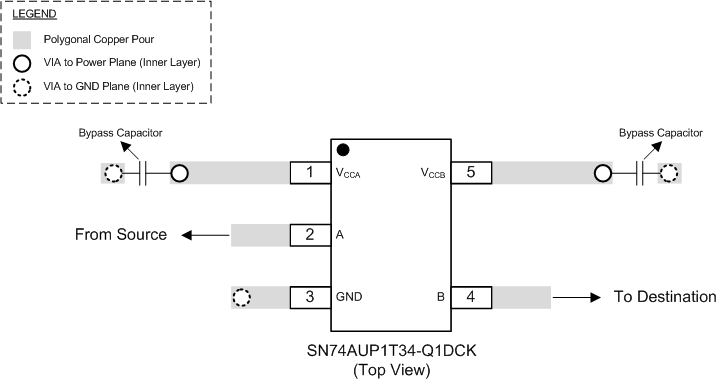

Figure 6. Example Layout
