8 Parameter Measurement Information
Unless otherwise noted, all input pulses are supplied by generators that have the following characteristics:
- PRR ≤ 10 MHz
- ZO = 50 Ω
1. CL includes probe and jig capacitance.

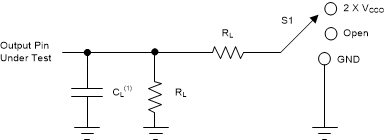

Figure 9. Load CircuitTable 1. Loading Conditions for Parameter
| TEST | S1 |
|---|---|
| tPLH (1), tPHL (1) | Open |
| tPLZ (2), tPZL (3) | 2 × VCC |
| tPHZ (2), tPZH (3) | GND |
Table 2. Loading Conditions for VCC
| VCC | CL | RL | VΔ |
|---|---|---|---|
| 0.8 V | 15 pF | 2 kΩ | 0.1 V |
| 1.2 V ± 0.1 V | 15 pF | 2 kΩ | 0.1 V |
| 1.5 V ± 0.1 V | 15 pF | 2 kΩ | 0.1 V |
| 1.8 V ± 0.15 V | 15 pF | 2 kΩ | 0.15 V |
| 2.5 V ± 0.2 V | 15 pF | 2 kΩ | 0.15 V |
| 1.8 V ± 0.15 V | 30 pF | 1 kΩ | 0.15 V |
| 2.5 V ± 0.2 V | 30 pF | 500 kΩ | 0.15 V |
Figure 10. Voltage Waveforms: Pulse Duration
1. All outputs are measured one at a time, with one transition per measurement.
Figure 11. Voltage Waveforms: Propagation Delay Times, Inverting and Noninverting Outputs
Figure 12. Voltage Waveforms: Setup and Hold Times
1. Waveform 1 is for an output with internal conditions such as the output is low, except when disabled by the output control.
2. Waveform 2 is for an output with internal conditions such as the output is high, except when disabled by the output control.
3. All outputs are measured one at a time, with one transition per measurement.
Figure 13. Voltage Waveforms: Enable and Disable Times, Low- and High-Level Enabling
