7.12 Typical Characteristics

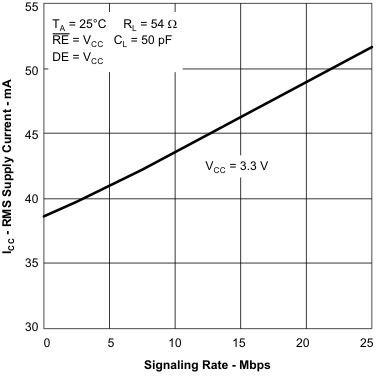

Figure 7-1 SN65HVD30, SN65HVD33 RMS Supply Current vs Signaling Rate

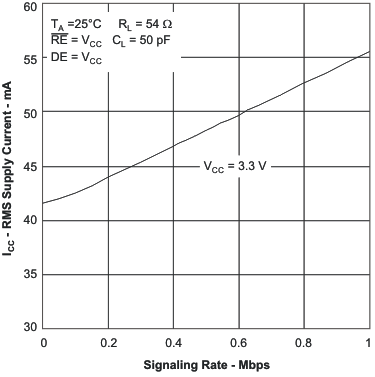

Figure 7-3 SN65HVD32, SN65HVD35 RMS Supply Current vs Signaling Rate

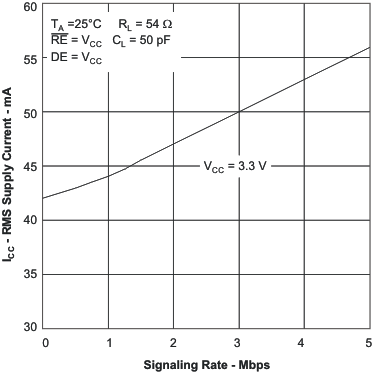

Figure 7-2 SN65HVD31, SN65HVD34 RMS Supply Current vs Signaling Rate

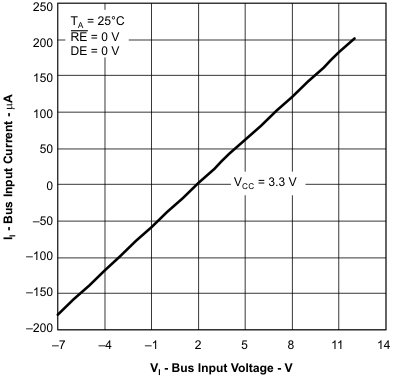

Figure 7-4 SN65HVD30, SN65HVD33 Bus Input Current vs Input Voltage

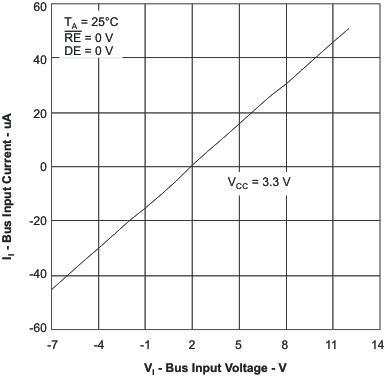

Figure 7-5 SN65HVD31, SN65HVD32, SN65HVD34, SN65HVD35 Bus Input Current vs Input Voltage

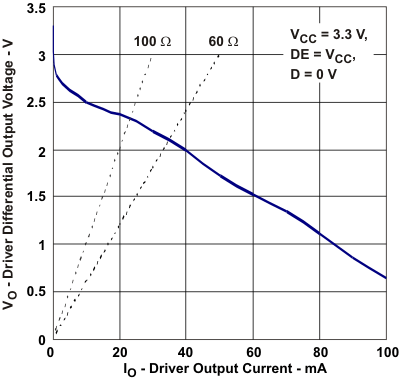

Figure 7-7 Driver Differential Output Voltage vs Driver Output Current
Figure 7-9 Driver Output Current vs Supply Voltage

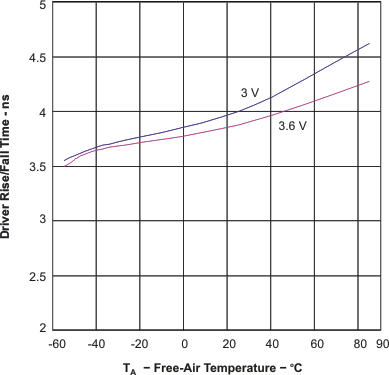

Figure 7-11 SN65HVD30, SN65HVD33 Driver Rise and Fall Time vs Free-Air Temperature

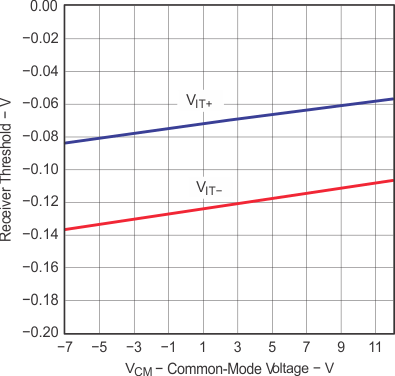

Figure 7-13 Receiver Threshold vs Common-Mode Voltage

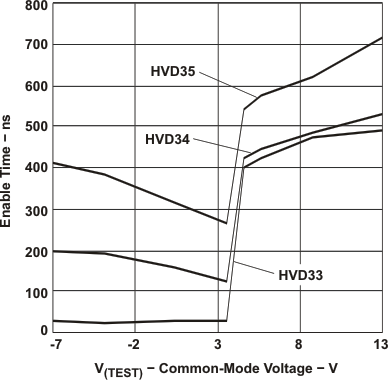

Figure 7-15 Enable Time vs Common-Mode Voltage (see Figure 8-1)

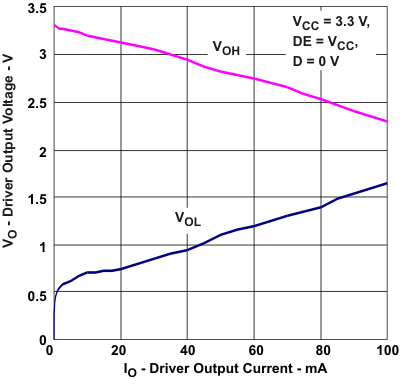

Figure 7-6 Driver Output Voltage vs Driver Output Current

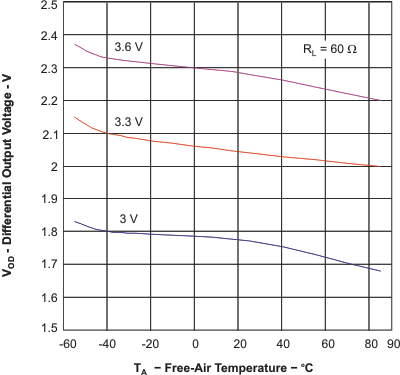

Figure 7-8 Driver Differential Output Voltage vs Free-Air Temperature

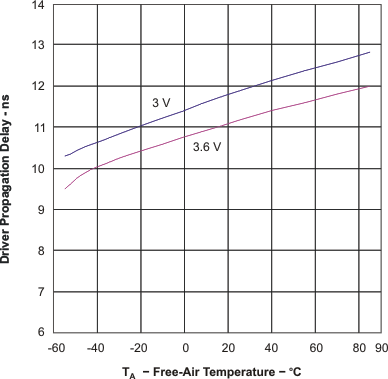

Figure 7-10 SN65HVD30, SN65HVD33 Driver Propagation Delay vs Free-Air Temperature

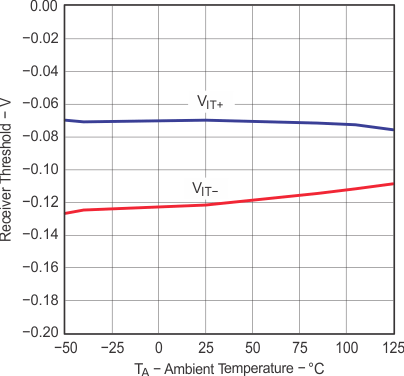

Figure 7-12 Receiver Threshold vs Ambient Temperature

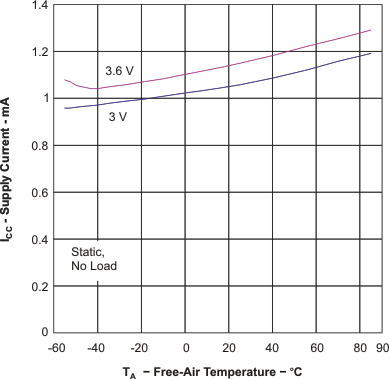

Figure 7-14 Supply Current vs Free-Air Temperature
