Parameter Measurement Information
The time tpZL(x) is the measure from DE to VOD(x). VOD is valid when it is greater than 1.5 V.

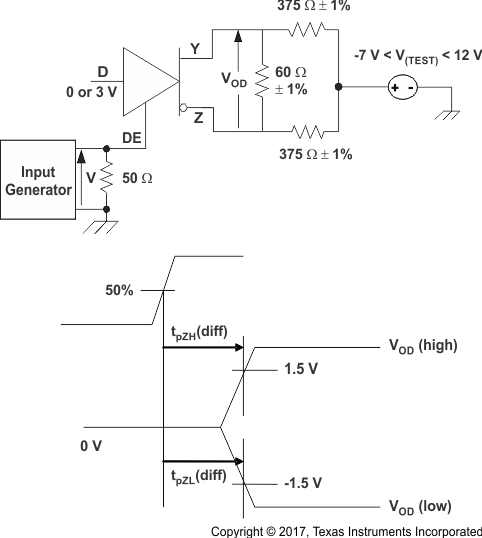

Figure 8-1 Driver Enable Time From DE to VOD

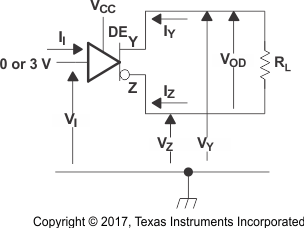

Figure 8-2 Driver VOD Test Circuit and Voltage and Current Definitions

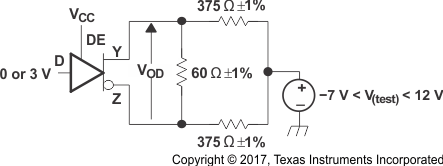

Figure 8-3 Driver VOD With Common-Mode Loading Test Circuit
Figure 8-4 VOD(RING) Waveform and DefinitionsVOD(RING) is measured at four points on the output waveform, corresponding to overshoot and undershoot from the VOD(H) and VOD(L) steady state values.

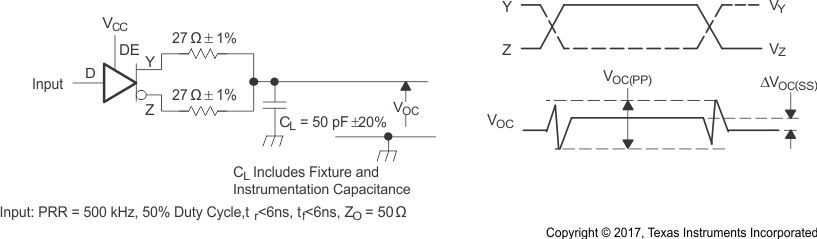

Figure 8-5 Test Circuit and Definitions for the Driver Common-Mode Output Voltage

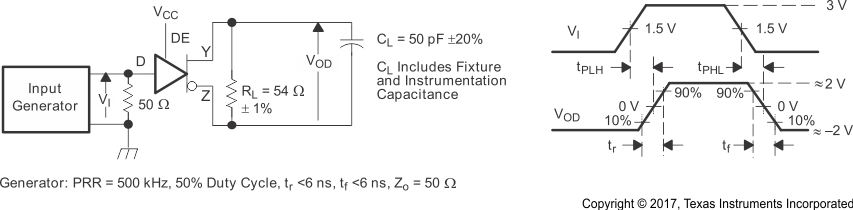

Figure 8-6 Driver Switching Test Circuit and Voltage Waveforms

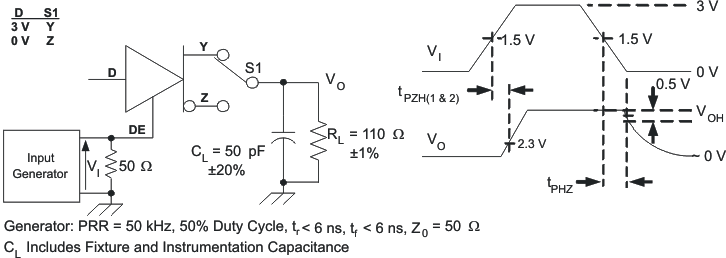

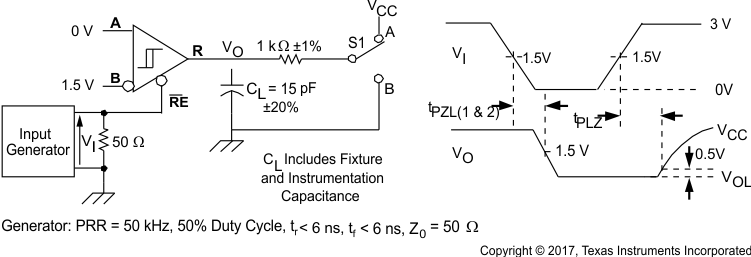

Figure 8-7 Driver High-Level Output Enable and Disable Time Test Circuit and Voltage Waveforms

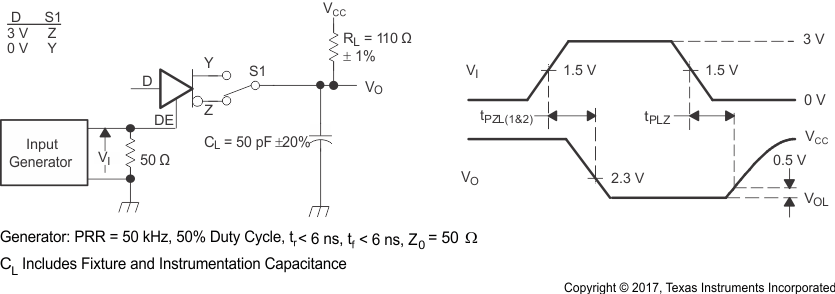

Figure 8-8 Driver Low-Level Output Enable and Disable Time Test Circuit and Voltage Waveforms

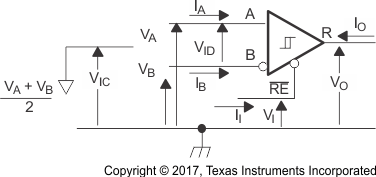

Figure 8-9 Receiver Voltage and Current Definitions

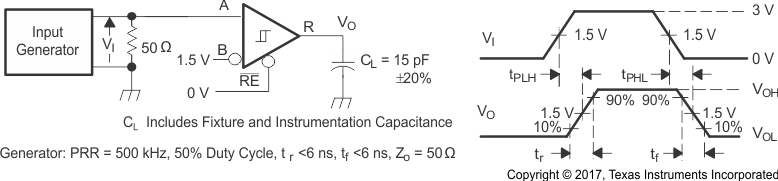

Figure 8-10 Receiver Switching Test Circuit and Voltage Waveforms

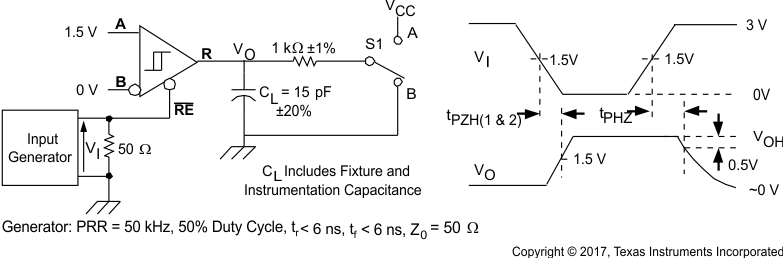

Figure 8-11 Receiver High-Level Enable and Disable Time Test Circuit and Voltage Waveforms
Figure 8-12 Receiver Enable Time From Standby (Driver Disabled)

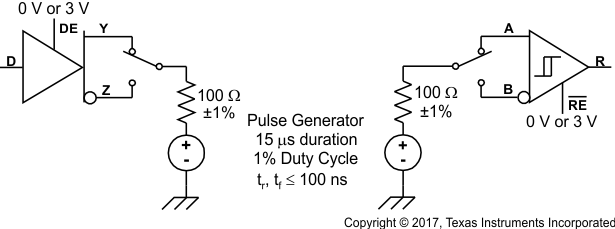

Figure 8-13 Test Circuit, Transient Over Voltage Test
