The SN65DSI86 processes 18 bpp (RGB666) and 24 bpp (RGB888) DSI packets on each channel as illustrated below:

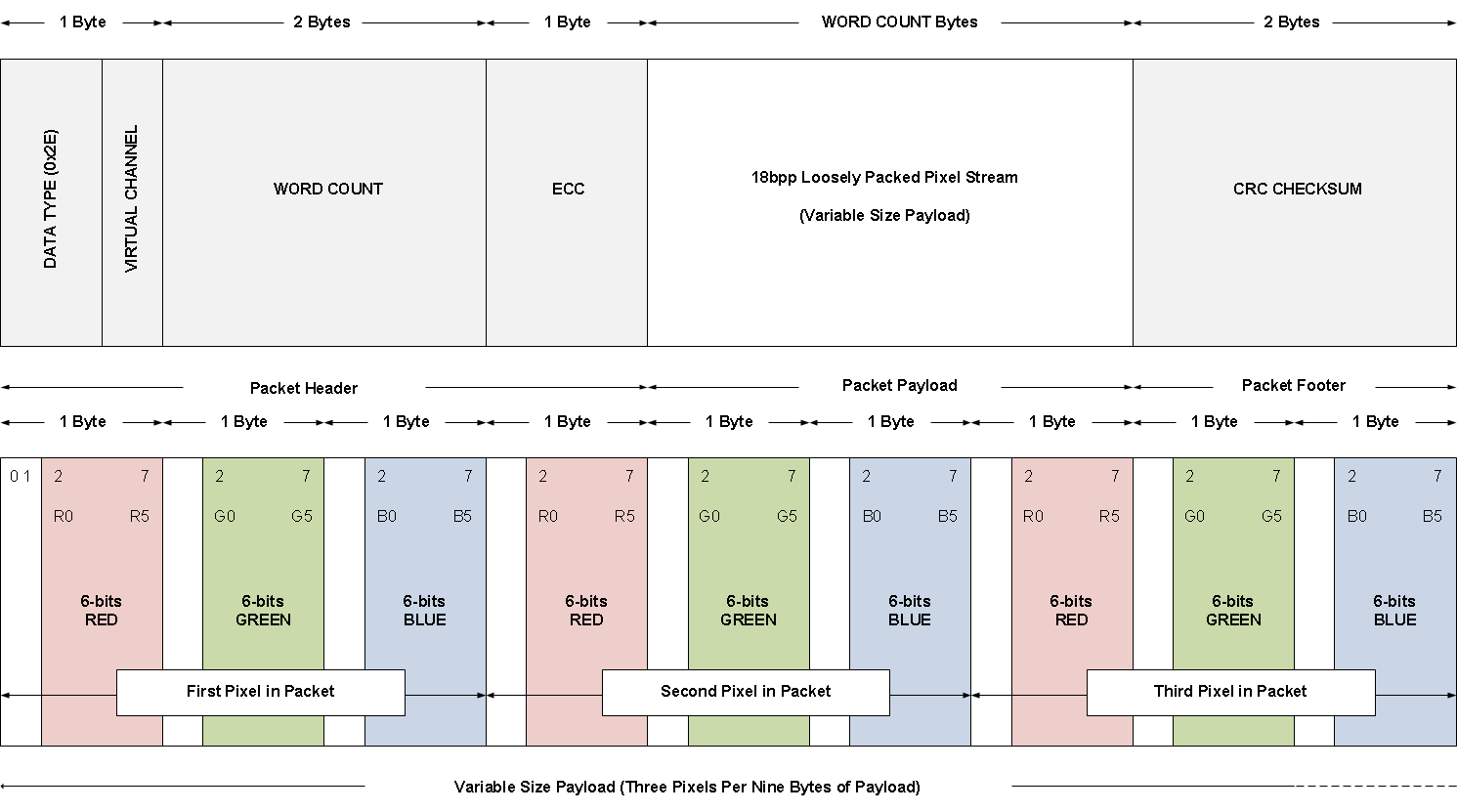

Figure 8-7 18 bpp (Loosely Packed) DSI Packet Structure

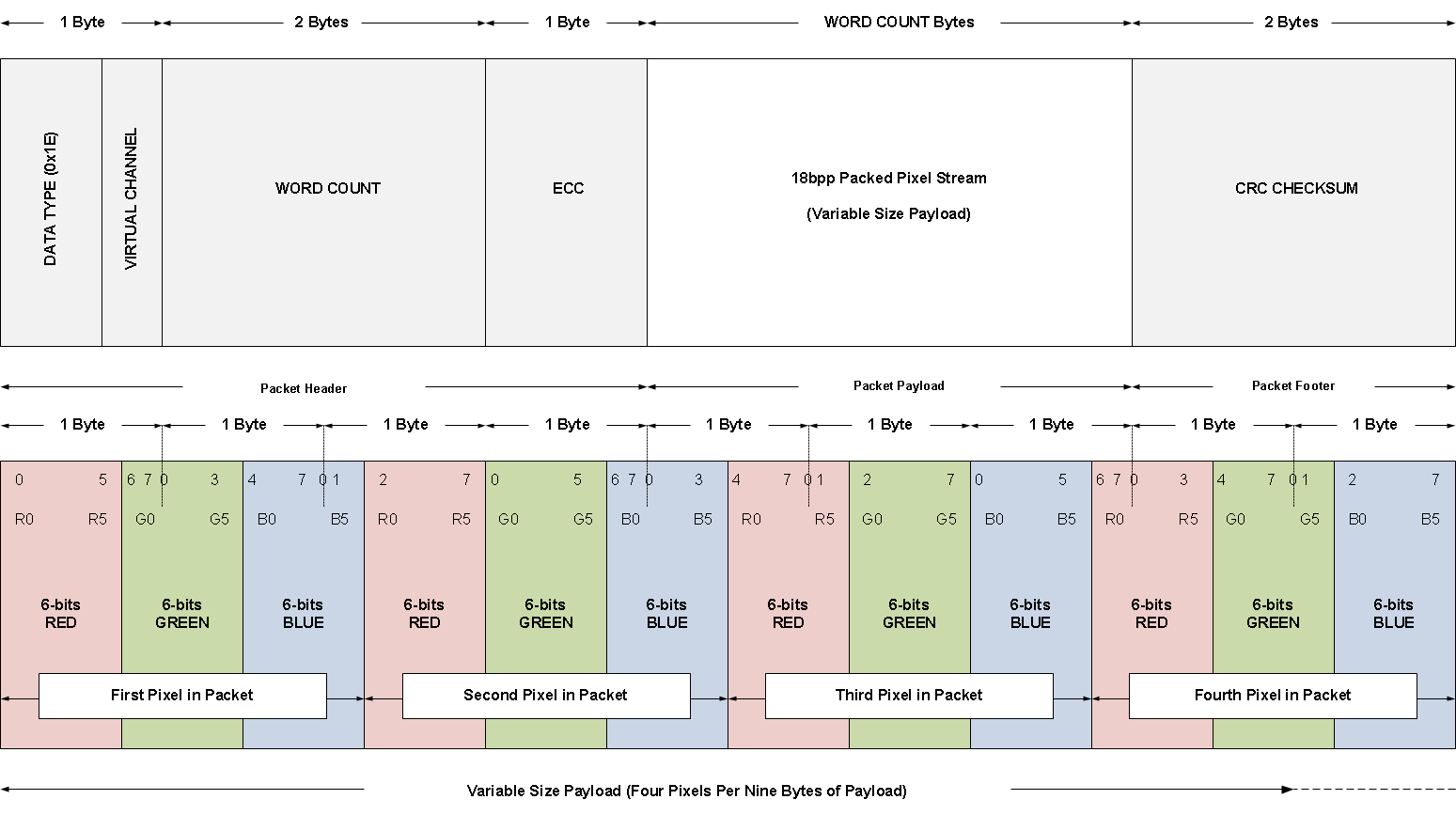

Figure 8-8 18 bpp (Tightly Packed) DSI Packet Structure
Figure 8-9 24bpp DSI Packet Structure| Lane 0 | Lane 1 | Lane 2 | Lane 3 |
|---|---|---|---|
| SOT | SOT | SOT | SOT |
| 0x3E | WC (LS Byte) | WC(MS Byte) | ECC |
| R0-7:0 | G0-7:0 | B0-7:0 | R1-7:0 |
| G1-7:0 | B1-7:0 | R2-7:0 | G2-7:0 |
| B2-7:0 | R3-7:0 | G3-7:0 | B3-7:0 |
| R4-7:0 | G4-7:0 | B4-7:0 | R5-7:0 |
| G5-7:0 | B5-7:0 | CRC (LS Byte) | CRC (MS Byte) |
| EOT | EOT | EOT | EOT |
