6 Parameter Measurement Information
Figure 6-1 Driver Test Circuit, VOD and VOC
A. C1, C2, and C3 include probe and jig capacitance.
B. The input pulse is supplied by a generator having the following characteristics: PRR = 1MHz, 50% duty cycle, tr = tf ≤ 6ns.

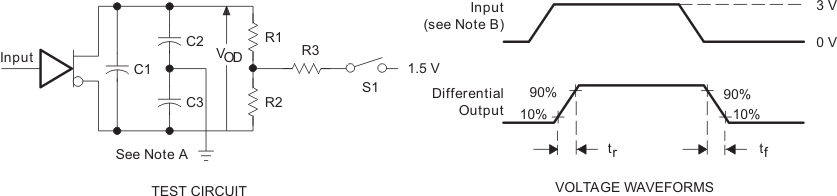

Figure 6-2 Driver Test Circuit and Voltage Waveforms
A. C1, C2, and C3 include probe and jig capacitance.
B. The input pulse is supplied by a generator having the following characteristics: PRR = 1MHz, 50% duty cycle, tr = tf ≤ 6ns.

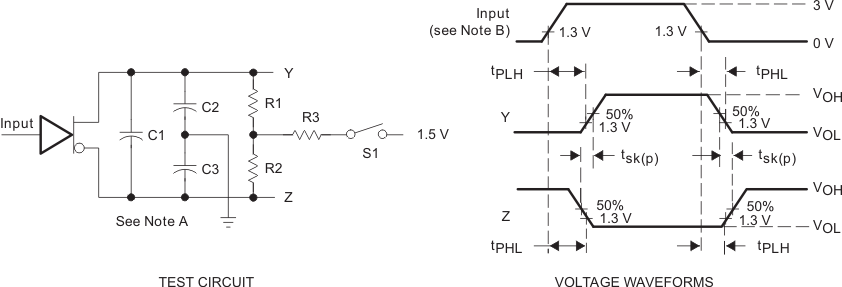

Figure 6-3 Driver Test Circuit and Voltage Waveforms
A. C1, C2, and C3 include probe and jig capacitance.
B. The input pulse is supplied by a generator having the following characteristics: PRR = 1MHz, 50% duty cycle, tr = tf ≤ 6ns.

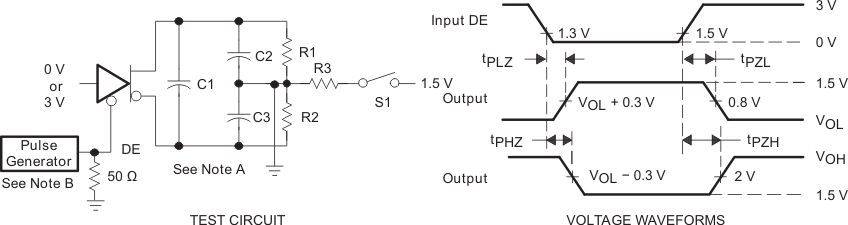

Figure 6-4 Driver Test Circuit and Voltage Waveforms
A. CL includes probe and jig capacitance.
B. The input pulse is supplied by a generator having the following characteristics: PRR = 1MHz, 50% duty cycle, tr = tf ≤6ns.

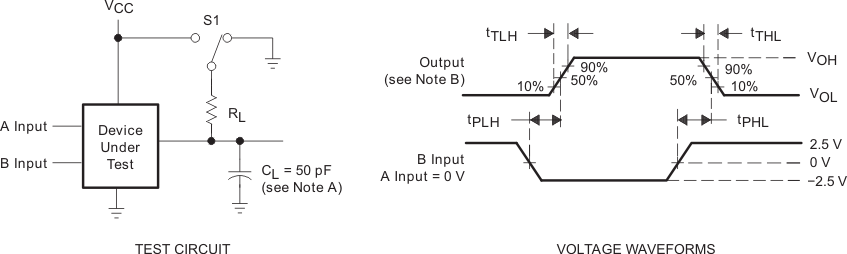

Figure 6-5 Receiver Test Circuit and Voltage Waveforms
A. CL includes probe and jig capacitance.
B. The input pulse is supplied by a generator having the following characteristics: PRR = 1MHz, 50% duty cycle, tr = tf ≤ 6ns.

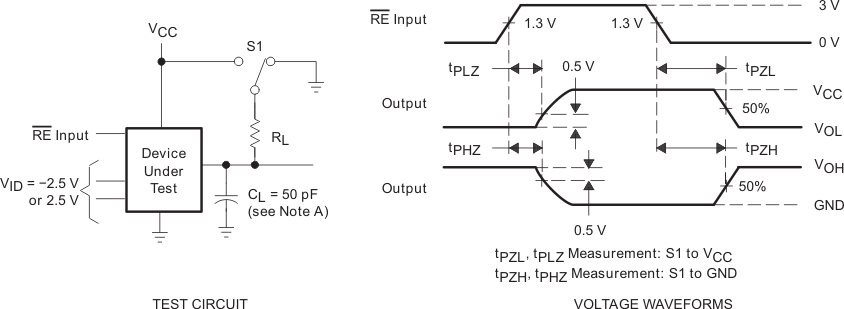

Figure 6-6 Receiver Test Circuit and Voltage Waveforms
