7.4 Device Functional Modes
Figure 7-3 and Figure 7-4 show the address and timing diagrams for the write and read modes, respectively.

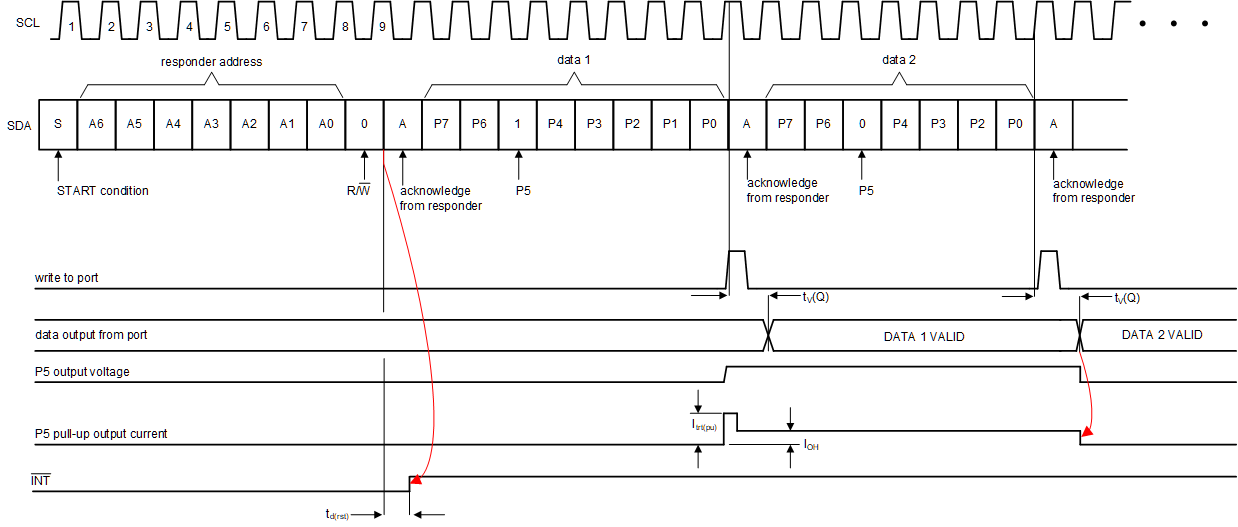

Figure 7-3 Write Mode (Output)
A. A low-to-high transition of SDA while SCL is high is defined as the stop condition (P). The transfer of data can be stopped at any moment bya stop condition. When this occurs, data present at the latest ACK phase is valid (output mode). Input data is lost.

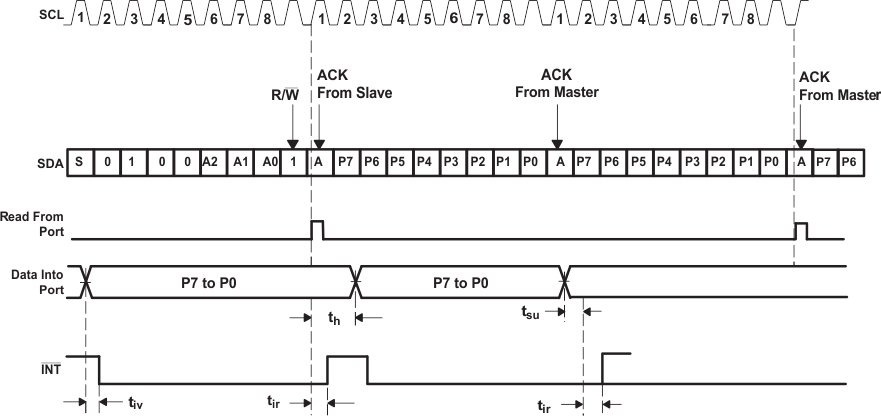

Figure 7-4 Read Mode (Input)
