6 Parameter Measurement Information

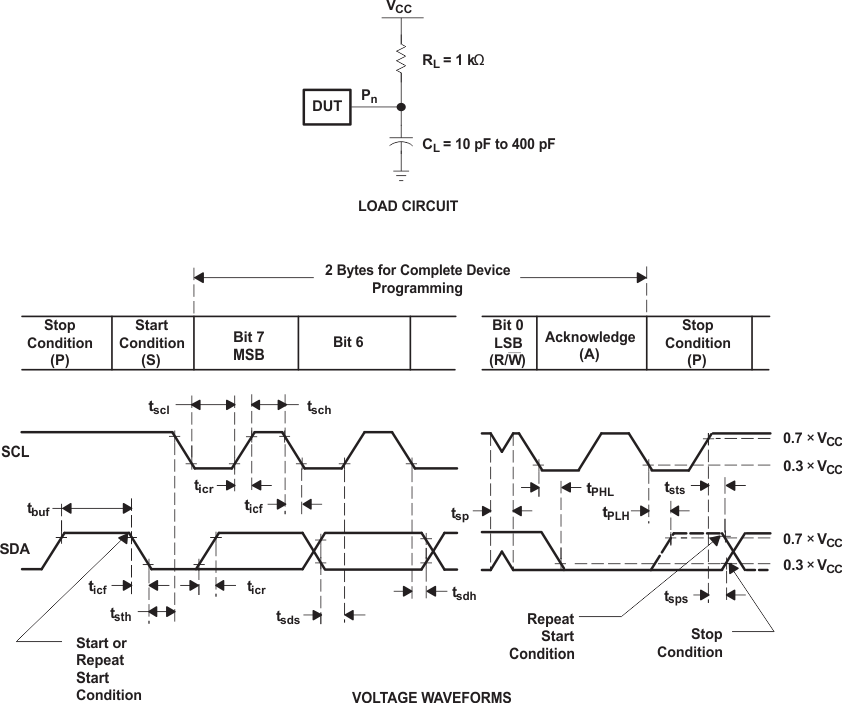

Figure 6-1 I2C Interface Load Circuit and Voltage Waveforms

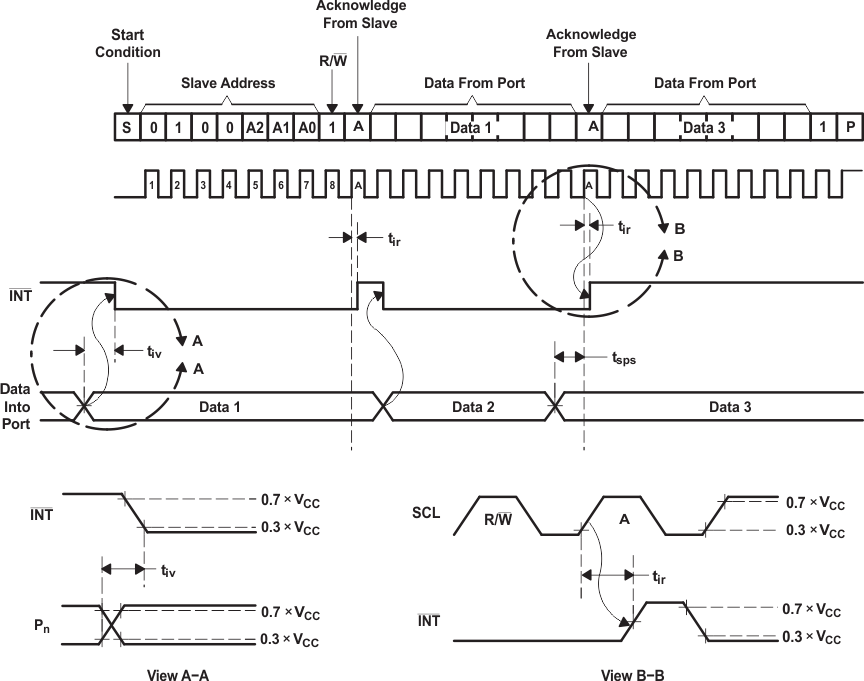

Figure 6-2 Interrupt Voltage Waveforms

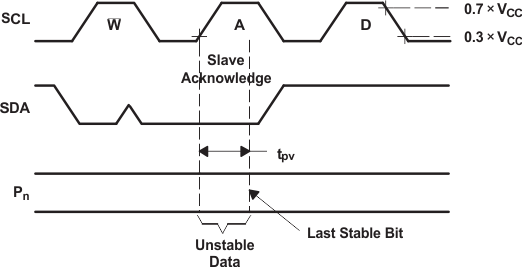

Figure 6-3 I2C Write Voltage Waveforms

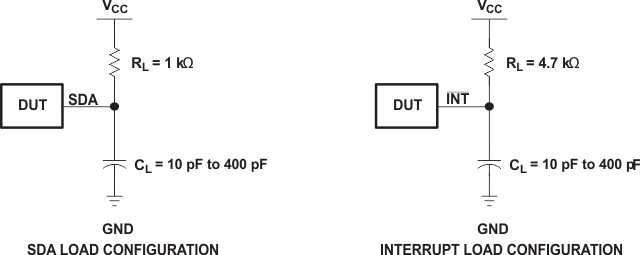

Figure 6-4 Load
Circuits
