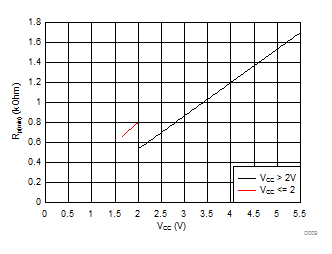

8.2.3 Application Curves
| Standard-mode (fSCL= 100 kHz, tr = 1 μs) | Fast-mode (fSCL= 400 kHz, tr= 300 ns) |
| VOL = 0.2*VCC, IOL = 2 mA when VCC ≤ 2 V | ||
| VOL = 0.4 V, IOL = 3 mA when VCC > 2 V |
