8.1 Functional Block Diagram
Pin numbers shown are for the DB, DBQ, DGV, DW, or PW package.
All I/Os are set to inputs at reset.
Figure 8-1 Logic Diagram
At power-on reset, all registers return to default values.

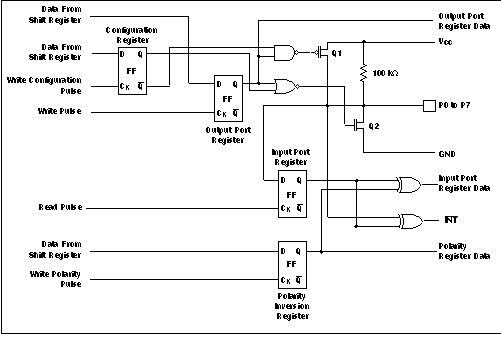

Figure 8-2 Simplified Schematic Of P0 To P7
