8.3.2.4.1 Writes
Data is transmitted to the PCA9554A by sending the device address and setting the least-significant bit to a logic 0 (see Figure 8-6 for device address). The command byte is sent after the address and determines which register receives the data that follows the command byte (see Figure 8-8 and Figure 8-9). There is no limitation on the number of data bytes sent in one write transmission.

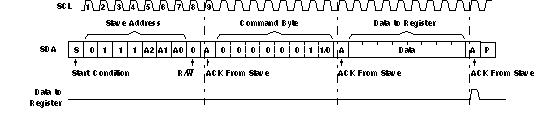

Figure 8-8 Write To Output Port Register
Figure 8-9 Write To Configuration Or Polarity Inversion Registers
