7 Parameter Measurement Information

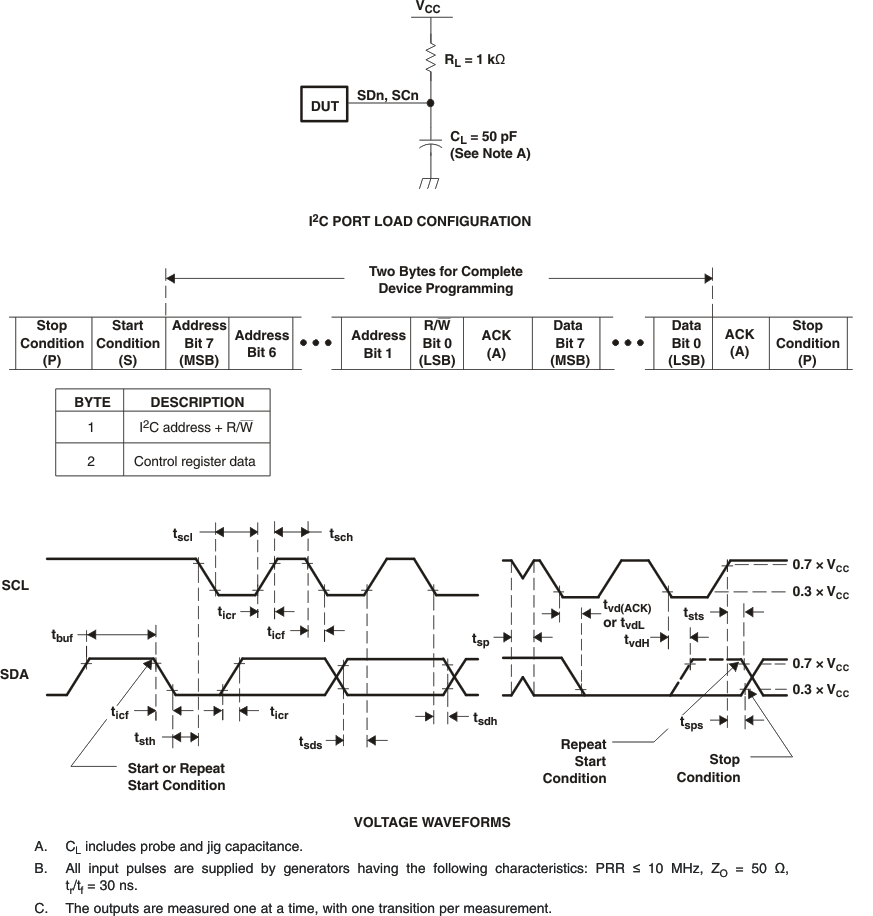

Figure 7-1 I2C Interface Load Circuit, Byte Descriptions, and Voltage
Waveforms

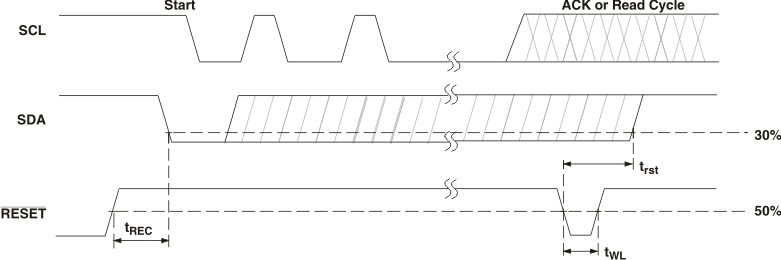

Figure 7-2 Reset Timing

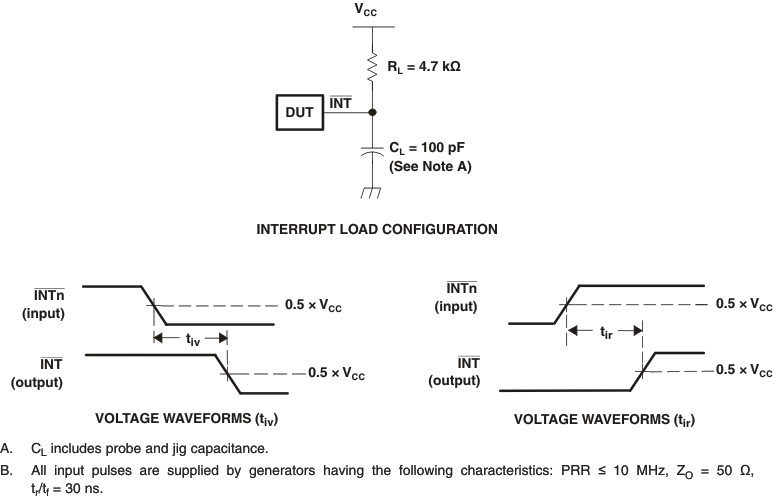

Figure 7-3 Interrupt Load Circuit and Voltage Waveforms
