7.8 Typical Characteristics
TA = 25°C (unless otherwise noted)

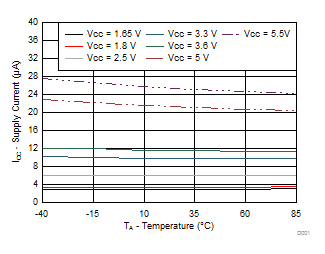

Figure 7-1 Supply Current vs Temperature for Different Supply Voltage (VCC)
Figure 7-3 Supply Current vs Supply Voltage for Different Temperature (TA)

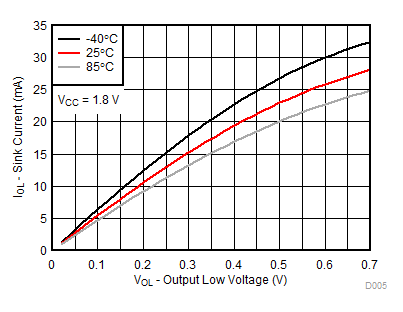

Figure 7-5 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.8 V

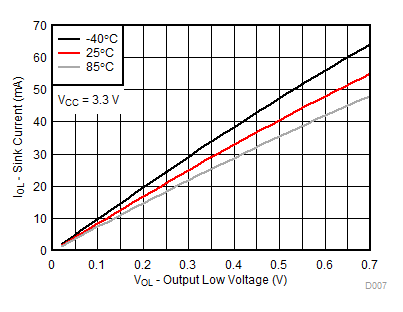

Figure 7-7 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 3.3 V

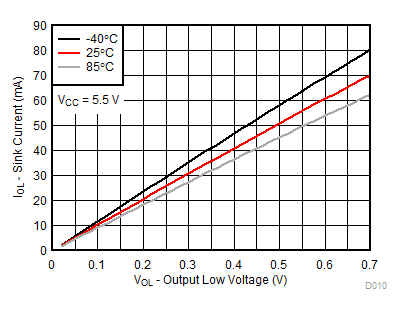

Figure 7-9 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 5.5 V

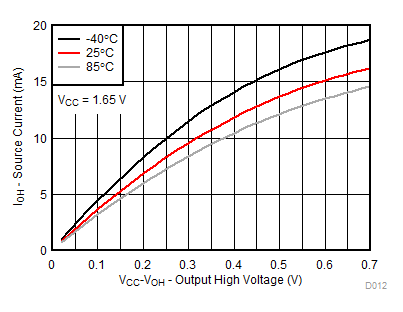

Figure 7-11 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.65 V

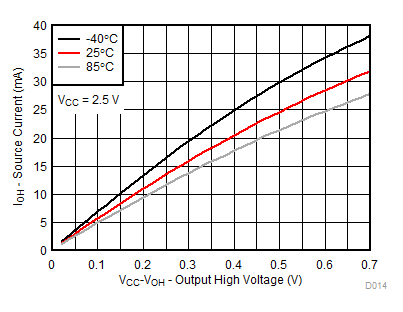

Figure 7-13 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 2.5 V

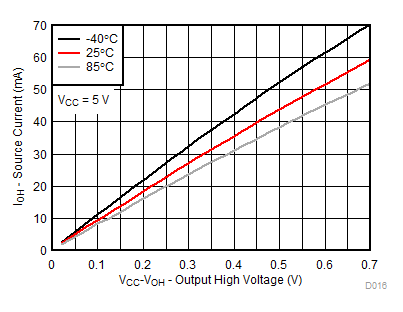

Figure 7-15 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 5 V
Figure 7-17 VCC – VOH Voltage vs Temperature for Different VCC

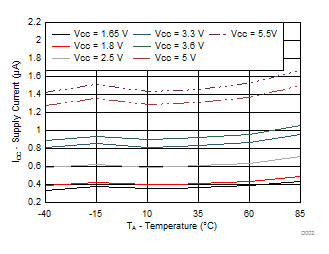

Figure 7-2 Standby Supply Current vs Temperature for Different Supply Voltage (VCC)

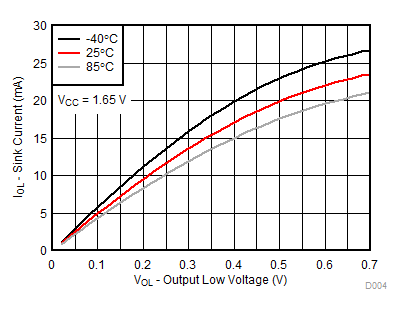

Figure 7-4 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.65 V

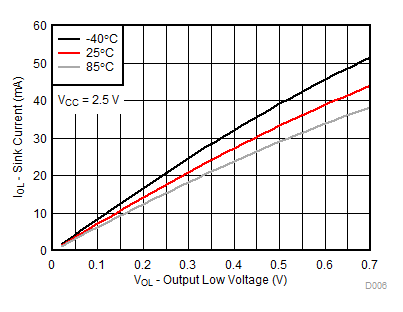

Figure 7-6 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 2.5 V

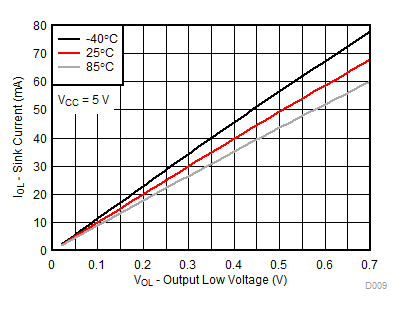

Figure 7-8 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 5 V

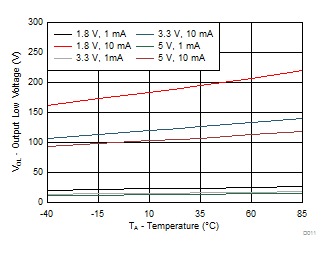

Figure 7-10 II/O Low Voltage vs Temperature for Different VCC and IOL
Figure 7-12 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.8 V

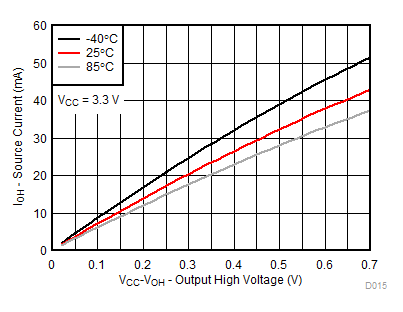

Figure 7-14 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 3.3 V
Figure 7-16 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 5.5 V
Figure 7-18 Δ ICC vs Temperature for Different VCC (VI = VCC – 0.6 V)
