10.1.1 Typical Application

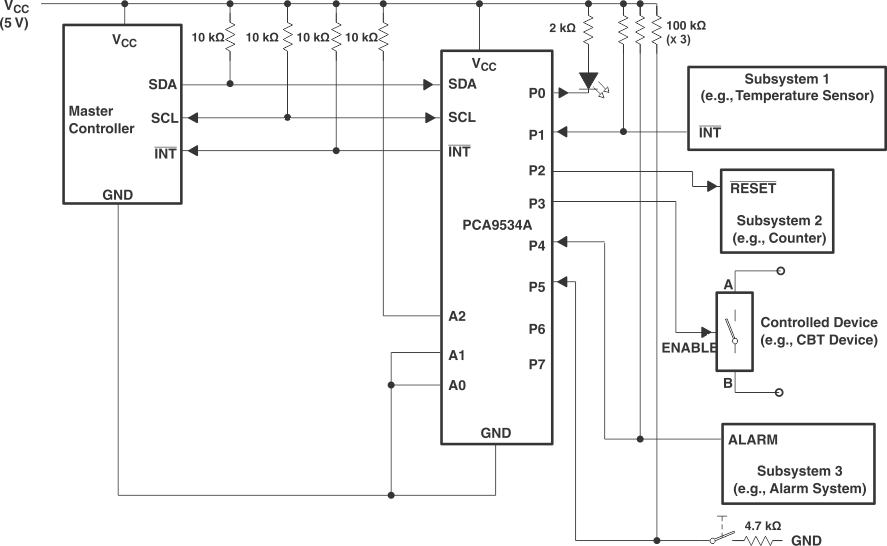

Figure 10-1 shows an application in which the PCA9534A can be used.
Device address is configured as 0111100 for this example.
P0, P2, and P3 are configured as outputs.
P1, P4, and P5 are configured as inputs.
P6 and P7 are not used and must be configured as outputs.
Figure 10-1 Typical Application
