6.10.3 Port P3, P3.0 to P3.7, Input/Output With Schmitt Trigger

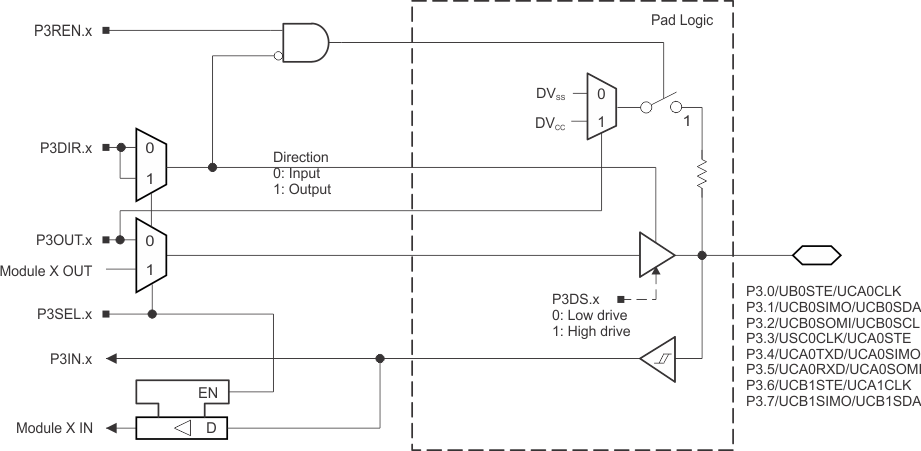

Figure 6-4 shows the port diagram. Table 6-44 summarizes the selection of the pin function.
Figure 6-4 Port P3 (P3.0 to P3.7) Diagram Table 6-44 Port P3 (P3.0 to P3.7) Pin Functions
| PIN NAME (P3.x) | x | FUNCTION | CONTROL BITS OR SIGNALS(1) | |
|---|---|---|---|---|
| P3DIR.x | P3SEL.x | |||
| P3.0/UCB0STE/UCA0CLK | 0 | P3.0 (I/O) | I: 0; O: 1 | 0 |
| UCB0STE/UCA0CLK(2)(4) | X | 1 | ||
| P3.1/UCB0SIMO/UCB0SDA | 1 | P3.1 (I/O) | I: 0; O: 1 | 0 |
| UCB0SIMO/UCB0SDA(2)(3) | X | 1 | ||
| P3.2/UCB0SOMI/UCB0SCL | 2 | P3.2 (I/O) | I: 0; O: 1 | 0 |
| UCB0SOMI/UCB0SCL(2)(3) | X | 1 | ||
| P3.3/UCB0CLK/UCA0STE | 3 | P3.3 (I/O) | I: 0; O: 1 | 0 |
| UCB0CLK/UCA0STE(2) | X | 1 | ||
| P3.4/UCA0TXD/UCA0SIMO | 4 | P3.4 (I/O) | I: 0; O: 1 | 0 |
| UCA0TXD/UCA0SIMO(2) | X | 1 | ||
| P3.5/UCA0RXD/UCA0SOMI | 5 | P3.5 (I/O) | I: 0; O: 1 | 0 |
| UCA0RXD/UCA0SOMI(2) | X | 1 | ||
| P3.6/UCB1STE/UCA1CLK | 6 | P3.6 (I/O) | I: 0; O: 1 | 0 |
| UCB1STE/UCA1CLK(2)(5) | X | 1 | ||
| P3.7/UCB1SIMO/UCB1SDA | 7 | P3.7 (I/O) | I: 0; O: 1 | 0 |
| UCB1SIMO/UCB1SDA(2)(3) | X | 1 | ||
(1) X = Don't care
(2) The pin direction is controlled by the USCI module.
(3) If the I2C functionality is selected, the output drives only the logical 0 to VSS level.
(4) UCA0CLK function takes precedence over UCB0STE function. If the pin is required as UCA0CLK input or output, USCI B0 is forced to 3-wire SPI mode if 4-wire SPI mode is selected.
(5) UCA1CLK function takes precedence over UCB1STE function. If the pin is required as UCA1CLK input or output, USCI B1 is forced to 3-wire SPI mode if 4-wire SPI mode is selected.
