6 Parameter Measurement Information

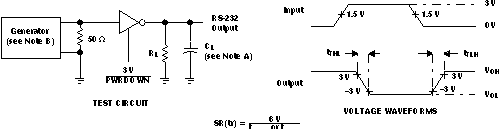

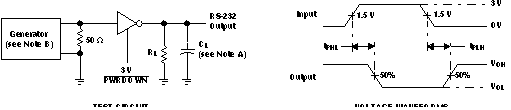

A. CL includes probe and jig capacitance.
B. The pulse generator has the following
characteristics: PRR = 250kbit/s, ZO = 50?, 50% duty cycle,
tr ≤ 10ns, tf ≤ 10ns.
Figure 6-1 Driver Slew Rate
A. CL includes probe and jig capacitance.
B. The pulse generator has the following
characteristics: PRR = 250kbit/s, ZO = 50?, 50% duty cycle,
tr ≤ 10ns, tf ≤ 10ns.
Figure 6-2 Driver Pulse Skew

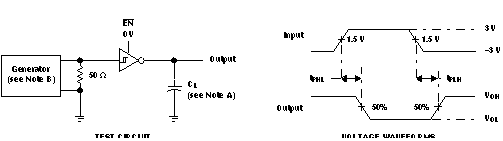

A. CL includes probe and jig capacitance.
B. The pulse generator has the following
characteristics: ZO = 50?, 50% duty cycle, tr ≤ 10ns,
tf ≤ 10ns.
Figure 6-3 Receiver Propagation Delay Times

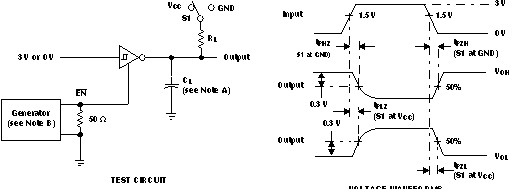

A. CL includes probe and jig capacitance.
B. The pulse generator has the following
characteristics: ZO = 50?, 50% duty cycle, tr ≤ 10ns,
tf ≤ 10ns.
Figure 6-4 Receiver Enable and Disable Times
