6.8 Typical Characteristics
TA = 25°C, unless otherwise noted.
1.

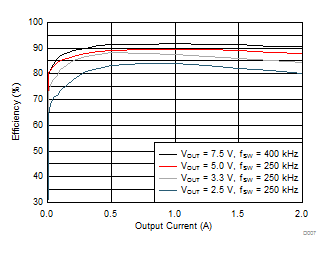

Figure 7. Efficiency vs Output Current | PVIN = 24 V | ||
1.

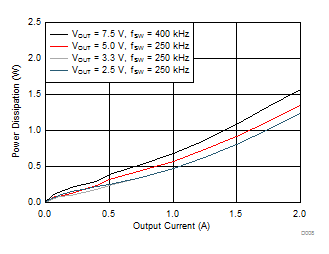

Figure 9. Power Dissipation vs Output Current | PVIN = 24 V | ||
1.

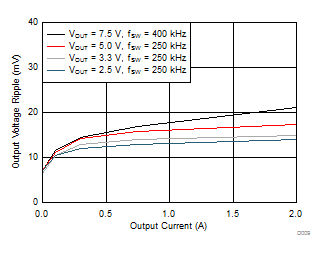

Figure 11. Voltage Ripple vs Output Current | PVIN = 24 V | ||
1.

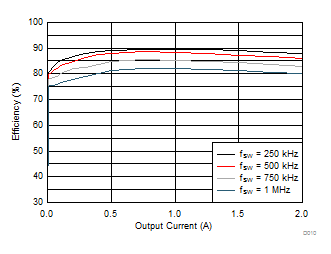

Figure 8. Efficiency vs Output Current | PVIN = 24 V | ||
| VOUT = 5 V | over frequency range |
1.

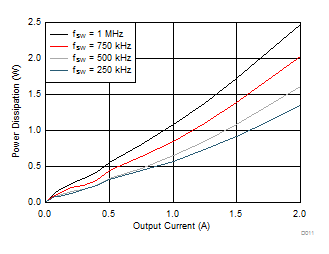

Figure 10. Power Dissipation vs Output Current | PVIN = 24 V | ||
| VOUT = 5 V | over frequency range |
1.

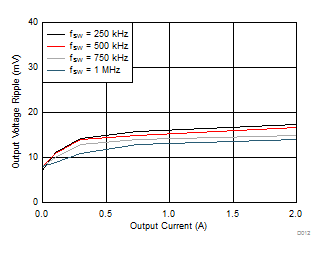

Figure 12. Voltage Ripple vs Output Current | PVIN = 24 V | ||
| VOUT = 5 V | over frequency range |
