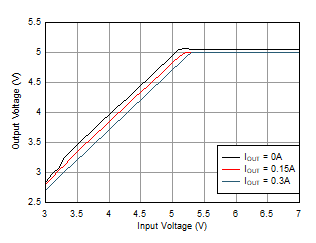

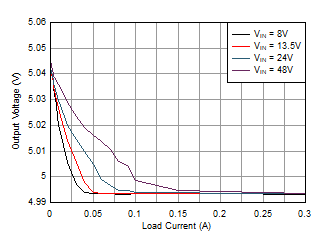

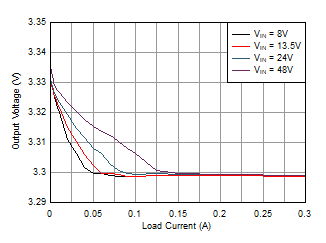

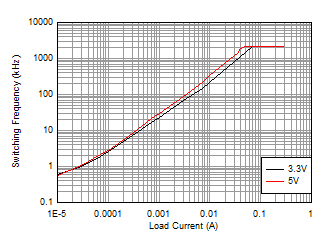

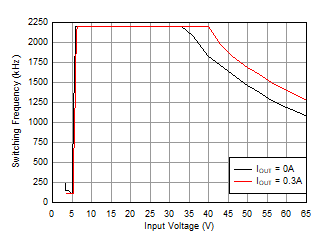

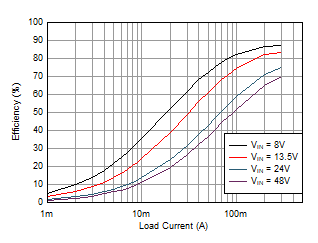

9.2.3 Application Curves
Unless otherwise specified the following conditions apply: VIN
= 13.5V, TA = 25°C. Figure 9-25 shows the circuit with the appropriate BOM in Table 9-3
Unless otherwise specified the following conditions apply: VIN
= 13.5V, TA = 25°C. Figure 9-25 shows the circuit with the appropriate BOM in Table 9-3

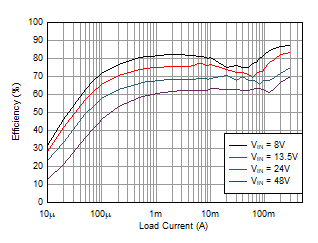

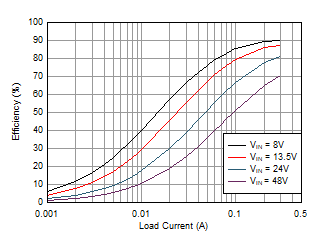

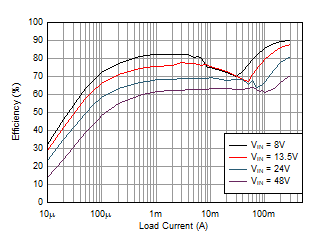

Figure 9-4 Efficiency. Unless otherwise specified the following conditions apply: VIN
= 13.5V, TA = 25°C. Figure 9-25 shows the circuit with the appropriate BOM in Table 9-3

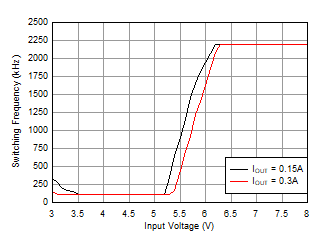

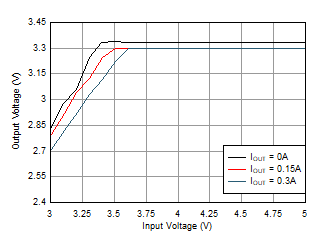

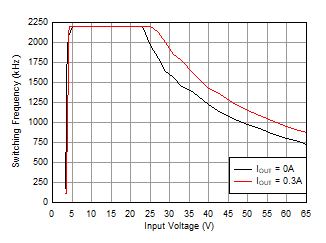

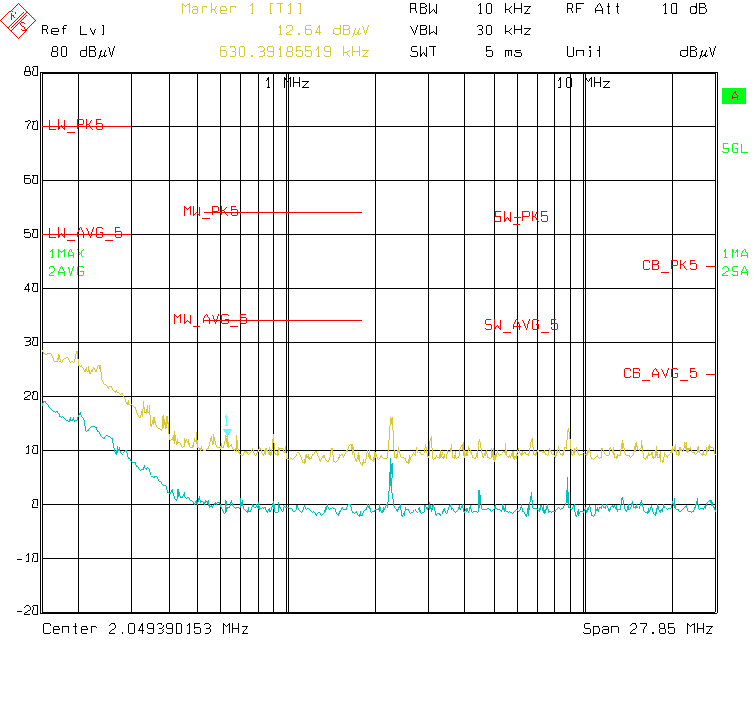

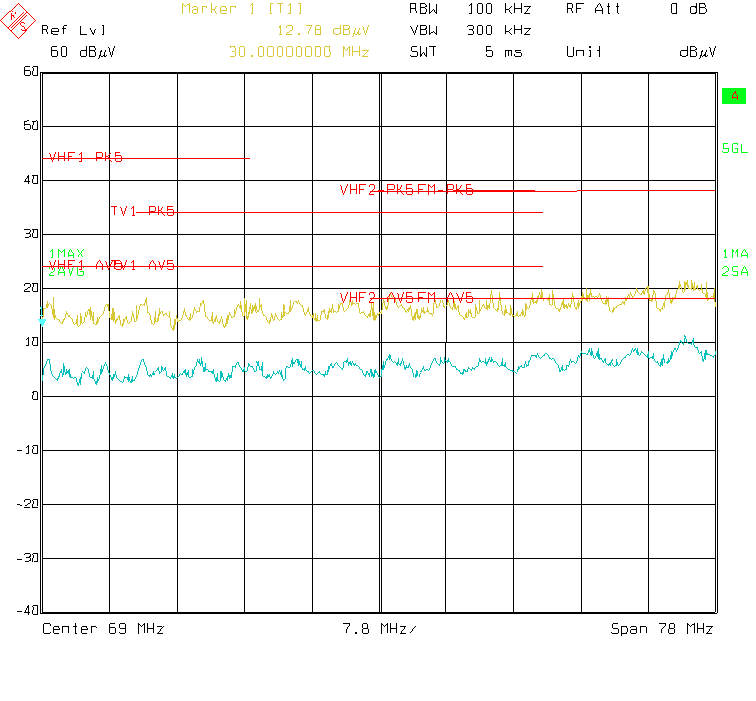

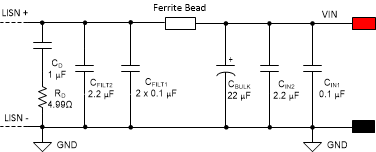

| LMR36503MSC3 | VOUT = 3.3 V Fixed | 2.2 MHz (AUTO) |
| LMR36503MSC3 | VOUT = 3.3 V Fixed | VIN = 13.5 V |
| LMR36503MSC5 | VOUT = 5 V Fixed | AUTO |
| VIN = 13.5 V | VOUT = 5 V | Fsw = 2.2 MHz |
| Load = 0.3 A |
| VIN = 13.5 V | VOUT = 5 V | Fsw = 2.2 MHz |
| Load = 0.3 A |
| Ferrite Bead Part Number: FBMH3225HM601NT |

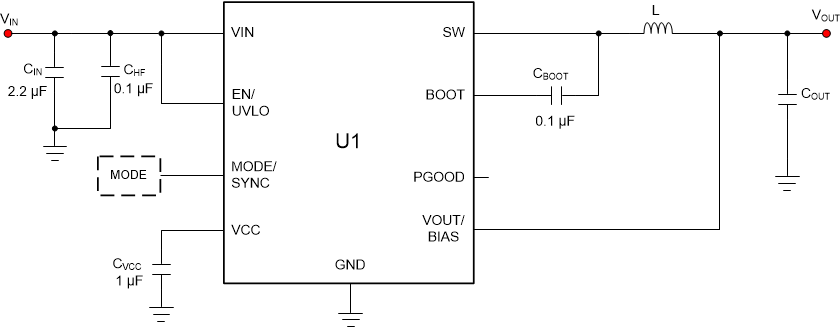

Figure 9-25 Schematic for Typical
Application CurvesTable 9-3 BOM for Typical Application Curves
| U1 | ?SW | VOUT | L | NOMINAL COUT (RATED CAPACITANCE) |
|---|---|---|---|---|
| LMR36503MSC3RPERQ1 | 2200 kHz | 3.3 V | 15 μH. 260 mΩ | 1 × 10 μF |
| LMR36503MSC5RPERQ1 | 2200 kHz | 5 V | 15 μH. 260 mΩ | 1 × 10 μF |
