7.9 Typical Characteristics
Unless otherwise specified, the following conditions apply: TA = 25°C, VIN = 13.5 V.
| VOUT = 3.3 V Fixed | FSW = 2.2 MHz (FPWM) |
| VOUT = 5 V Fixed | FSW-NOM = 2.2 MHz (Auto) |
| ILoad = 300 mA | VOUT = 5 V Fixed | FSW-NOM = 2.2 MHz (Auto) |
| VOUT = 5 V Fixed | FSW = 2.2 MHz (FPWM) |
Figure 7-4 Typical Input

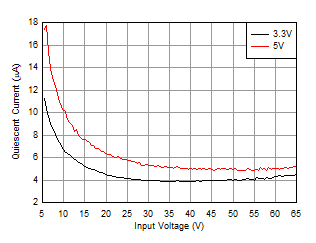

Supply Current at No Load for Fixed 3.3-V and 5-V Output
