9.2.3 Application Curves
Unless otherwise specified the following conditions apply: VIN
= 12 V, fSW = 400 kHz, L = 8.2 μH, COUT = 150 μF,
TA = 25 °C.
Unless otherwise specified the following conditions apply: VIN
= 12 V, fSW = 400 kHz, L = 8.2 μH, COUT = 150 μF,
TA = 25 °C.

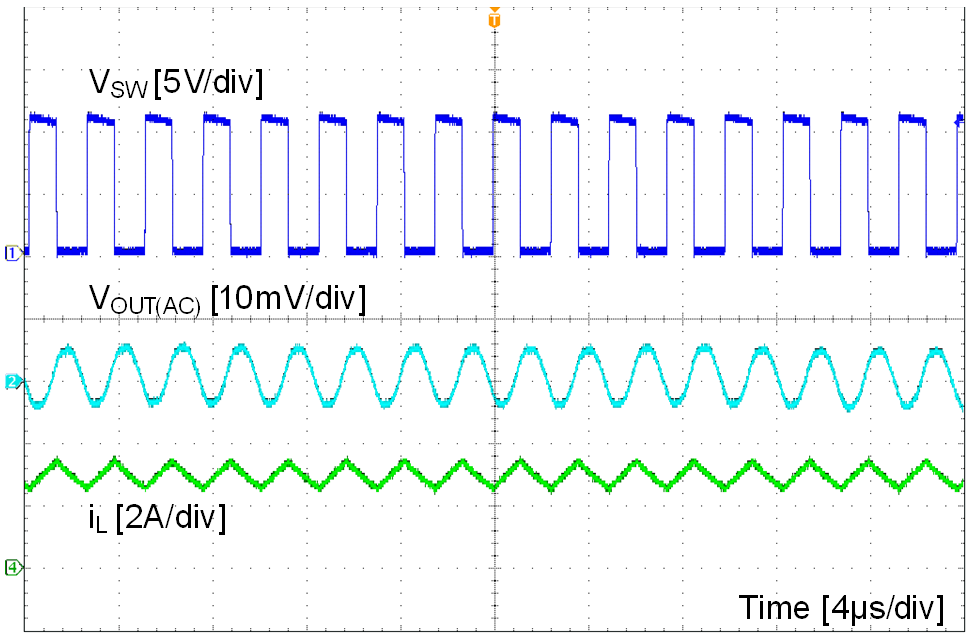

Figure 9-2 CCM Mode. Unless otherwise specified the following conditions apply: VIN
= 12 V, fSW = 400 kHz, L = 8.2 μH, COUT = 150 μF,
TA = 25 °C.

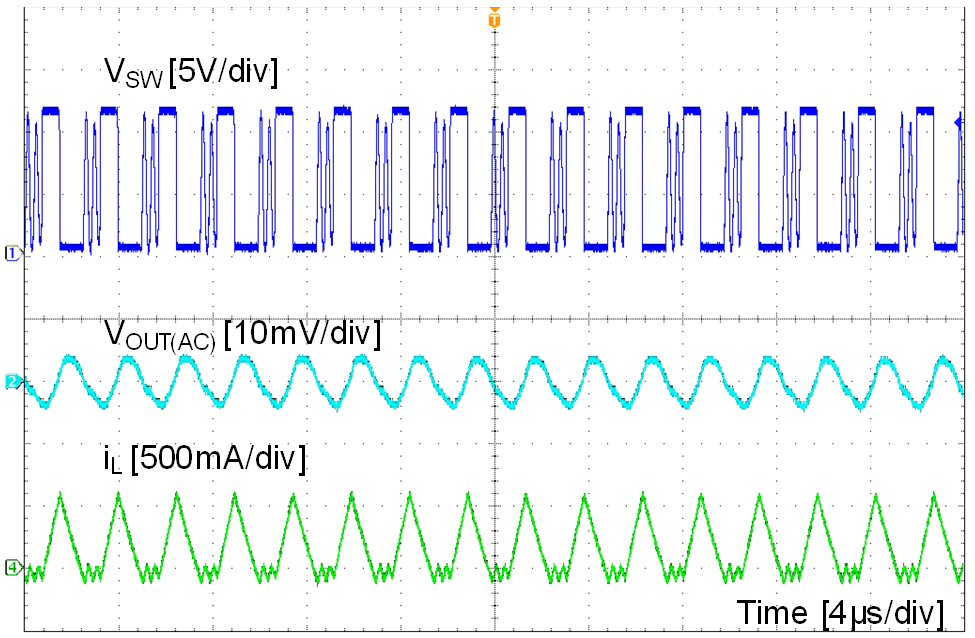

| VOUT = 5 V | IOUT = 3 A | fSW = 400 kHz |
| VOUT = 5 V | IOUT = 0 mA | fSW = 400 kHz |
| VIN = 12 V | VOUT = 5 V | IOUT = 2 A |
| VIN = 12 V | IOUT = 0.3 A to 3 A, 100 mA / μs | |
| VOUT = 5 V | ||

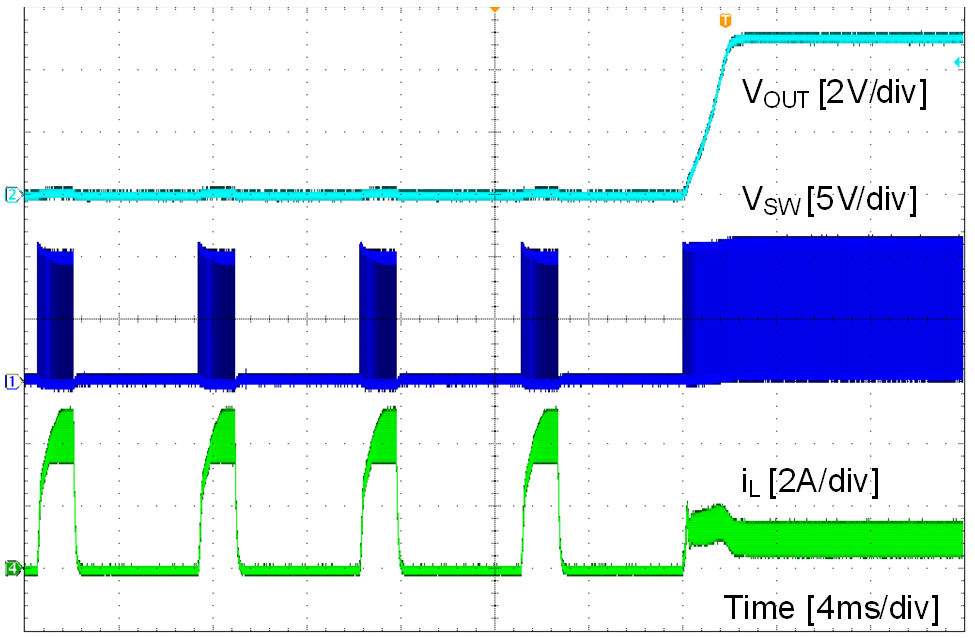

| VOUT = 5 V | IOUT = 1 A to short | |
| VOUT = 5 V | IOUT = 150 mA | fSW = 400 kHz |
| VOUT = 5 V | IOUT = 0 mA | fSW = 400 kHz |
| VIN = 12 V | VOUT = 5 V | IOUT = 2 A |
| VOUT = 5 V | VIN = 7 V to 36 V, 2 V / μs | |
| IOUT = 3 A | ||

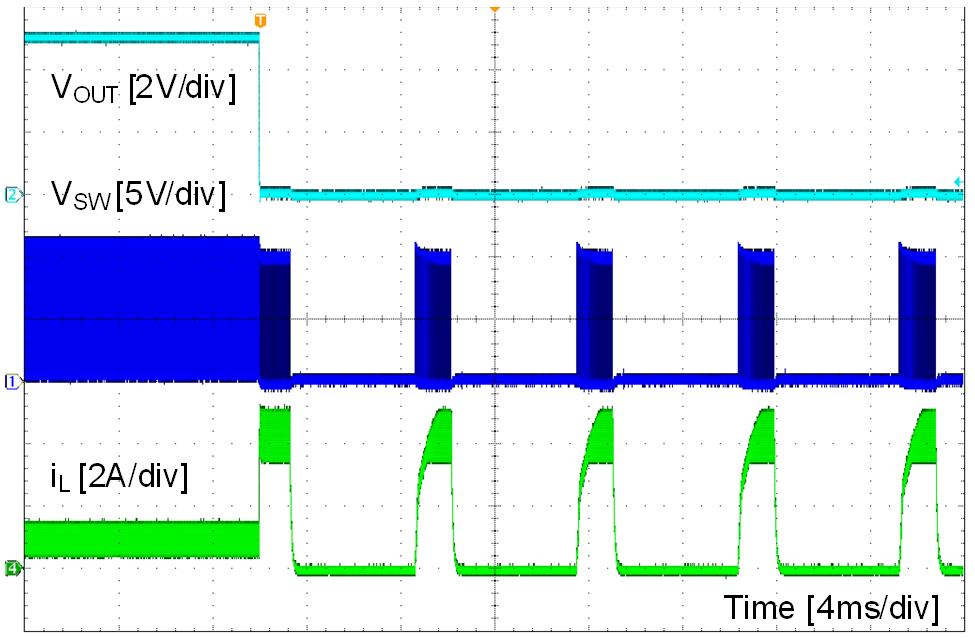

| VOUT = 5 V | IOUT = short to 1 A | |
