8.2.1.9 Feedforward Capacitor (Optional)
A feed forward capacitor CFF can improve the transient response of the converter. Place CFF in parallel with R1. The value of CFF should place a zero in the loop response at, or above, the pole of the output capacitor and RLOAD. The CFF capacitor will increase the crossover frequency of the design, thus a larger minimum output capacitance is required for designs using CFF. CFF must only be used with an output capacitance greater than or equal to 44 uF. Example waveforms of load transient with and without the CFF capacitorss are as shown below.
Equation 28.

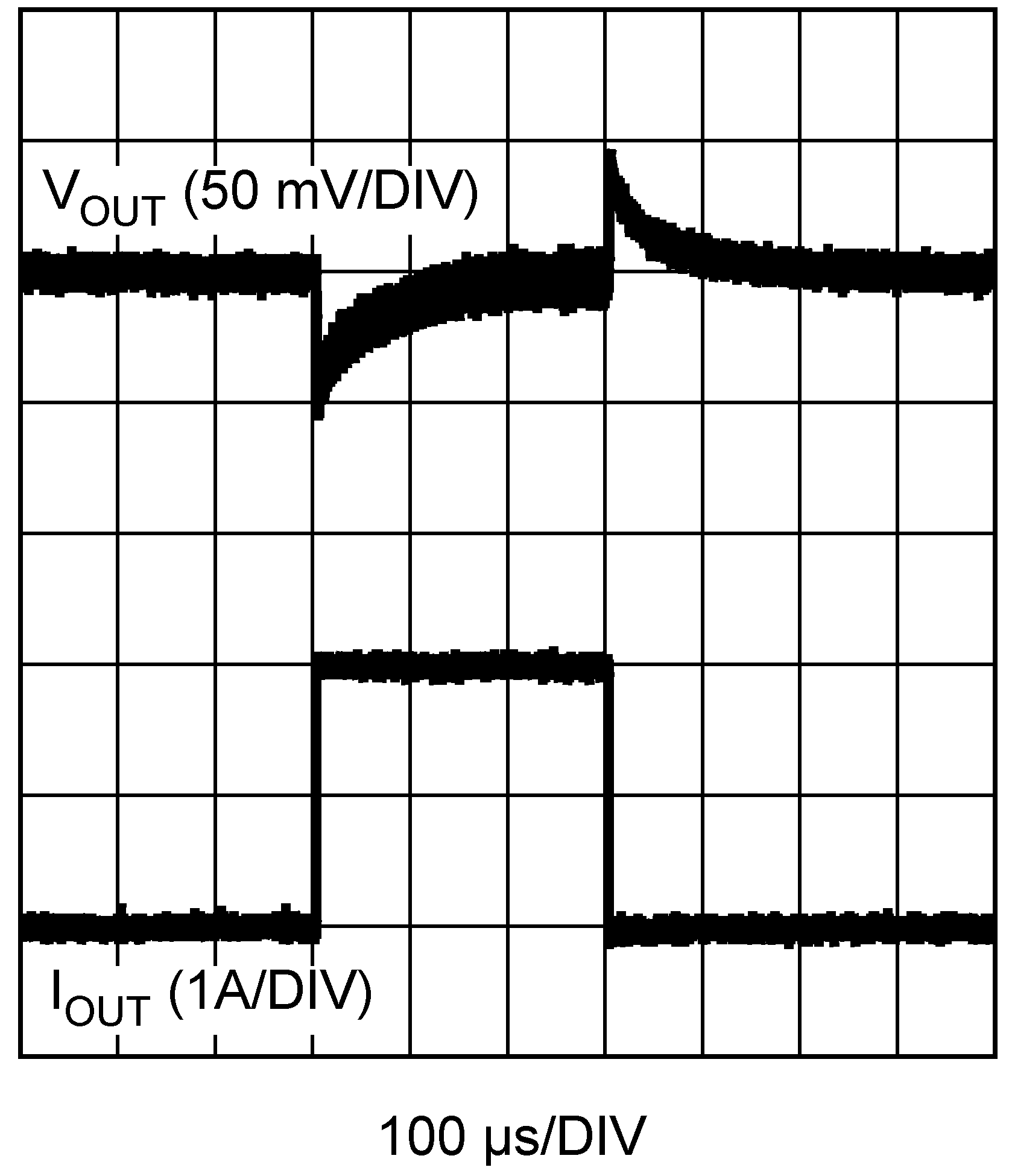

Figure 28. LMR12015/20 Load Transient With CFF Capacitor
VOUT = 3.3 V

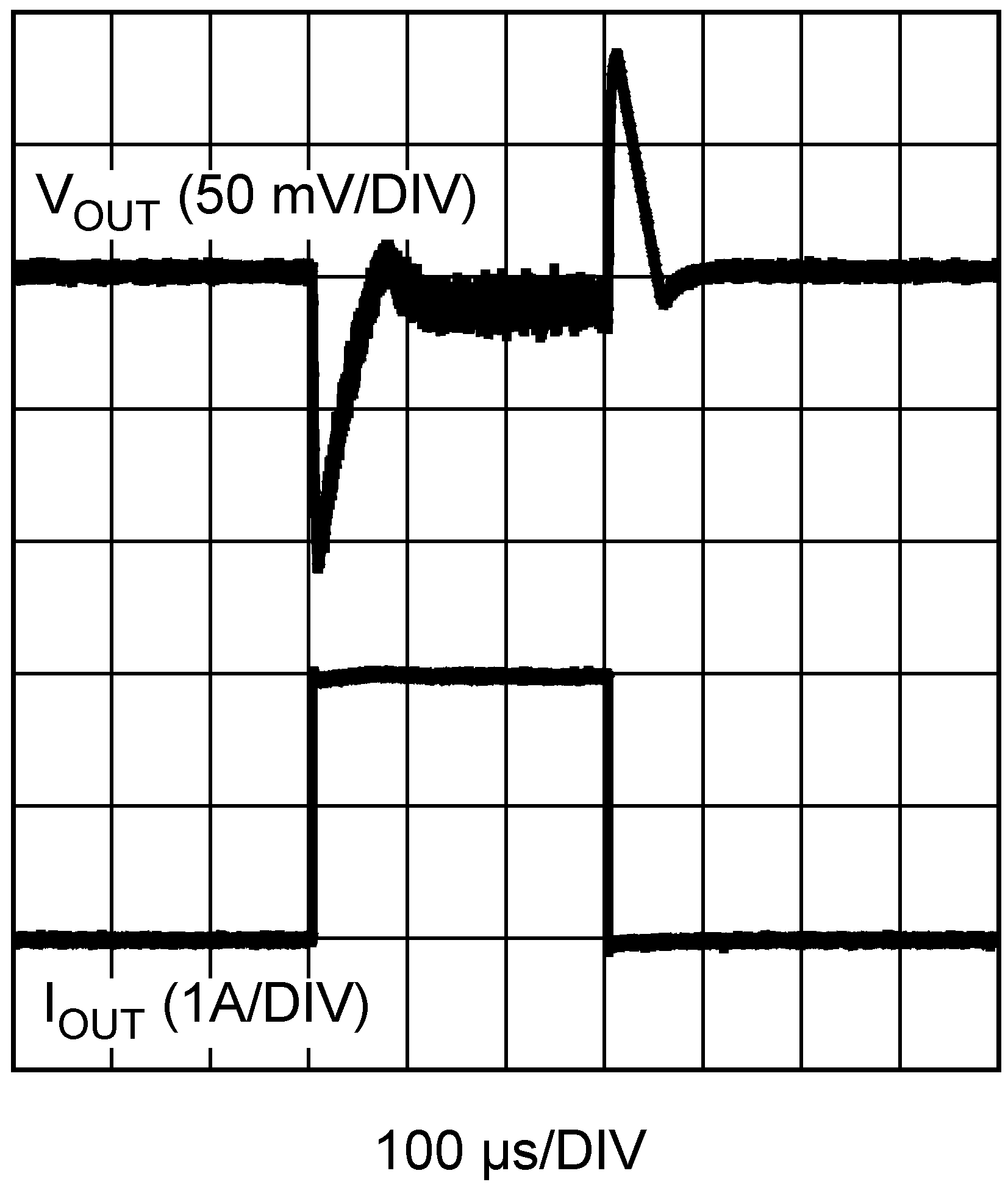

Figure 29. LMR12015/20 Load Transient Without CFF Capacitor
VOUT = 3.3 V
