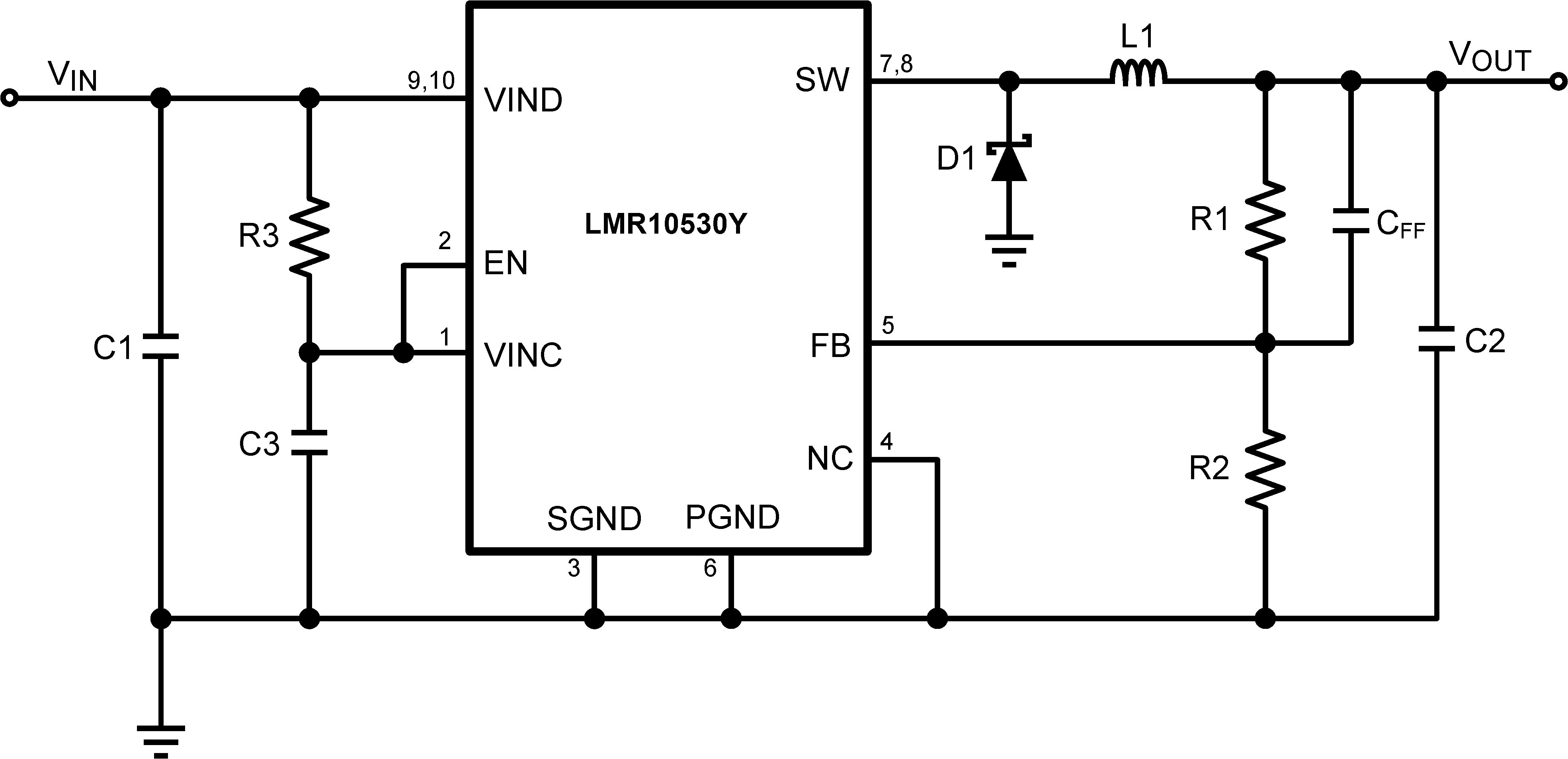

8.2.3.4 LMR10530Y Design Example 4
| VIN = 5 V | VOUT = 3.3 V | IOUT = 3 A |
Table 5. Bill Of Materials
| DEVICE ID | DEVICE VALUE | MANUFACTURER | DEVICE NUMBER |
|---|---|---|---|
| U1 | 3-A buck regulator | TI | LMR10530Y |
| C1, Input Capacitor | 22 µF, 6.3 V, X5R | TDK | C3216X5R0J226M |
| C2, Output Capacitor | 47 µF, 6.3 V, X5R | TDK | C3216X5R0J476M |
| C3, Bypass Capacitor | 0.22 µF, 10 V, X7R | Murata | GRM216R71A224KC01D |
| CFF, Feedforward Capacitor | 47 nF, 10 V, X7R | AVX | 0805ZC473JAZ2A |
| D1, Catch Diode | Schottky, 0.43 V at 3 A, VR= 30 V | Vishay | SSA33L-E3/61T |
| L1 | 1 µH, 4 A | Taiyo Yuden | NP04SZB1R0N |
| R1 | 10.2 kΩ, 1% | Vishay | CRCW080510K2FKEA |
| R2 | 2.26 kΩ, 1% | Vishay | CRCW08052K26FKEA |
| R3 | 10 Ω, 1% | Vishay | CRCW080510R0FKEA |
