ZHCSJX4B June 2012 – June 2019 LMR10530
PRODUCTION DATA.

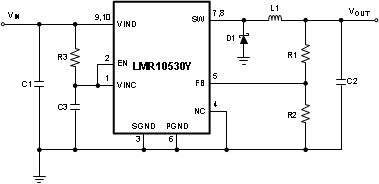

8.2.3.3 LMR10530Y Design Example 3
| VIN = 3.3 V | VOUT = 1.2 V | IOUT = 3 A |
Table 4. Bill Of Materials
| DEVICE ID | DEVICE VALUE | MANUFACTURER | DEVICE NUMBER |
|---|---|---|---|
| U1 | 3-A buck regulator | TI | LMR10530Y |
| C1, Input Capacitor | 22 µF, 6.3 V, X5R | TDK | C3216X5R0J226M |
| C2, Output Capacitor | 47µF, 6.3 V, X5R | TDK | C3216X5R0J476M |
| C3, Bypass Capacitor | 0.22µF, 10 V, X7R | Murata | GRM216R71A224KC01D |
| D1, Catch Diode | Schottky, 0.33 V at 3 A, VR= 30 V | Toshiba | CMS01 |
| L1 | 1 µH, 4 A | Taiyo Yuden | NP04SZB1R0N |
| R1 | 2 kΩ, 1% | Vishay | CRCW08052K00FKEA |
| R2 | 2 kΩ, 1% | Vishay | CRCW08052K00FKEA |
| R3 | 10 Ω, 1% | Vishay | CRCW080510R0FKEA |
