ZHCSCW7D October 2014 – February 2018 LMH5401

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

RMS|14
- MPQF401

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

6.7 Typical Characteristics: 5 V

at T_A = 25°C, split supplies, V_CM = 0 V, R_L = 200-Ω differential (R_O = 40 Ω each), G = 12 dB (4 V/V), single-ended input and differential output, and input and output pins referenced to midsupply, (unless otherwise noted.) Measured using an EVM as discussed in the section (see Figure 56 to Figure 59).

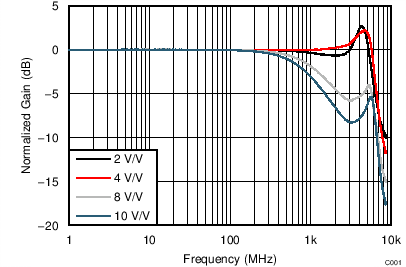

V_S = ±2.5 V, VOUT_AMP = 0.2 V_PP, R_L = 200 Ω

Figure 1. Small-Signal Frequency Response vs Gain

LMH5401 TC_C003_Freq_RLd_5V_0p2Vpp_diff.png

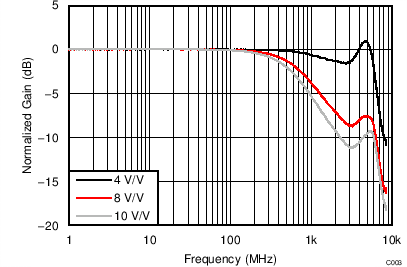

VOUT_AMP = 0.2 V_PP, R_L = 200 Ω

Figure 3. Differential Input Small-Signal Frequency Response vs Gain

LMH5401 TC_C005_Freq_RLoad_5V_0p2Vpp.png

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, G = 12 dB, SE-DE

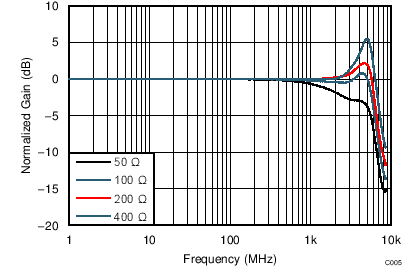

Figure 5. Small-Signal Frequency Response vs Load

LMH5401 TC_C007_Freq_CLoad_5V_0p2Vpp.png

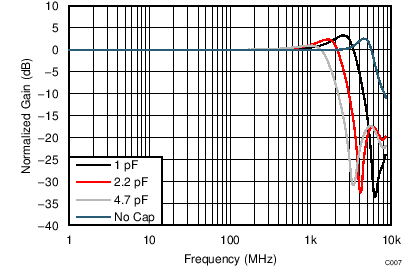

V_S = ±2.5 V, VOUT_AMP = 0.2 V_PP, capacitance at DUT output pins, G = 12 dB, SE-DE

Figure 7. Small-Signal Frequency Response vs Capacitive Load

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, G = 12 dB, SE-DE

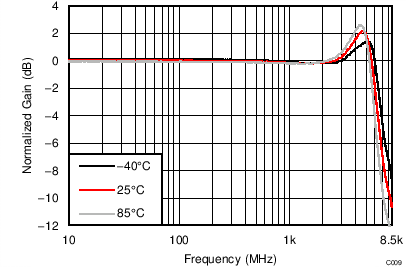

Figure 9. Bandwidth vs Temperature

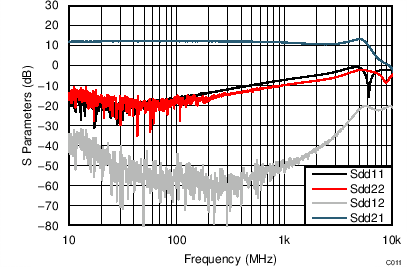

V_S = ±2.5 V, VOUT_AMP = 200 mV_PP

Figure 11. S-Parameters Differential Input (±2.5-V Supply)

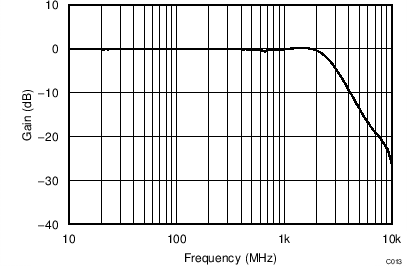

V_S = ±2.5 V, VOUT_AMP = 200 mV_PP

Figure 13. Common-Mode Frequency Response

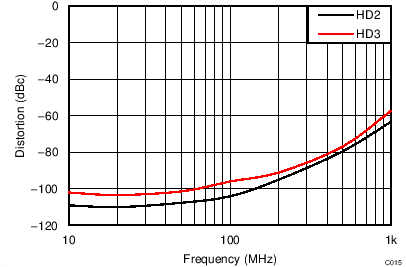

V_S = ±2.5 V, VOUT_AMP = 2 V_PP
(Differential to Differential, R_L = 200 Ω)

Figure 15. HD2 and HD3 vs Frequency

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, R_L = 200 Ω, f = 500 MHz

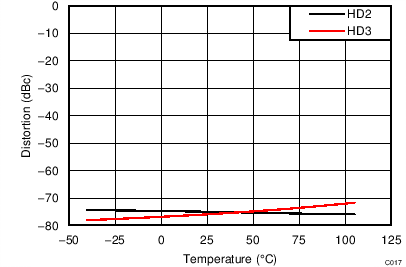

Figure 17. HD2 and HD3 vs Temperature

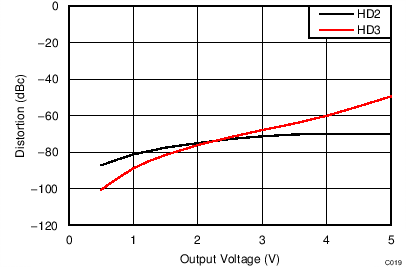

V_S = ±2.5 V, f = 500 MHz

Figure 19. HD2 and HD3 vs Output Voltage

V_S = ±2.5 V, f = 500 MHz , VOUT_AMP = 2 V_PP

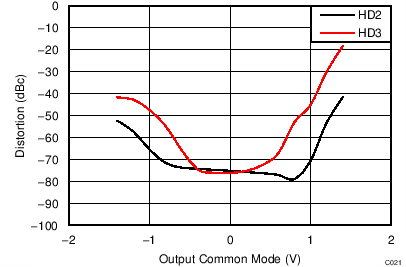

Figure 21. HD2 and HD3 vs Output Common-Mode Voltage

LMH5401 TC_C023_voltage_noise_sbos710.png

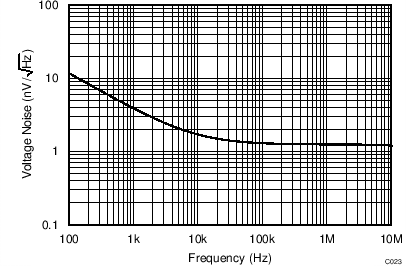

V_S = ±2.5 V

Figure 23. Input-Referred Voltage Noise

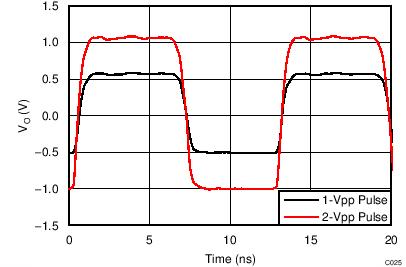

V_S = ±2.5 V, VOUT_AMP

Figure 25. Pulse Response for Various V_O

V_S = ±2.5 V

Figure 27. Power-Down Timing

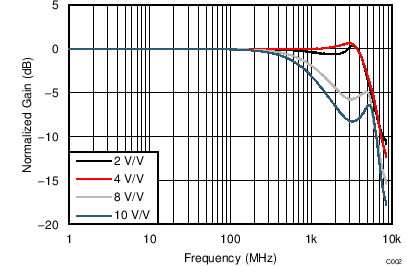

VOUT_AMP = 2 V_PP, R_L = 200 Ω

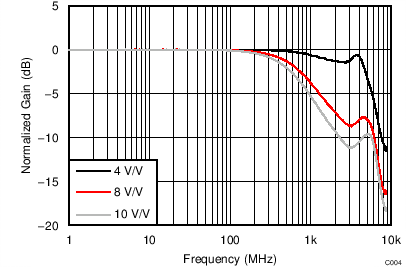

Figure 2. Large-Signal Frequency Response vs Gain

LMH5401 TC_C004_Freq_RLoad_5V_2Vpp_diff.png

VOUT_AMP = 2 V_PP, R_L = 200 Ω

Figure 4. Differential Input Large-Signal Frequency Response vs Gain

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, G = 12 dB, SE-DE

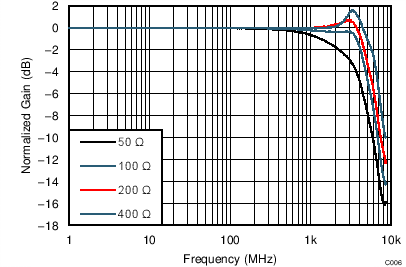

Figure 6. Large-Signal Frequency Response vs Load

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, capacitance at DUT output pins, G = 12 dB, SE-DE

Figure 8. Large-Signal Frequency Response vs Capacitive Load

V_S = ±2.5 V, VOUT_AMP = 200 mV_PP, ±2.5-V supply

Figure 10. S-Parameters Single-Ended Input

V_S = ±2.5 V, VOUT_AMP = 200 mV_PP

Figure 12. Balance Error

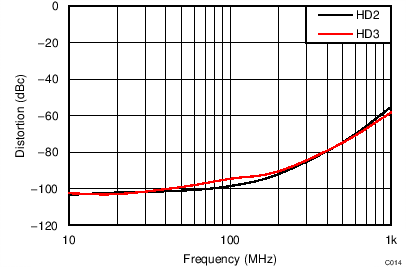

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, SE-DE, R_L = 200 Ω

Figure 14. HD2 and HD3 vs Frequency

LMH5401 TC_C016_H23_5V_Freq_SEIn_RL100.png

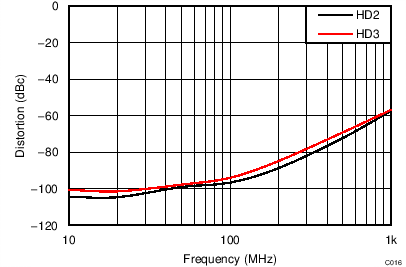

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, (SE-DE, R_L = 100 Ω)

Figure 16. HD2 and HD3 vs Frequency

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, f = 500 MHz

Figure 18. HD2 and HD3 vs Load Resistance

V_S = ±2.5 V, VOUT_AMP = 2 V_PP, f = 500 MHz

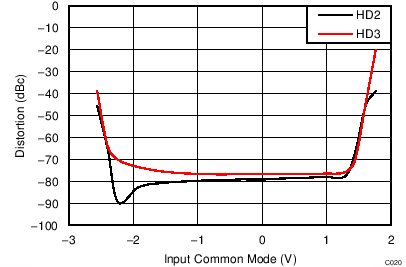

Figure 20. HD2 and HD3 vs Input Common-Mode Voltage

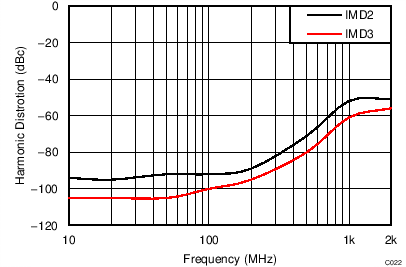

V_S = ±2.5 V, VOUT_AMP = 1 V_PP per tone

Figure 22. Intermodulation vs Frequency

V_S = ±2.5 V

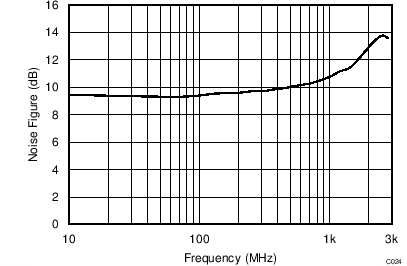

Figure 24. Noise Figure vs Frequency

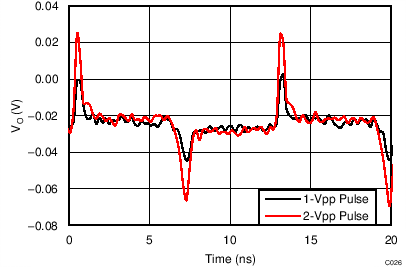

V_S = ±2.5 V, VOUT_AMP, V_CM = (V_O+ + V_O–) / 2

Figure 26. Pulse Response Common-Mode for Various V_O

V_S = ±2.5 V

Figure 28. Overdrive Recovery
