6.8 Typical Characteristics: 3.3 V
at TA = 25°C, split supplies, VCM = 0 V, RL = 200-Ω differential (RO = 40 Ω each), G = 12 dB, single-ended input and differential output, and input and output pins referenced to midsupply, (unless otherwise noted). Measured using an EVM as discussed in the section (see Figure 56 to Figure 59).

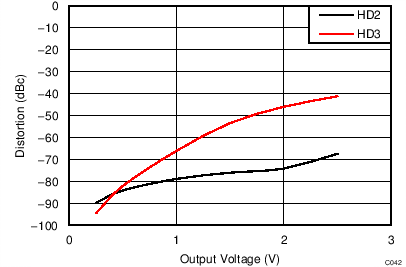

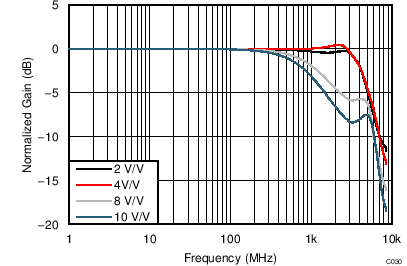

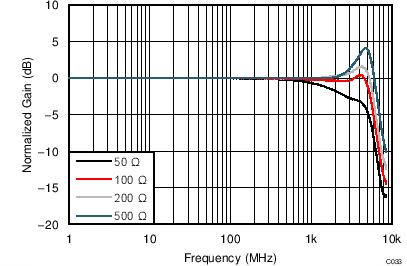

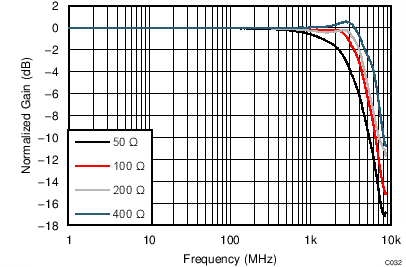

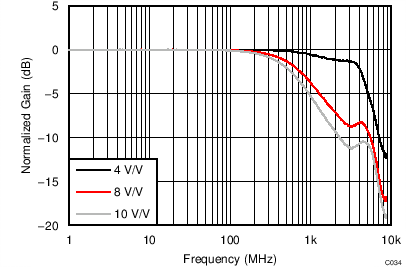

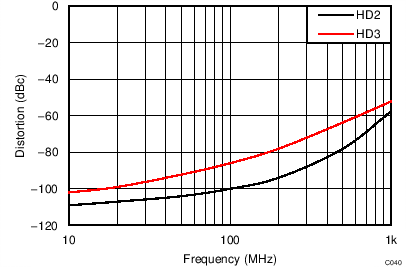

| VS = ±1.65 V, VOUT_AMP = 0.2 VPP, RL = 200 Ω |

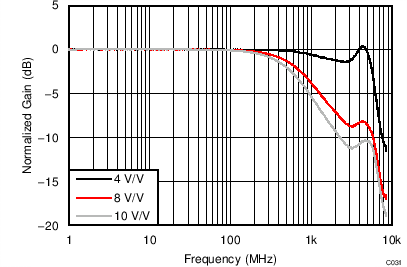

| VS = ±1.65 V, VOUT_AMP = 0.2 VPP, G = 12 dB |

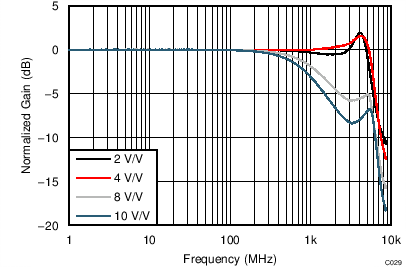

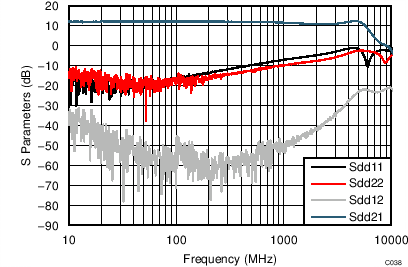

| VS = ±1.65 V, VOUT_AMP = 0.2 VPP, G = 12 dB |

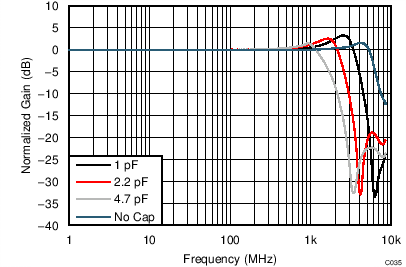

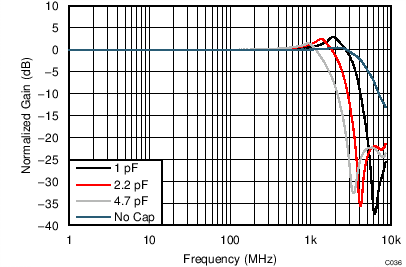

| VS = ±1.65 V, VOUT_AMP = 2 VPP, capacitance at DUT output pins, |

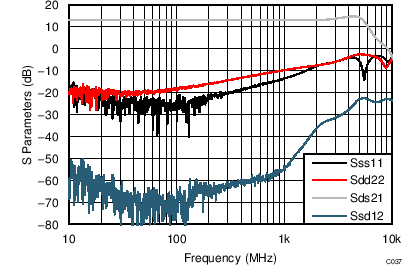

| VS = ±1.65 V, VOUT_AMP = 200 mVPP |
| VS = ±1.65 V, VOUT_AMP = 200 mVPP | ||

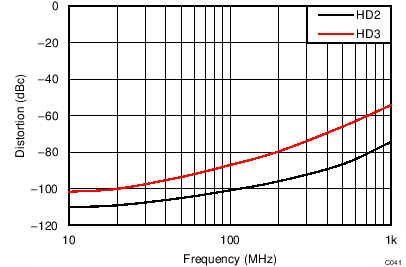

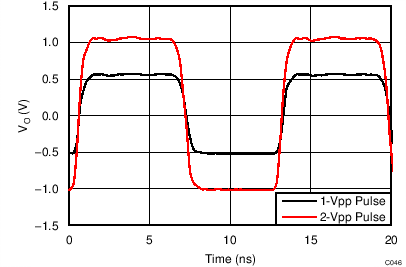

| VS = ±1.65 V, VOUT_AMP = 1 VPP, RL = 200 Ω, G = 12 dB, differential input |
| VS = ±1.65 V, VOUT_AMP = 1 VPP, f = 500 MHz, RL = 200 Ω, G = 12 dB |

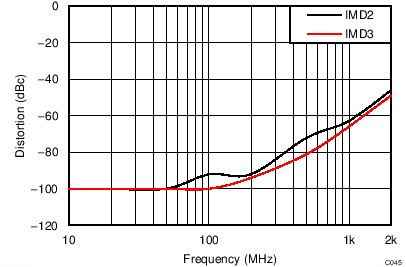

| VS = ±1.65 V, VOUT_AMP = 0.5 VPP per tone, RL = 200 Ω, G = 12 dB |

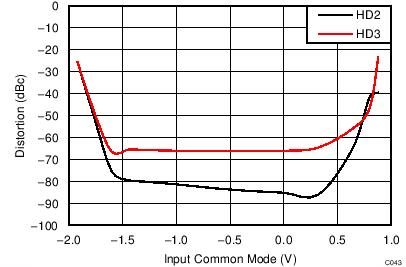

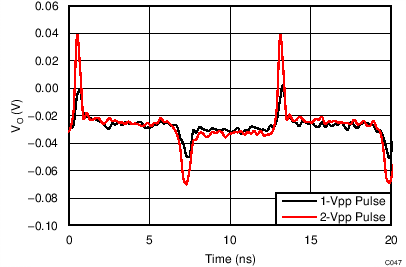

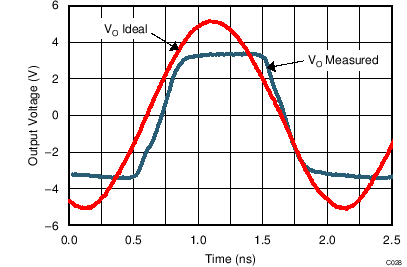

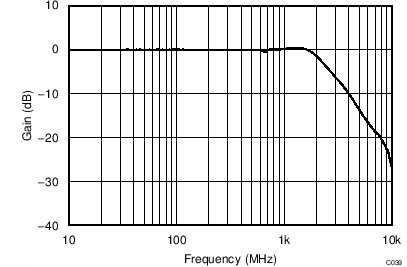

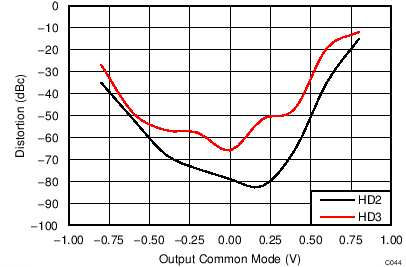

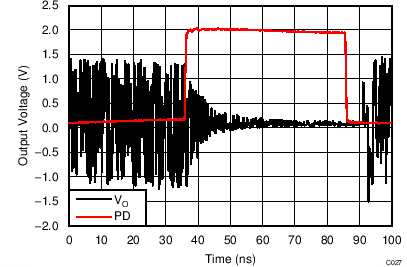

| VS = ±1.65 V, VOUT_AMP, VCM = (VO+ + VO–) / 2 |
| VS = ±2.5 V |
| VS = ±1.65 V, VOUT_AMP = 2 VPP, G = 12 dB |
| VS = ±1.65 V, VOUT_AMP = 2 VPP |
| VS = ±1.65 V, VOUT_AMP = 2 VPP, capacitance at DUT output pins |
| VS = ±1.65 V, VOUT_AMP = 200 mVPP |
| VS = ±1.65, VOUT_AMP = 1 VPP, f = 500 MHz, RL = 200 Ω, G = 12 dB |
| VS = ±1.65 V, VOUT_AMP = 1 VPP, f = 500 MHz, RL = 200 Ω, G = 12 dB |
| VS = ±1.65 V, VOUT_AMP | ||
| VS = ±2.5 V |
