8.2.2.3 Application Curves
The LMH1208 performance on OUT0± was measured with the test setup shown in Figure 21.
Figure 34. Test Setup for LMH1208 to OUT0± The eye diagrams in this subsection show how the LMH1208 improves overall signal integrity in the data path for 100-Ω differential FR4 PCB trace at IN0±.
Measured at OUT0±
HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = H

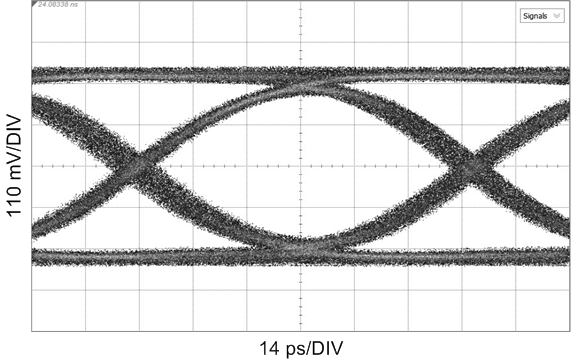

Figure 35. 11.88 Gbps, TL = 1" FR4 HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = H
Measured at OUT0±
HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = F

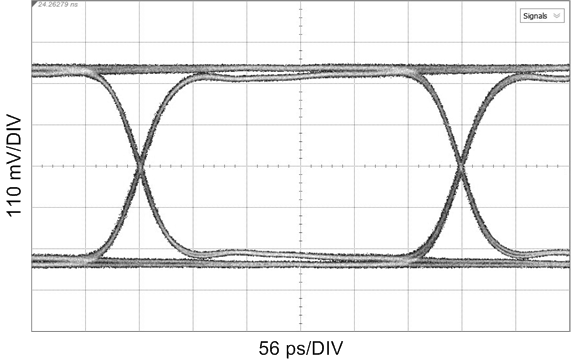

Figure 37. 2.97 Gbps, TL = 1" FR4 HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = F
Measured at OUT0±
HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = L

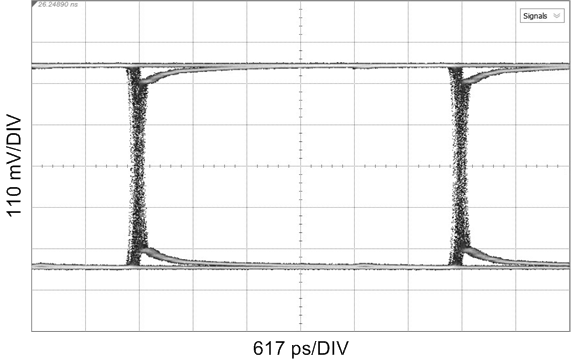

Figure 39. 270 Mbps, TL = 1" FR4 HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = L
Measured at OUT0±
HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = H

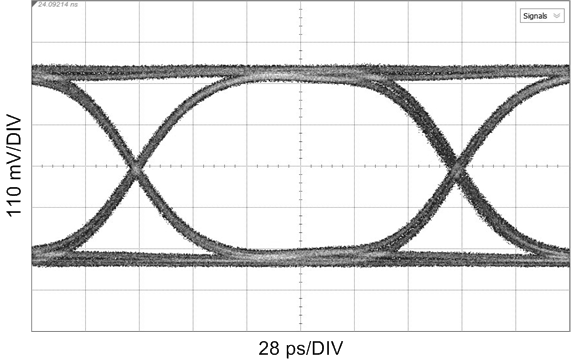

Figure 36. 5.94 Gbps, TL = 1" FR4 HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = H
Measured at OUT0±
HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = F

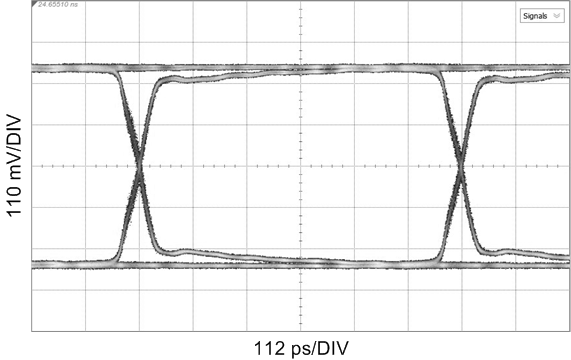

Figure 38. 1.485 Gbps, TL = 1" FR4 HOST_EQ0 = H, SDI_OUT2_SEL = L, SLEW_CTRL = F
