6.9 Typical Characteristics
Unless otherwise specified, VIN = 24 V. Curves represent most likely parametric norm at specified condition.

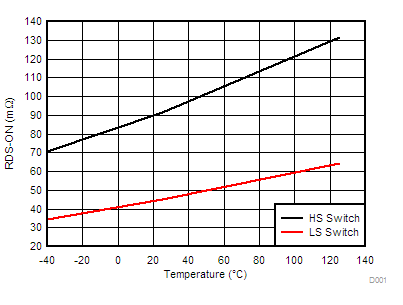

Figure 6-1 High-Side and Low-Side Switch RDS-ON

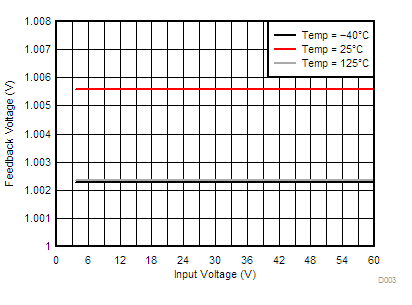

Figure 6-3 Feedback Voltage
Figure 6-5 PGOOD Threshold

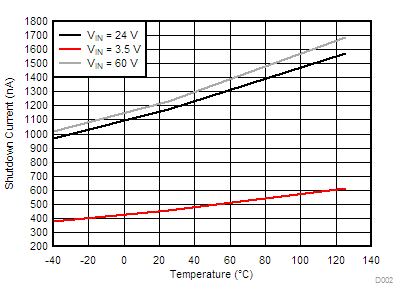

Figure 6-2 Shutdown Quiescent Current

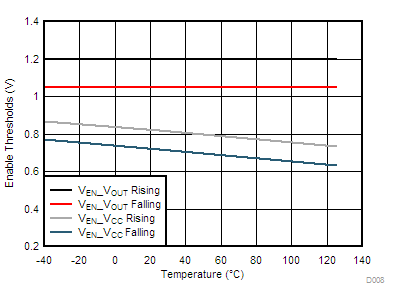

Figure 6-4 Enable Threshold
