9.2.5 Input Micro-Short Protection: LV124 E-10
E-10 test specified in LV124 standard checks for immunity of electronic modules to short interruptions in power supply input due to contact issues or relay bounce. During this test (case 2), micro-short is applied on the input for a duration as low as 10 μs to several ms. For a functional pass status A, electronic modules are required to run uninterrupted during the E-10 test (case 2) with 100-μs duration. Dual-Gate drive architecture of LM74810-Q1 - DGATE and HGATE - enables to achieve a functional pass status A with optimum hold up capacitance on the output when compared to a single gate drive controller. When input micro-short is applied for 100 μs, LM74810-Q1 quickly turns off MOSFET Q1 by shorting DGATE to ANODE (source of MOSFET) within 0.5 μs to prevent the output from discharging and the HGATE remains ON keeping MOSFET Q2 ON, enabling fast recovery after the input short is removed.
Performance of LM74810-Q1 during E10 input power supply interruption test case 2 is shown in Figure 9-5. After the input short is removed, input voltage recovers and MOSFET Q1 is turned back ON within 130 μs. Note that dual-gate drive topology allows MOSFET Q2 to remain ON during the test and helps in restoring the input power faster. Output voltage remains unperturbed during the entire duration, achieving functional status A.

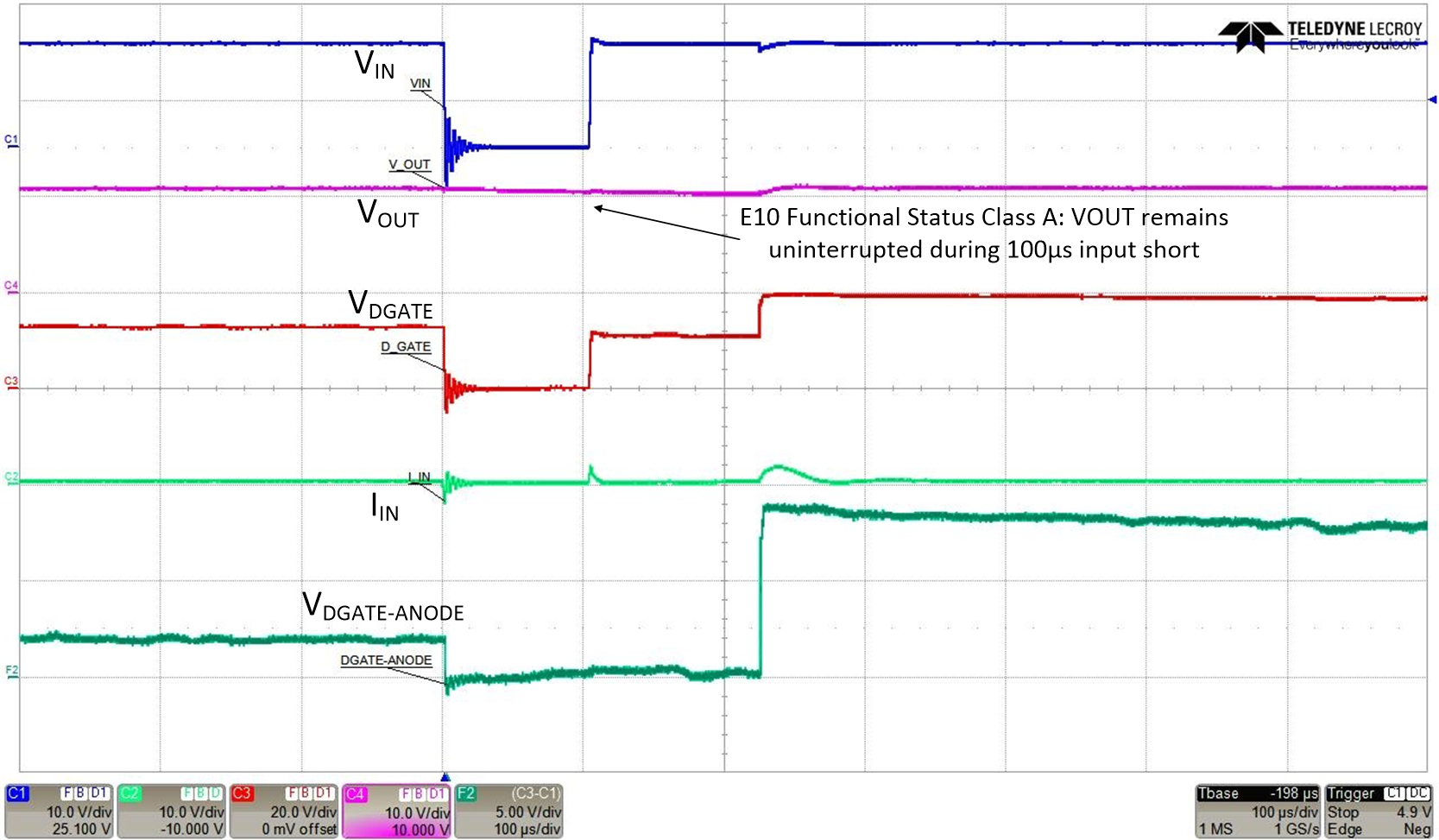

Figure 9-5 Input Micro-Short - LV124 E10 TC 2 100
μs

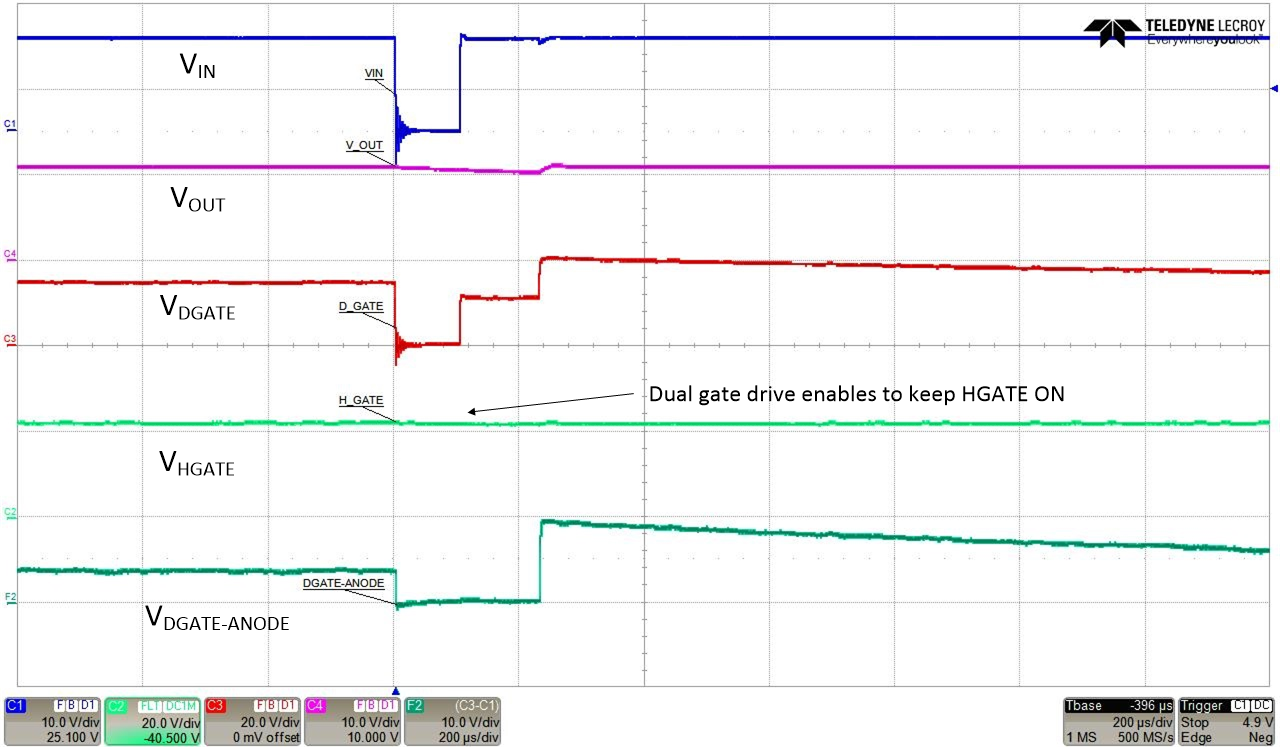

Figure 9-6 Input Micro-Short - LV124 E10 TC 2 100 μs with
HGATE
