ZHCSSM5D May 1999 – February 2024 LM7171

PRODUCTION DATA

封裝選項

機械數據 (封裝 | 引腳)

D|8
- MSOI002K
P|8
- MPDI001B

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

5.8 Typical Characteristics: LM7171B

at T_A= 25°C (unless otherwise noted)

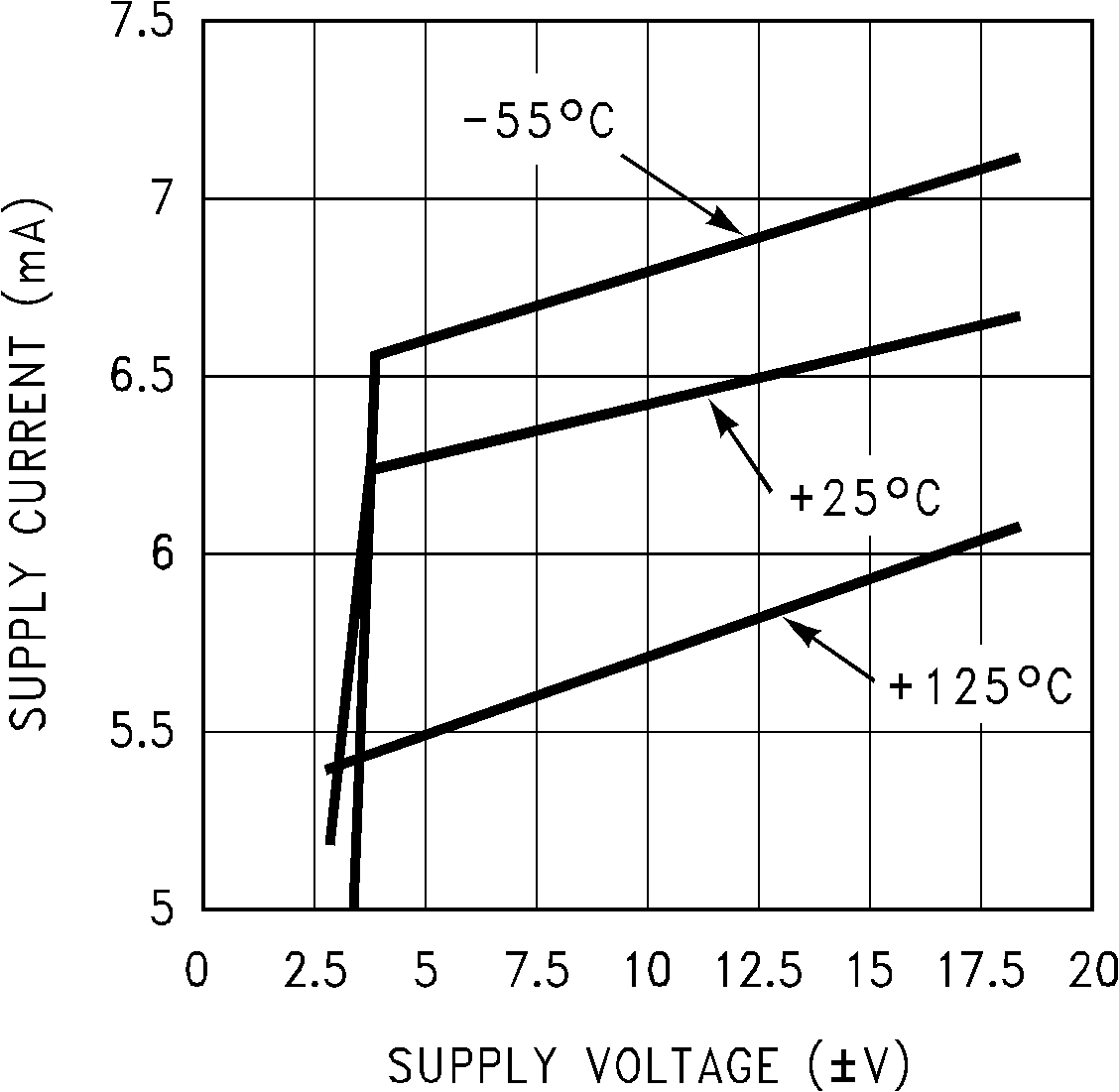

Figure 5-40 Supply Current vs Supply Voltage

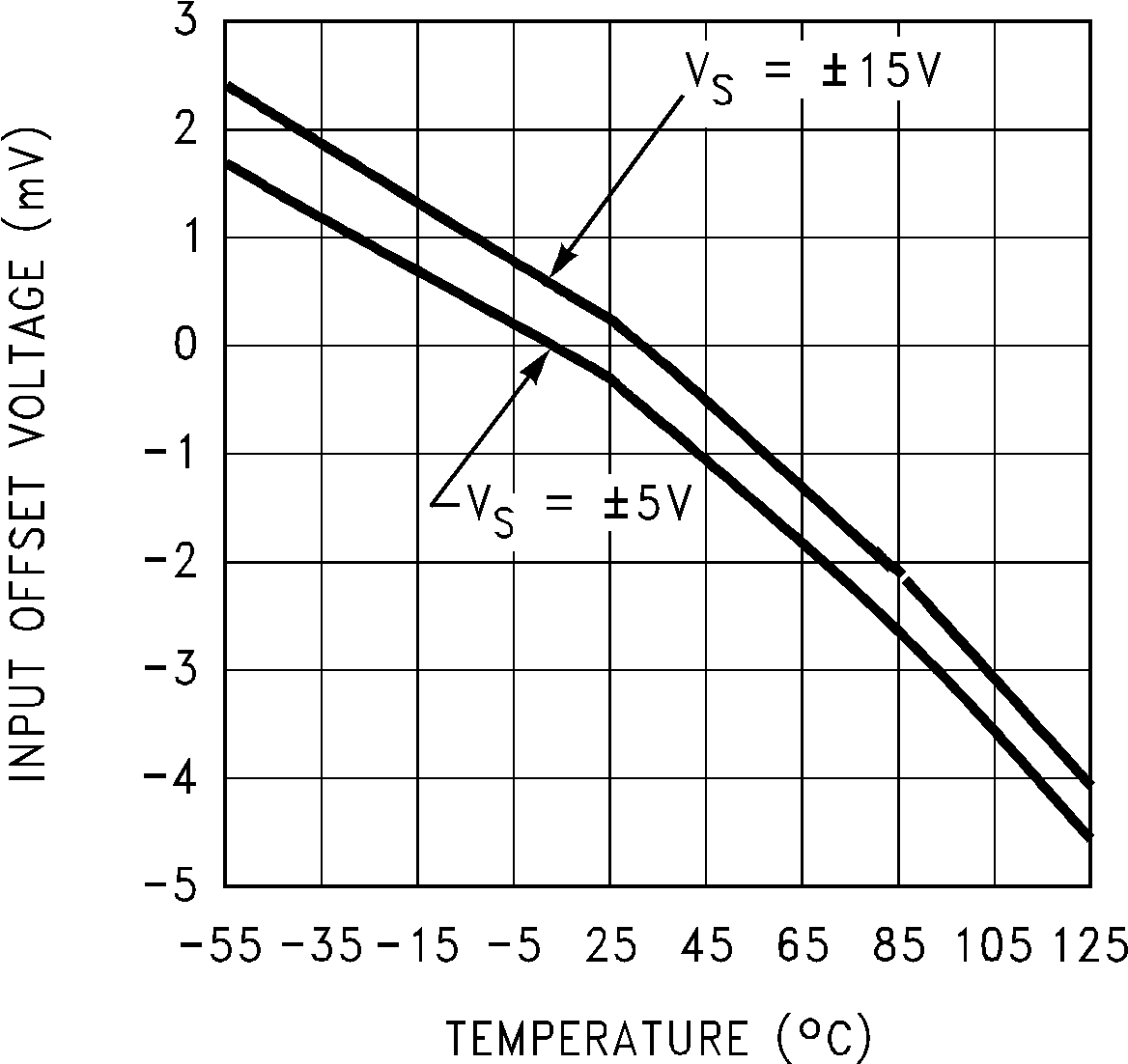

Figure 5-42 Input Offset Voltage vs Temperature

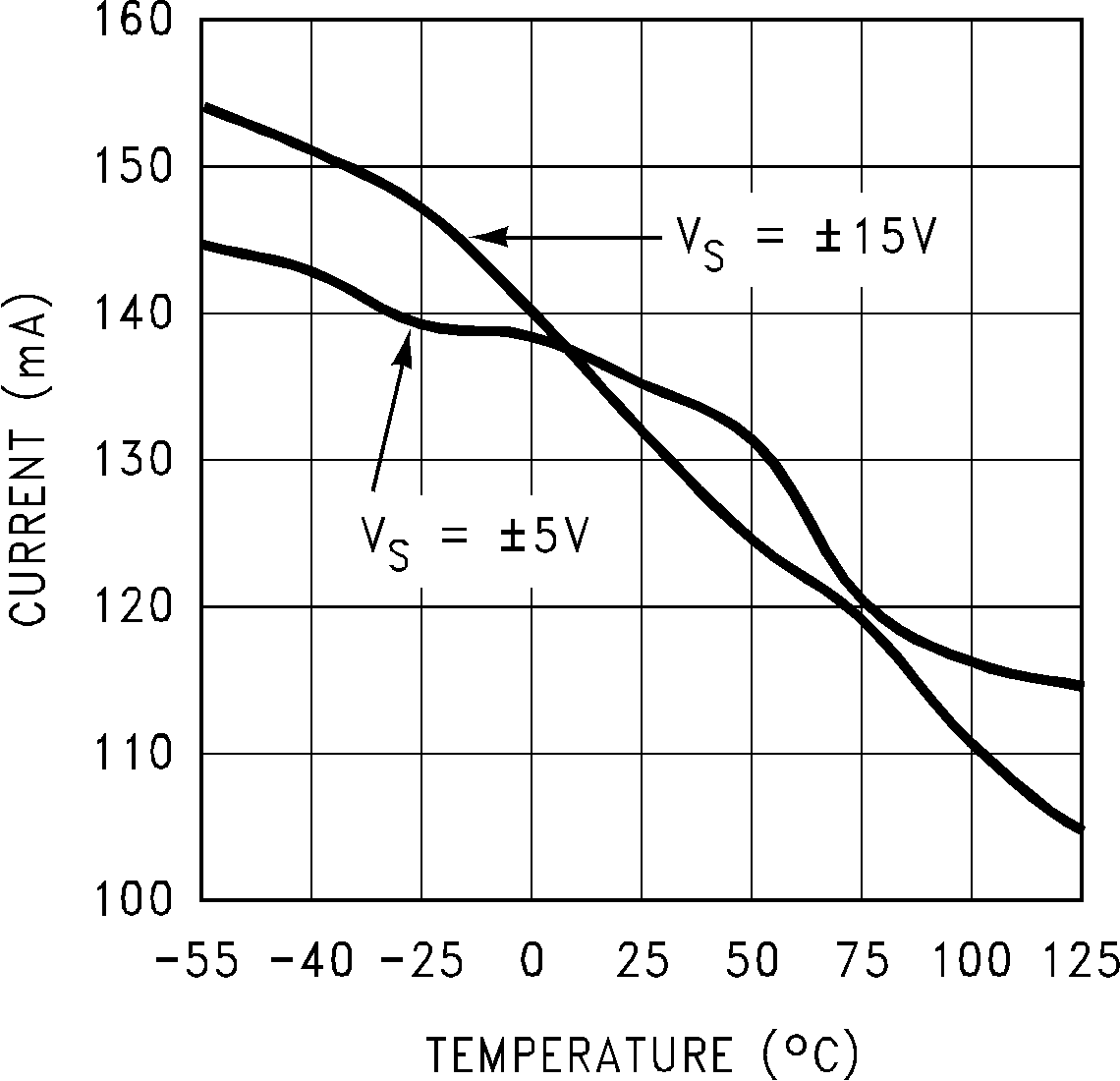

Figure 5-44 Short Circuit Current vs Temperature (Sourcing)

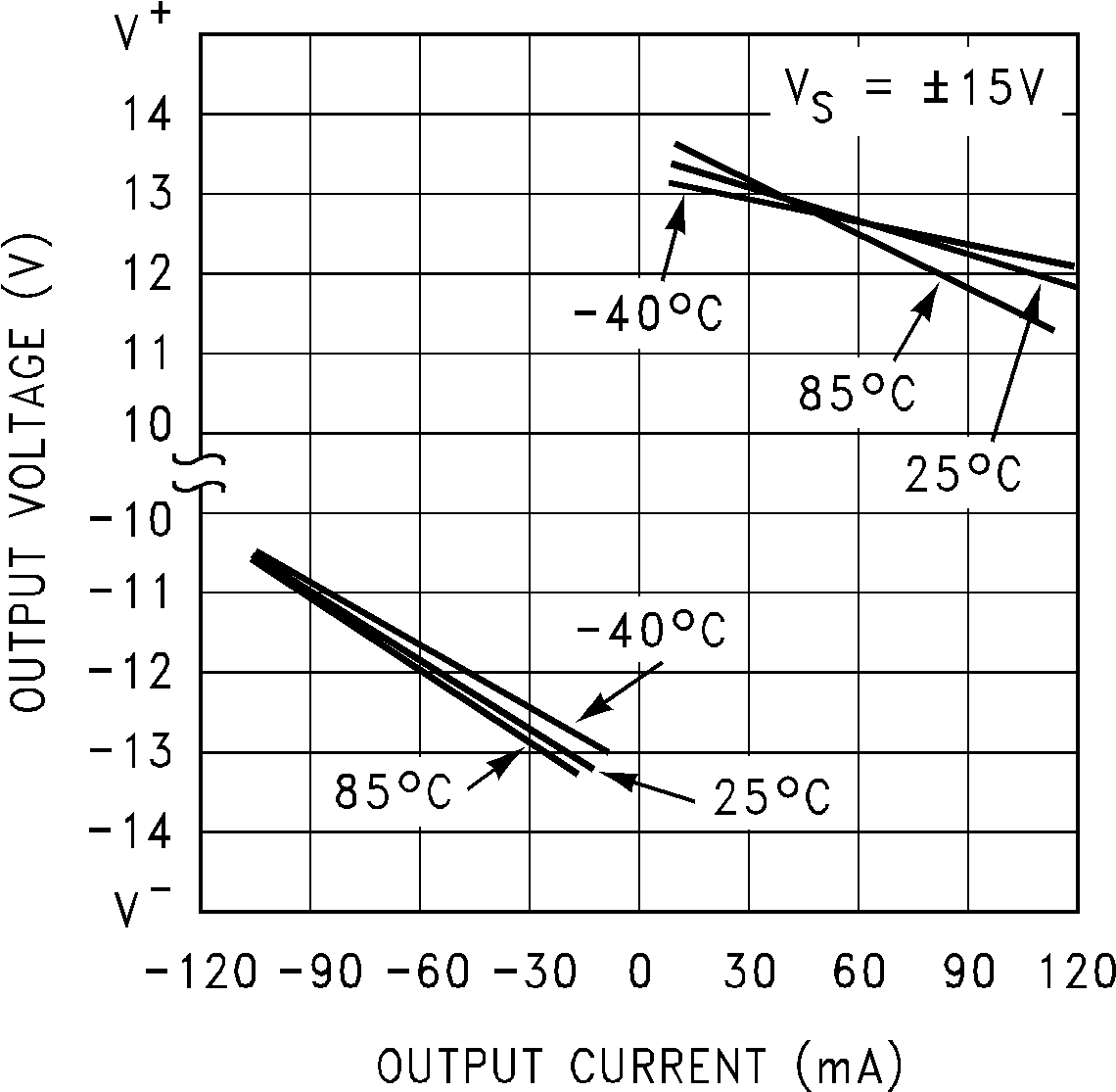

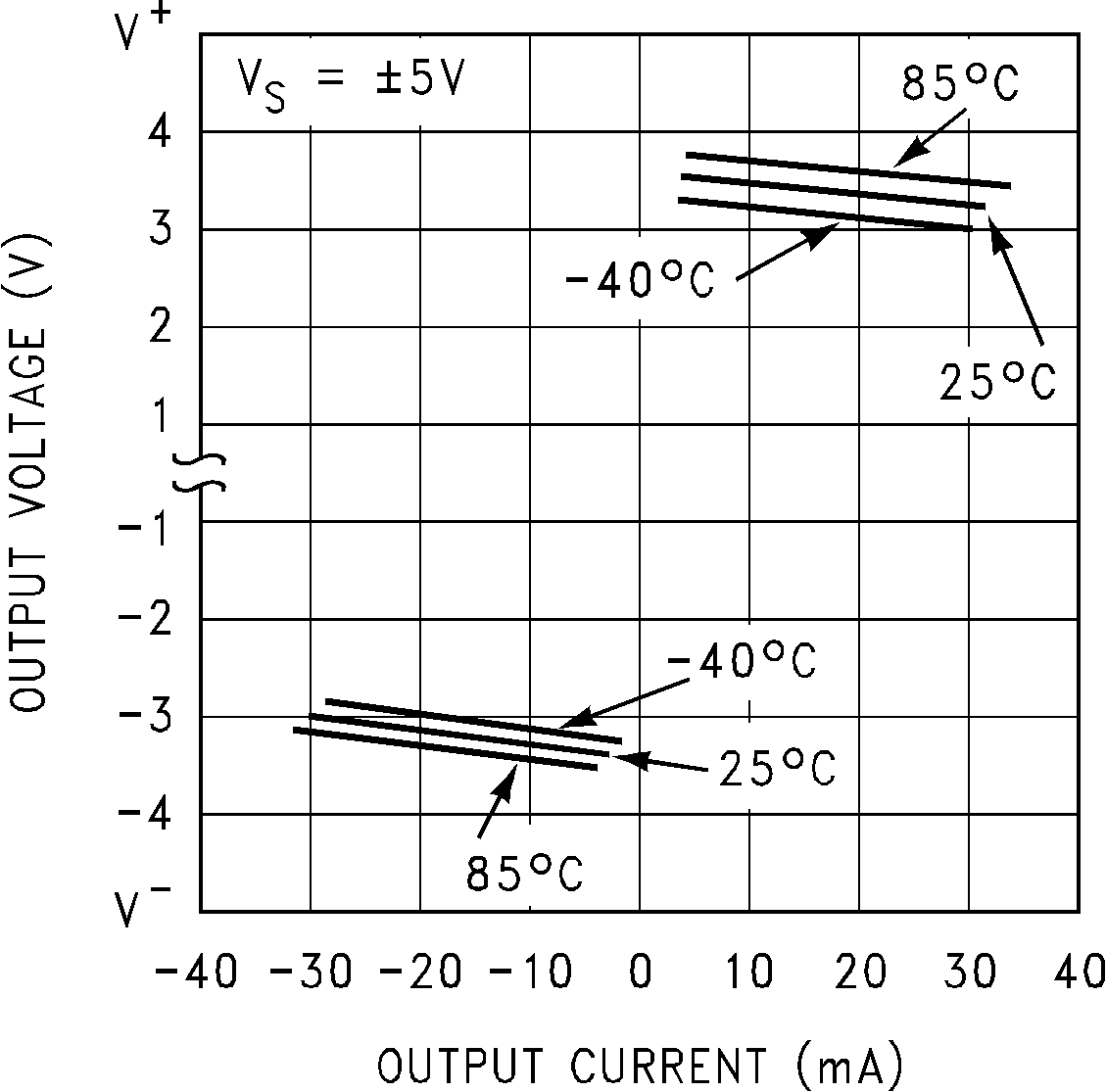

Figure 5-46 Output Voltage vs Output Current

Figure 5-48 CMRR vs Frequency

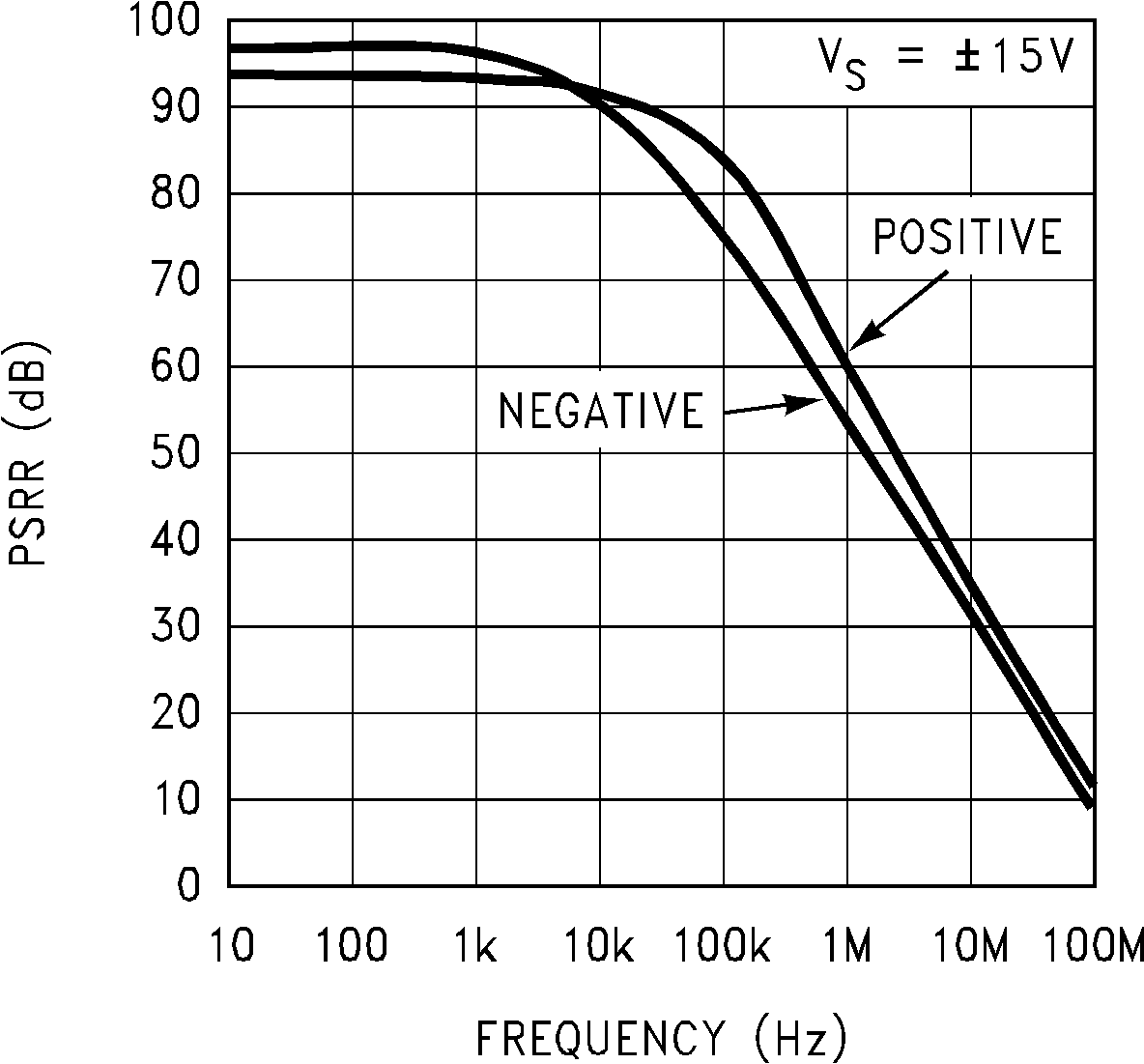

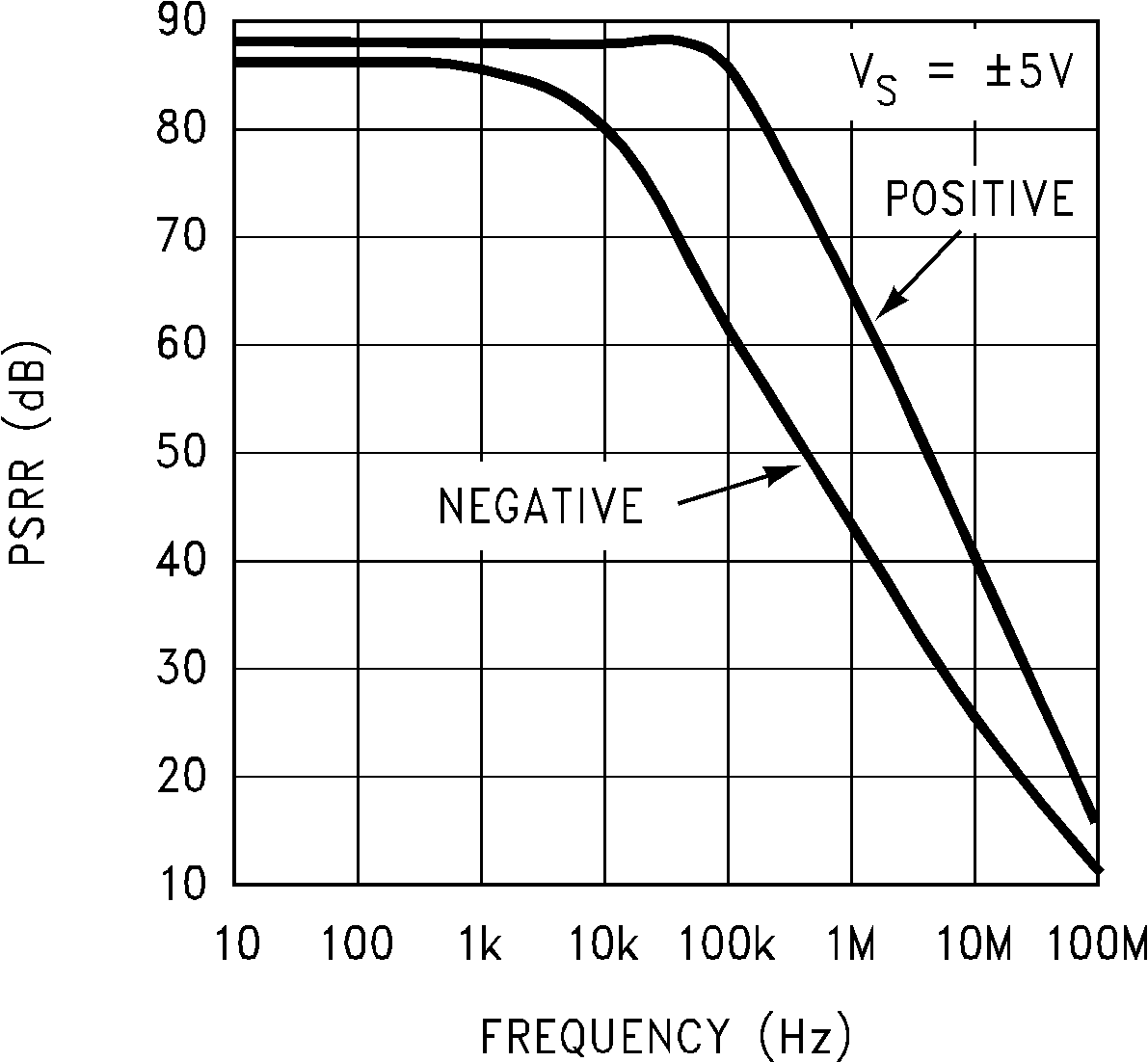

Figure 5-50 PSRR vs Frequency

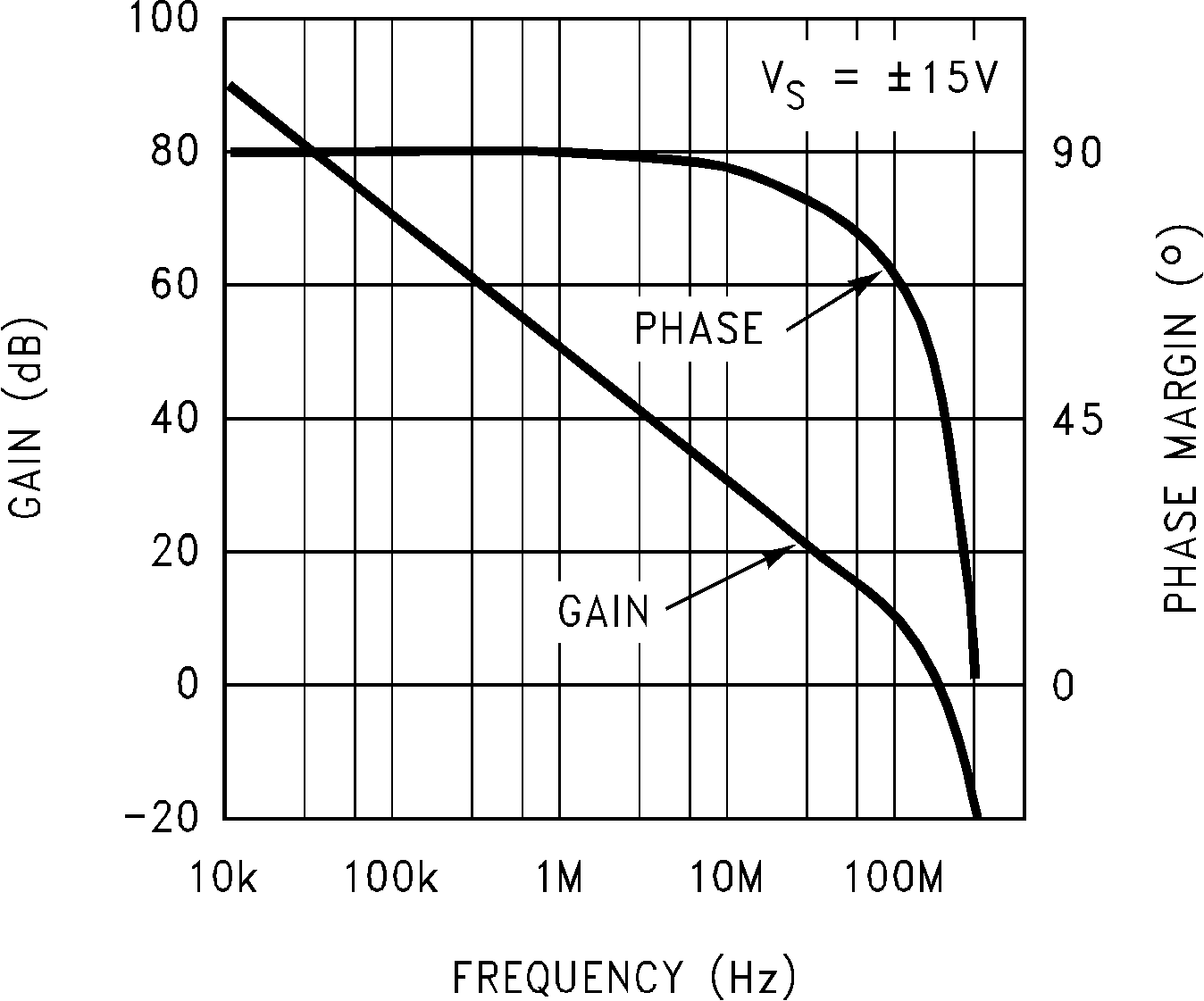

Figure 5-52 Open Loop Frequency Response

Figure 5-54 Gain-Bandwidth Product vs Load Capacitance

Figure 5-56 Large Signal Voltage Gain vs Load

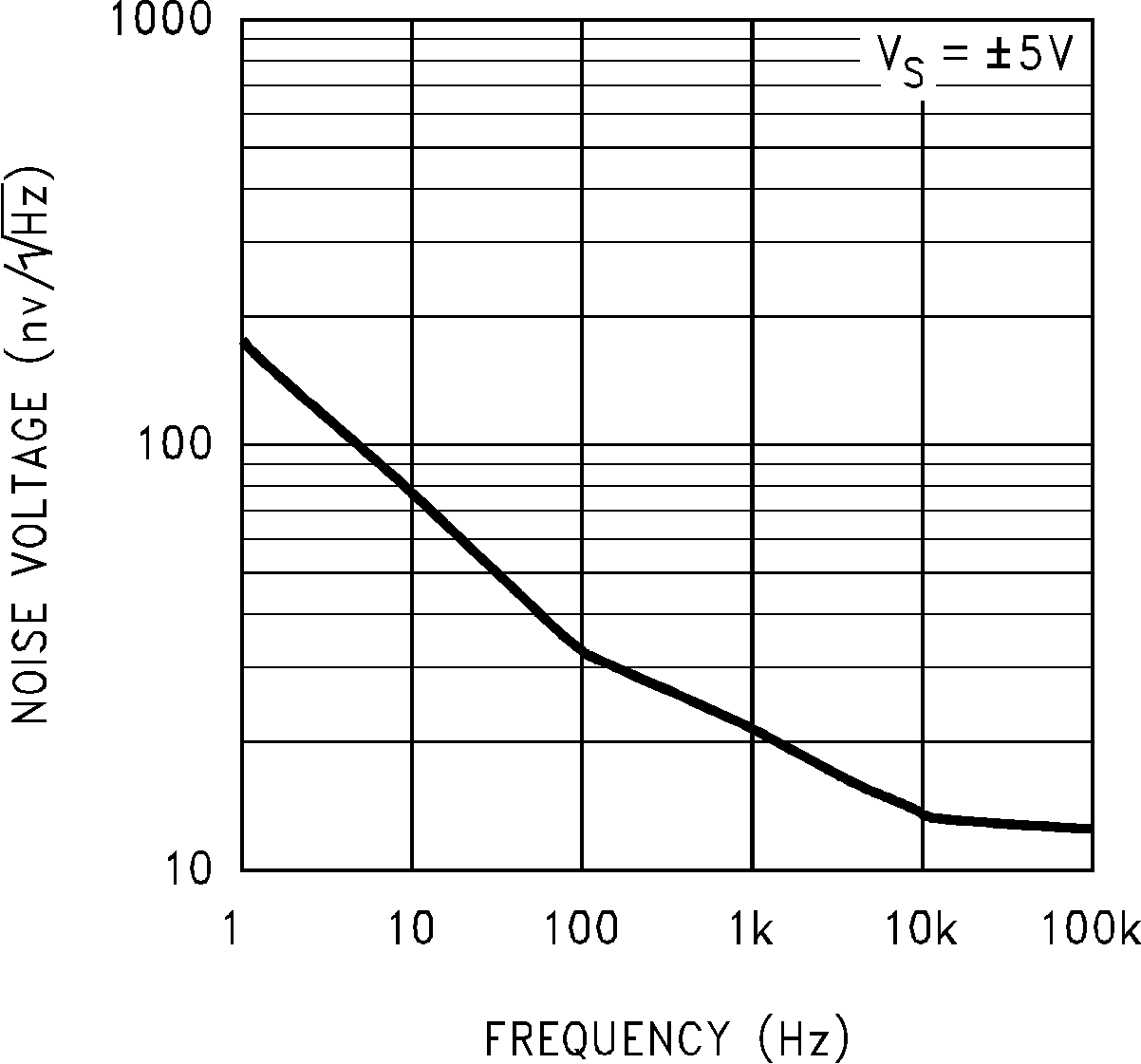

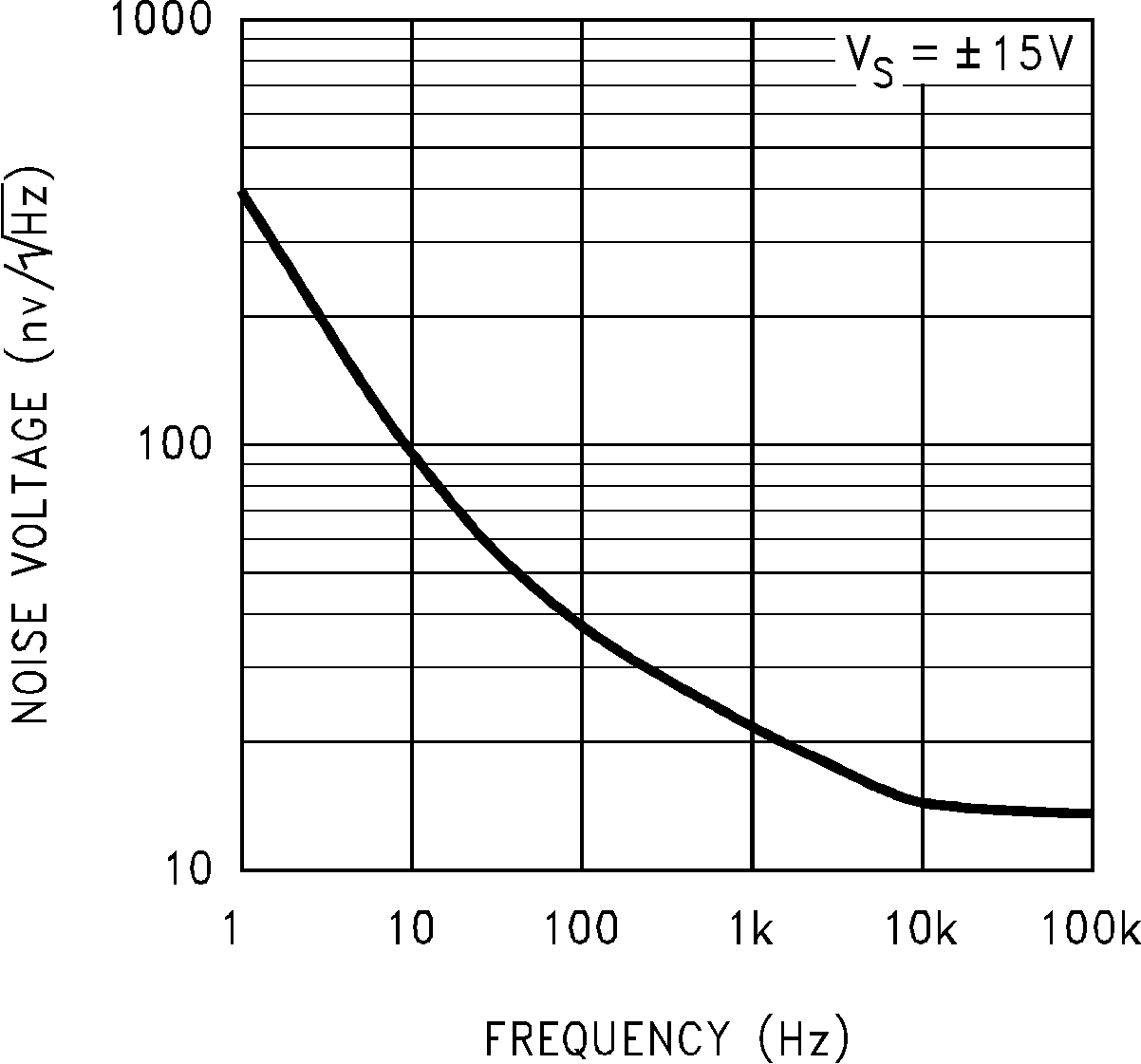

Figure 5-58 Input Voltage Noise vs Frequency

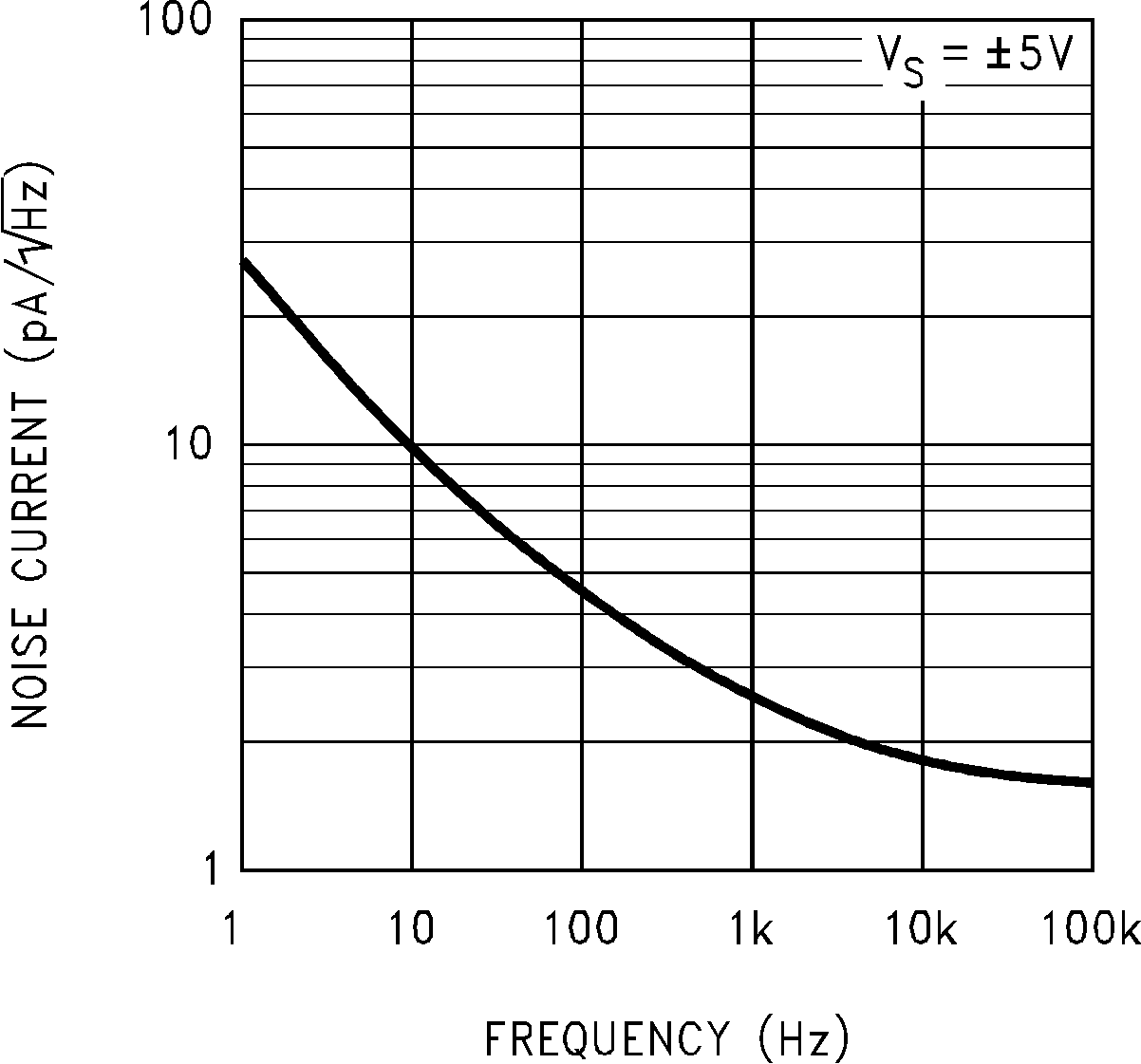

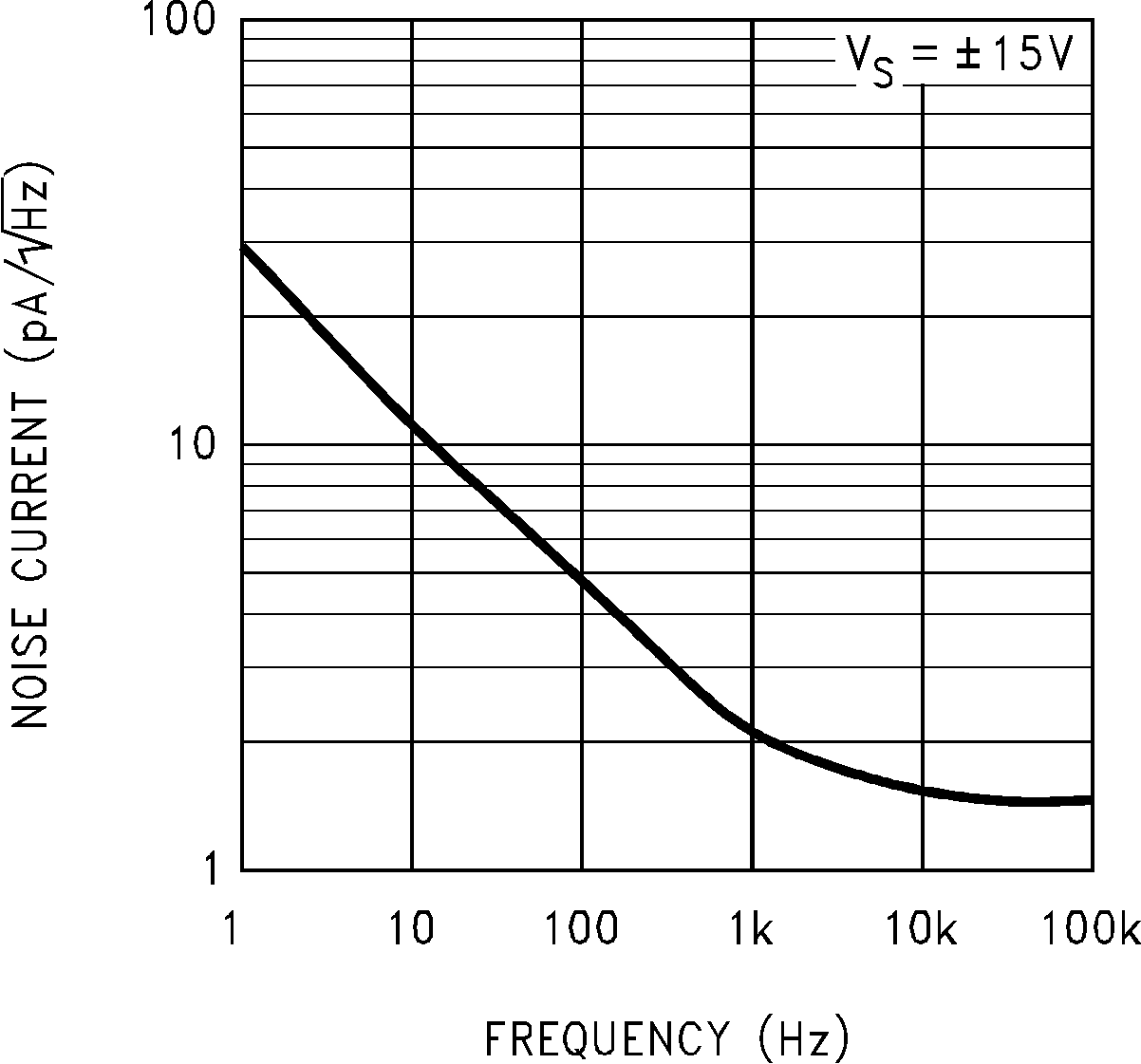

Figure 5-60 Input Current Noise vs Frequency

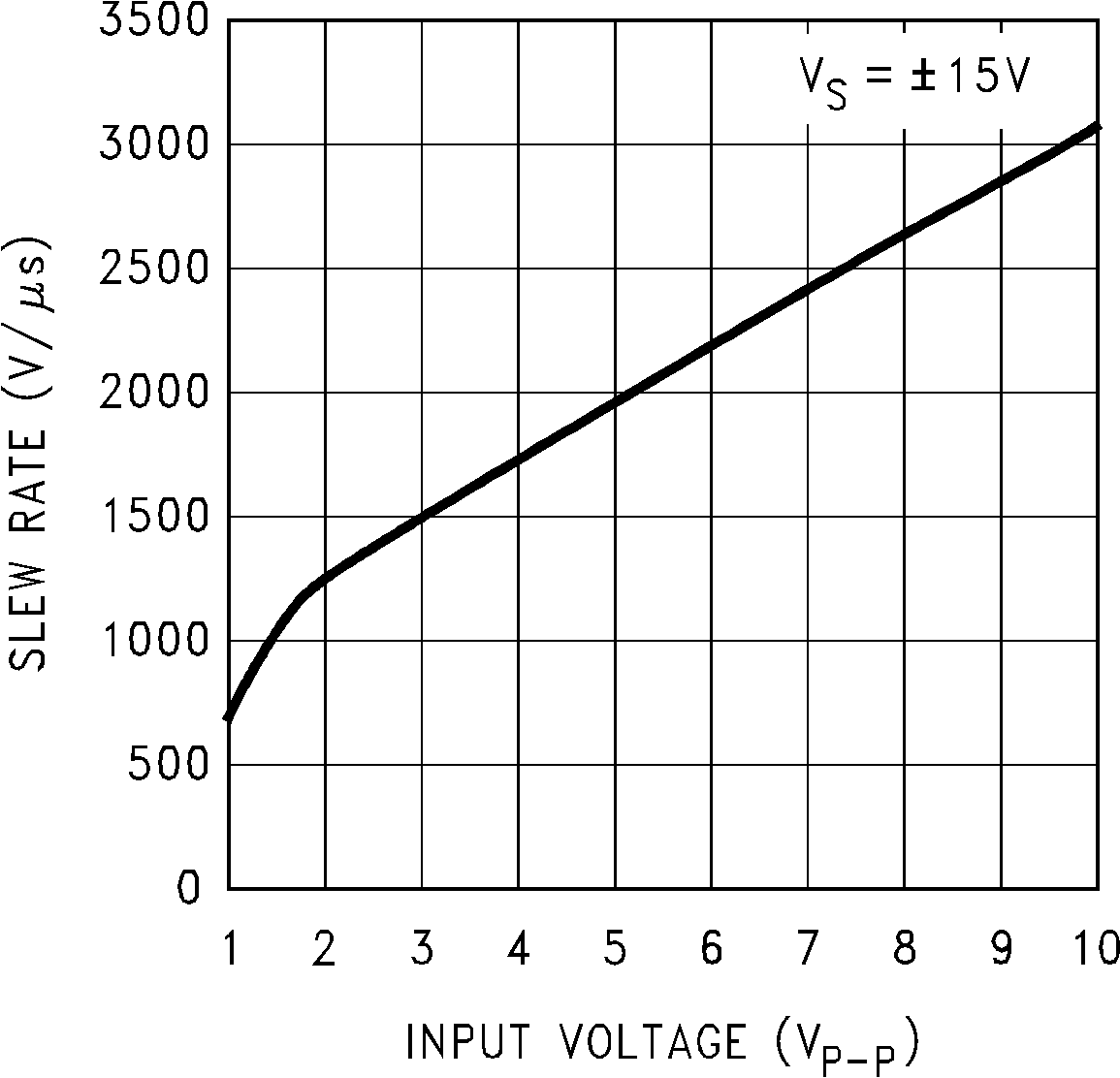

Figure 5-62 Slew Rate vs Input Voltage

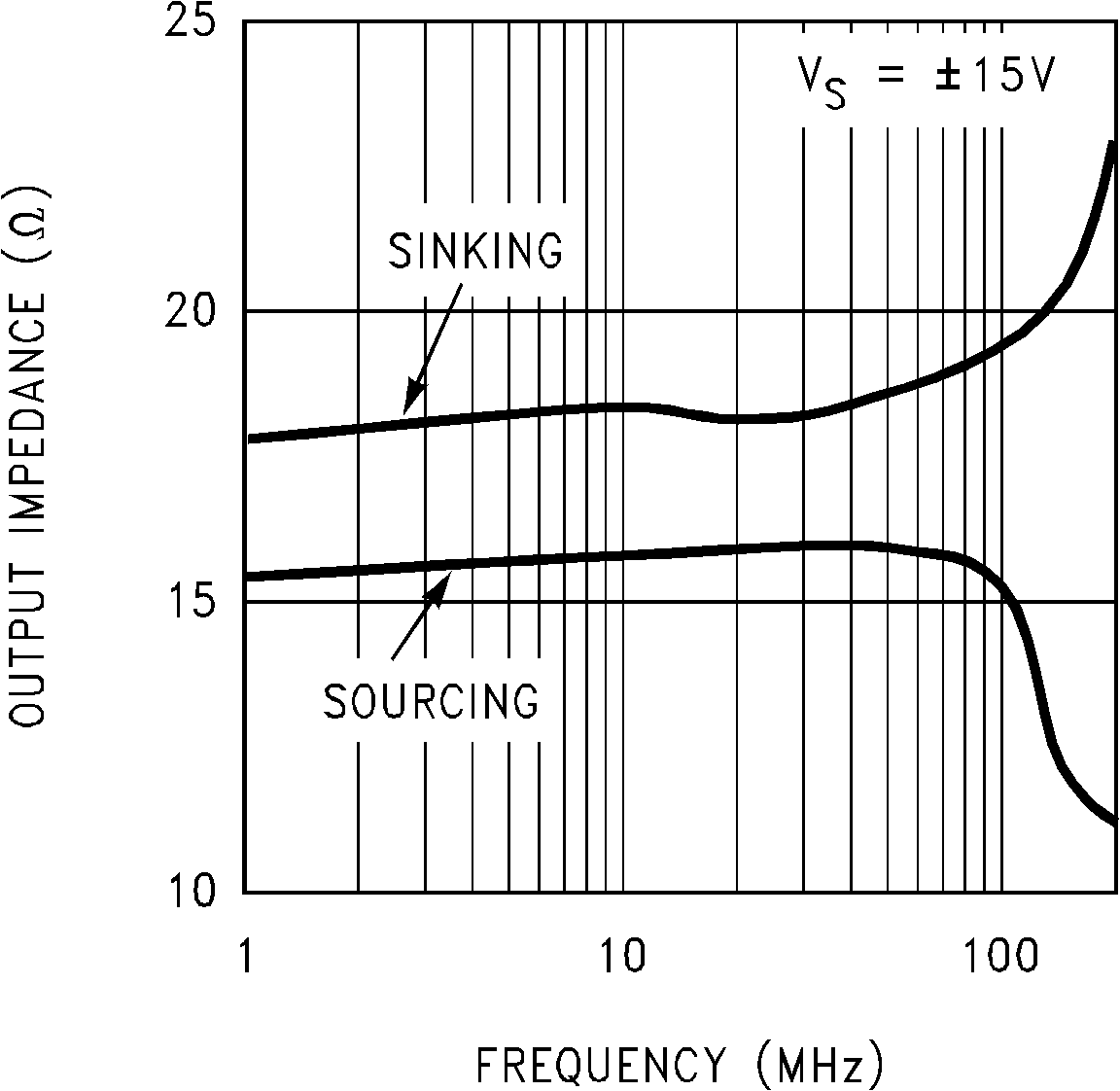

Figure 5-64 Open Loop Output Impedance vs Frequency

A_V = –1	V_S = ±15V

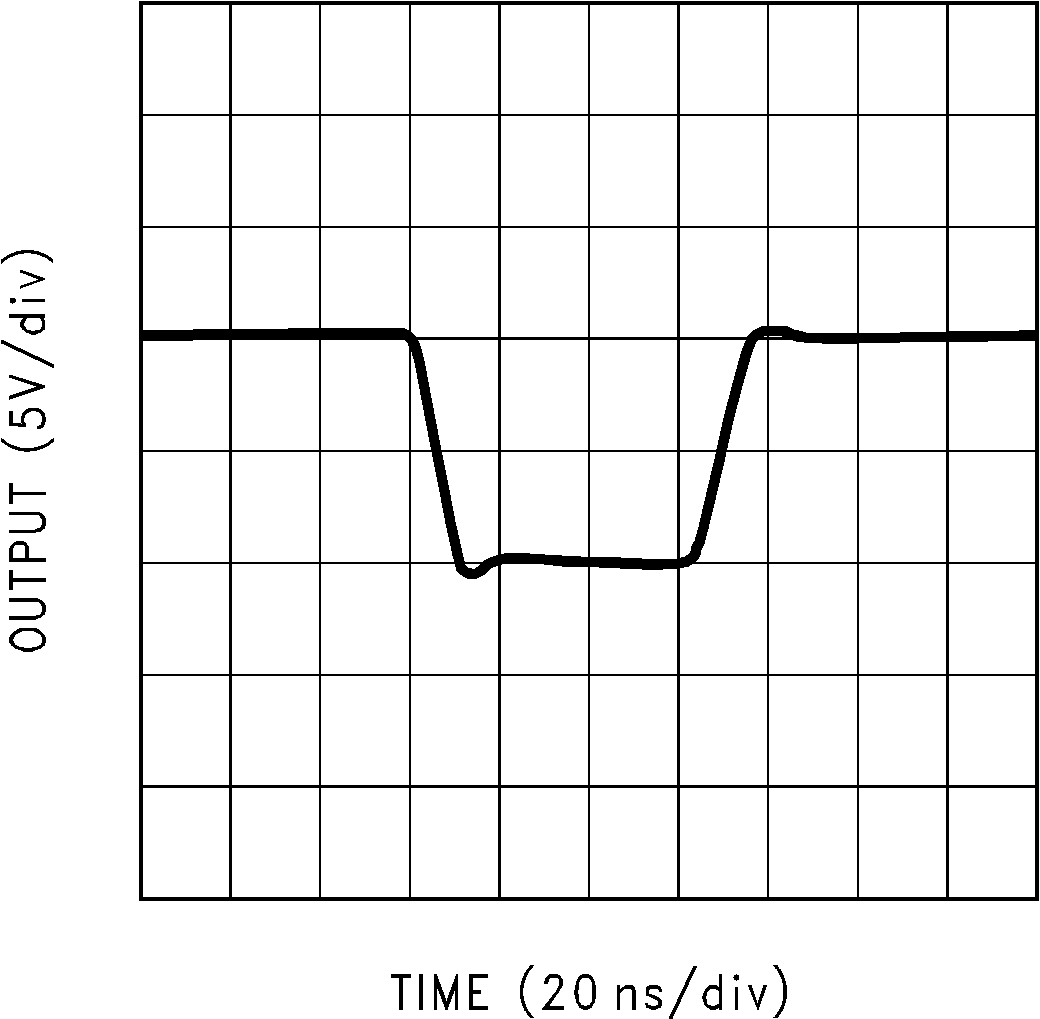

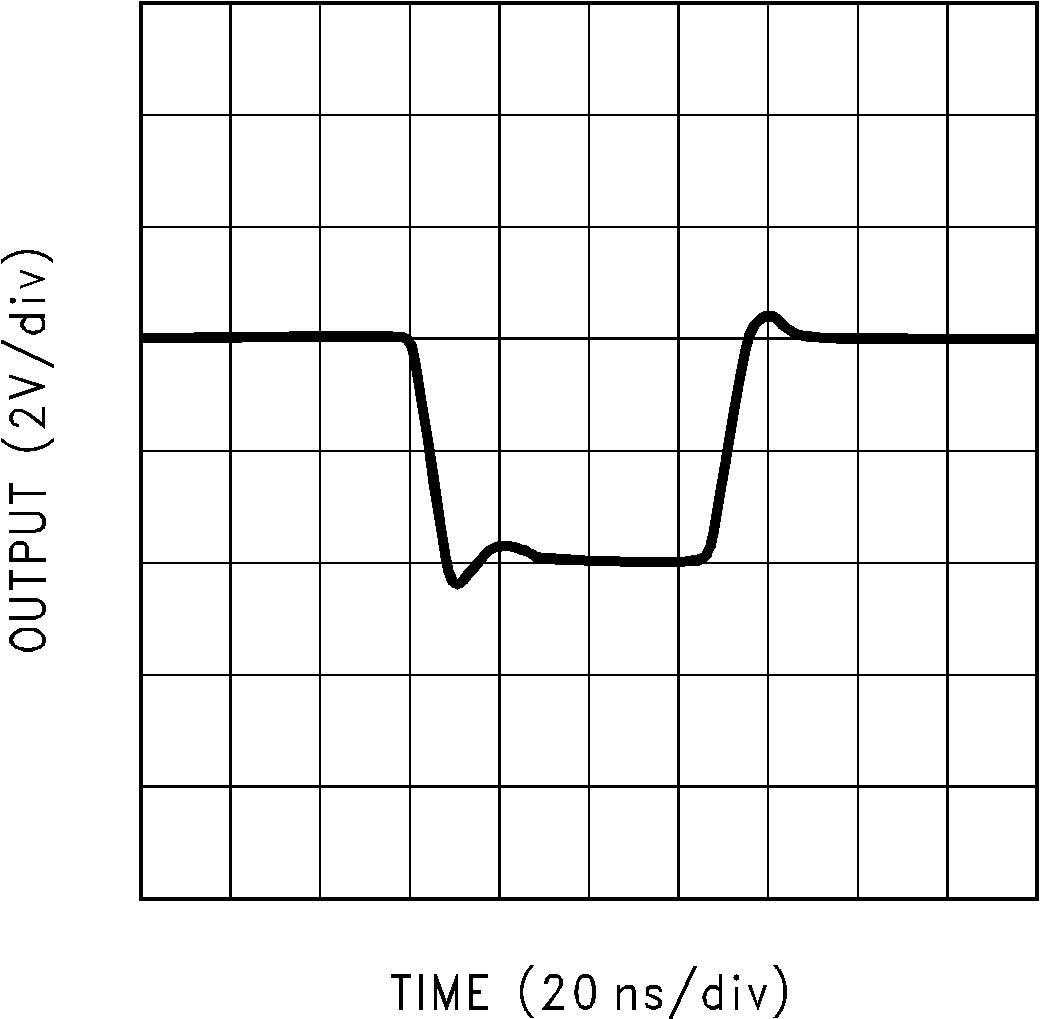

Figure 5-66 Large-Signal Pulse Response

A_V = +2	V_S = ±15V

Figure 5-68 Large-Signal Pulse Response

A_V = –1	V_S = ±15V

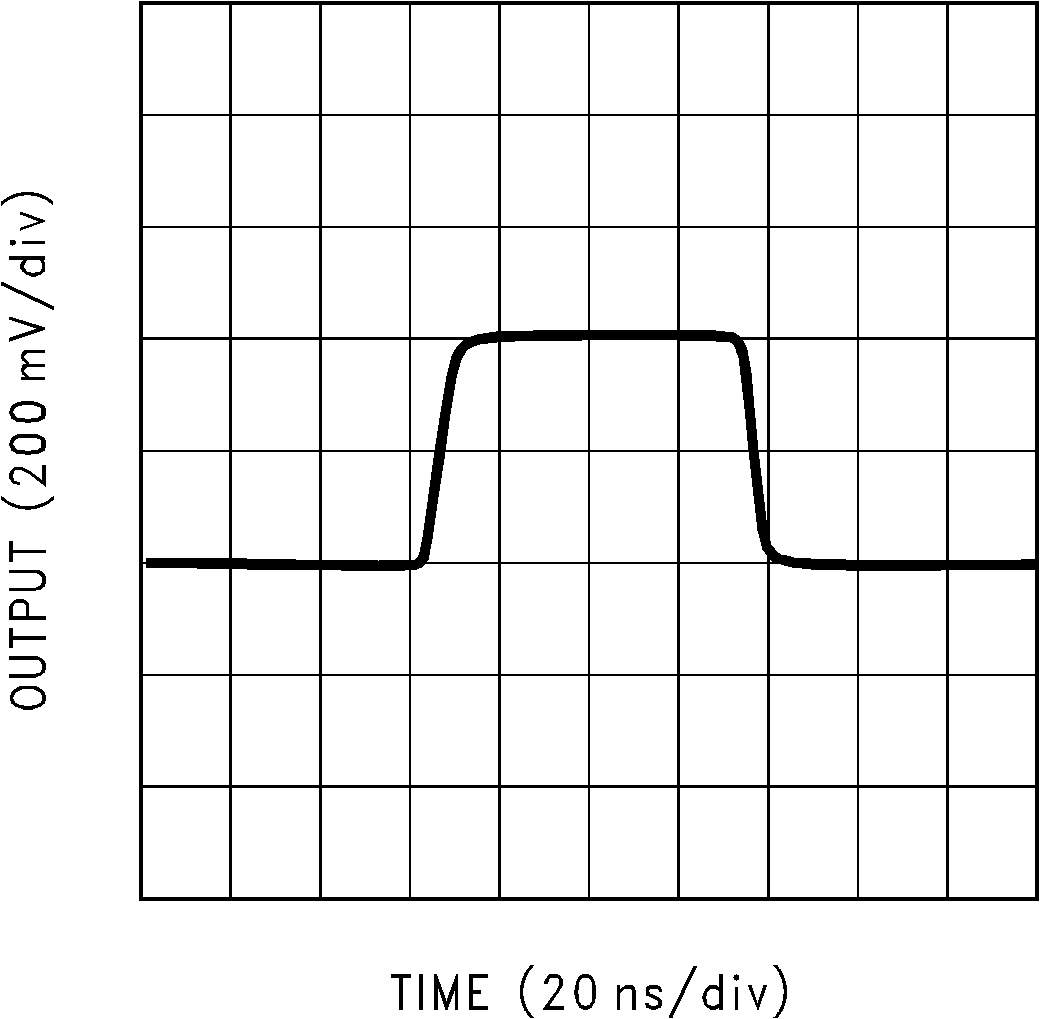

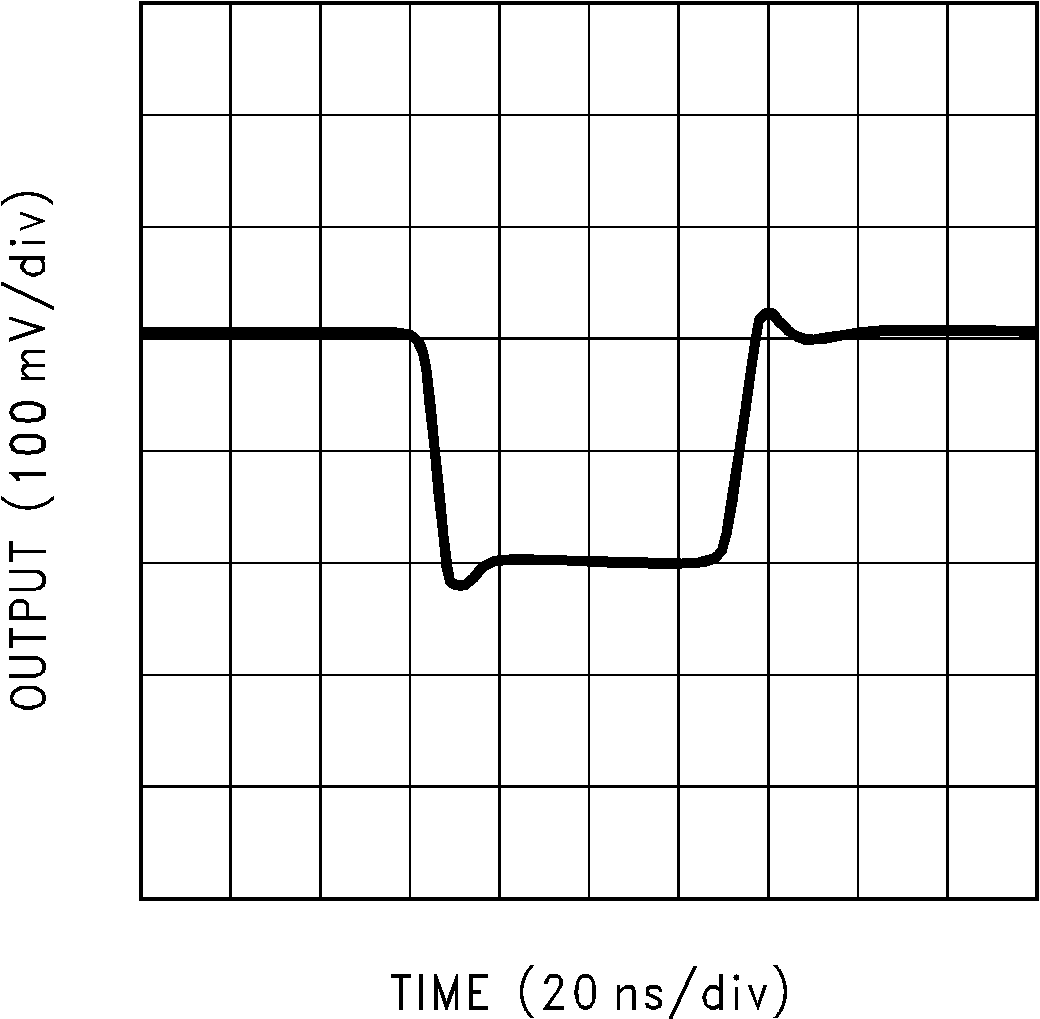

Figure 5-70 Small-Signal Pulse Response

A_V = +2	V_S = ±15V

Figure 5-72 Small-Signal Pulse Response

A_V = +2

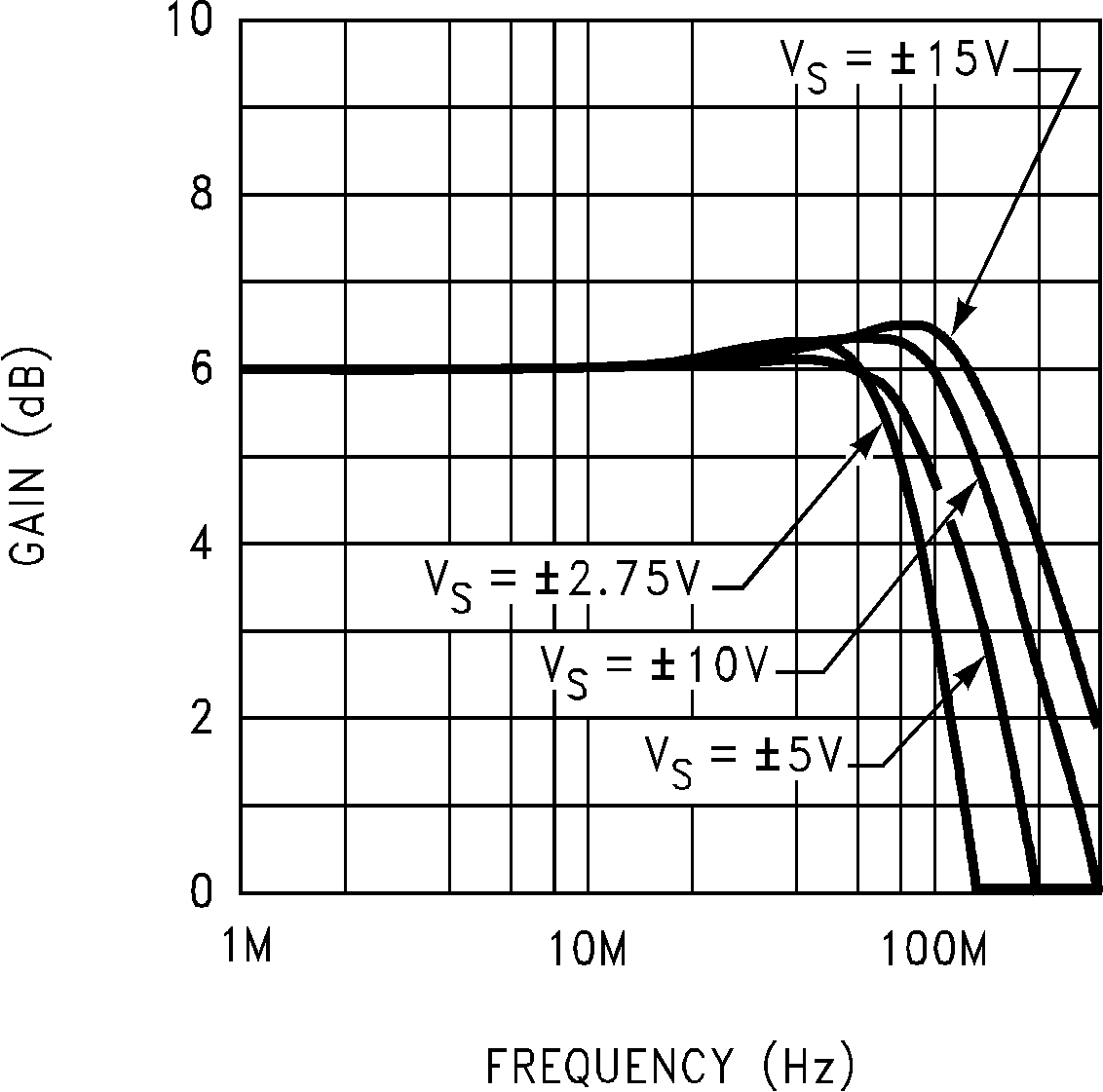

Figure 5-74 Closed-Loop Frequency Response vs
Supply Voltage

A_V = +2

Figure 5-76 Closed-Loop Frequency Response vs
Capacitive Load

A_V = +2

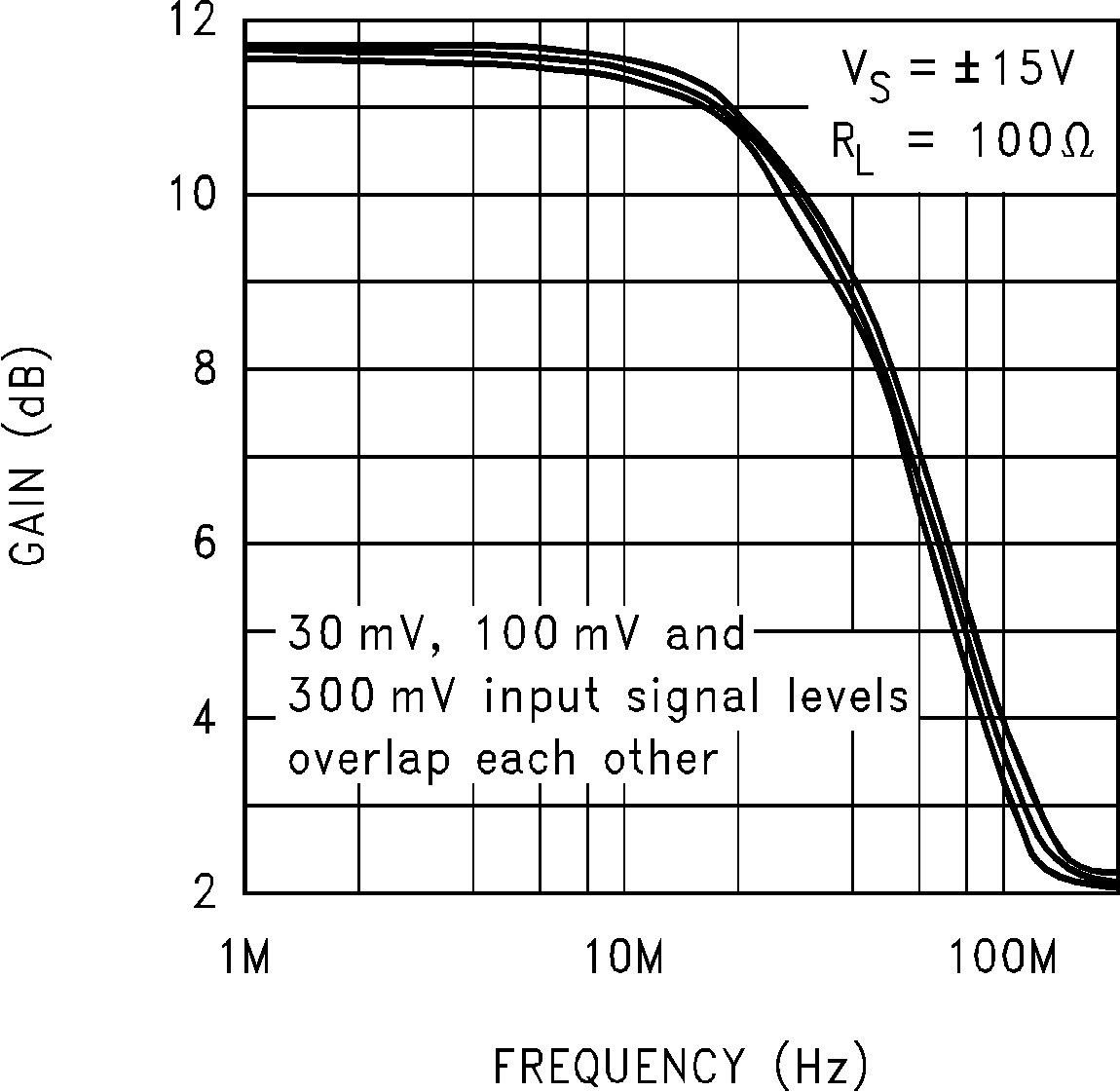

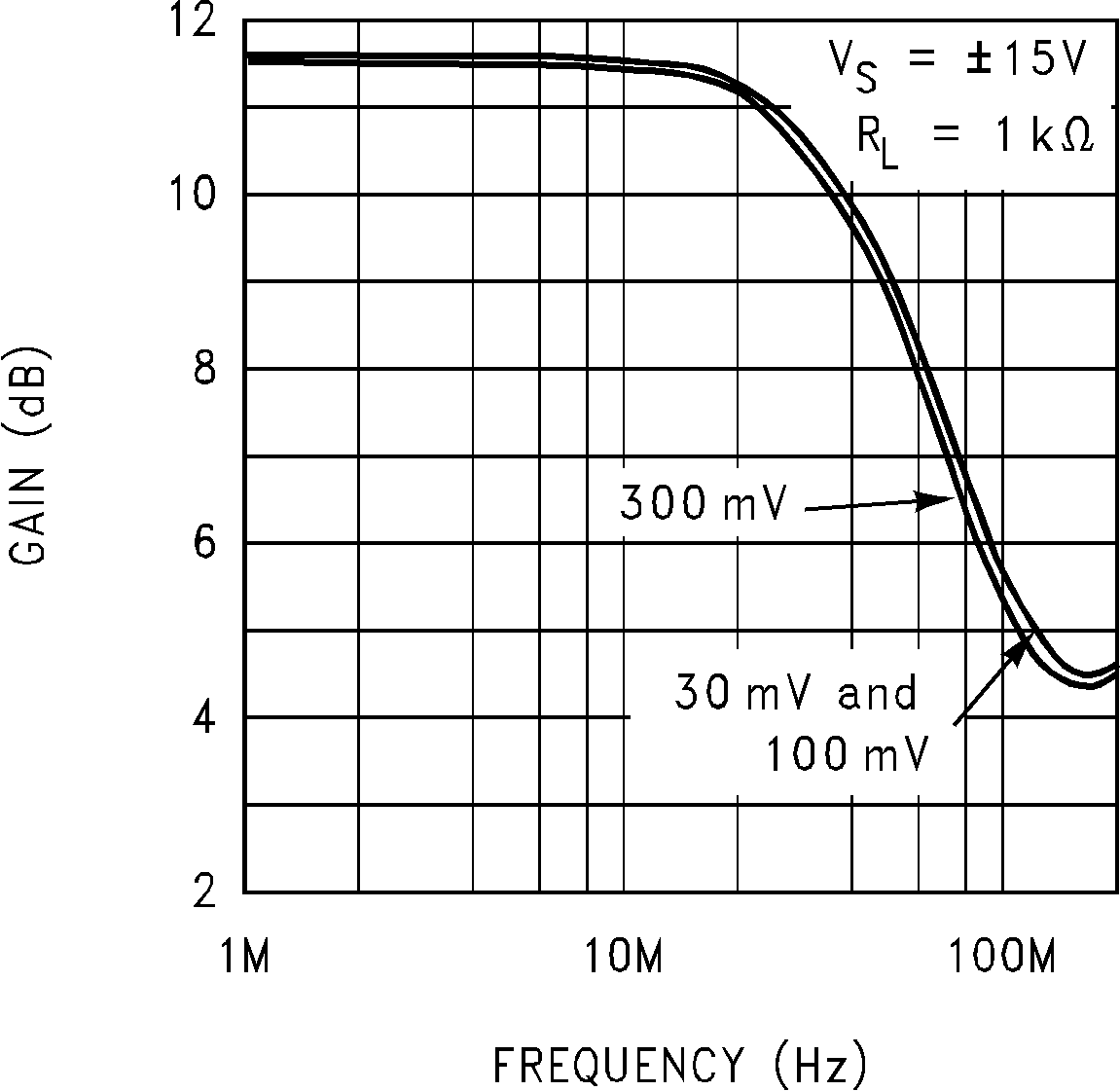

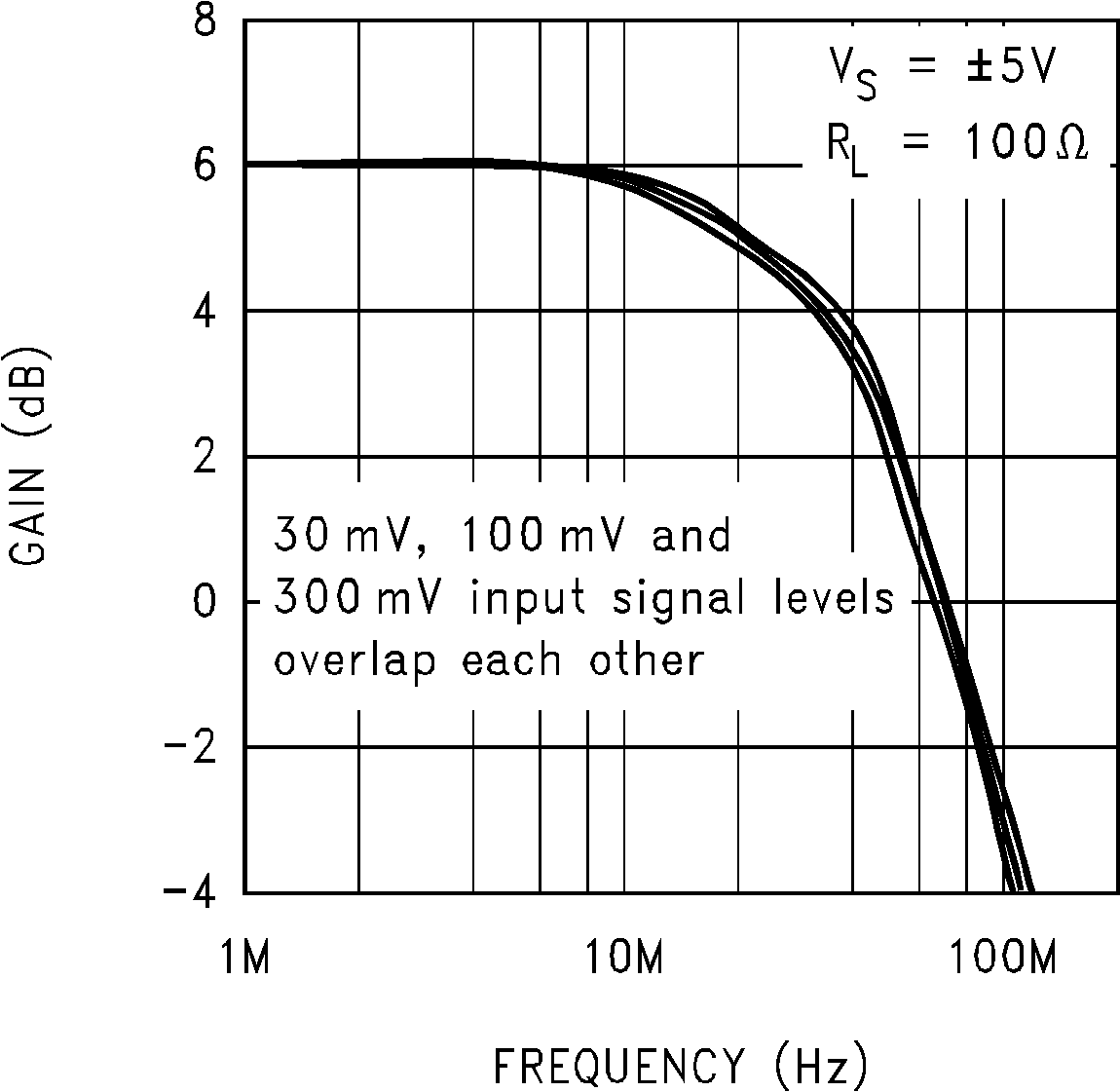

Figure 5-78 Closed-Loop Frequency Response vs

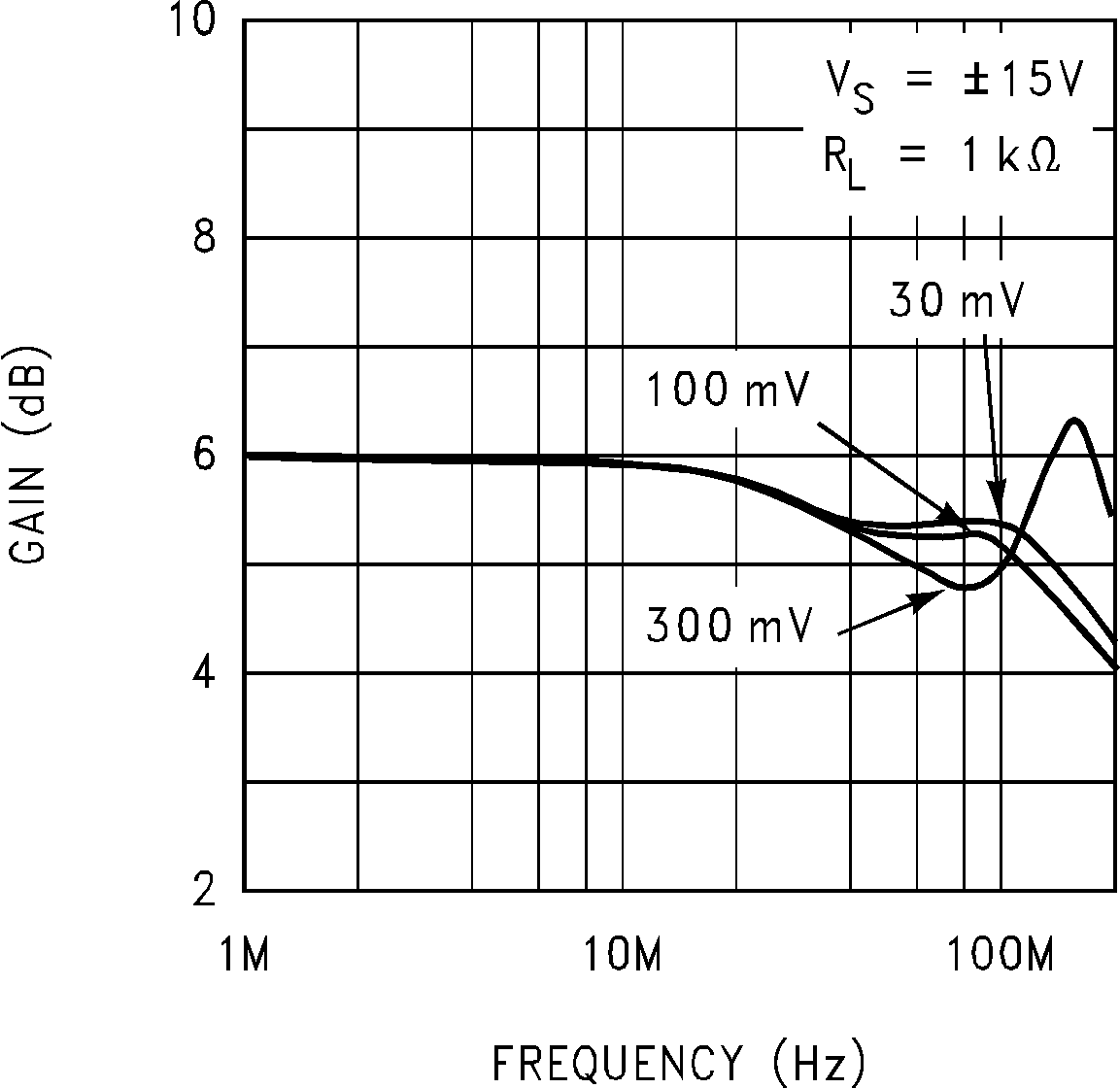

Input Signal Level

A_V = +2

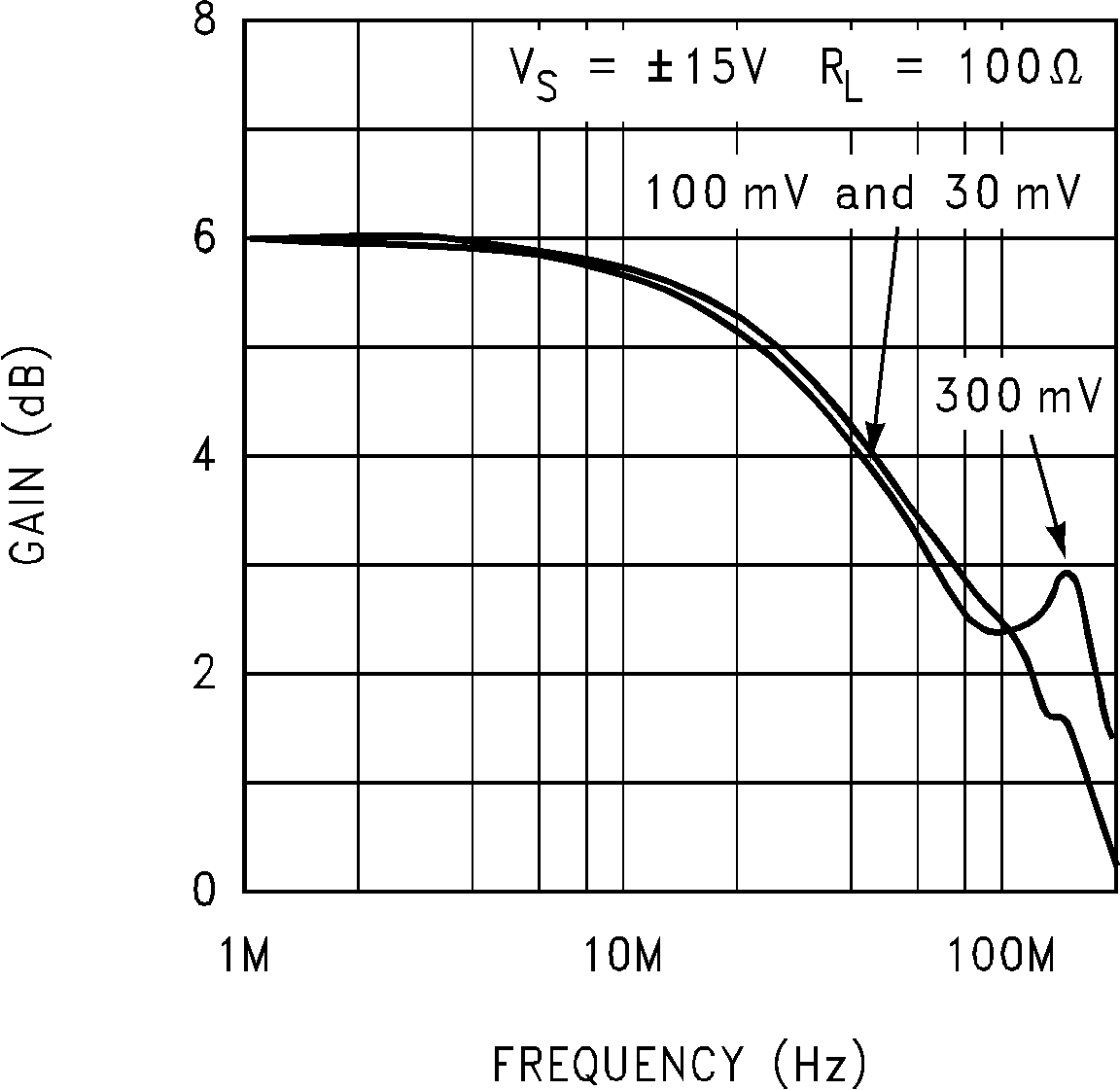

Figure 5-80 Closed-Loop Frequency Response vs
Input Signal Level

A_V = +4

Figure 5-82 Closed-Loop Frequency Response vs
Input Signal Level

A_V = +4

Figure 5-84 Closed-Loop Frequency Response vs
Input Signal Level

THD measurement at low frequency limited by test instrument

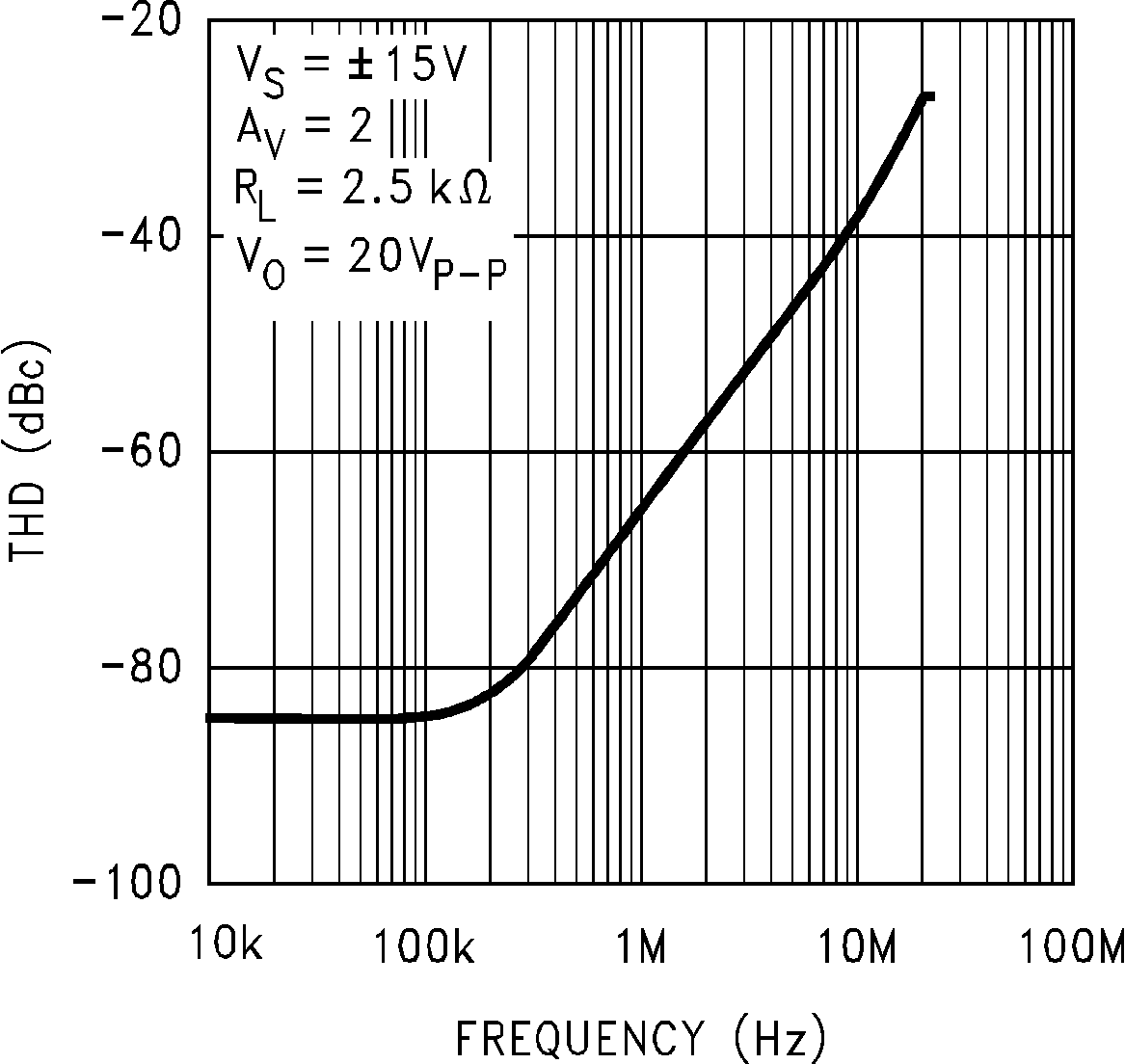

Figure 5-86 Total Harmonic Distortion vs Frequency

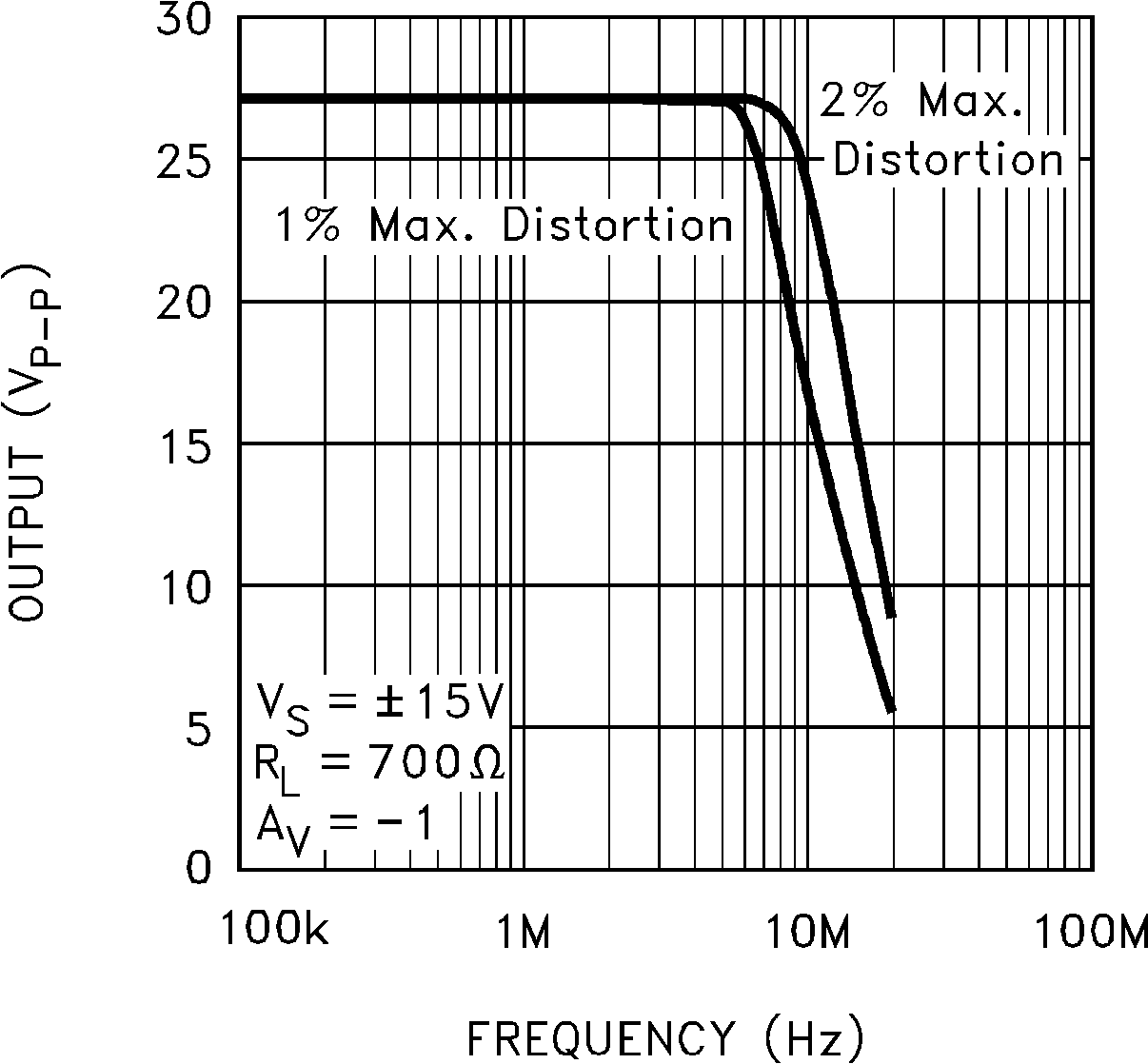

Figure 5-88 Undistorted Output Swing vs Frequency

THD measurement at low frequency limited by test instrument

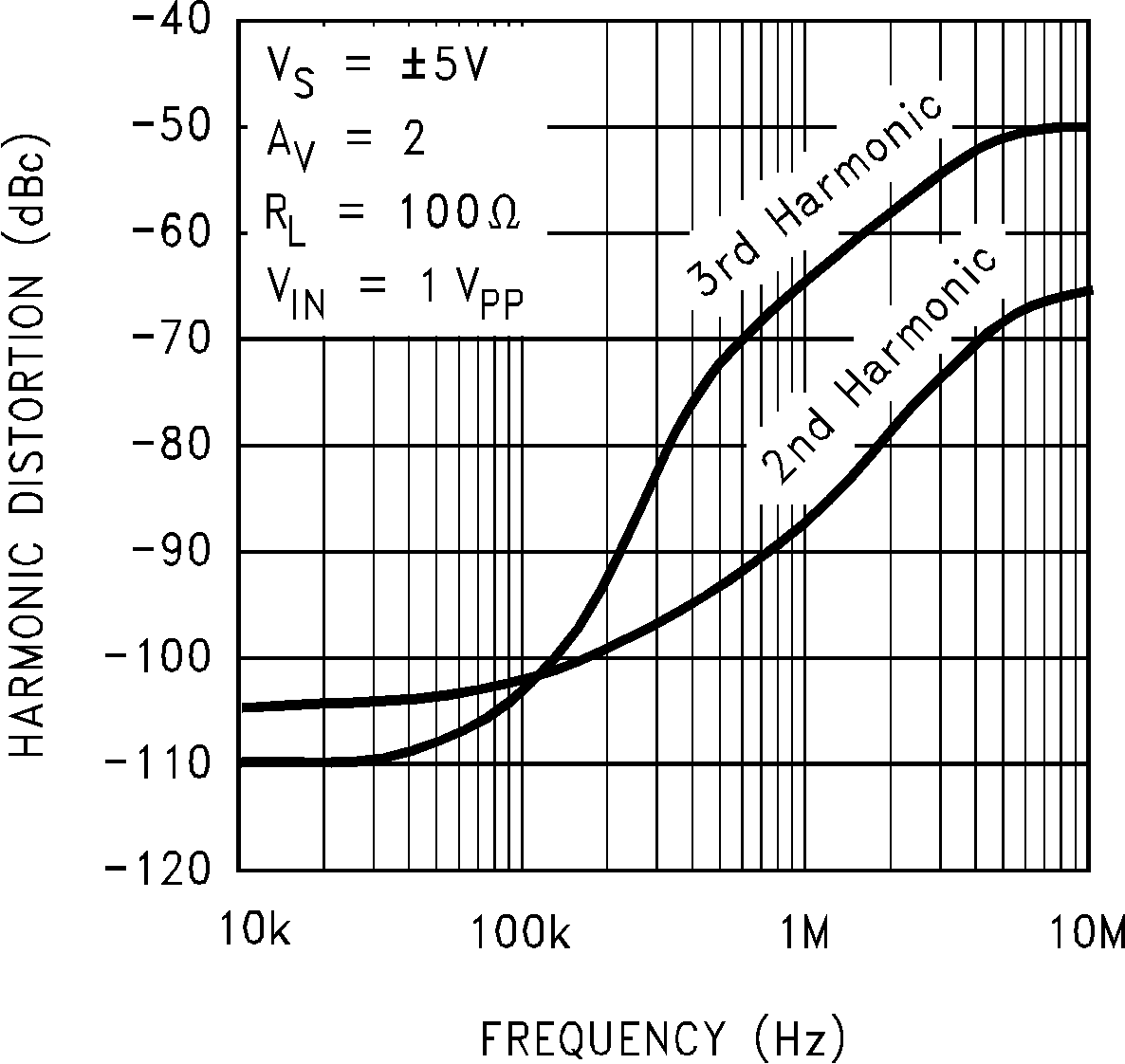

Figure 5-90 Harmonic Distortion vs Frequency

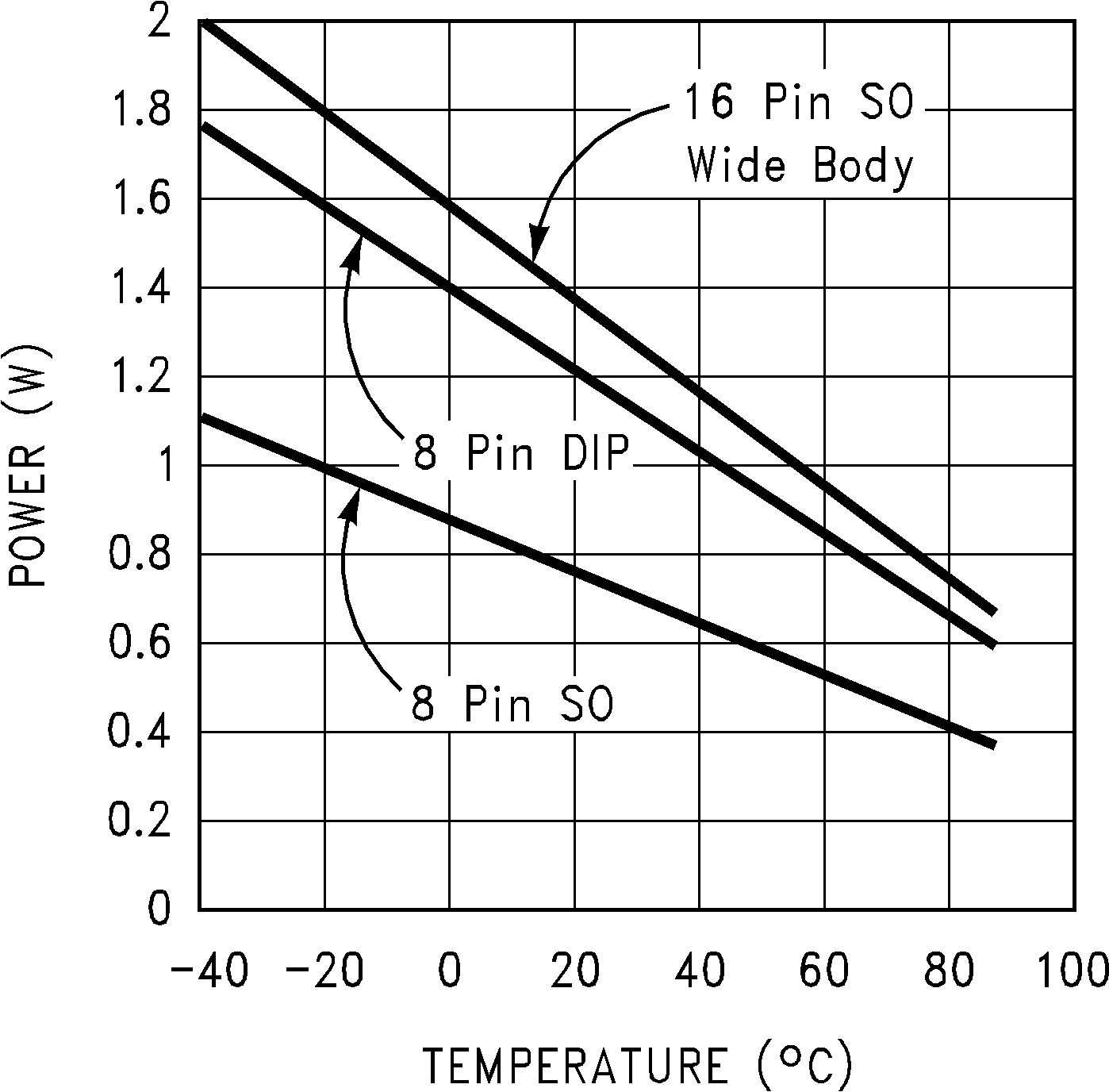

Figure 5-92 Maximum Power Dissipation vs Ambient Temperature

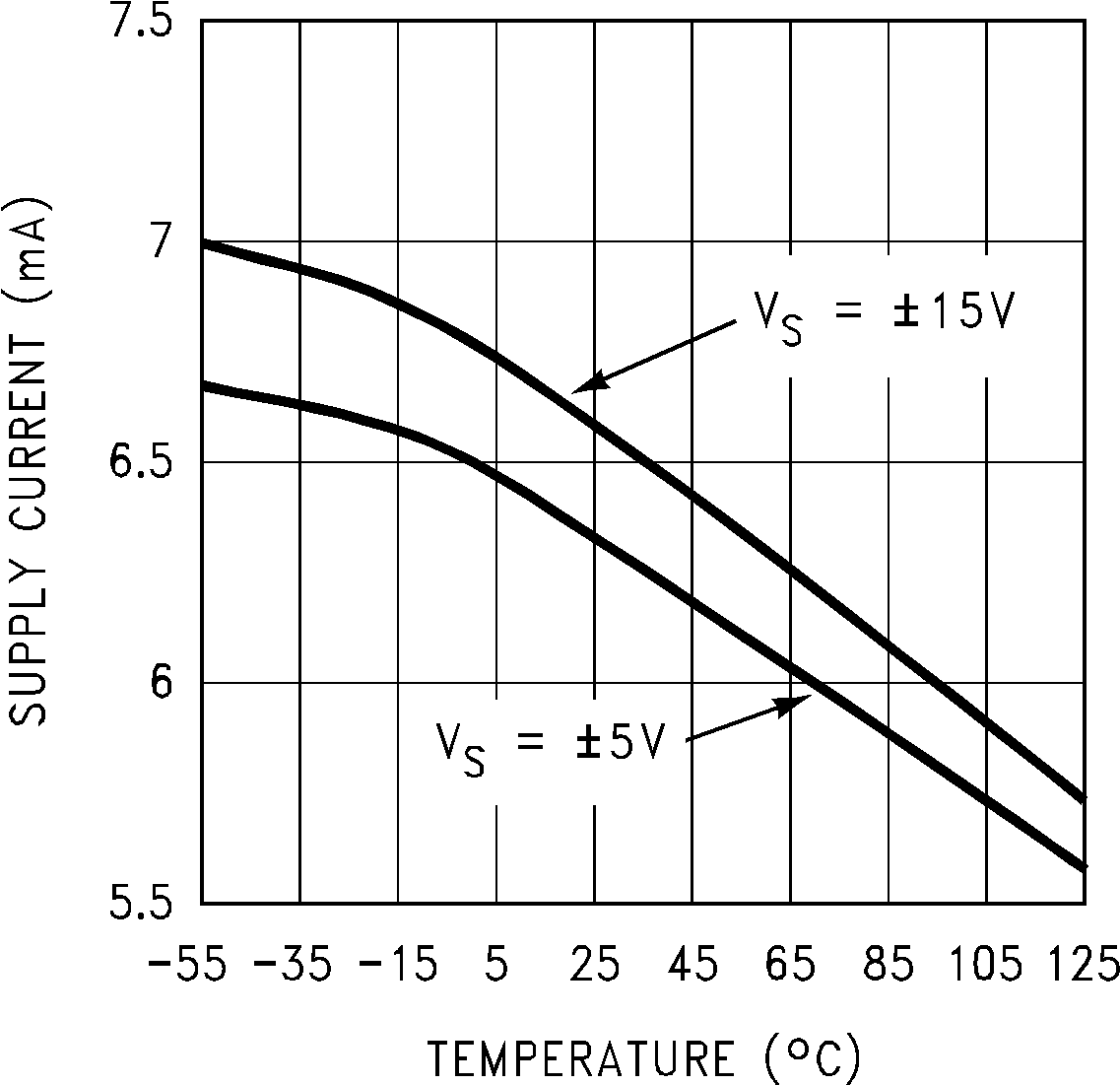

Figure 5-41 Supply Current vs Temperature

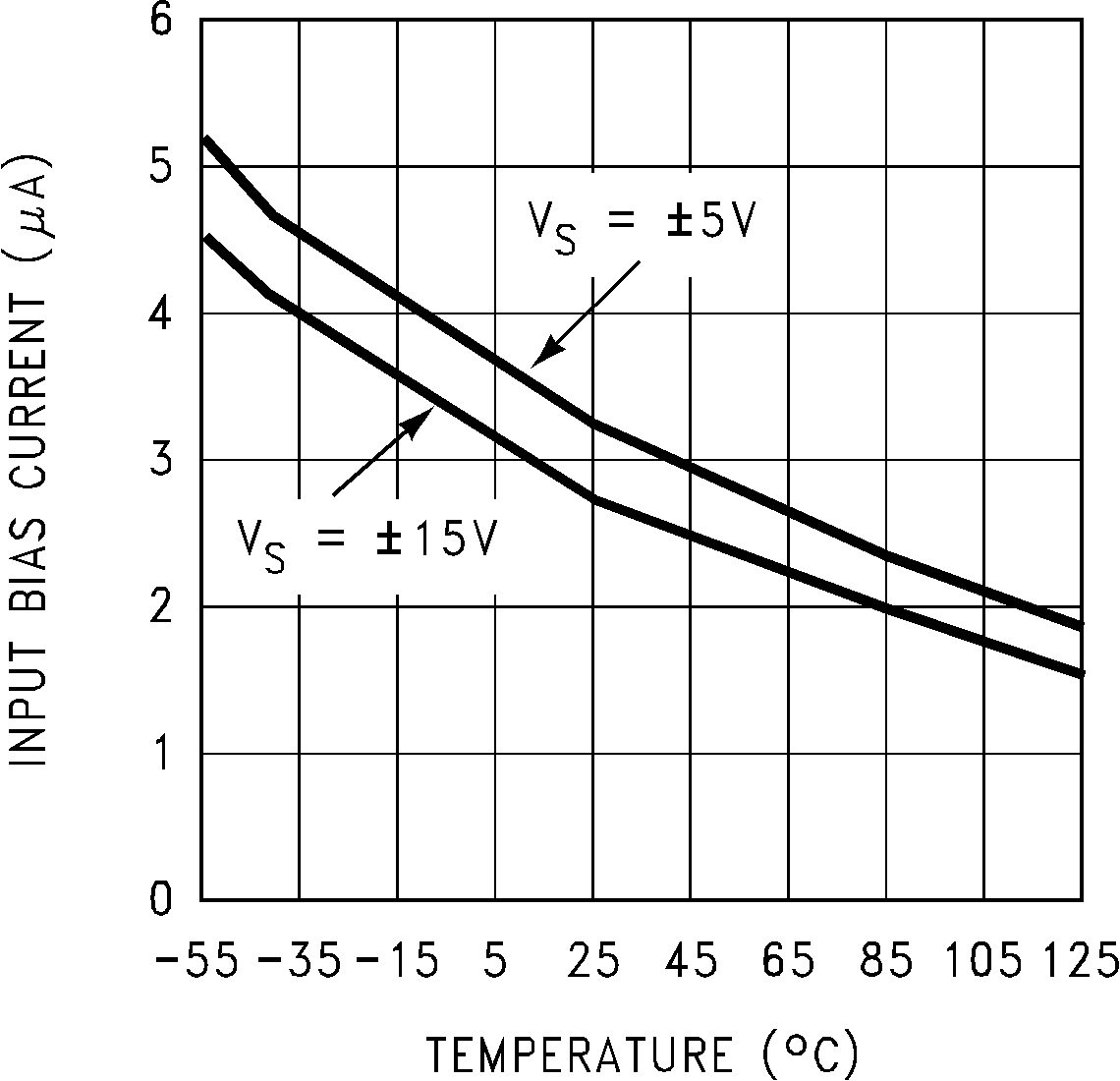

Figure 5-43 Input Bias Current vs Temperature

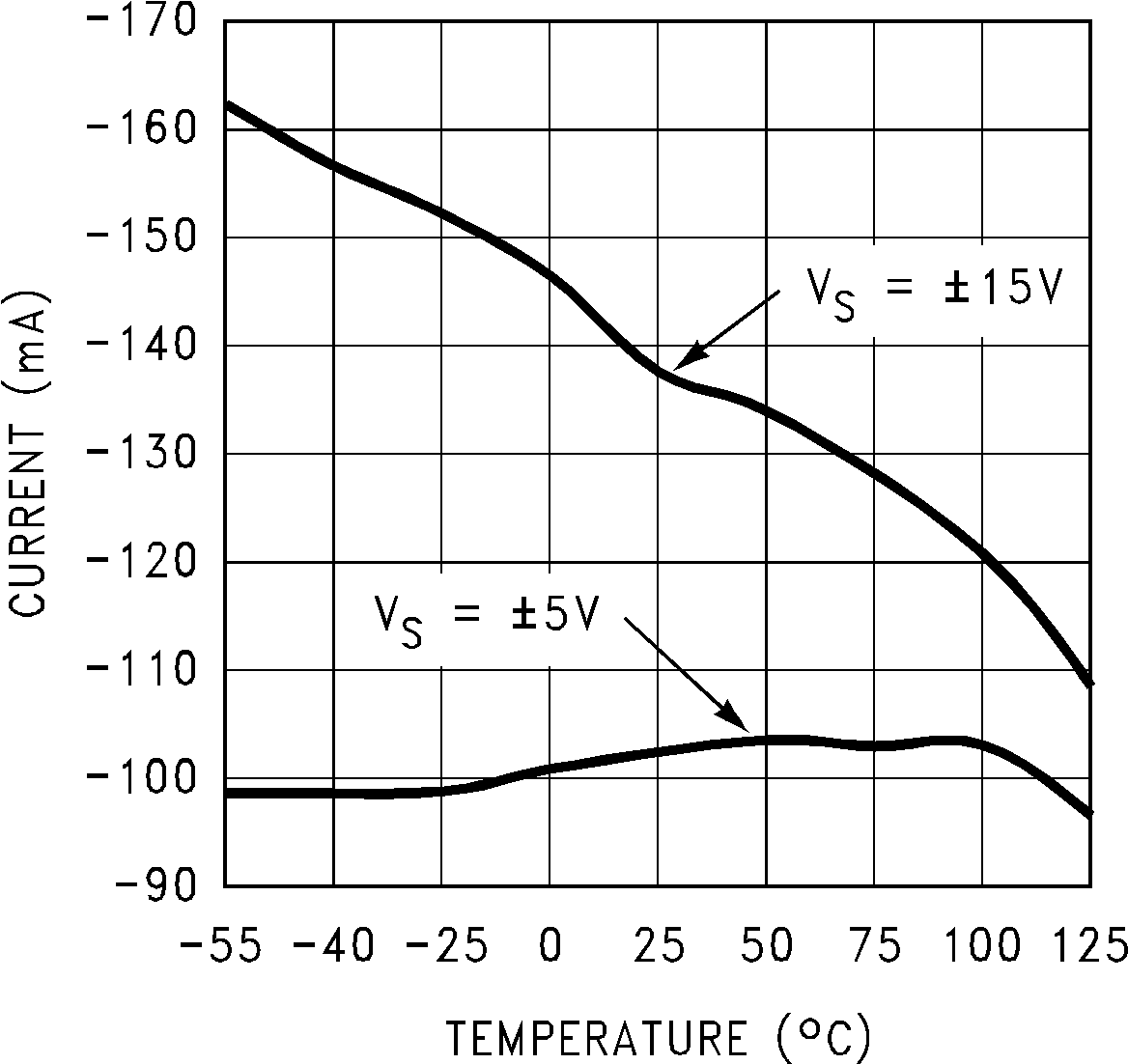

Figure 5-45 Short Circuit Current vs Temperature (Sinking)

Figure 5-47 Output Voltage vs Output Current

Figure 5-49 PSRR vs Frequency

Figure 5-51 Open Loop Frequency Response

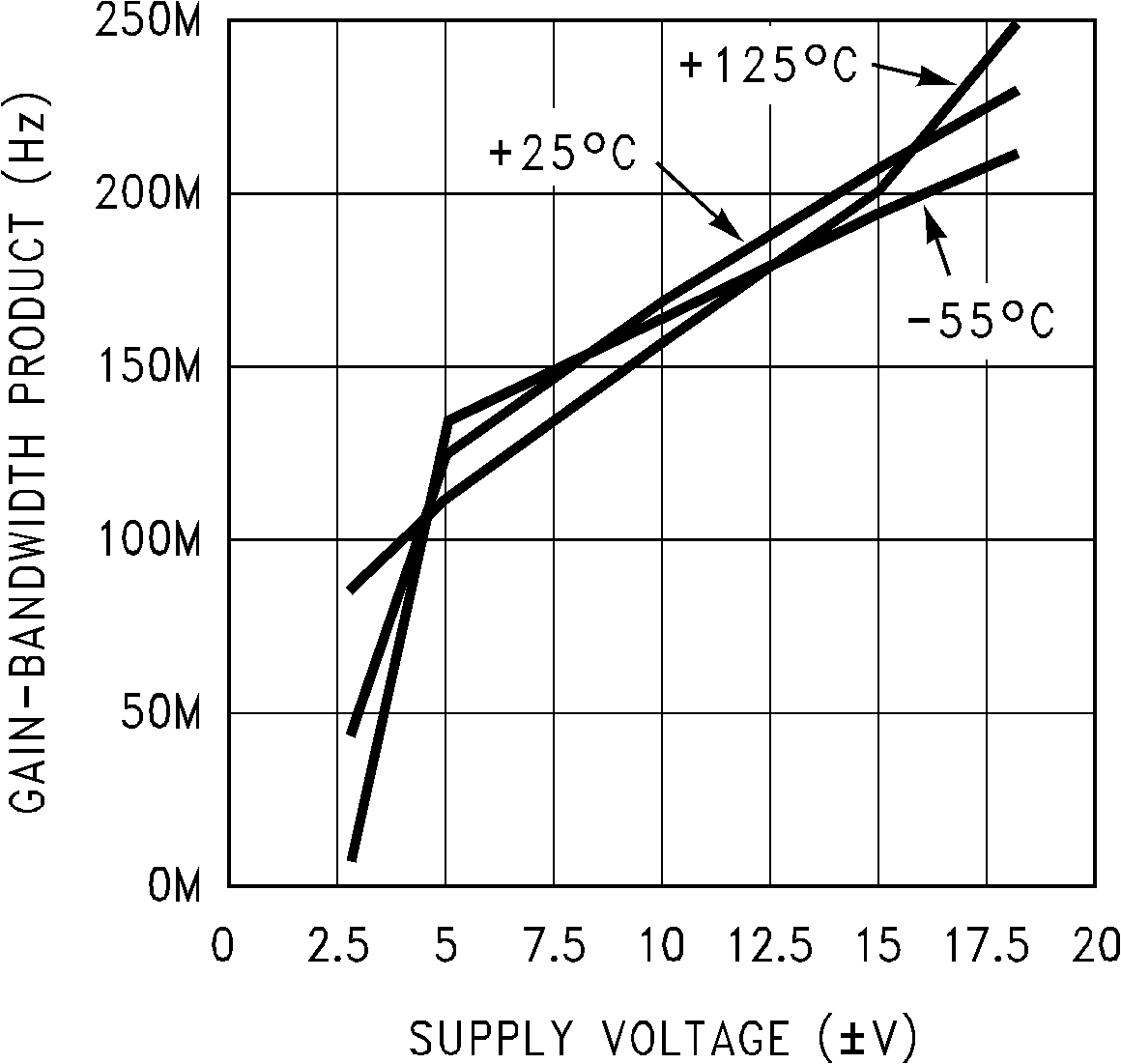

Figure 5-53 Gain-Bandwidth Product vs Supply Voltage

Figure 5-55 Large Signal Voltage Gain vs Load

Figure 5-57 Input Voltage Noise vs Frequency

Figure 5-59 Input Current Noise vs Frequency

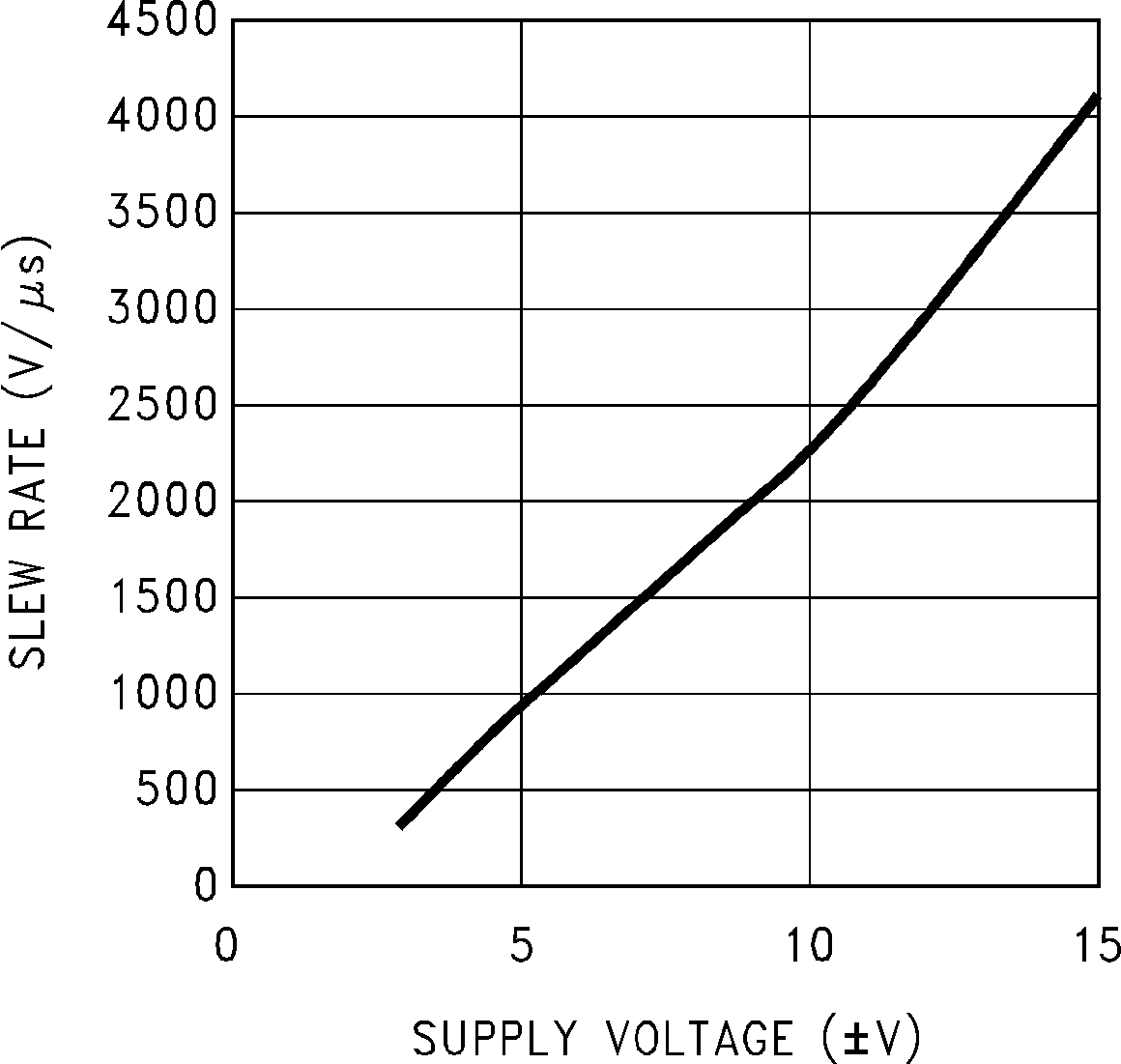

Figure 5-61 Slew Rate vs Supply Voltage

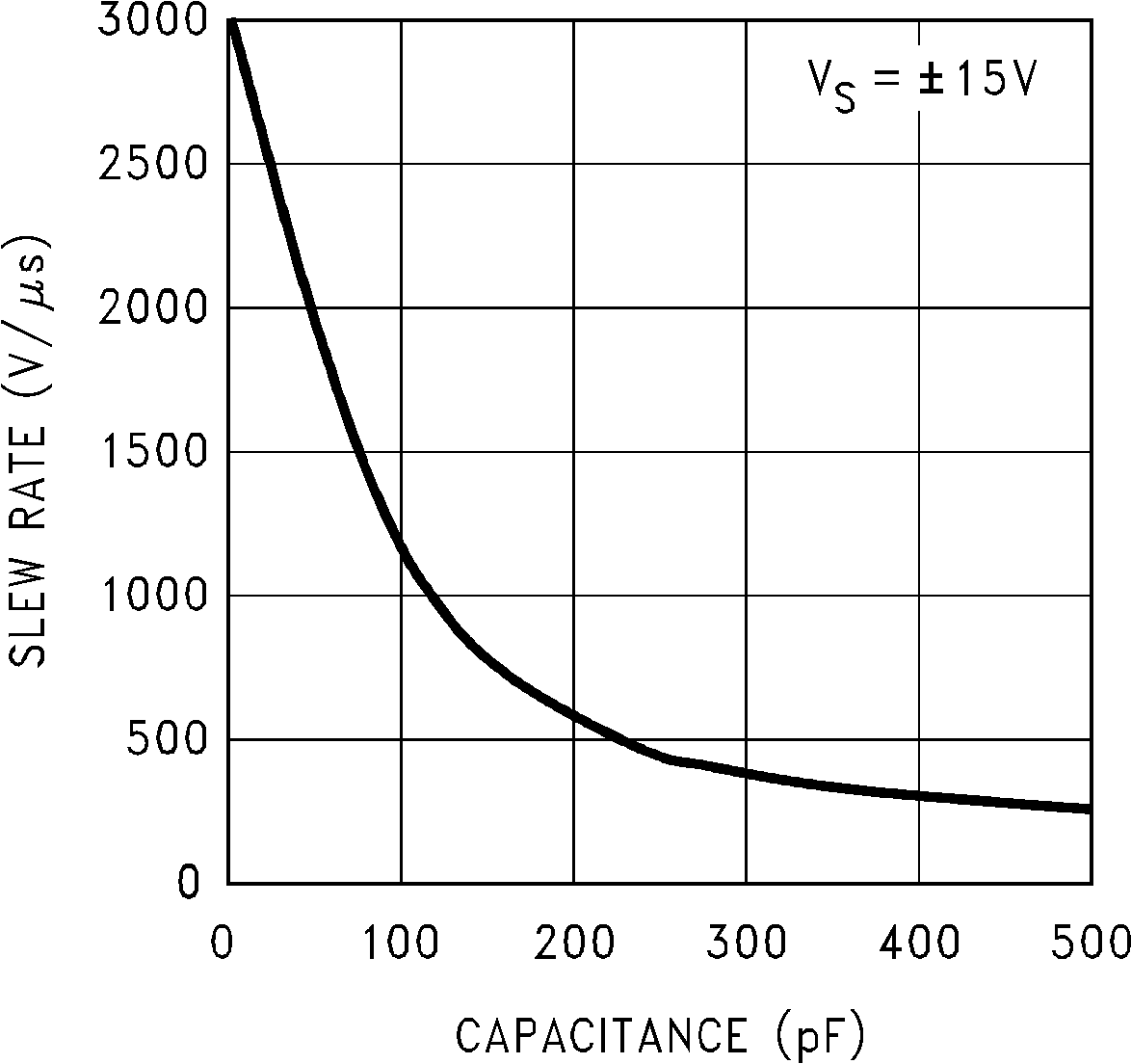

Figure 5-63 Slew Rate vs Load Capacitance

Figure 5-65 Open Loop Output Impedance vs Frequency

A_V = –1	V_S = ±5V

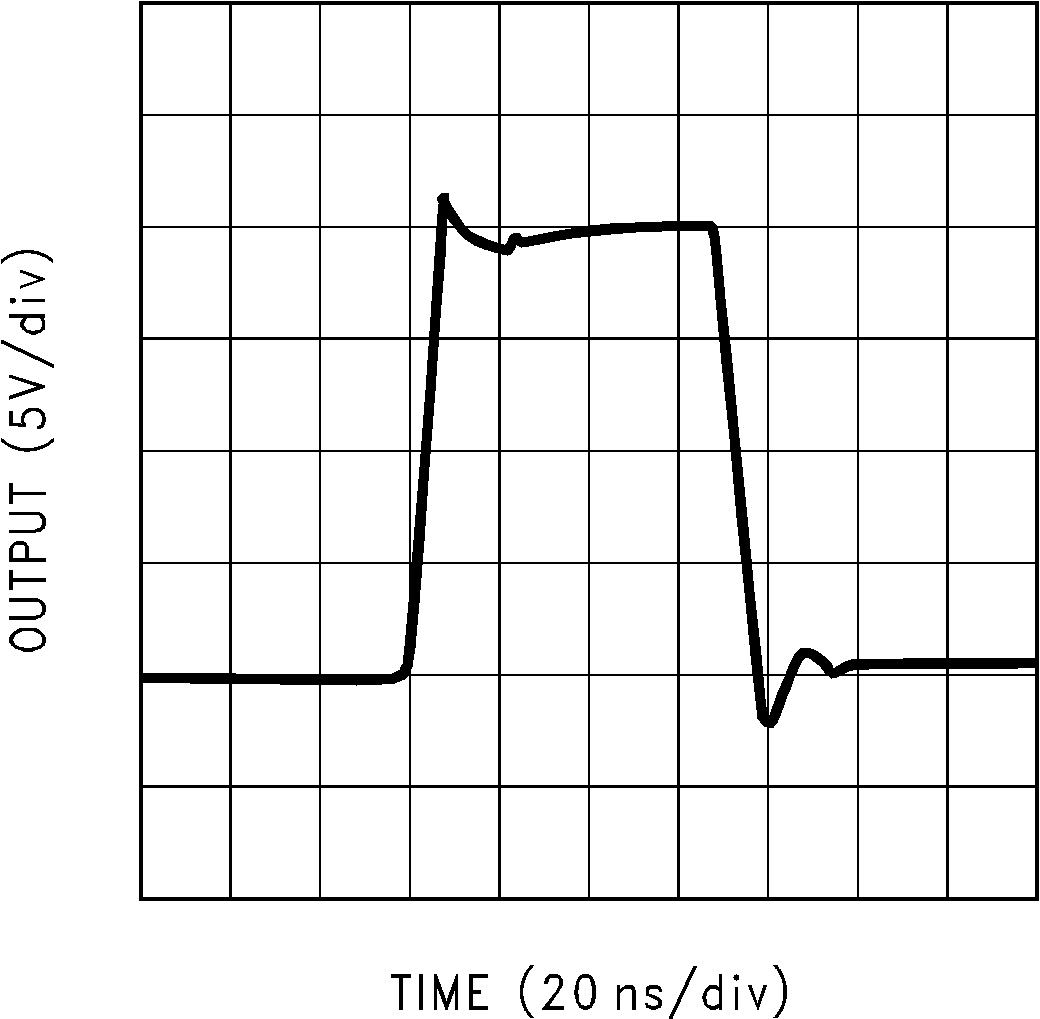

Figure 5-67 Large-Signal Pulse Response

A_V = +2	V_S = ±5V

Figure 5-69 Large-Signal Pulse Response

A_V = –1	V_S = ±5V

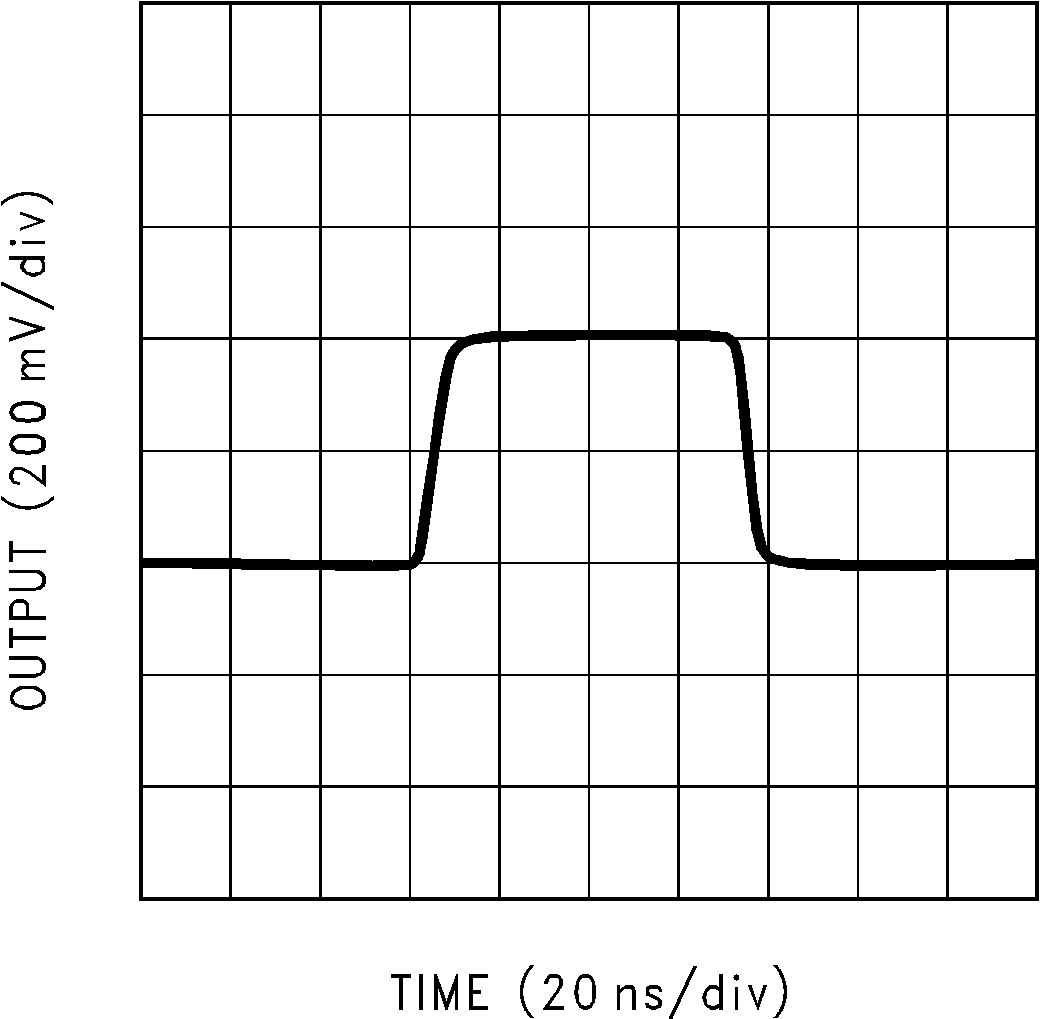

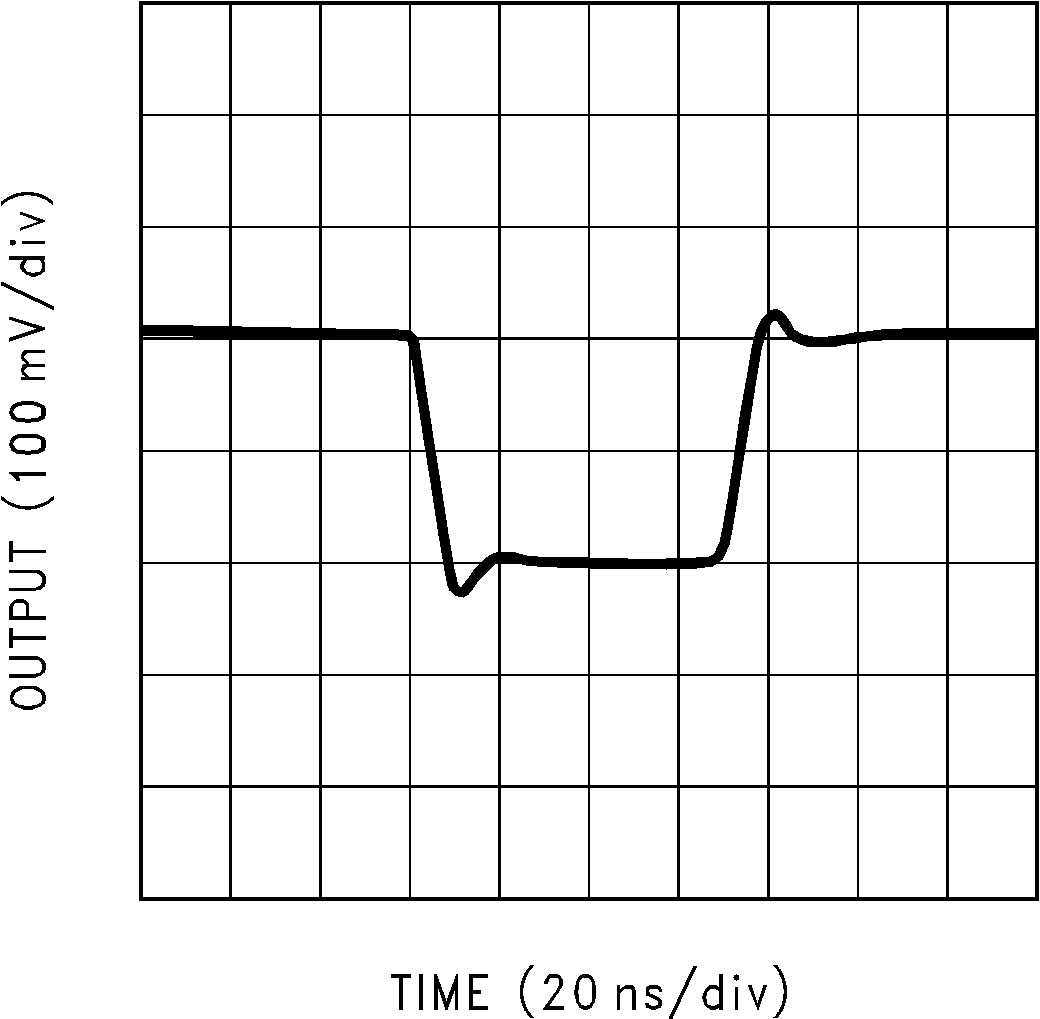

Figure 5-71 Small-Signal Pulse Response

A_V = +2	V_S = ±5V

Figure 5-73 Small-Signal Pulse Response

A_V = +2

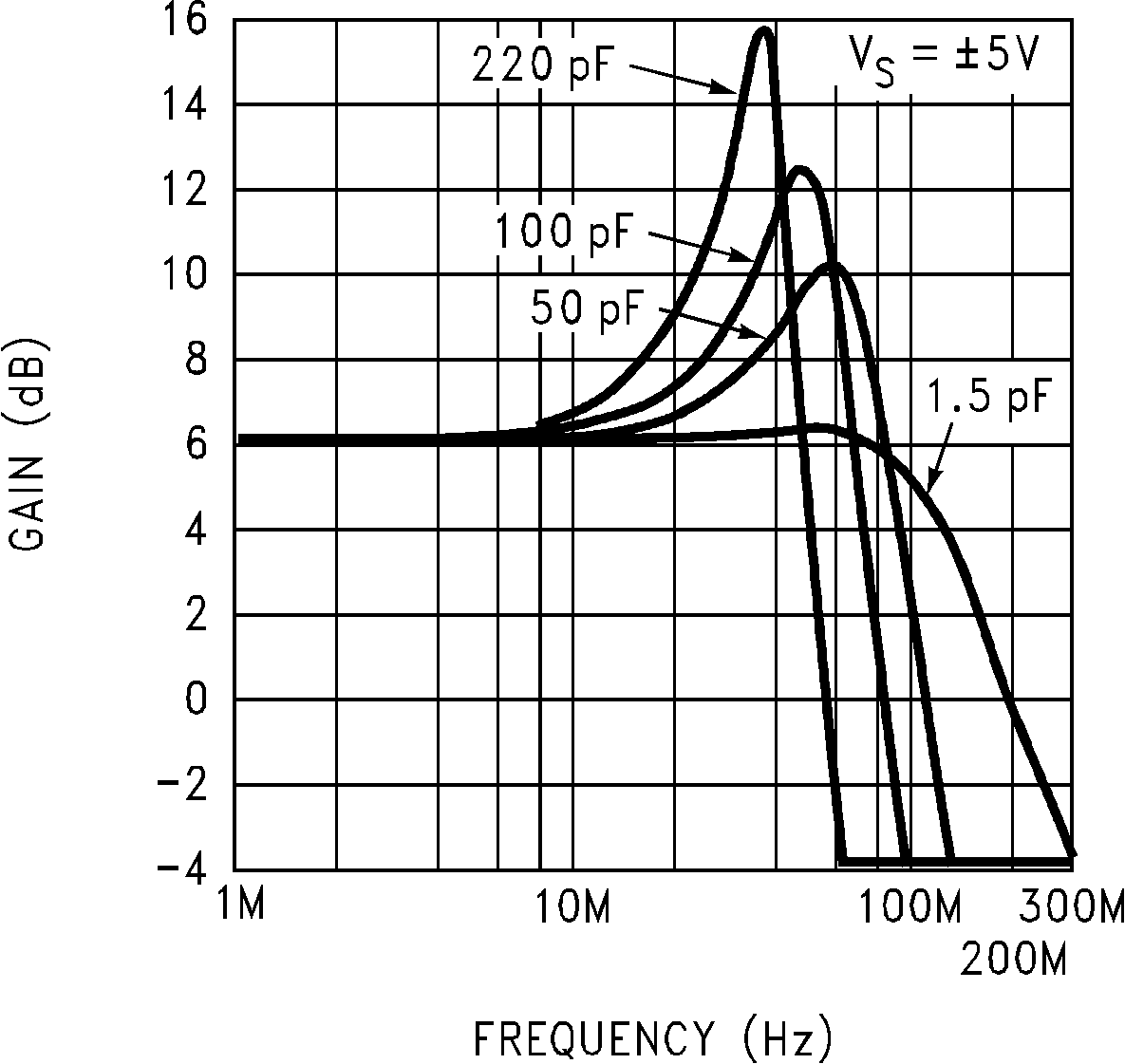

Figure 5-75 Closed-Loop Frequency Response vs

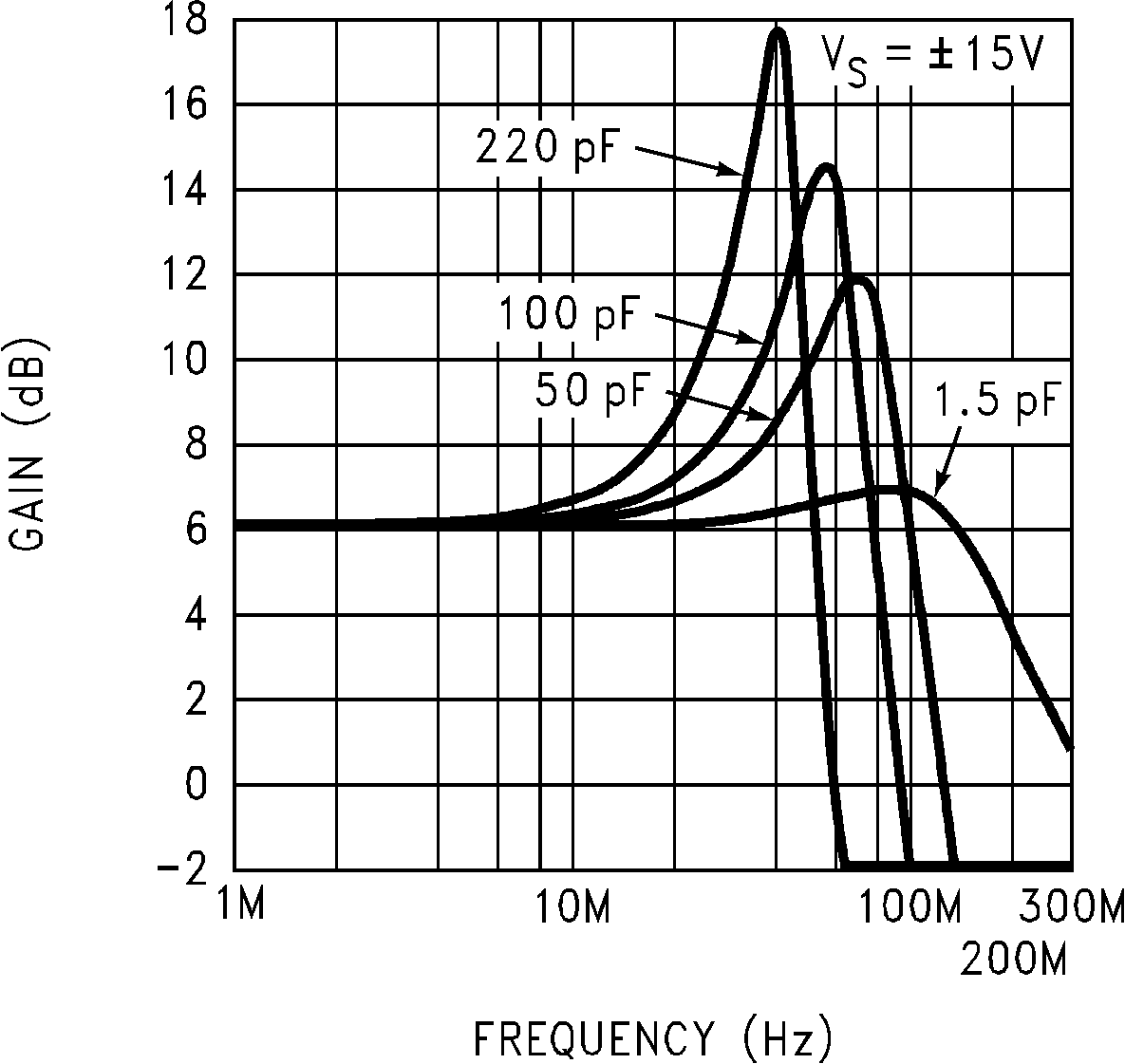

Capacitive Load

A_V = +2

Figure 5-77 Closed-Loop Frequency Response vs

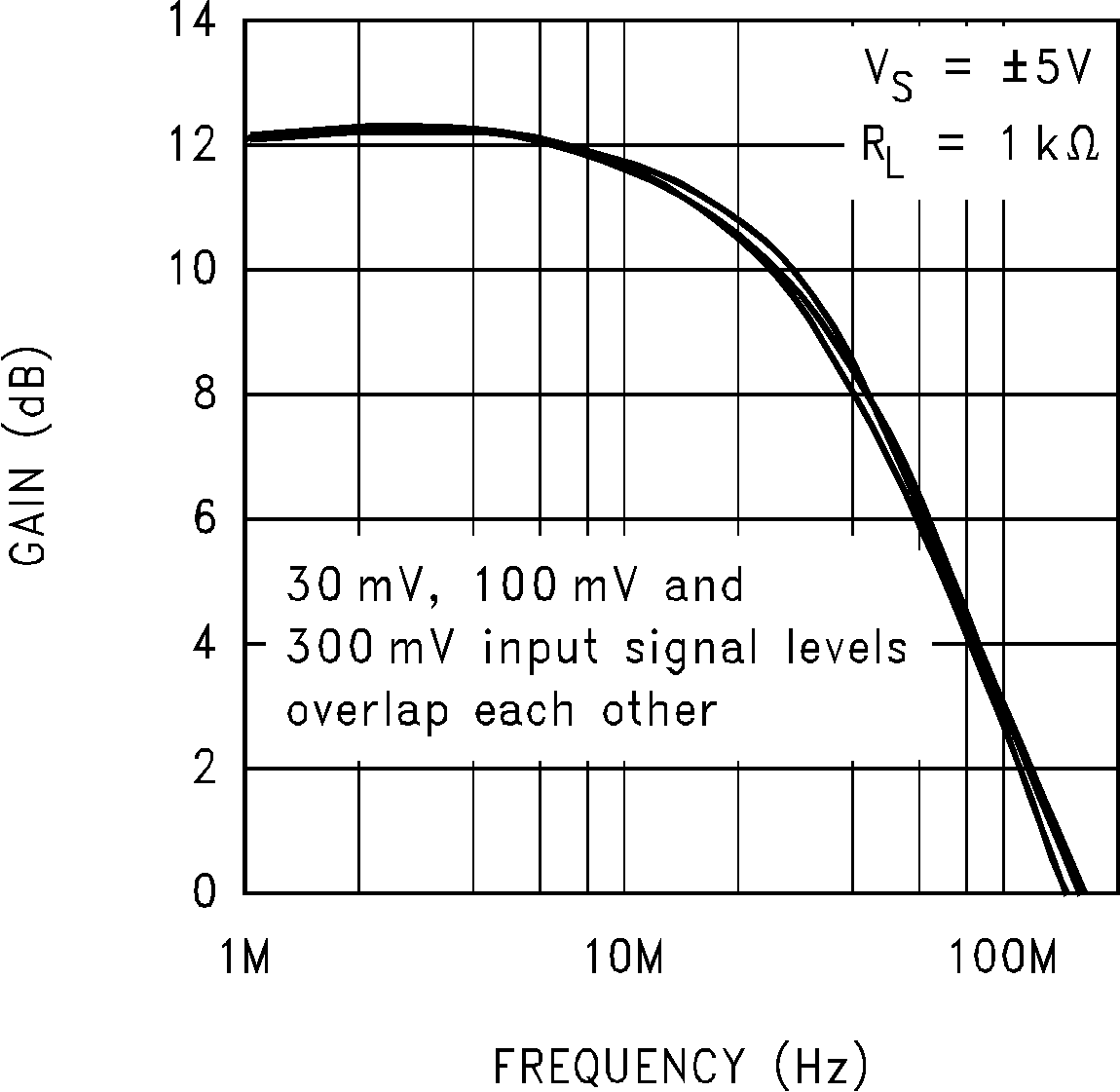

Input Signal Level

A_V = +2

Figure 5-79 Closed-Loop Frequency Response vs
Input Signal Level

A_V = +4

Figure 5-81 Closed-Loop Frequency Response vs
Input Signal Level

A_V = +4

Figure 5-83 Closed-Loop Frequency Response vs
Input Signal Level

THD measurement at low frequency limited by test instrument

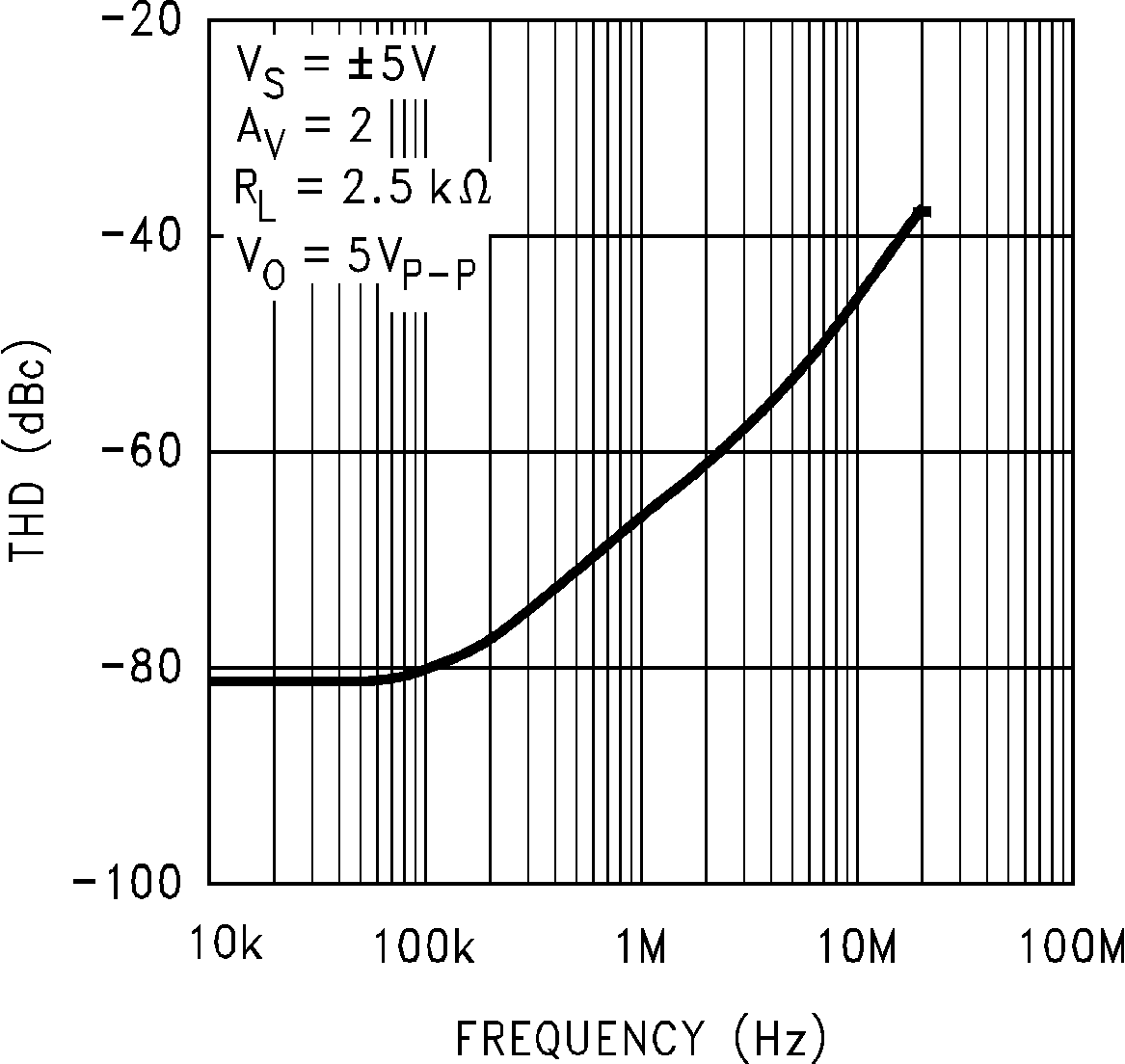

Figure 5-85 Total Harmonic Distortion vs Frequency

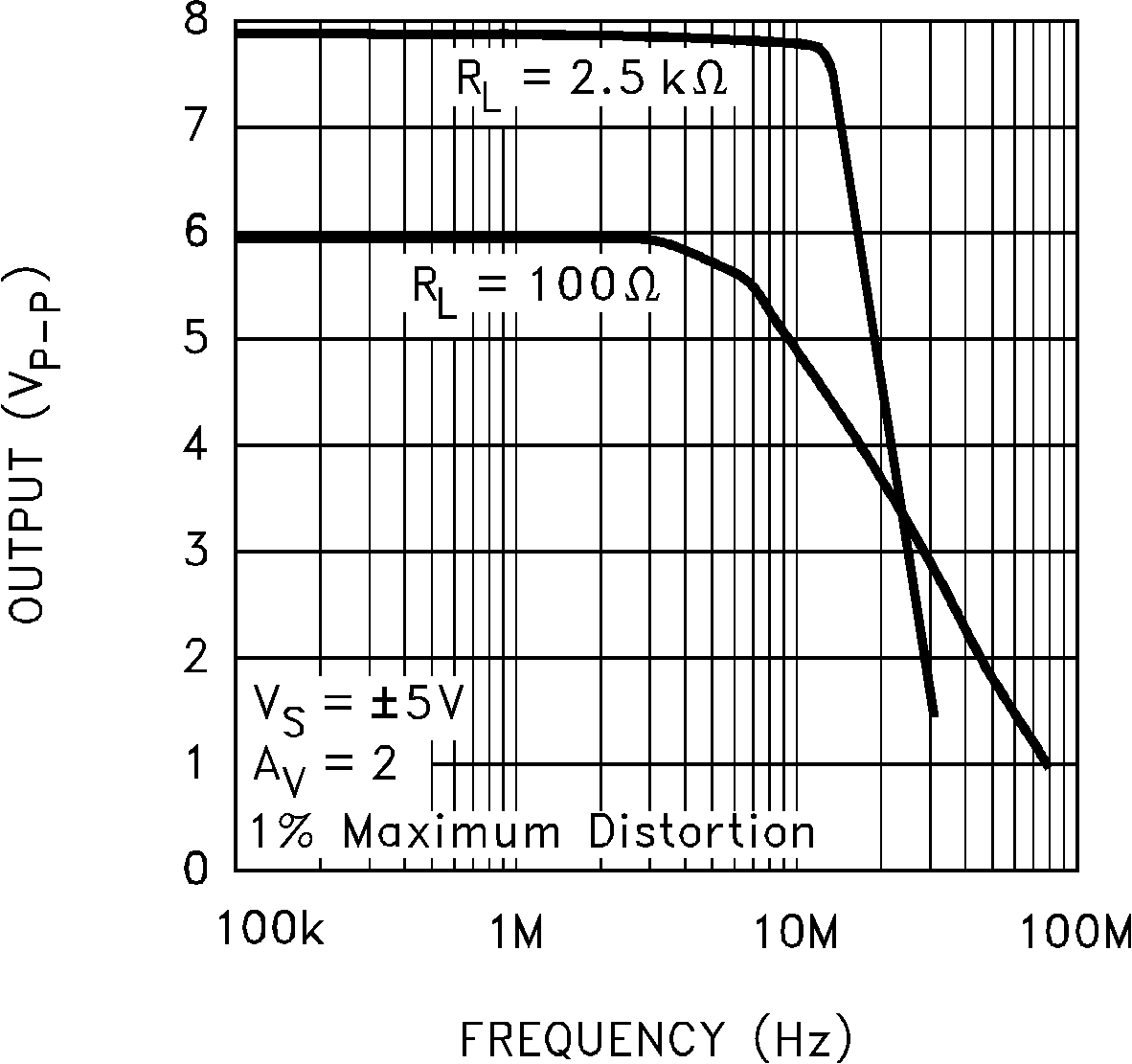

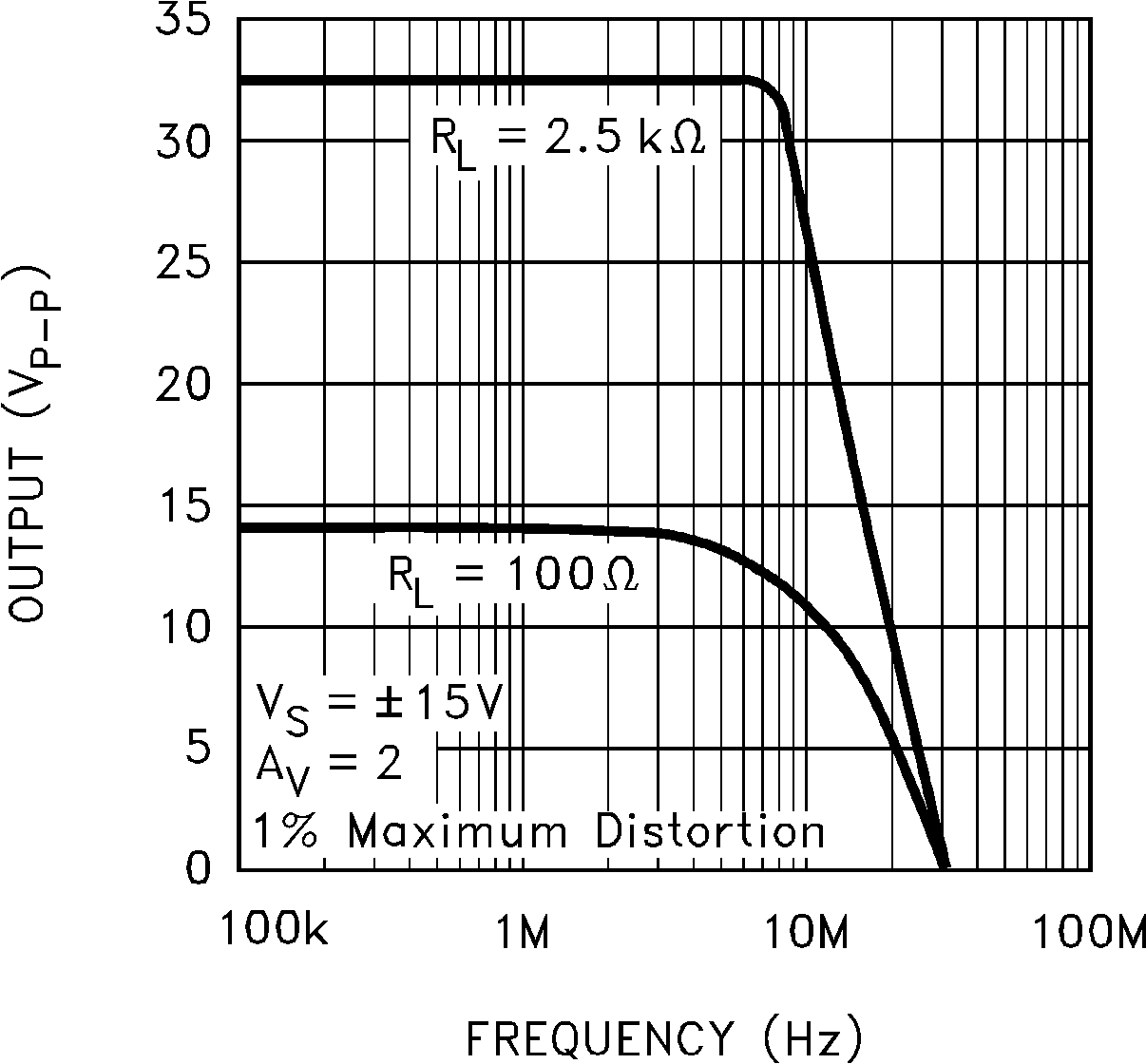

Figure 5-87 Undistorted Output Swing vs Frequency

Figure 5-89 Undistorted Output Swing vs Frequency

THD measurement at low frequency limited by test instrument

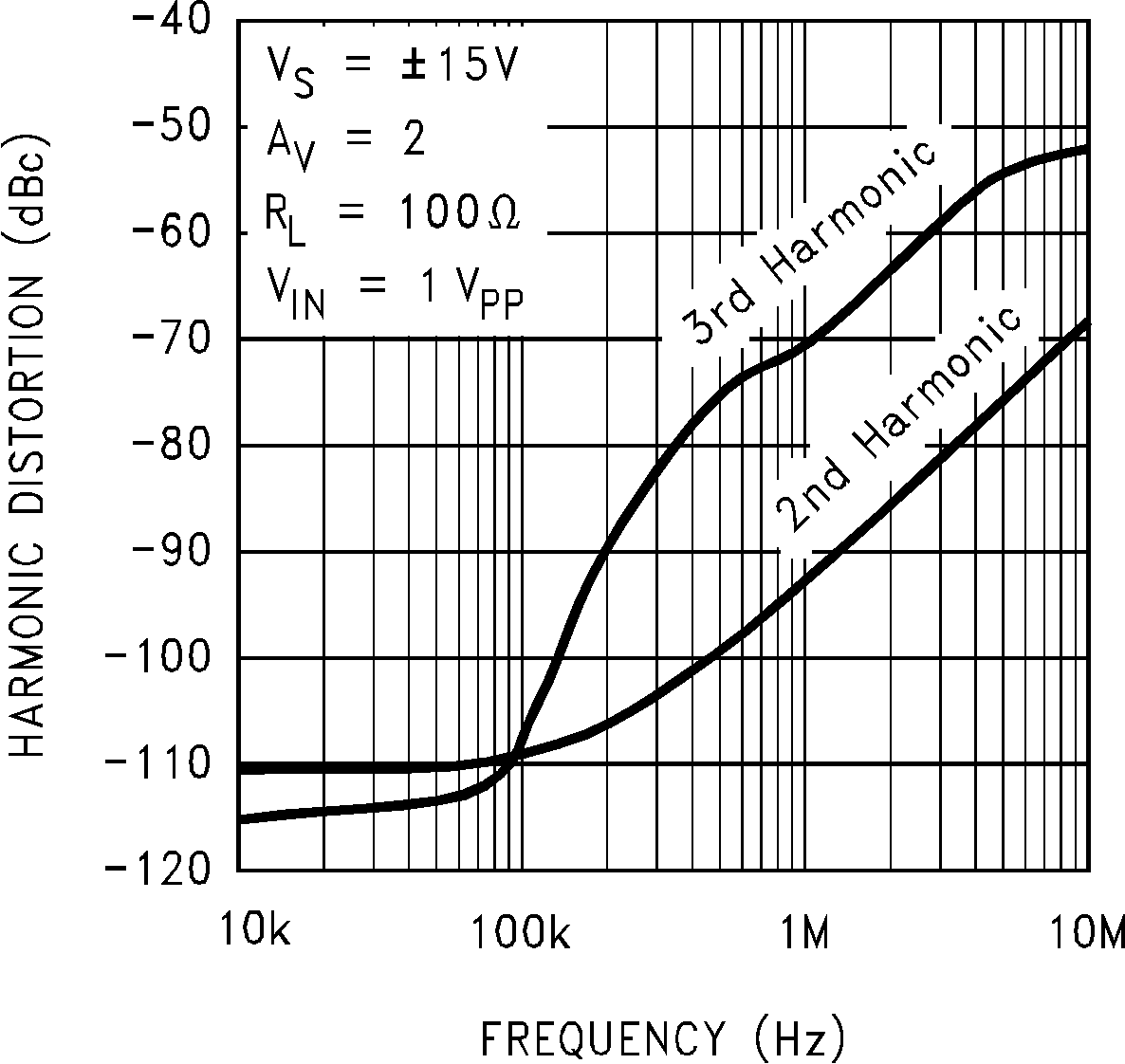

Figure 5-91 Harmonic Distortion vs Frequency
