4 Pin Configuration and Functions

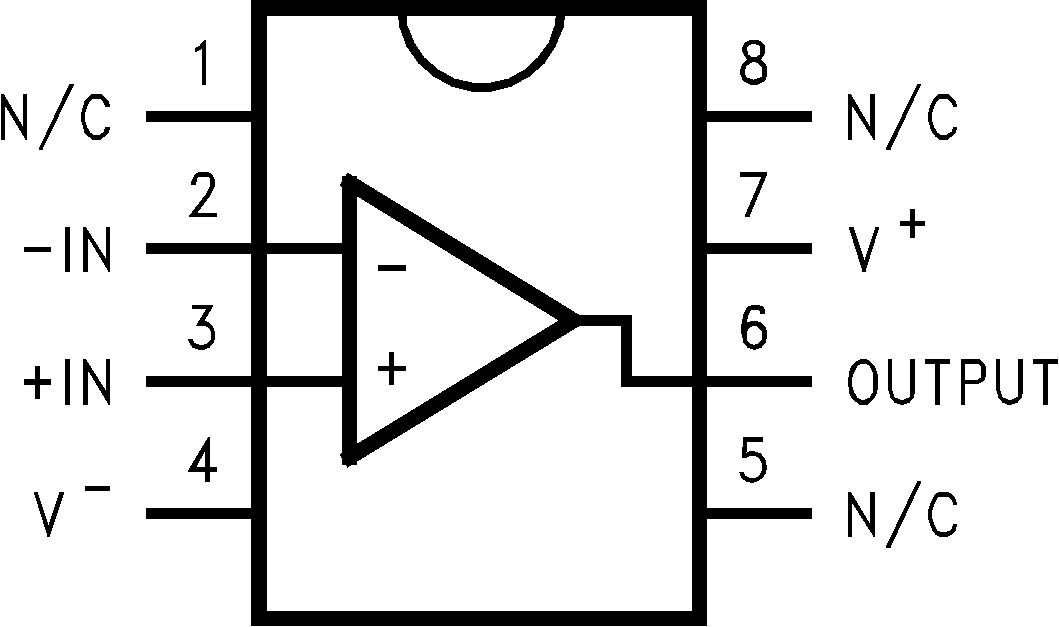

Figure 4-1 D Package, 8-Pin SOIC (Top
View)Table 4-1 Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | NC | — | No connection |
| 2 | –IN | Input | Inverting power supply |
| 3 | +IN | Input | Noninverting power supply |
| 4 | V– | Input | Supply voltage |
| 5 | NC | — | No connection |
| 6 | OUTPUT | Output | Output |
| 7 | V+ | Input | Supply voltage |
| 8 | NC | — | No connection |
