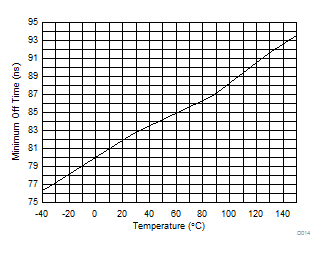

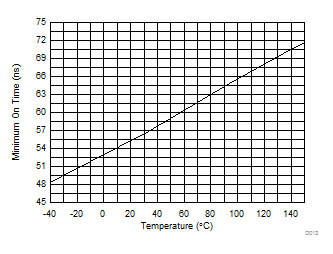

7.8 Typical Characteristics
VIN = 13.5 V, TA = 25°C (unless otherwise noted). Specified temperatures are ambient.
| Device Type = 3.3-V Fixed Output | ||
| Input Voltage = 20 V | Load = 500 mA | |
Figure 7-5 Normalized VFB vs Temperature
| Device Type = 1 A | 5-V Fixed Output In Dropout | |
| Output = 4.85 V | Load = 500 mA | |

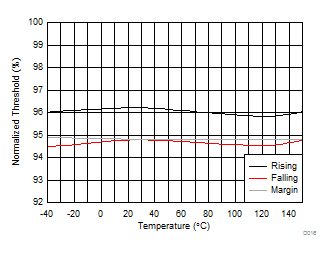

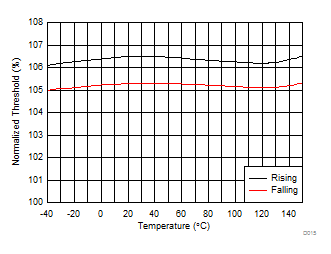

| Margin is the difference between the falling RESET threshold and actual regulation voltage which includes the effects of temperature. |
Figure 7-6 EN
Threshold vs Temperature
