8.2.1.3 Application Curves

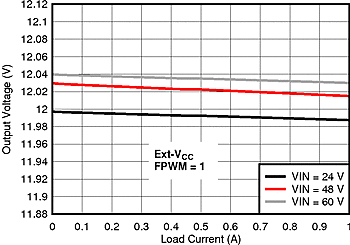

Figure 26. Load Regulation

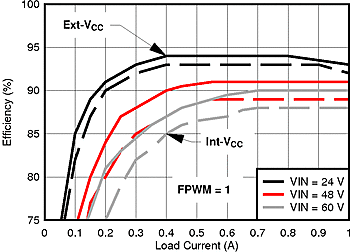

Figure 27. Efficiency vs IOUT (FPWM = 1)

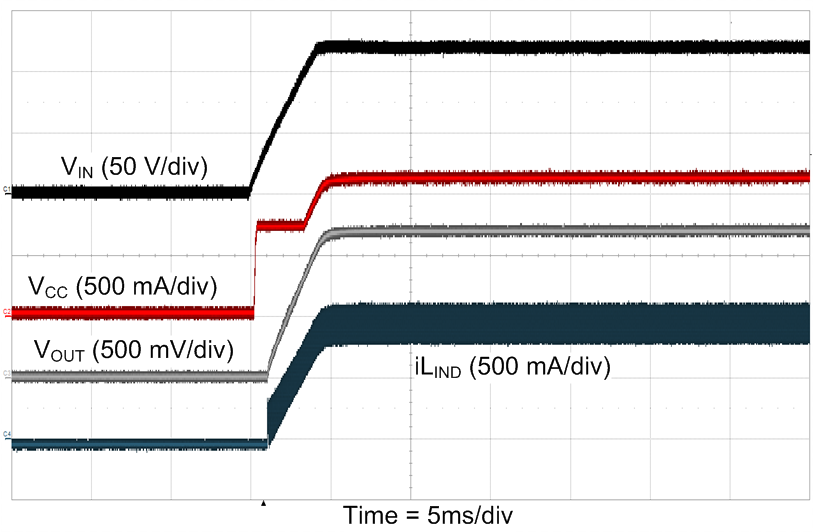

Figure 28. EN/UVLO Start-up at VIN= 48 V and IOUT = 1 A

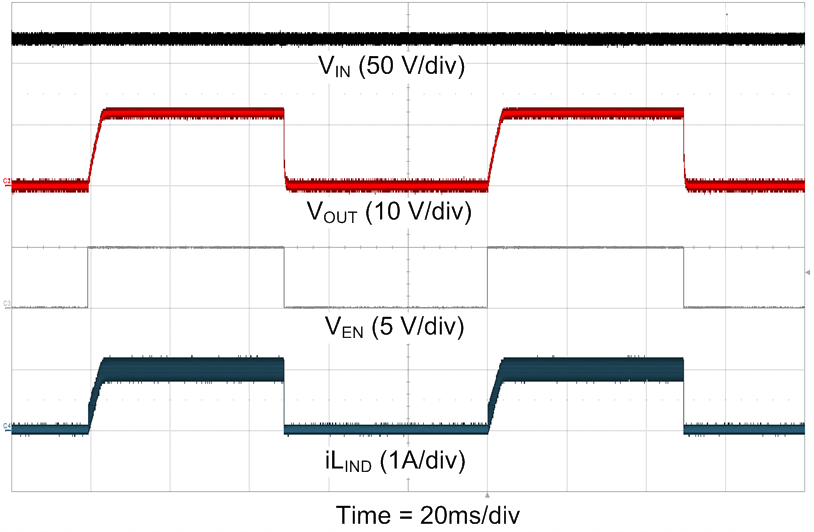

Figure 30. EN/UVLO Start-up at VIN= 48 V and RLOAD = 12 Ω at FPWM = 1

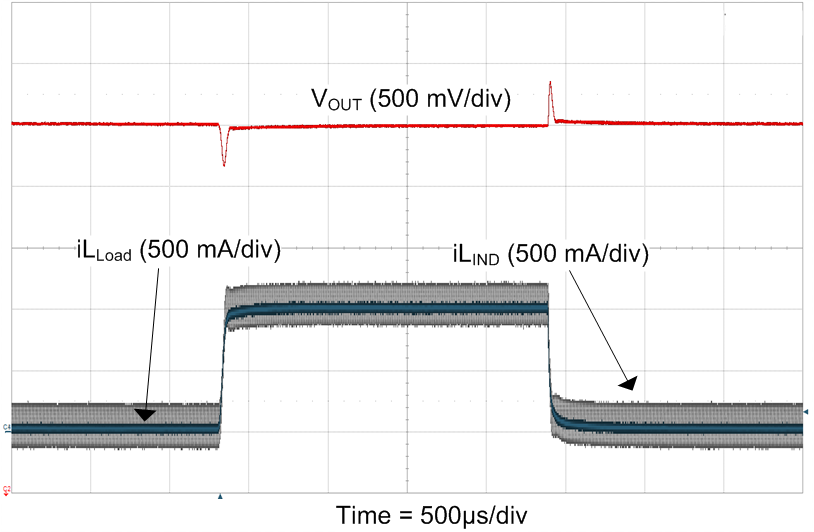

Figure 32. Load Transient (0 A - 1 A) at VIN = 48 V
at FPWM = 1

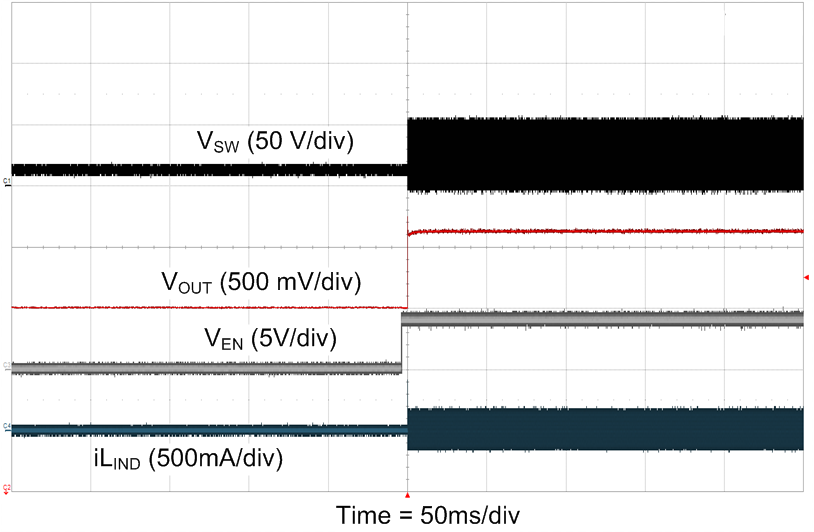

Figure 29. Pre-Bias (11.5 V) Start-up at VIN= 48 V at No Load & FPWM = 1

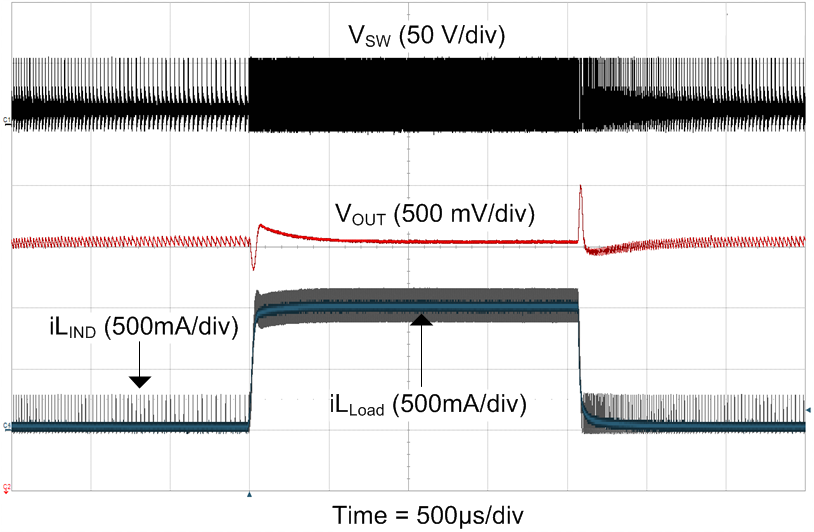

Figure 31. Load Transient (0 A - 1 A) at VIN = 48 V
at FPWM = 0

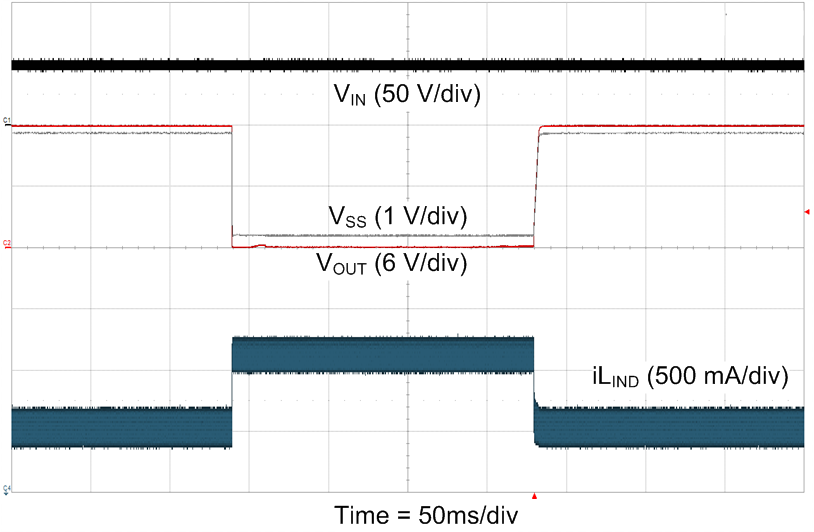

Figure 33. Output Short-Circuit at VIN = 48 V
(Full Load to Short)
