8.6 Typical Characteristics

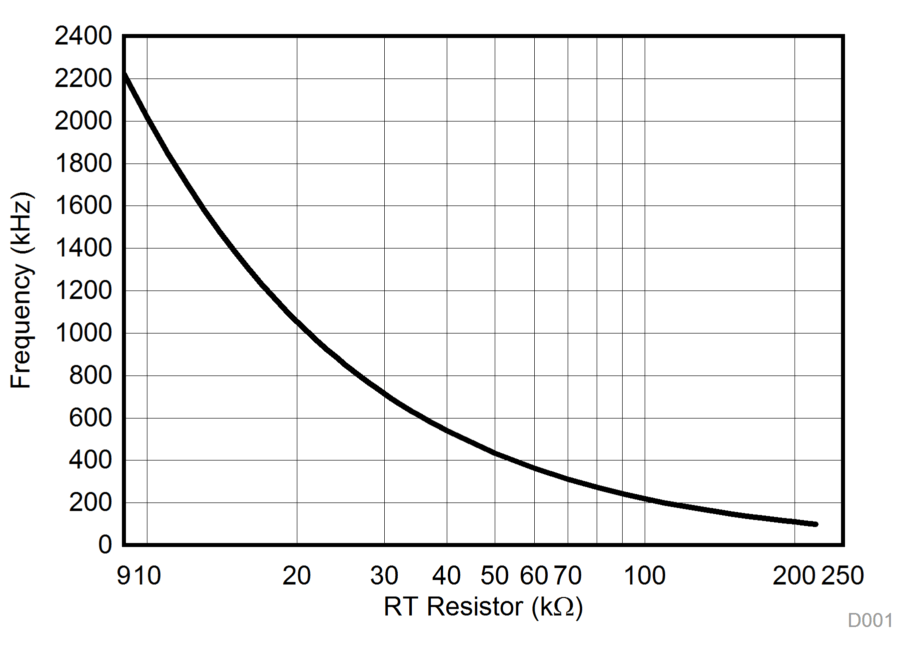

Figure 8-1 Frequency vs RT Resistance

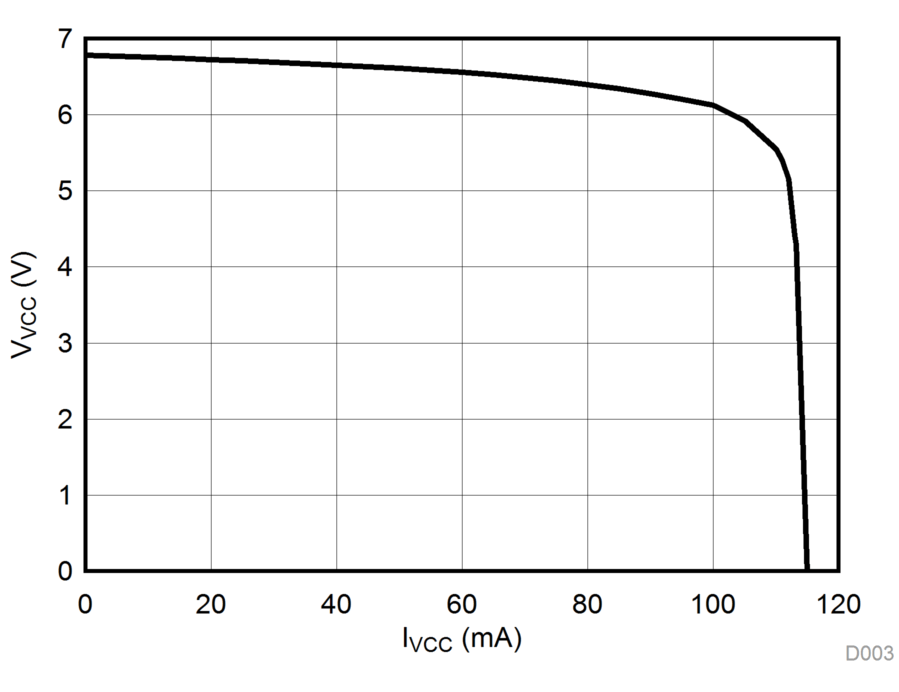

Figure 8-3 VVCC vs IVCC

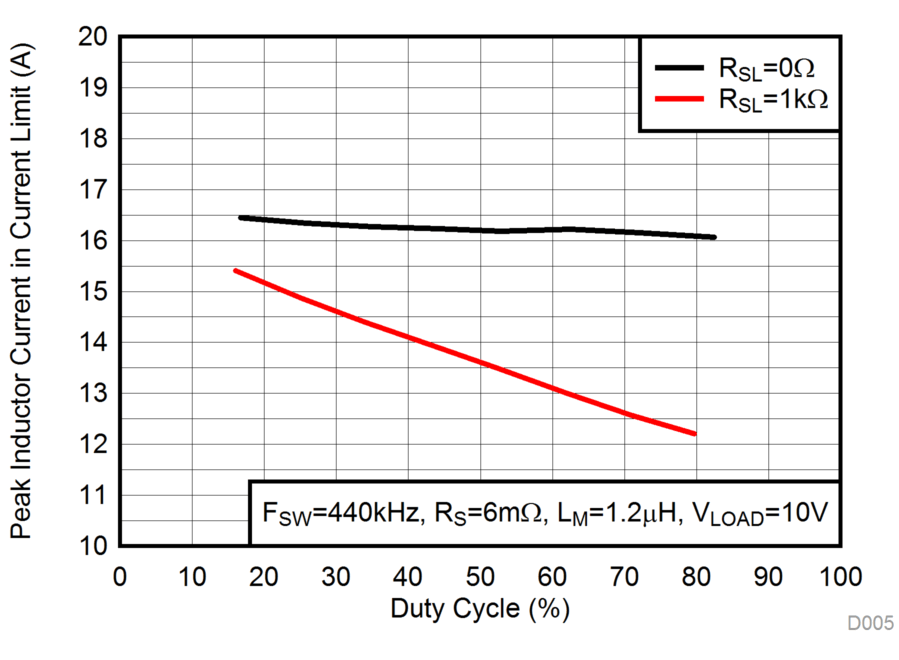

Figure 8-5 Peak Current Limit vs Duty Cycle

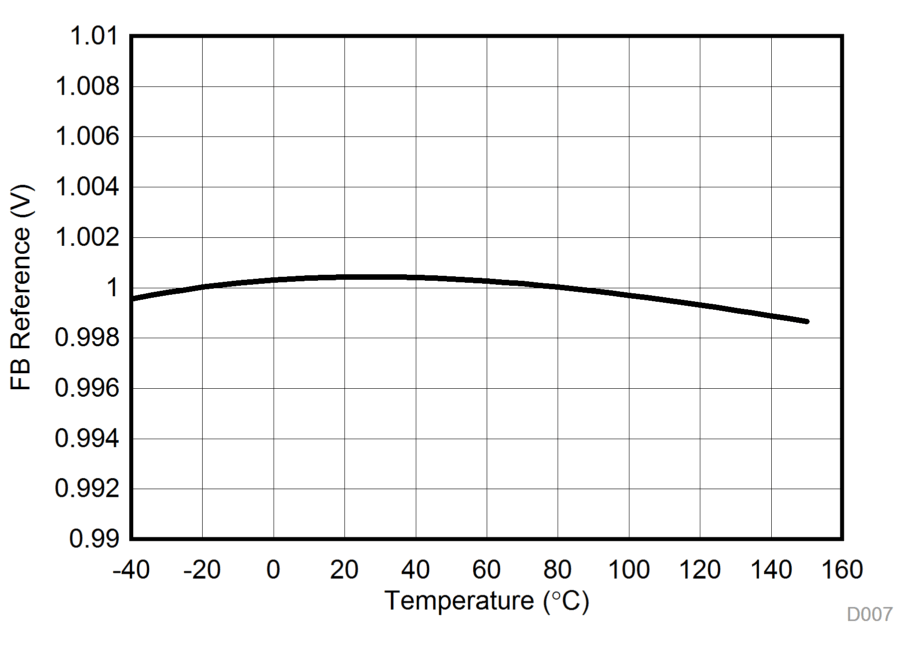

Figure 8-7 FB Reference vs Temperature

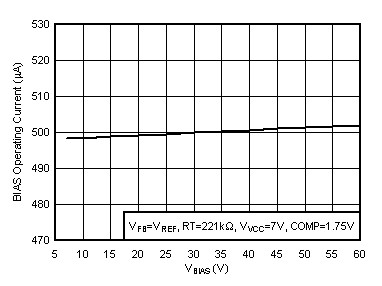

Figure 8-9 IOPERATING(BIAS) Including RT Current vs
VBIAS
Figure 8-11 ISHUTDOWN vs Temperature

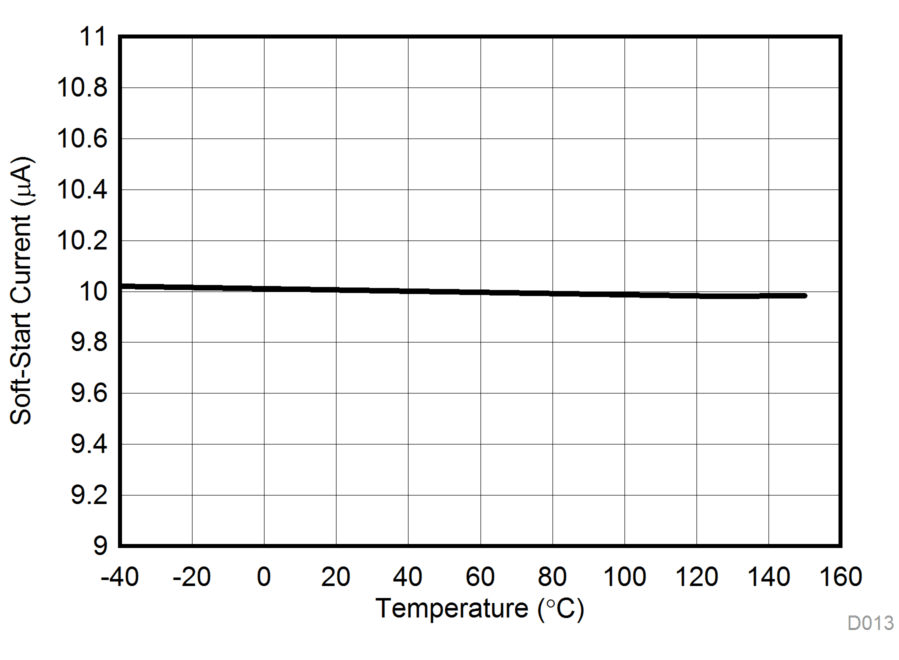

Figure 8-13 ISS vs Temperature

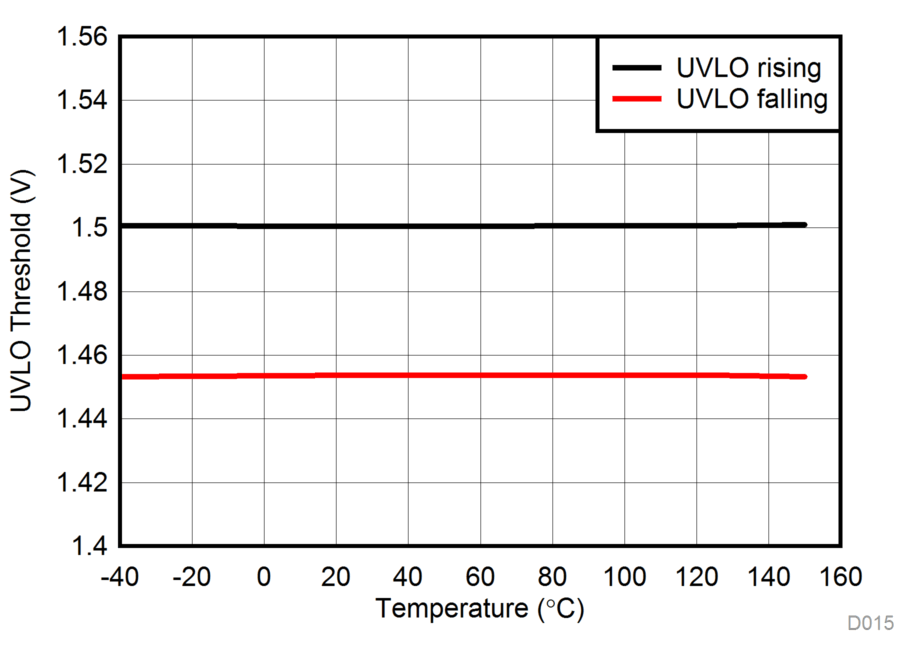

Figure 8-15 UVLO Threshold vs Temperature

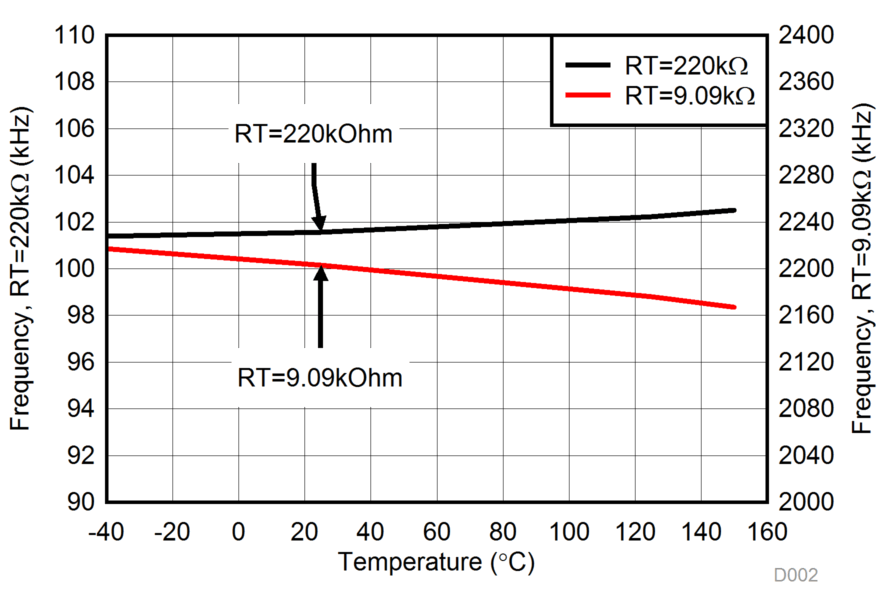

Figure 8-2 Frequency vs Temperature

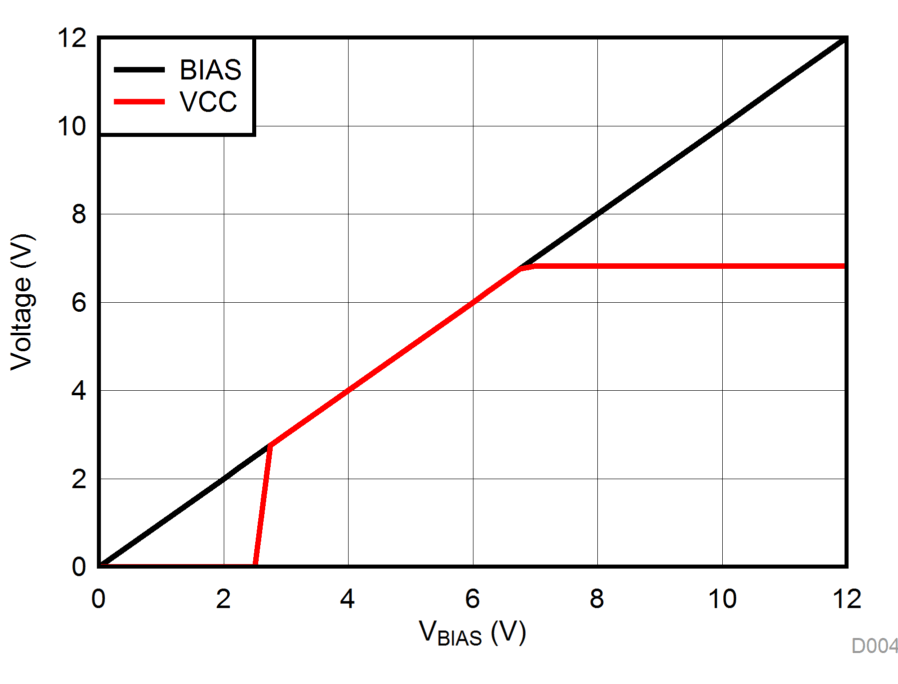

Figure 8-4 VVCC vs VBIAS (No Load)

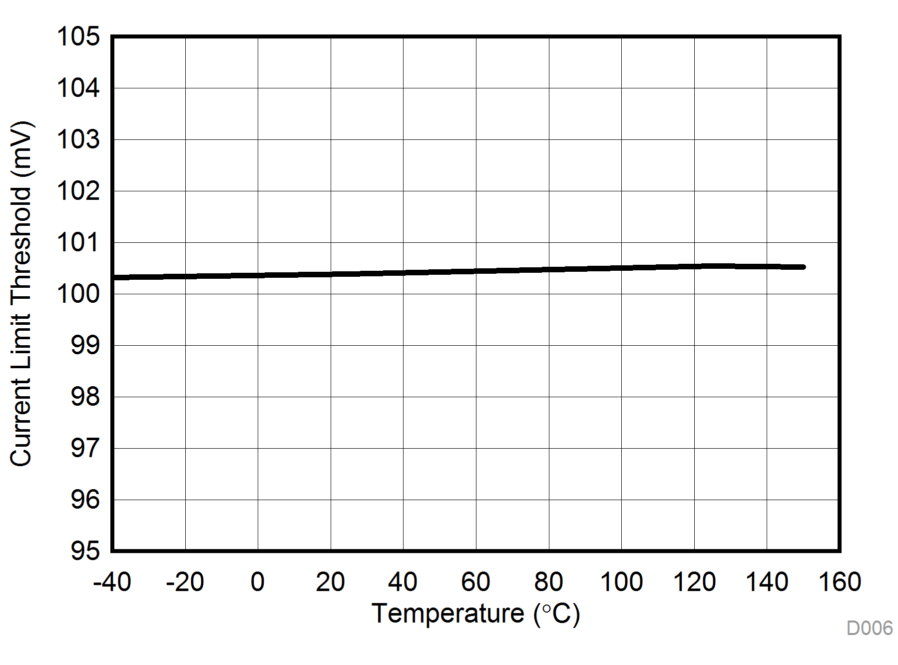

Figure 8-6 Current Limit Threshold vs Temperature

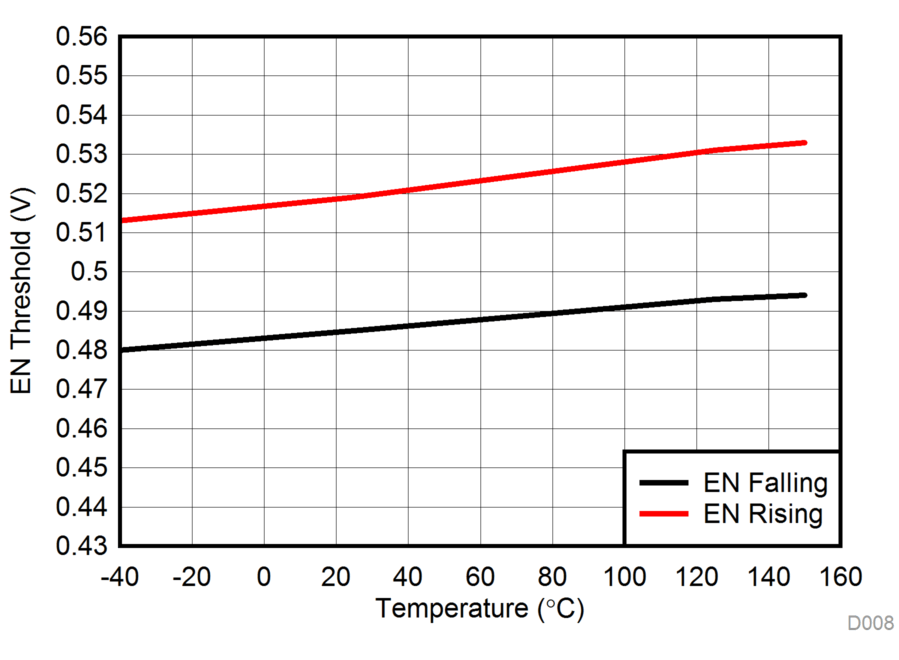

Figure 8-8 EN Threshold vs Temperature

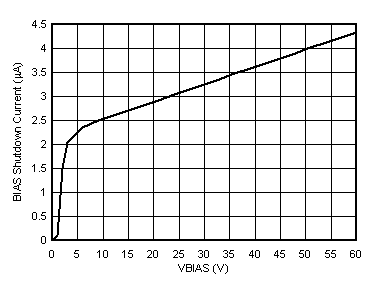

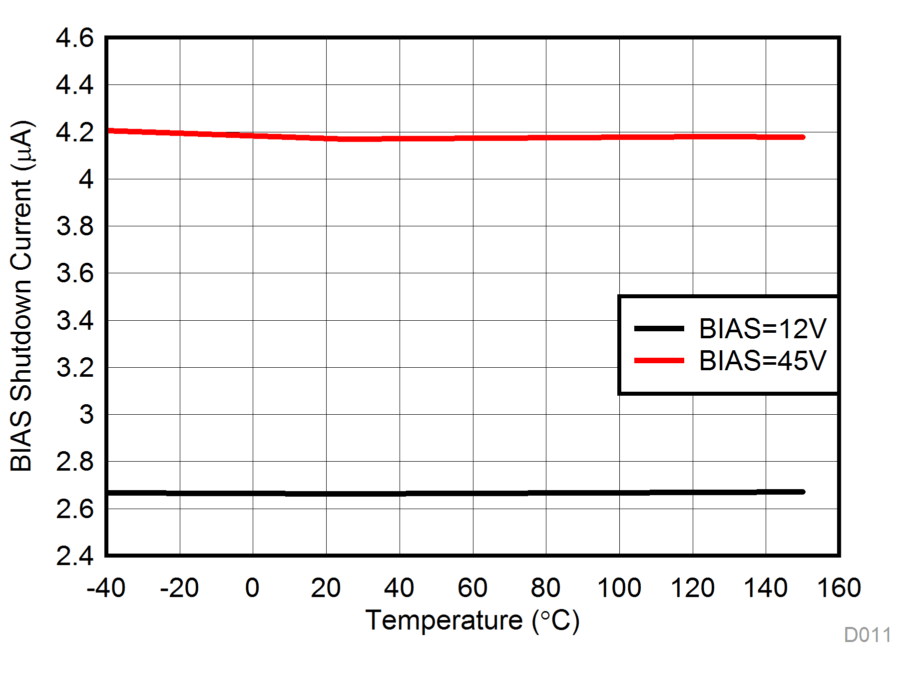

Figure 8-10 ISHUTDOWN(BIAS) vs VBIAS

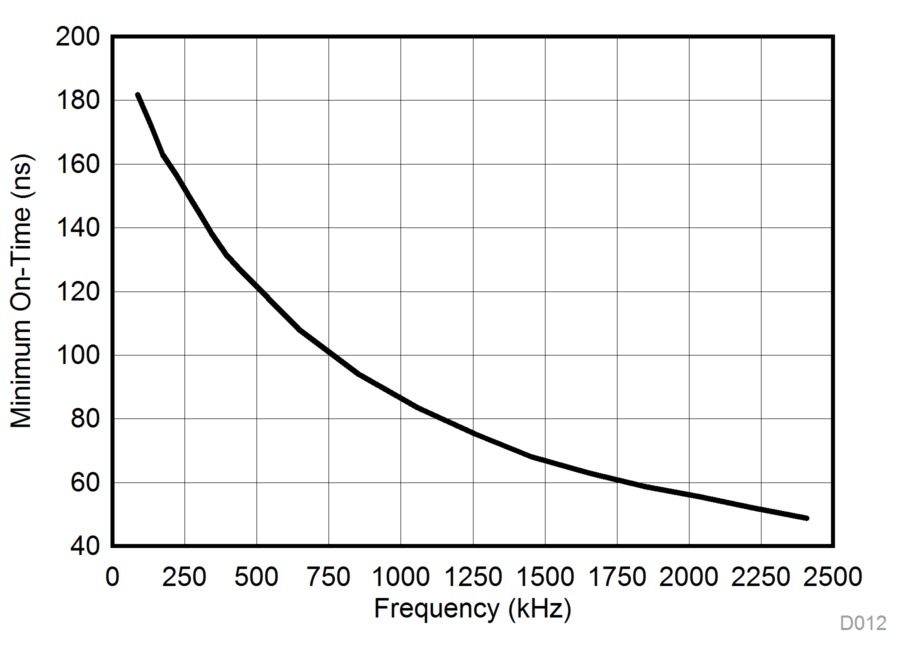

Figure 8-12 tON(MIN) vs Frequency

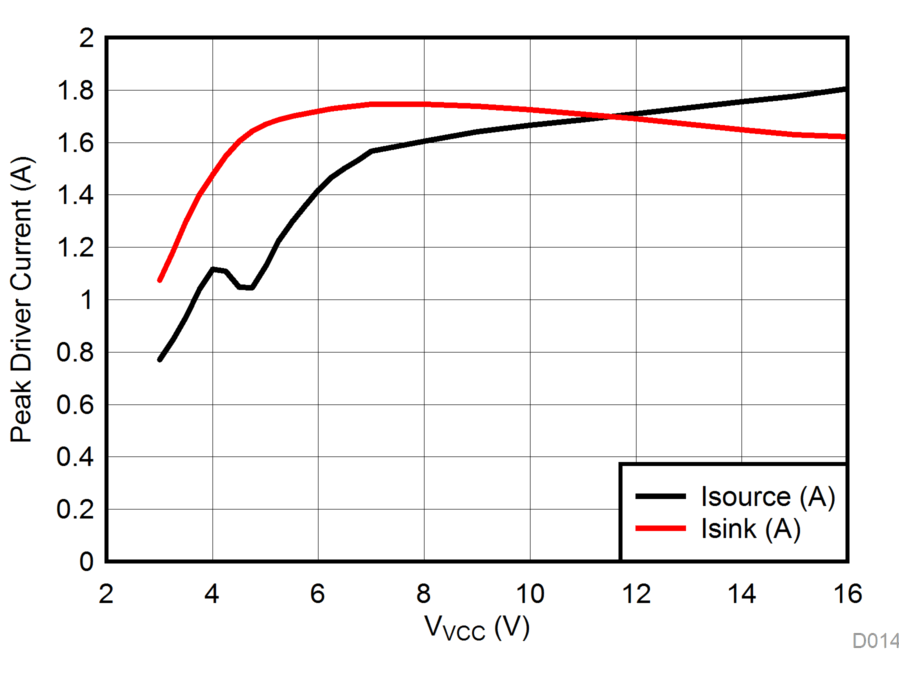

Figure 8-14 Peak Driver Current vs VCC

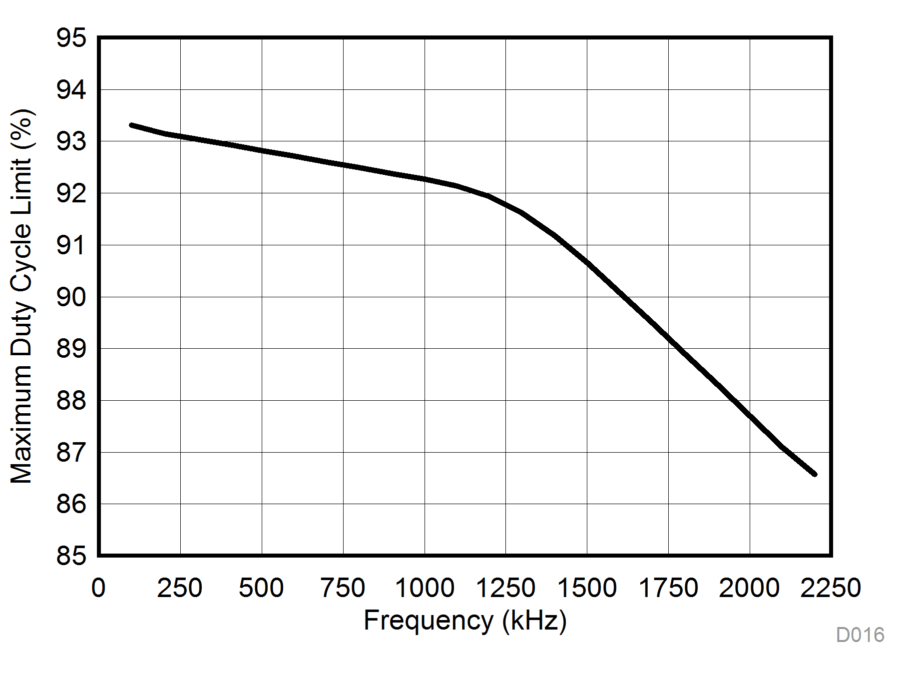

Figure 8-16 Maximum Duty Cycle vs Frequency
