9.3.17 Deep Sleep Mode and Bypass Operation (HO, CP Pin)
When SS is greater than 1.5 V, the device enters deep sleep mode after at least 40 μs in OVP status. The device re-enters active mode if VOUT falls down below VOVP. During bypass operation, the loss, which is caused by the body diode of the high-side MOSFET, is minimized. The high-side driver of the LM51521-Q1 does not turn on in the deep sleep mode. See Section 9.4.1.5 for more information.

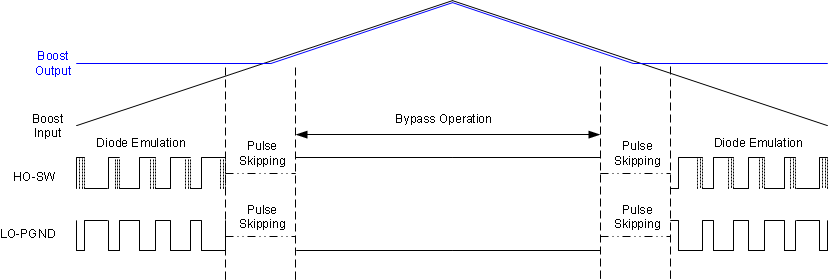

Figure 9-18 PWM to Bypass Transition in
CCM Operation

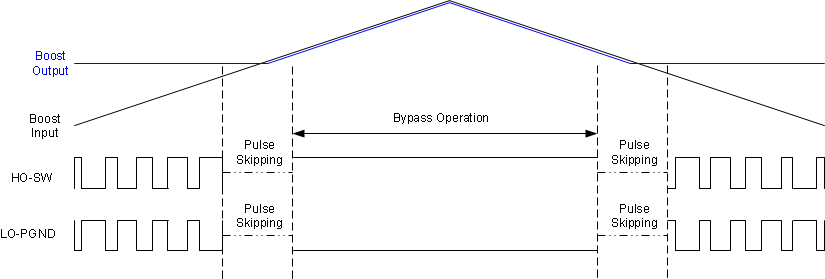

Figure 9-19 PWM to Bypass Transition in
DCM Operation
